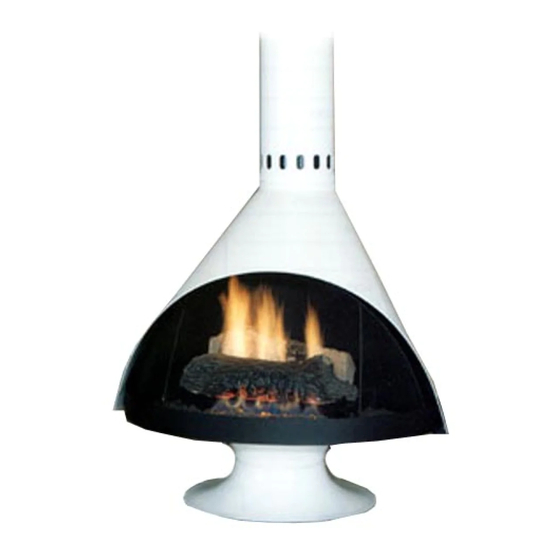

Malm Fireplaces Zircon 34 Assembly And Installation Instructions Manual

Hide thumbs Also See for Zircon 34:
Table of Contents

Advertisement

Quick Links

See also: Assembly and Installation Instructions Manual

Assembly And Installation Instructions

LEAVE THESE INSTRUCTIONS WITH THE OWNER.
Listed Vented Decorative Gas Appliance
Vented Gas Fireplace - Not for use with solid fuel
FOR YOUR SAFETY
Do not store or use
gasoline or other
flammable vapors
and liquids in the vi-
cinity of this or any
other appliance.
WARNING: Improper installation, adjustment, alteration, service or mainte-
nance can cause injury or property damage. Refer to this manual. For
assistance or additional information consult a qualified installer; service
agency or the gas supplier.
Do not use this appliance if any part has been under water. Immediately
call a qualified service technician to inspect the heater and replace any
part of the control system and any gas control that has been under water.
Malm Fireplaces, Inc.
Malm Fireplaces, Inc.
Malm Fireplaces, Inc.
Malm Fireplaces, Inc.
Malm Fireplaces, Inc.
368 Yolanda Avenue
Santa Rosa, Ca 95404
(707) 523-7755 - Fax: (707) 571-8036
Zircon 34
Open Windows
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a neigh-
bor's phone. Follow the gas supplier's instruc-
tions.
If you cannot reach your gas supplier; call the
fire department.
ANSI Z21.50-1996
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS

Advertisement

Table of Contents
loading

Related Manuals for Malm Fireplaces Zircon 34

Summary of Contents for Malm Fireplaces Zircon 34

  • Page 1: Assembly And Installation Instructions

    Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. 368 Yolanda Avenue Santa Rosa, Ca 95404 (707) 523-7755 - Fax: (707) 571-8036 Zircon 34 ANSI Z21.50-1996 Assembly And Installation Instructions LEAVE THESE INSTRUCTIONS WITH THE OWNER.

  • Page 2: General Information

    GENERAL INFORMATION This appliance has been tested in accordance with National Safety Standards for installation and operation as described in this manual. Please read all the instructions before beginning your installation. Check with your local building code agency to ensure compliance with local codes. In the absence of local codes the installation must comply with National Fuel Gas Code ANSI Z22.3.1.

  • Page 3: Vent Damper

    VENTING The unit is a vented appliance and must be connected to a chimney/flue in accordance with the code, using the chimney manufacturer's instructions. Minimum connector length is 4'. This appliance must not be connected to a chimney flue servicing a separate solid fuel burning appliance.

  • Page 4: Corner Installation

    CLEARANCES Make sure that minimum clearances to combustible materials are maintained during installation including adequate space for the proper operation and servicing of the heater. The minimum clearances from the appliance to combustibles are shown on figures 1 and 2. Place the appliance on a flat, solid, continuous surface (i.e.

  • Page 5: Venting Requirements

    Installation Instructions Do Not Install In A Mobile Home READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION. 1. Position unit to comply with the minimum clearances to combustible materials. Minimum clearances are shown in figures 1 and 2. It is recommended that no overhead cross members in the ceiling or roof be cut.
  • Page 6 Chimney Connector Instructions Support Box Support Box "B" Vent Ceiling Locking Cleat Slip Connector Slip Connector Mid Pipe Connector pipe must be a minimum of 48" Mid Pipe Unit Hood 1. The slip connector section has three locking cleats located at the top of the pipe. After the support box has been installed the slip connector is inserted into the bottom of the support box.

  • Page 7: For Your Safety Read Before Lighting

    OPERATING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. Follow these instructions exactly. This appliance has a pilot which must be lighted by hand. B.

  • Page 8: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS GENERAL SAFETY 1. Always shut off the gas supply and make sure that the heater is cool before starting any servicing operation. 2. Always check for leaks after servicing. 3. Always check for correct combustion and ventilation air flow. The flow of combustion air and ventilation air must not be obstructed.
  • Page 9 ITEM PART NO. DESCRIPTION MV-1 SIT 630 VALVE 630524 Natural Gas 630523 L.P. Gas MV-1A Valve Control MV-1B Piezo Igniter Button MV-5 Piezo Lighter Wire MV-6 Gas Line In MV-7 Thermocouple Wire MV-8 Pilot Supply Tube MV-9 Gas Line to Burner MV-10 Pilot AssemblySit 0145003...
  • Page 10 Logs have notches for proper placement on grate Figure F 12 3/4" 12 3/4" Support Box Frame In 13" x 13" Pilot Flame Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. 368 Yolanda Avenue Santa Rosa, Ca 95404...
