Malm Fireplaces, Inc.
Assembly And Installation Instructions
Read Instructions carefully before starting. Installation must comply with all local and national
codes. A building permit must be obtained before starting installation. All parts must be in place
or listing will be void.
Remove and set aside the smaller carton. It is not necessary to open this carton before moving it.
It is now possible to open the larger carton.
Carefully unpack all parts from cartons as directed below carefully inspecting all parts. If any parts
are damaged or missing, contact shipper or dealer immediately.
Do not install unit using damaged parts.
Screen Hinge
Screen
Side Wall Refractory Bricks
Screen Hinge
368 Yolanda Avenue, Santa Rosa, CA 95404
(707) 523-7747 - Fax: (707) 571-8036 info@malmfireplaces.com
Fire Drum 2
Assembly Instructions
Fiberglass strip

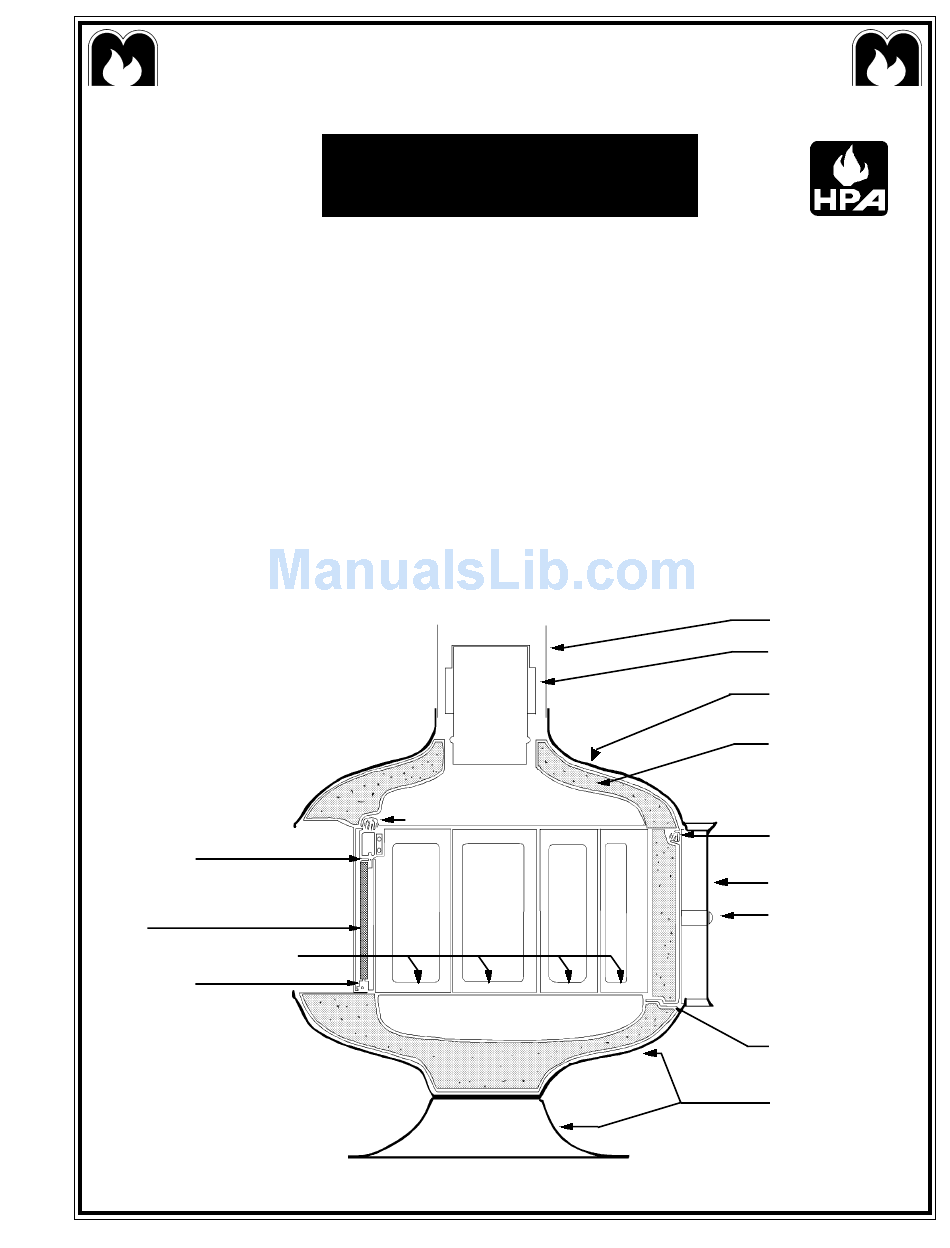

Illustration No. 1.
Tested to U/L Standards
1482 and 737
Damper Section
Connector Shield
Top Metal Hood
Top Refractory
Fiber Glass Strip
Optional Baffle
Baffle Spacer & Bolt
Groove in Bottom
Refractory
Bottom Fire - Bowl
Assembly
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Malm Fireplaces Fire Drum 2
Summary of Contents for Malm Fireplaces Fire Drum 2
-
Page 1: Assembly And Installation Instructions
Malm Fireplaces, Inc. 368 Yolanda Avenue, Santa Rosa, CA 95404 (707) 523-7747 - Fax: (707) 571-8036 info@malmfireplaces.com Fire Drum 2 Tested to U/L Standards 1482 and 737 Assembly And Installation Instructions Read Instructions carefully before starting. Installation must comply with all local and national codes. - Page 2 Fire Drum 2 Continued 1. Open the top of the larger carton. Remove the corner packing supports. Lift out the top metal hood and then lift out the top refractory casting. Be careful not to drop this refractory piece. Remove the center packing pad. It is not necessary to remove the bottom refrac- tory casting from the fire-bowl assembly, this should remain in place in the bottom fire-bowl assembly.
- Page 3 Fire Drum 2 Continued Illustration No. 3 baffles (if this unit included the optional convection baffles), the damper housing carton and the additional 9" X 24" connector flue pipe carton. 4. Refer to Illustrations No. 1 and No. 2 for identification of parts and relationships referred to in these Assembly Instructions.
- Page 4 Fire Drum 2 Continued NOTE: For units ordered with optional convection baffles, installation of the baffle attachment hardware must be done at this point. Connect the four (4) spacers to the body in the holes provided. The hex head bolt should be to the inside. Tighten the hex head bolt to a firm, tight condition using a 9/16"...
- Page 5 Fire Drum 2 Continued Illustration No. 4 metal hood collar making sure that the slots around the circumference of the pipe are immediately above the collar of the fireplace unit. The damper plate contained in the damper housing should now rotate at least 90 degrees. That is, from a horizontal position to a vertical position.
-
Page 6: Installation Instructions
Fire Drum 2 Continued Installation Instructions Do Not Install In A Mobile Home. READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION. 1. Position unit to comply with the minimum clearances to combustible materials. Minimum clearances are shown from the chimney connector. It is recommended that no overhead cross members in the ceiling or roof be cut. - Page 7 Note: We do NOT System recommend use of the 8 inch chimney system with elbowed single-story installations of the Fire Drum 2, as more height is needed for Chimney Con- adequate draft. nector Elbows aren't normally neces- sary in single story buildings in any case.
- Page 8 Fire Drum 2 Continued 3. A non-combustible hearth extension (floor protector) must be installed under the unit. This extension must 5 1/2" 5 1/2" be a minimum of 3/8 inch thick non- combustable material such as brick, concrete, slate, ceramic tile, or a 5 1/2"...
- Page 9 Fire Drum 2 Continued Insulated Pipe Insulated Class "A" Chimney Ceiling System Single Wall Chimney Adapter Sheet Metal 9" to 8" Slip Connector. Sheet Screw Metal Screw to Chimney Con- nector. 8" to 9" Slip Dura-Vent Universal Adapter, Connector Security UP Adapter, Metal-...
- Page 10 Fire Drum 2 Continued 2" Clearance From Studs To Chimney Wall Header 12" Of Brick From Liner To Combustables 5/8" Fireclay Liner Minimum or Equivalent 12" Minimum Sill/Support 12" Minimum MASONRY THIMBLE Masonry Chimney If using a masonry chimney, it must meet the minimum standards of the National Fire Protection Association (NFPA) Standard 211.
-
Page 11: In Case Of A Chimney Fire
Fire Drum 2 Continued OPERATING INSTRUCTIONS Failure to properly use and maintain this appliance may void the manufacturer's warranty and could result in a house fire. WARNING: This free standing fireplace is a heat producing appliance and may cause severe burns if touched. Keep children away. -
Page 12: Maintenance Instructions
Fire Drum 2 Continued MAINTENANCE INSTRUCTIONS Failure to properly use and maintain this appliance may void the manufacturer's warranty and could result in a house fire. 1. Always keep the area around the unit clean and clear of furniture and other objects. Keep all furniture a minimum of 48 inches away from the heater.
