Malm Fireplaces, Inc.
Malm Fireplaces, Inc.
Malm Fireplaces, Inc.
Malm Fireplaces, Inc.
Malm Fireplaces, Inc.
368 Yolanda Avenue - Santa Rosa, Ca 95404

Assembly And Installation Instructions

LEAVE THESE INSTRUCTIONS WITH THE OWNER.
Listed Vented Decorative Gas Appliance
Open Windows
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a neigh-
bor's phone. Follow the gas supplier's instruc-
tions.
If you cannot reach your gas supplier; call the
fire department.
WARNING: Improper installation, adjustment, alteration, service or mainte-
nance can cause injury or property damage. Refer to this manual. For
assistance or additional information consult a qualified installer; service
agency or the gas supplier. Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other appliance.
Do not use this appliance if any part has been under water. Immediately
call a qualified service technician to inspect the heater and replace any
part of the control system and any gas control that has been under water.
(707) 523-7755 - Fax: (707) 571-8036

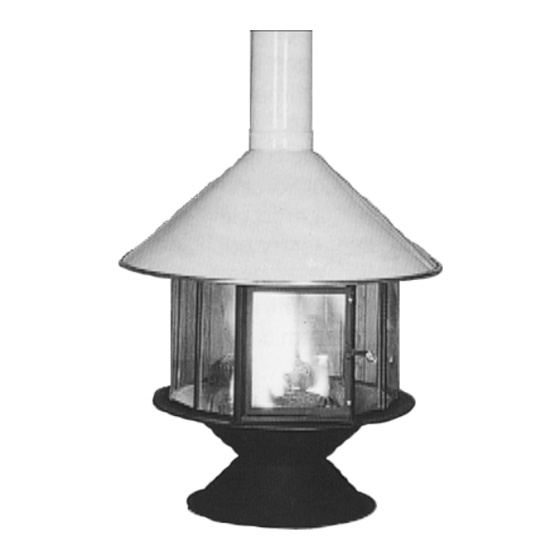

Gas Carousel
Report No. J960002431-231
ANSI Z21.50-1996
CAN/CGA 2.22-M96
Vented Gas Fireplace
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gas Carousel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Malm Fireplaces Gas Carousel

  • Page 1: Assembly And Installation Instructions

    Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. 368 Yolanda Avenue - Santa Rosa, Ca 95404 (707) 523-7755 - Fax: (707) 571-8036 Gas Carousel Report No. J960002431-231 ANSI Z21.50-1996 CAN/CGA 2.22-M96 Vented Gas Fireplace Assembly And Installation Instructions LEAVE THESE INSTRUCTIONS WITH THE OWNER.
  • Page 2: General Information

    GENERAL INFORMATION This appliance has been tested in accordance with National Safety Standards and has been certified by Warnock Hersey for installation and operation as described in this manual. Please read all the instructions before beginning your installation. Check with your local building code agency to ensure compliance with local codes.
  • Page 3: Vent Damper

    VENTING The unit is a vented appliance and must be connected to a chimney/flue in accordance with the code, using the chimney manufacturer's instructions. Minimum connector length is 4'. This appliance must not be connected to a chimney flue servicing a separate solid fuel burning appliance.
  • Page 4: Corner Installation

    CLEARANCES Make sure that minimum clearances to combustible materials are maintained during installation including adequate space for the proper operation and servicing of the heater. The minimum clearances from the appliance to combustibles are shown on figures 1 and 2. Place the appliance on a flat, solid, continuous surface (i.e.
  • Page 5 Glass Installation Wear eye protection during the assembly of this unit. Check all glass and parts for damage. Replace any damaged parts prior to continuing the installation. Do not assemble this unit with any damaged parts. If you should happen to break a glass panel, it must only be replaced with ceramic glass. 1.
  • Page 6: Venting Requirements

    Installation Instructions Do Not Install In A Mobile Home READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION. 1. Position unit to comply with the minimum clearances to combustible materials. Minimum clearances are shown in figures 1 and 2. It is recommended that no overhead cross members in the ceiling or roof be cut.
  • Page 7 Chimney Connector Instructions Insulated Pipe 8" Insulated Class "A" Chimney System Ceiling Single Wall Chimney Support Box Adapter Sheet Metal Screw Slip Connector Slip Connector. Sheet 30" Metal Screw to Chimney Connector. 2 - 8" x 30" Pipe Secions " Are Included.
  • Page 8: For Your Safety Read Before Lighting

    OPERATING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. Follow these instructions exactly. This appliance has a pilot which must be lighted by hand. B.
  • Page 9: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS GENERAL SAFETY 1. Always shut off the gas supply and make sure that the heater is cool before starting any servicing operation. 2. Always check for leaks after servicing. 3. Always check for correct combustion and ventilation air flow. The flow of combustion air and ventilation air must not be obstructed.
  • Page 10 ITEM PART NO. DESCRIPTION MV-1 SIT 630 VALVE 630524 Natural Gas 630523 L.P. Gas MV-5 Piezo Lighter Wire MV-6 Gas Line In MV-7 Thermocouple Wire MV-8 Pilot Supply Tube MV-9 Gas Line to Burner MV-10 Pilot Assembly Sit 0145003 MV-11 Piezo Lighter Electrode MV-12 Pilot Hood...
  • Page 11 Stealth Burner î ç Air Shutter Figure F Pilot Flame Log Placement Side View Log Placement Top View Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. Malm Fireplaces, Inc. 368 Yolanda Avenue Santa Rosa, Ca 95404...
