User Manual
DOOR PHONE DP-2S
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
www.safemag.ru
www.safemag.ru
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax DP-2S
Summary of Contents for Commax DP-2S
-
Page 1: User Manual
User Manual DOOR PHONE DP-2S • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
www.safemag.ru Contents Introduction ............2 Important Safeguard ...........3 1. Parts names............4 2. Wiring..............5 3. Installation............6 4. Caution ............7 5. Operation ............7 6. Specification ...........8 www.safemag.ru... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguard
www.safemag.ru 2. Important Safeguards ▲ Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service personnel under the following conditions: ⓐ when the power is damaged. ⓑ if liquid has been spiled or objects have hallen into the unit ⓒ... -
Page 5: Parts Names

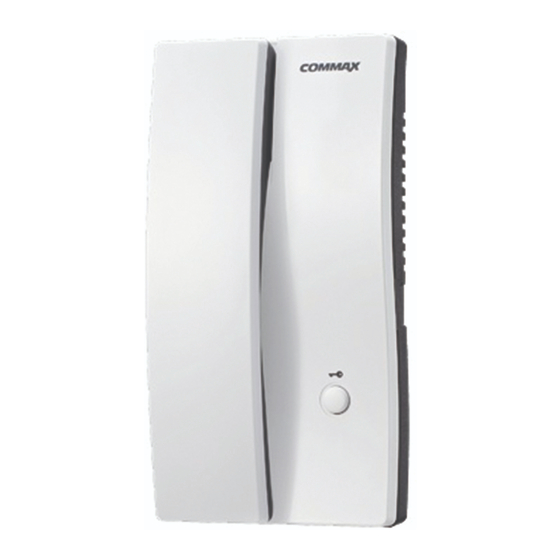

www.safemag.ru 3. Overview ① VOLUME CONTROL ② HANDSET ③ DOOR RELEASE BUTTON ④ S-CORD ⑤ POWER CORD www.safemag.ru... -
Page 6: Wiring
www.safemag.ru 4. Wiring AC220V •Non polarity wiring with Sub Unit(1) and Master Unit (2). •Door Release(3) should be provided with additional power source. www.safemag.ru... -
Page 7: Installation
www.safemag.ru 5. Installation www.safemag.ru... -
Page 8: Caution
www.safemag.ru 6. Caution • It is only available with wall mount-type, not for desk type. • Please do not install the product in the following place. >>> Where there is much humidity and big difference in temperature. >>> Where there is much sunlight and rain. >>>... -
Page 9: Specification
6. Specification model DP-2S Power Source 100/110/120/220/230/240V~, 50/60Hz Consumption Power 4.5W(MAX) Distance 100m(Ø0.65mm), 150m(Ø0.8mm) Wiring Call : 2-wire, DoorRelease : 2-wire(Ø1.6mm Copper wire) Dimension(mm) 108(W)°X210(H)°X61.4(D)mm Weight(g) 640g www.safemag.ru... - Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2012.03.105 www.safemag.ru...
