Pearl VX141MS Owner's Manual

Masonry saw
Hide thumbs Also See for VX141MS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

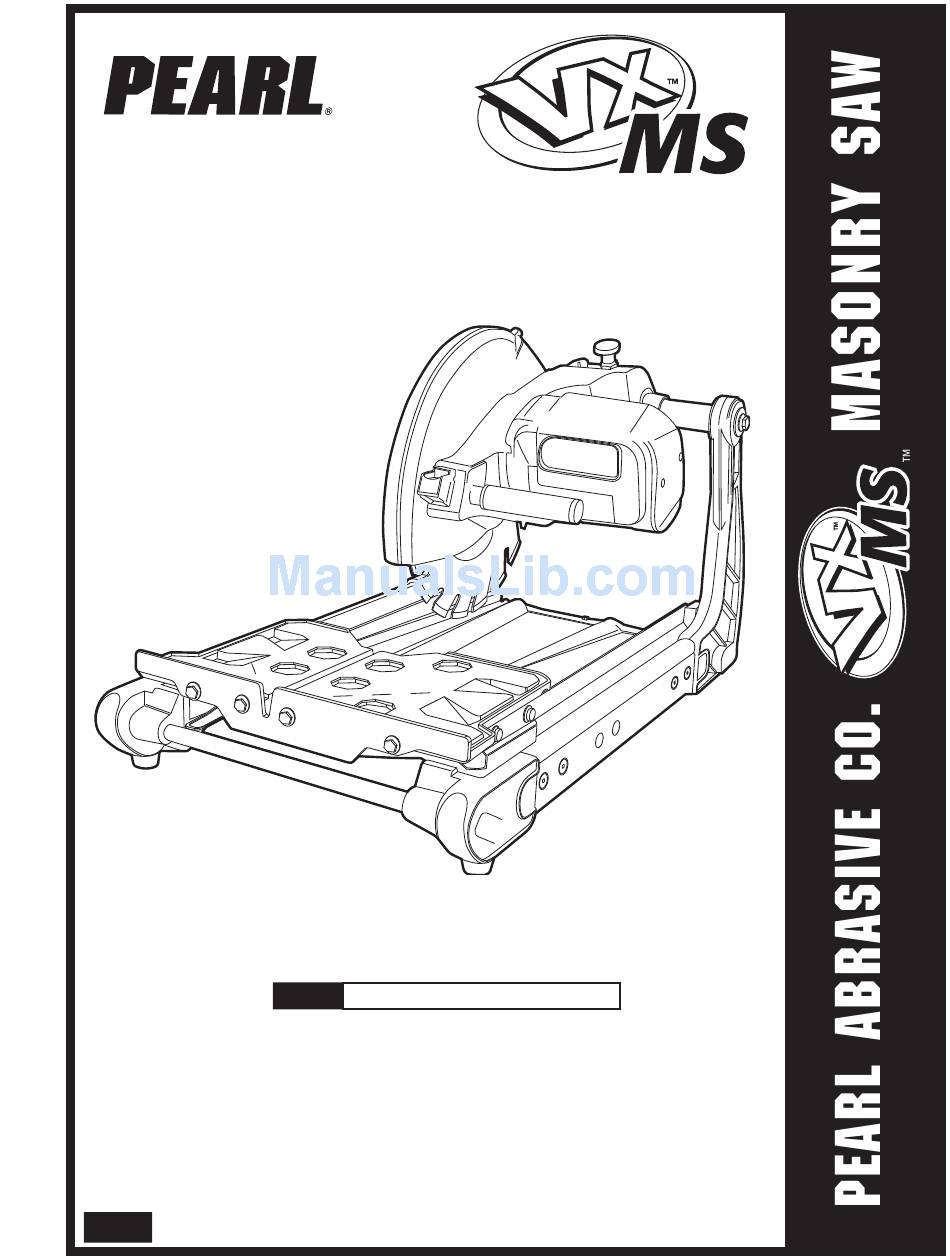

MODEL VX141MS™
MASONRY/BRICK SAW
Owner's/OperatOr's Manual
Caution!
Read Safety and General Instructions carefully before using saw for the first time.
REV. 2
serial
number -
You should record the Serial Number of your Saw on this
Owner's/Operator's Manual and on the Warranty Card. The Warranty
Card must be sent back with all the required pertinent information
for the warranty to take effect.
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX141MS and is the answer not in the manual?

Questions and answers

Related Manuals for Pearl VX141MS

Summary of Contents for Pearl VX141MS

  • Page 1 ™ MODEL VX141MS™ MASONRY/BRICK SAW Owner’s/OperatOr’s Manual serial number - You should record the Serial Number of your Saw on this Owner’s/Operator’s Manual and on the Warranty Card. The Warranty Card must be sent back with all the required pertinent information for the warranty to take effect.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS page general saFetY rules FOr all pOwer tOOls ....... 3 sYMBOls .

  • Page 3: General Safety Rules For All Power Tools

    i. GENERAL SAFETY RULES FOR ALL POWER TOOLS W RNING! Read all instructions. As with all machinery there are certain hazards involved with operation and use of the machine. The following basic safety precautions should be followed at all times to reduce the risk of fire, electric shock and serious personal injury to you or others.

  • Page 4: Symbols

    21. Extension cords. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Extension cord tables (refer to page 12) show the correct size to use depending on cord length and nameplate ampere rating.

  • Page 5: Features

    FEATURES The VX141MS Masonry saw is designed for the professional contractor in mind. I enhances performance with a multitude of features facilitating operation. REINFORCED RIGID FRAME contruction provides steady precision cutting POWERFUL 3 HP (AT PEAK) Carbon Brush motor cuts large...

  • Page 6: Unpacking

    v. UNPACKING Open the container. Carefully lift the saw out evenly by the frame. Be certain you have the following items before you discard the container: • Saw • Extra air filter • 14" saw blade • 45º/90º rip guide •...
  • Page 7 OPER TION 3. Simply line up the material being cut with the appropriate pre-marked lines on the cutting To operate the VX141MS as a chop or plunge saw: table. pull up on the Angle Lock Pin, rotate 90 degrees, and release.

  • Page 8: Proper Blade Use

    • Use proper safety equipment when operating the saw. manufacturer. viii. CARBON BRUSH REPLACEMENT The VX141MS Masonry Saw uses a high horsepower low 5. Use a coin or wide blade screw driver to remove the amperage air cooled brush motor.

  • Page 9: Air Filter

    AIR FILTER The VX141MS Masonry Saw is equipped with a specially designed air filter to help protect the motor from the damage due to high speed dust intake during operation. IR FILTER REPL CEMENT CLE NING THE IR FILTER...

  • Page 10: Replacement Parts List

    xi. REPLACEMENT PARTS LIST xii. ACCESSORIES & PARTS Name (Qty.) Name (Qty.) Name (Qty.) Complete 45˚/90˚ Rip Guide with Knob (1) (Optional) Master Guide (1) (Optional) Angle Guide (1) Part Number Part Number Part Number V35000 V370064 V370060 Knob Only (1) V35016 –...
  • Page 11 PART NAME PART NUMBER PART NAME PART NUMBER Screw M10XP1.5X20L V390001 Blade Shaft BBM/YMN307 V390033 Blade Guard V390002 33.1 Key Woodruf V390033.1 Arbor Cover BBM/YBM307 V390003 Gear Blade shaft V390034 Cross Bar Position Tube (Long) 2 V390004 Bearing Motor Inner V390035 Blade Lock Bolt M10X20 1.25 DIN933 V390005...

  • Page 12: Electrical Motor Specifications

    xiii. ELECTRICAL MOTOR SPECIFICATIONS Horsepower 3 HP Recommendations: Volts 115V/230V • It is recommended that a 15 amp circuit be used while operating this saw. Amps This will prevent possible power interruption or loss. Motor RPM 3,600 rpm • Always plug saw as close as possible to the power source while operating. Cycle 60 Hz This will allow you to receive optimum electricity.

  • Page 13: Xv.troubleshooting

    xv.TROUBLESHOOTING For your safety and the safety of others, turn the power switch off and always remove the W RNING! plug from power source before troubleshooting. Repairs performed by unauthorized personnel could cause serious hazard. We recommend that service to this tool be performed by a qualified service technician with original equipment replacement parts.
  • Page 14 Problem Possible Cause Solution Irregular run of the saw blade. Poor tension in the blade Return the saw blade to the material. manufacturer. Excessive wear. Wrong type of saw blade. Use harder saw blades. Shaft of motor causes wobbling. Have bearings of the motor of the motor replaced.

  • Page 15: Xvi.the Right Blades Does The Right Job

    Pearl reserves the right to discontinue products at any time without notice. All illustrations displayed in this manual are the property of Pearl Abrasive Co. and shall not be duplicated or reproduced without the express written consent of Pearl Abrasive Co.
  • Page 16 CORPORATE OFFICE: SO. CALIFORNIA • USA 6832 E. SLAUSON AVENUE, COMMERCE, CA 90040-0031 562-927-5561 • FAX 562-928-3857 Toll Free: 800-969-5561 www.pearlabrasive.com GEORGIA • USA ONTARIO • CANADA 3950 STEVE REYNOLDS BLVD. 375-2 PIDO ROAD NORCROSS, GEORGIA 30093 PETERBOROUGH, ONTARIO K9J-6X7 Part No. VX141MS • 02/16...
