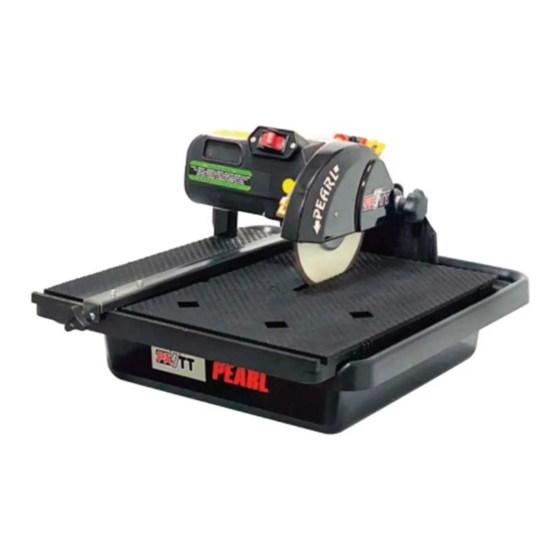

7" PROFESSIONAL TABLETOP WET
TILE SAW - MODEL PA7TTR™
OWNER'S/OPERATOR'S MANUAL
RENTAL
Caution!
Read Safety and General Instructions carefully before using saw for the first time.
REV. 1
serial
number -
You should record the Serial Number of your Tile Saw on this Owner's/Operator's Manual
and on the Warranty Card. The Warranty Card must be sent back with all the required
pertinent information for the warranty to take effect.
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA7TTR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pearl PA7TTR

Summary of Contents for Pearl PA7TTR

  • Page 1 7" PROFESSIONAL TABLETOP WET TILE SAW - MODEL PA7TTR™ OWNER’S/OPERATOR’S MANUAL RENTAL serial number - You should record the Serial Number of your Tile Saw on this Owner’s/Operator’s Manual and on the Warranty Card. The Warranty Card must be sent back with all the required pertinent information for the warranty to take effect.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE GENERAL SAFETY RULES FOR ALL POWER TOOLS ......3 SYMBOLS .

  • Page 3: General Safety Rules For All Power Tools

    i. GENERAL SAFETY RULES FOR ALL POWER TOOLS WARNING! Read all instructions. As with all machinery there are certain hazards involved with operation and use of the machine. The following basic safety precautions should be followed at all times to reduce the risk of fire, electric shock and serious personal injury to you or others.

  • Page 4: Symbols

    21. Extension cords. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

  • Page 5: Features

    iii. FEATURES 3/4 HP MOTOR Generates more torque and is physically smaller and lighter than similarly rated induction motors. WATER PUMP A high-output water pump provides sufficient water RE-USABLE AIR FILTER flow to cool the blade. Air intake to the motor is filtered by a fire resistant filter, which can be cleaned and re-used.

  • Page 6: Unpacking

    v. UNPACKING Open the container and carefully lift the saw by the foam packaging and place it on a flat, level working area. Be sure that you have the following items before you discard the container: • Saw • ABS Water tray •...
  • Page 7 WATER PUMP INSTALLATION 1. Remove the water pump from the box and 2. The reinforced nylon cutting table spans an area of check that it is not damaged. 16-1/8 x 17-3/8, which allows it to provide greater support for handling larger materials. 2.

  • Page 8: Proper Blade Use

    vii. PROPER BLADE USE WET CUT BLADES – 8 –...

  • Page 9: Safe Operating Practices For Tile Saw

    Never use a blade having a • The blade stops cutting or noticeably slows down. maximum operating speed lower than the “No load Blade dressing stones are available from your local Pearl R.P.M.” marked on the tool nameplate. Do not operate Warehouse.
  • Page 10 • Never use the side of the blade to cut or grind IMPORTANT - If there is any tendency for the saw to tip with, only cut in a straight line. or move during certain operations, such as when cutting large heavy tile; the saw must be securely •...
  • Page 11 looks like the adaptor illustrated in Figures 5(B) and 5(C), may be 9. Extension Cords used to connect the GFCI plug to a 2-pole receptacle, as shown in • If an additional extension cord is needed, use only a cord that Figure 5(B), if a properly grounded outlet is not available.

  • Page 12: Care And Maintenance

    ix. CARE AND MAINTENANCE WARNING! For your safety before performing any maintenance on the saw turn off the power switch and unplug the power cord. GENERAL RULES CLEANING After every use of the machine: • Always clean the machine before performing any maintenance/ repair.
  • Page 13 EXTREME TEMPERATURE REALIGNMENT This procedure deals with the most common source of Ambient temperature below 32° F (Winter): misalignment that occurs when the guide rails are not • To prevent the water in the pump and cooling system from parallel with the blade. freezing, remove the water after using the machine or when Slightly loosen the screws (2) on the rip guide.

  • Page 14: Electrical Motor Specifications

    ELETRICAL MOTOR SPECIFICATIONS Recommendations: PA7TTR TILE SAW • It is recommended that a minimum 7.5 amp circuit be used while operating Horse Power 3/4 HP this saw. This will prevent possible power interruption or loss. Volts 120 V, 60hz •...

  • Page 15: Replacement Parts List

    xi. REPLACEMENT PARTS LIST PA-7TTR MAIN ASSEMBLY PART NAME QTY PART NUMBER Post 1 PA171214 M8 x 1.25 x 50L Socket hex bolt 2 PA720009 Cutting head assembly 1 PA171054 Cutting head adjustment shim 8 PA171038 M8 x 1.25 x 16L Flat point set screw 2 PA420274 M8 x 1.25 Acorn nut 2 PA420015...
  • Page 16 PA-7TTR MOTOR ASSEMBLY PART NAME QTY PART NUMBER Motor replacement kit PA171012 20A 125V/12A 250V Toggle switch CX38085 M4 x 1.59 x 8L cross tapping screw PA230168 Blade shaft gear PA00023 Cutting head housing PA171008VX Blade shaft PA171037 Rear fan cover PA00064 Gear cover PA00027...
  • Page 17 PA-7TTR BLADE GUARD ASSEMBLY PART NAME QTY PART NUMBER M3 Standard rivet PA100053 Retaining clip (Ø3.3mm mount hole) PA100055 D8 90 Degree elbow hose connector PSV00008 D8 Female quick disconnect T-adapter PSV00005 M6 x 1.0 x 16L Hex bolt PA11089 D8 flexible hose /feet S1000-20.1 M6 Narrow washer...

  • Page 18: Troubleshooting

    Blade dressing stones are available MAIN TABLE DOES NOT MOVE FREELY. Inspect the guide from your local Pearl Warehouse. rails and rollers for build up of tile chips or dry slurry deposits. Clean and MOTOR WILL NOT START.

  • Page 19: The Right Blades Does The Right Job

    Pearl reserves the right to discontinue products at any time without notice. All illustrations displayed in this manual are the property of Pearl Abrasive Co. and shall not be duplicated or reproduced without the express written consent of Pearl Abrasive Co.
  • Page 20 CORPORATE OFFICE: SO. CALIFORNIA • USA 4900 ZAMBRANO ST., COMMERCE, CA 90040-0031 562-927-5561 • FAX 562-928-3857 Toll Free: 800-969-5561 www.pearlabrasive.com GEORGIA • USA ONTARIO • CANADA 3950 STEVE REYNOLDS BLVD., 375-2 PIDO ROAD NORCROSS, GEORGIA 30093 PETERBOROUGH, ONTARIO K9J-6X7 Part No. PA7TTMAN • 09/22...
