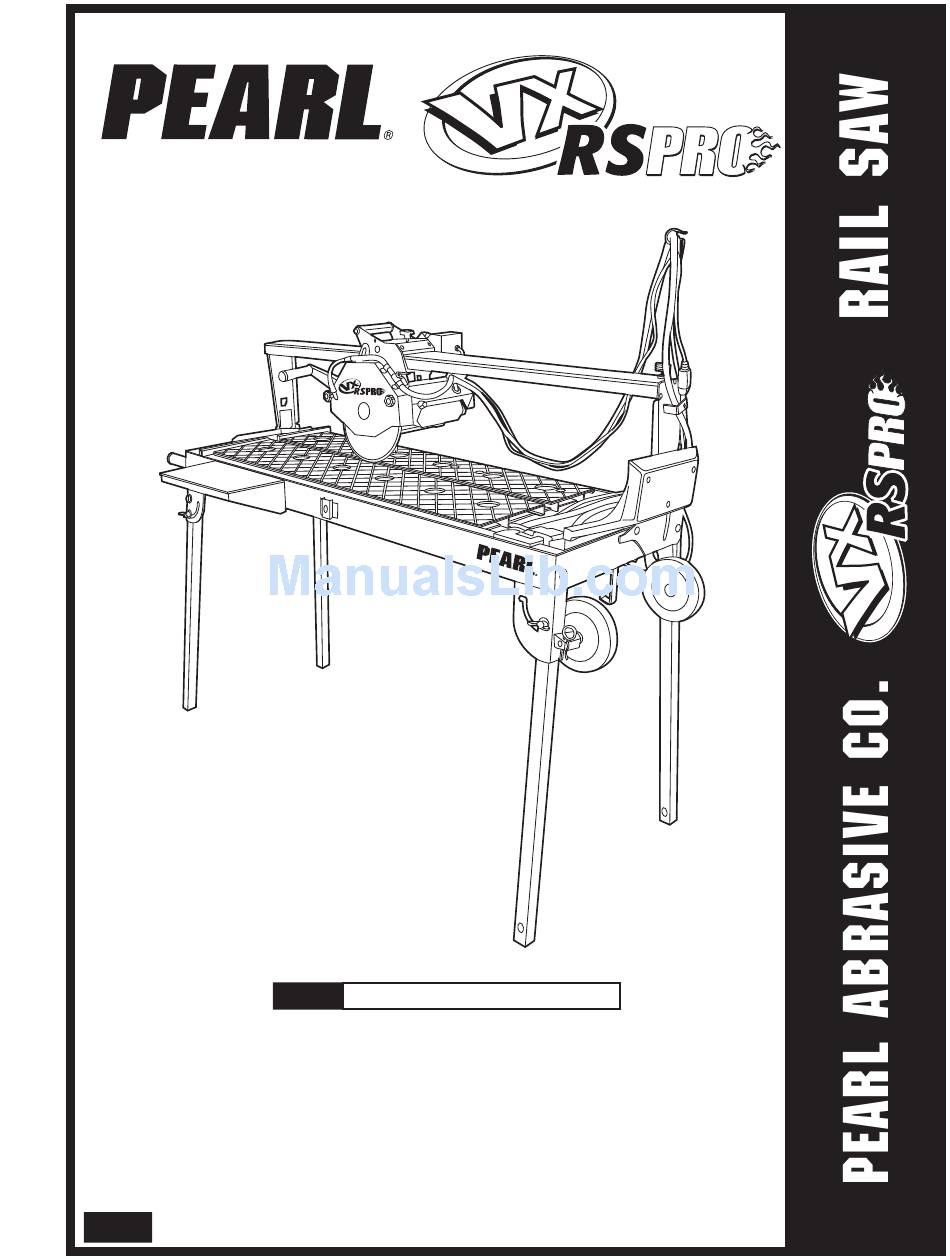

MODEL VX10RSPRO RAIL SAW
OWNER'S/OPERATOR'S MANUAL
Caution!
Read Safety and General Instructions carefully before using saw for the first time.
REV. 1
serial
number -
You should record the Serial Number of your saw on this
Owner's/Operator's Manual and on the Warranty Card.
The Warranty Card must be sent back with all the required
pertinent information for the warranty to take effect.
Patents Pending
Assembled in U.S.A.
Advertisement
Table of Contents
Related Manuals for Pearl VX10RSPRO
Summary of Contents for Pearl VX10RSPRO
- Page 1 MODEL VX10RSPRO RAIL SAW OWNER’S/OPERATOR’S MANUAL serial number - You should record the Serial Number of your saw on this Owner’s/Operator’s Manual and on the Warranty Card. The Warranty Card must be sent back with all the required pertinent information for the warranty to take effect.
-
Page 2: Table Of Contents
i. TABLE OF CONTENTS PAGE GENERAL SAFETY RULES AND PRECAUTIONS ........3 iii. -
Page 3: General Safety Rules And Precautions
ii. GENERAL SAFETY RULES AND PRECAUTIONS W RNING! Read all instructions. As with all machinery there are certain hazards involved with operation and use of the machine. The following basic safety precautions should be followed at all times to reduce the risk of fire, electric shock and serious personal injury to you or others. Keep these important operating instructions with this product. - Page 4 21. Extension cords. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. If in doubt, use the next heavier gage. The smaller the gage numbers the heavier the cord.
-
Page 5: Health Warnings
FEATURES The Pearl VX10RSPRO is a professional saw for cutting floor tiles, paving stones, stairs, large-sized natural stones, and similar materials. Position lock... -
Page 6: Specifications
SPECIFICATIONS VX10RSPRO R IL S W BLADE CUTTING CUTTING DIMENSIONS* MOTOR WEIGHT CAPACITY LENGTH DEPTH (legs folded) 1-1/2 HP 8"-10" Blade 40" rip cut, 8": 1-1/2" 172 lbs. L: 33.1" 5/8" arbor blade 28" diagonal cut 10": 2-5/8" W: 18.7"... - Page 7 SSEMBLY & SET-UP 5. Install the side extension table, side splash guard Remove the carton box cover by lifting the upper and back splash guard. cover. 6. Install the spring holder on top of the sliding rail to Locate the accessory box and open it. Obtain the two hold the power cable and the water hose.
- Page 8 S W ST ND SSEMBLY FOLDING STAND Cutting head carriage knob 1. It is recommended that adjusting the folding leg be done by at least two people. Remove the detachable wheel assembly and stow it on the frame. Shift the cutting head away from the end of the frame where the leg is being adjusted.
-
Page 9: Blade Installation
vii. BLADE INSTALLATION W RNING! Disconnect Knurled the power plug before installing Nuts the blade onto the blade shaft. W RNING! Setting the blade too low may damage the cutting table and if set too high, the blade may grab the material being cut, causing damage and possibly injury. -
Page 10: Side Table & Splash Guard Installation
xi. OVERFLOW PLUG ix. SIDE TABLE & SPLASH INSTALLATION GUARD INSTALLATION Install the side table and splash guard as shown in A tube at the rear end of the saw filters the debris from the illustration to the side. Fasten the knobs/screws the water produced during the cutting operation. -
Page 11: Operating The Saw
xiii. OPERATING THE SAW 1. After you have made yourself familiar with the 1. Before starting the cut, the cutting head must be components of your saw, the machine has been fully raised. Be sure to grasp the plunge handle properly set up, the bucket or water tray is filled extending from the blade guard. -
Page 12: Choosing The Right Blade
Choose the correct type of saw blade for the material to be cut and the required cutting depth. THE RIGHT BLADE DOES THE RIGHT JOB For the most effective cutting and blade life always use the recommended Pearl Abrasive Co. blade. APPLICATION PEARL... -
Page 13: Electric Motor Specifications
xv. ELECTRICAL MOTOR SPECIFICATIONS Horse Power 1-1/2 hp Recommendations: Volts 115 V/ 60hz • It is recommended that a 15 amp circuit be used while operating this saw. Amps 15 amps This will prevent possible power interruption or loss. Motor RPM 3,450 rpm •... -
Page 14: Care And Maintenance
xvii. CARE AND MAINTENANCE W RNING! For your safety before performing any maintenance on the saw, turn off the power switch and unplug the power cord. GENERAL RULES AFTER WET CLEANING AND BEFORE USING THE SAW AGAIN: • Always clean the machine before maintenance/ repair. •... -
Page 15: Xviii.water Pump Maintenance
xviii.WATER PUMP MAINTENANCE W RNING! For your safety before performing any maintenance on the saw, turn off the power switch and unplug the power cord. When the machine has not been used for a long period 5. The fan can be removed by using pliers to pull it of time, hard packed dirt may begin to build up inside off. -
Page 16: Alignment Instructions
xix. ALIGNMENT INSTRUCTIONS (cont.) METHOD 2: BRIDGE bolts enough that the lower sub-assembly can move, changing the blade shaft's orientation. The 1. Loosen the bolts that secure the bridge (Fig. 2). fourth bolt is the pivoting bolt and does not have DO NOT REMOVE THE BOLTS AS THE BRIDGE to be loosened. -
Page 17: Xx.troubleshooting
xx.TROUBLESHOOTING PROBLEM POSSIBLE C USE SOLUTION - Power cord not properly - Check that the machine is properly MACHINE DOES NOT RUN WHEN fixed/plugged in. connected to the power supply. SWITCHED ON - Power cord defective. - Have the power cord checked, replace if necessary. -
Page 18: How To Order Parts
Pearl reserves the right to discontinue products at any time without notice. All illustrations displayed in this manual are the property of Pearl Abrasive Co. and shall not be duplicated or reproduced without the express written consent of Pearl Abrasive Co. -
Page 19: Replacement Parts List
xxiii. REPLACEMENT PARTS LIST CUTTING HEAD ASSEMBLY PART NAME PART NUMBER PART NAME PART NUMBER Cutting head weldment - Black PLEASE CALL 21 M4 x 0.7 x 25L Cross screw PLEASE CALL 1.5HP Electric motor - KWW105 PLEASE CALL 22 Female M10 X 1.5 Knob PLEASE CALL Rail carriage assembly - Black PLEASE CALL... -
Page 20: Blade Guard
MAIN ASSEMBLY PART NAME PART NUMBER CR1080S PLEASE CALL M12 x 1.75 Nut PLEASE CALL M6 x 1.0 x 10L Wing screw PLEASE CALL M6 x 1.0 Female knob PLEASE CALL 10" Inner flange PLEASE CALL 18 Optional 10" Outer flange PLEASE CALL Water Pump PLEASE CALL... -
Page 21: Frame Assembly
FRAME ASSEMBLY PART NAME PART NUMBER PART NAME PART NUMBER Frame weldment - Black PLEASE CALL 20 Cable clamp PLEASE CALL Post A - Black PLEASE CALL 21 M4 x 0.7 x 10L Cross screw PLEASE CALL Post B - Black PLEASE CALL 22 Safety pin with chain PLEASE CALL... -
Page 22: Accessories
CUTTING HEAD ASSEMBLY PART NAME PART NUMBER PART NAME PART NUMBER Cutting head weldment - Black PLEASE CALL 21 M4 x 0.7 x 25L Cross screw PLEASE CALL 1.5HP Electric motor - KWW105 PLEASE CALL 22 Female M10 X 1.5 Knob PLEASE CALL Rail carriage assembly - Black PLEASE CALL... - Page 23 CUTTING HEAD SUB-ASSEMBLY PART NAME PART NUMBER Carriage B weldment - Black PLEASE CALL Concentric flat roller PLEASE CALL Eccentric flat roller PLEASE CALL Eccentric flat rolle PLEASE CALL Slide handle with rubber sleave PLEASE CALL Carriage A weldment - Black PLEASE CALL M8 x 18 x 1.8T Wide washer PLEASE CALL...
- Page 24 4900 ZAMBRANO ST., COMMERCE, CA 90040 FAX 562-927-5561 / 562-928-3857 PHONE 800-969-5561 www.pearlabrasive.com GEORGIA • USA ONTARIO • CANADA 4963 SOUTH ROYAL ATLANTA DRIVE 375 PIDO ROAD TUCKER, GA 30084 PETERBOROUGH, ONTARIO K9J-6X7 Part No. VXRSPROMANUAL • ©Pearl Abrasive Co., Commerce CA • 08/17...
