Operating and installation instructions

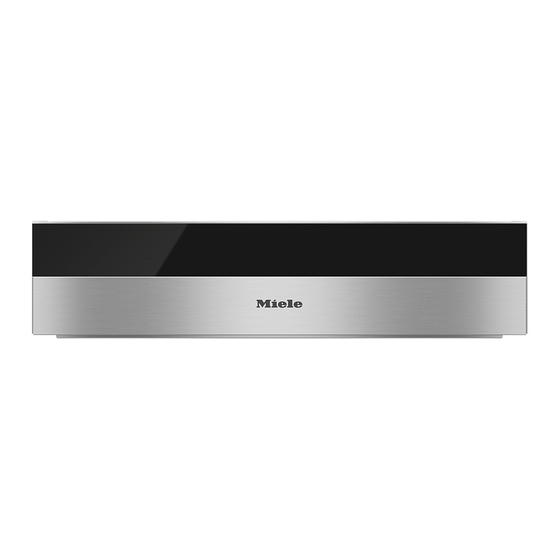

Food warming drawer
To avoid the risk of accidents or damage to the appliance it is essential
to read these instructions before it is installed and used for the first time.
en-GB
M.-Nr. 09 572 120

Advertisement

loading

  Also See for Miele ESW 6114

Miele ESW 6114 Operating And Installation Instructions
Miele ESW 6114 Operating And Installation Instructions 56 pages
Miele ESW 6114 Operating And Installation Instructions
Miele ESW 6114 Operating And Installation Instructions 52 pages
Miele ESW 6114 Operating And Installation Instructions
Miele ESW 6114 Operating And Installation Instructions 52 pages

  Related Manuals for Miele ESW 6114

  Summary of Contents for Miele ESW 6114

  • Page 1 Operating and installation instructions Food warming drawer To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time. en-GB M.-Nr. 09 572 120...

  • Page 2: Table Of Contents

    Combination with a CVA coffee machine ............33 Cleaning and care ....................34 Problem solving guide ..................36 Optional accessories ................... 38 Safety instructions for installation ..............39 Installation notes....................40 Building-in dimensions ESW 6114 / ESW 6214 ..........41...
  • Page 3 Contents Building-in dimensions ESW 6129 / ESW 6229 ..........45 Installation ......................49 Electrical connection ................... 50 After sales service, data plate ................52...

  • Page 4: Warning And Safety Instructions

    They contain important notes on installa‐ tion, safety, use and maintenance. Miele cannot be held liable for damage caused by non-compli‐ ance with these Warning and Safety instructions. Keep these instructions in a safe place and ensure that new users...
  • Page 5 Warning and Safety instructions Correct application  The drawer is intended for domestic use and use in other similar environments.  The drawer is not intended for outdoor use.  It is intended for domestic use only as described in these operat‐ ing instructions.
  • Page 6 Warning and Safety instructions Safety with children  Children must be kept away from the drawer unless they are con‐ stantly supervised.  Children 8 years and older may only use the drawer unsupervised if they have been shown how to use it in a safe way and can recog‐ nise and understand the consequences of incorrect operation.
  • Page 7  Unauthorised installation, maintenance and repairs can cause considerable danger for the user. Installation, maintenance and re‐ pairs must only be carried out by a Miele authorised technician.  A damaged drawer can be dangerous. Always check for visible signs of damage. Never use a damaged appliance.
  • Page 8 Miele authorised service technician. Otherwise the guarantee is invalidated.  Miele can only guarantee the safety of the appliance when genu‐ ine original Miele replacement parts are used. Faulty components must only be replaced by Miele spare parts.
  • Page 9 Warning and Safety instructions Correct use  You could burn yourself on a hot drawer or on hot crockery. Pro‐ tect your hands with heat-resistant pot holders or gloves when working with the hot appliance. Do not let them get wet or damp, as this causes heat to transfer through the material more quickly with the risk of scalding or burning yourself.

  • Page 10: Cleaning And Care

    Warning and Safety instructions  Liquids that get inside the drawer can cause the appliance to short-circuit. Open and close a loaded drawer carefully to prevent liquids from spilling.  The "Keep food warm" function is designed to keep hot food warm and not to warm up cold food.

  • Page 11: Caring For The Environment

    Caring for the environment Disposal of the packing mate‐ Disposal of your old appliance rial Electrical and electronic appliances of‐ ten contain valuable materials. They al‐ The packaging is designed to protect so contain materials which, if handled the appliance from damage during or disposed of incorrectly, could be po‐...

  • Page 12: Overview

    Overview ESW 6114 / ESW 6214 a Anti-slip mat c Push/pull opening mechanism The drawer can be opened and b Control panel closed by pressing lightly in the mid‐ dle of the drawer front.

  • Page 13: Esw 6129 / Esw 6229

    Overview ESW 6129 / ESW 6229 a Anti-slip mat c Air vents b Control panel d Rack...

  • Page 14: Accessories Supplied

    Overview Accessories supplied The accessories supplied with your ap‐ pliance as well as a range of optional ones are available to order from Miele (see "Optional accessories"). Rack For increasing the loading area (ESW 6*29) Anti-slip mat For keeping crockery secure.

  • Page 15: Controls

    Controls Sensor controls Sensor Description On/Off button  For selecting the function  For setting the temperature  For setting the duration  Display Display Description For warming cups and glasses  Warming plates and dishes function  For keeping food warm ...

  • Page 16: Using For The First Time

    Using for the first time  Please stick the extra data plate for Heating up the drawer for the the appliance supplied with this doc‐ first time umentation in the space provided in the "After sales service, data plate, Heat the empty drawer for at least two guarantee"...

  • Page 17: Operation

    Operation Operation  Open the drawer.  Touch the  sensor to switch the The On/Off sensor  must be kept drawer on. clean. Soiling or liquid on the sensor could cause it to fail to react or to  Touch the  sensor repeatedly until switch on the appliance unintention‐...

  • Page 18: Functions

    Operation Functions Duration The following functions are available: Do not leave the drawer unattended for too long in continuous operation –  Warming cups/glasses mode. Keeping food warm for a long –  Warming dishes and plates time can result in it drying out or even self-igniting.
  • Page 19 Operation Temperature Temperature display [°C] *                              * Approximate temperature values, measured in the middle of the drawer when empty...

  • Page 20: Keeping Food Warm

    Keeping food warm – To avoid spillages, do not overfill In order to ensure that the tempera‐ dishes. ture does not drop below the mini‐ mum required for keeping food warm – Freshly cooked food is hotter than (65 °C), select the  function only. food which is being kept warm.
  • Page 21 Keeping food warm Settings Food Dishes Cover the Temperature for Position dish? the  setting Floor Rack* Steak rare Plate      Bake / gratin Shallow      dish Roast meat Plate      Casserole Dish ...

  • Page 22: Warming Crockery

    – the material and thickness of the other on the right. Another rack can be crockery obtained from Miele (see "Optional ac‐ – maximum capacity cessories"). – how the crockery is arranged –...

  • Page 23: Esw 6114 / Esw 6214

    Warming crockery ESW 6114 / ESW 6214 The loading examples shown here are suggestions only: 6 place settings 6 dinner plates  26 cm 6 soup bowls  23 cm 6 dessert plates  19 cm 1 oval serving dish...

  • Page 24: Esw 6129 / Esw 6229

    Warming crockery ESW 6129 / ESW 6229 The loading examples shown here are suggestions only: 12 place settings 12 dinner plates  26 cm 12 soup bowls  23 cm 12 dessert plates  19 cm 1 oval serving dish 32 cm 1 serving dish ...

  • Page 25: Low Temperature Cooking

    Pre-heat the drawer for 15 minutes to  Do not use the food probe from ensure that the interior reaches the re‐ a Miele steam combi oven or a Miele quired temperature. oven in the food warming drawer. Example: selected duration 1h With low temperature cooking meat is actual operating time 1 hour 15 mi‐...
  • Page 26  Place the dish in the bottom of the drawer.  Do not use the food probe from a Miele steam combi oven or a Miele oven in the food warming drawer.  If you wish to use a food thermome‐ ter: Push the food thermometer into the meat so that the tip is in the centre.
  • Page 27 Low temperature cooking Beef cooking chart Type of cut  [min] * [°C]  [min]  Fillet 4–6 mins 45–50 105–135      approx. 1200 g 6–8 mins 55–60 160–190      8 mins 195–225 ...
  • Page 28 Low temperature cooking Veal cooking chart Type of cut  [min] * [°C]  [min]  Fillet 5 mins 45–50 115–145      approx. 1200 g 6 mins 55–60 150–180      6–7 mins 155–185 ...
  • Page 29 Low temperature cooking Pork cooking chart Type of cut  [min] * [°C]  [min]  Fillet 5–6 mins 90–110      approx. 350 g 120–140 Boned gammon 6–8 mins 180–200      approx. 700 g Boned gammon 8 mins 195–225...
  • Page 30 Low temperature cooking Lamb cooking chart Type of cut  [min] * [°C]  [min]  3 mins 90–110      Rack of lamb 4 mins 110–130      approx. 170 g 3–4 mins 100–130 ...
  • Page 31 Low temperature cooking Game cooking chart Type of cut  [min] * [°C]  [min]  Venison medal‐ 1–2 per side 80–100      2 per side 110–140 lions 3–4 cm thick Saddle of venison 5–6 mins 135–150 ...

  • Page 32: Other Uses

    Other uses Food Dishes Cover the  [h:min]   dish? Defrosting ber‐ Bowl / dish      12:50 ries Dissolving ge‐ Bowl      12:15 latine Proving dough Bowl Yes, with      12:30 plate Making yoghurt...

  • Page 33: Combination With A Cva Coffee Machine

    Activating coffee mode come on automatically before your Coffee mode can only be activated Miele coffee machine to ensure your when the drawer is switched off. cups are the perfect temperature for your first cup of the day. A special con‐...

  • Page 34: Cleaning And Care

    Cleaning and care Allow the drawer to cool down to a  Danger of injury. safe temperature before cleaning. The steam from a steam cleaning appliance could reach electrical  The drawer and accessories should components and cause a short cir‐ be cleaned and dried thoroughly after cuit.
  • Page 35 Cleaning and care Cleaning the drawer front and Cleaning the anti-slip mat interior Do not clean the anti-slip mat in the dishwasher or washing machine. The On/Off sensor must be kept Never place it in the oven to dry. clean. Soiling and liquid on the sensor could cause it to fail to react or to ...

  • Page 36: Problem Solving Guide

    Danger of injury. Installation, maintenance and repairs may only be carried out by a suitably qualified and competent person. Repairs and other work by unqualified persons could be dangerous. Miele can‐ not be held liable for unauthorised work. Do not attempt to open the casing of the warming drawer yourself.
  • Page 37 Problem solving guide Problem Cause and remedy The crockery is not The function for warming plates and dishes  is not warm enough. selected.  Select the correct function. The temperature setting is too low.  Select a higher temperature. The vents are covered up.

  • Page 38: Optional Accessories

    Miele offer a comprehensive range of useful accessories as well as cleaning and conditioning products for your Miele appliances. These can be ordered online at: or from Miele (see end of this booklet for contact details). Rack For increasing the loading area. Anti-slip mat For keeping crockery secure.

  • Page 39: Safety Instructions For Installation

    Miele as being suitable. Miele cannot guarantee trouble-free operation if the appliance is operated in combination with appliances other than those quoted by Miele as being suitable.  The base on which the drawer and the combination appliance are fitted must be fixed in place and must support the weight of both appliances.

  • Page 40: Installation Notes

    Installation notes The combination appliance is placed on top of the drawer without the need for an interim shelf. The drawer is available in two models, which differ in height. The building-in dimensions for the warming drawer must be added to the building-in di‐ mensions for the combination appli‐...

  • Page 41: Building-In Dimensions Esw 6114 / Esw 6214

    Building-in dimensions ESW 6114 / ESW 6214 ESW with H 2xxx B(P) / ESW with H 6xxx BM(BP) / H 6xxx B(P) M 61xx / M 62xx a Ventilation cut-out required when in‐ stalled with a pyrolytic oven b Building-in dimension including a Ventilation cut-out required when in‐...
  • Page 42 Building-in dimensions ESW 6114 / ESW 6214 ESW with DG 6x00 / DG 6x0x ESW with DGC 6500 / DGC 6600 / DGC 680x b Building-in dimension including mains supply cable connection a Ventilation cut-out required when in‐ Connection cable L= 2200 mm...
  • Page 43 Building-in dimensions ESW 6114 / ESW 6214 ESW with DGC 6500 / ESW with DGC 6660 DGC 6600 / DGC 680x a Cut-out for ventilation a Ventilation cut-out required when in‐ b Building-in dimension including stalled with a steam combination...
  • Page 44 Building-in dimensions ESW 6114 / ESW 6214 ESW with DGD 4635 / ESW with CVA 6401 / CVA 68xx DGD 6xx5 a Filler panel AB 45-7 (optional acces‐ a Ventilation cut-out for installation in sory) combination with a coffee machine...

  • Page 45: Building-In Dimensions Esw 6129 / Esw 6229

    Building-in dimensions ESW 6129 / ESW 6229 ESW with H 2xxx B(P) / ESW with H 6xxx BM(BP) / H 6xxx B(P) M 61xx / M 62xx a Ventilation cut-out required when in‐ a Ventilation cut-out required when in‐ stalled with a pyrolytic oven stalled with a pyrolytic oven b Building-in dimension including b Building-in dimension including...
  • Page 46 Building-in dimensions ESW 6129 / ESW 6229 ESW with DG 6x00 / DG 6x0x ESW with DGC 6500 / DGC 6600 / DGC 680x b Building-in dimension including mains supply cable connection Connection cable L= 2200 mm Glass front / Metal front a Ventilation cut-out required when in‐...
  • Page 47 Building-in dimensions ESW 6129 / ESW 6229 ESW with DGC 6500 / ESW with DGC 6660 DGC 6600 / DGC 680x a Ventilation cut-out required when in‐ a Cut-out for ventilation stalled with a steam combination oven b Building-in dimension including mains supply cable connection b Building-in dimension including Connection cable L= 2200 mm...
  • Page 48 Building-in dimensions ESW 6129 / ESW 6229 ESW with DGD 4635 / ESW with CVA 6401 / CVA 68xx DGD 6xx5 a Ventilation cut-out for installation in a Filler panel AB 45-7 (optional acces‐ combination with a coffee machine sory) b Building-in dimension including b Building-in dimension including mains supply cable connection...

  • Page 49: Installation

    Installation Check that the base that the drawer will sit on is clean and level (use a spirit level). This is important for the appliance to function correctly.  Push the drawer into the housing unit as far as the vapour strip and make sure it is correctly aligned in the unit.

  • Page 50: Electrical Connection

    Residual current device  Danger of injury. For extra safety, it is advisable to pro‐ Miele cannot be held liable for unau‐ tect the drawer with a suitable residual thorised installation, maintenance current device (RCD) with a trip range and repair work as this can be dan‐...
  • Page 51 H 05 VV-F (PVC-in‐ by mistake. sulated), available from Miele. To disconnect the appliance from the mains power supply, do one of the fol‐ lowing depending on installation: Safety fuses ...

  • Page 52: After Sales Service, Data Plate

    – your Miele Dealer, or – Miele Service. See end of this booklet for contact details. When contacting your Dealer or Miele, please quote the model and serial number of your appliance. Data plate Space in which to stick the extra data plate supplied with the appliance. Ensure that the model number is the same as the one on the back page of these instruc‐...
  • Page 55 Citywest Business Campus, Dublin 24 Dubai Tel: (01) 461 07 10, Fax: (01) 461 07 97 Tel: +971-4-341 84 44 E-Mail: info@miele.ie, Internet: www.miele.ie Fax: +971-4-341 88 52 Manufacturer: Miele & Cie. KG E-Mail: info@miele.ae Carl-Miele-Straße 29, 33332 Gütersloh, Germany Internet: www.miele.ae...
  • Page 56 ESW 6114 / ESW 6214 / ESW 6129 / ESW 6229  en-GB M.-Nr. 09 572 120 / 02...
