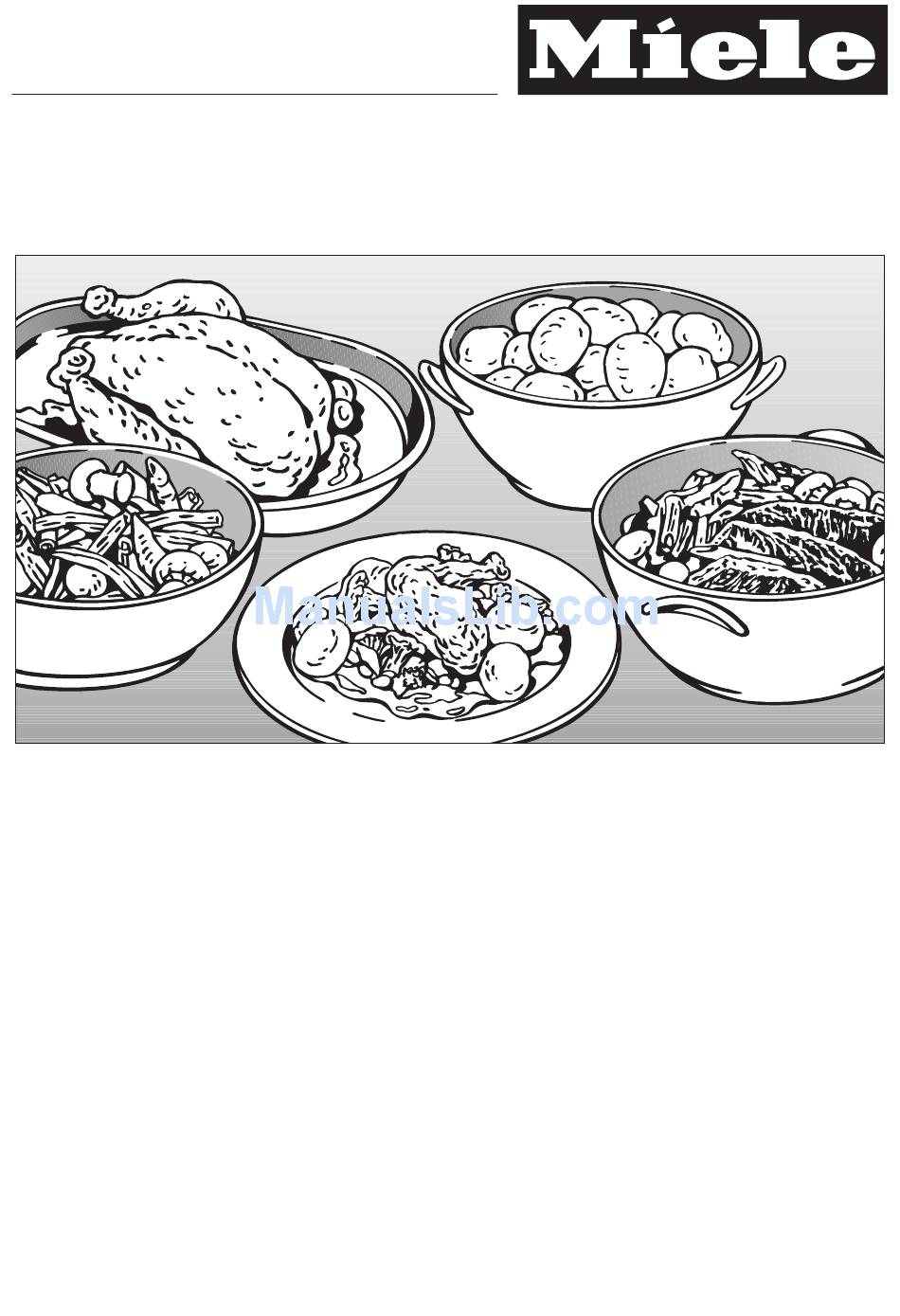

Operating and installation instructions
Built-in food warming drawer
ESW 5088-14
ESW 50x0-14
ESW 50x0-29
en - GB
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time.
M.-Nr. 07 241 640

Advertisement

loading

  Also See for Miele ESW 5088-14

  Related Manuals for Miele ESW 5088-14

  Summary of Contents for Miele ESW 5088-14

  • Page 1 Operating and installation instructions Built-in food warming drawer ESW 5088-14 ESW 50x0-14 ESW 50x0-29 en - GB To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time.
  • Page 2: Table Of Contents

    ESW 50x0-14 / ESW 5088-14........
  • Page 3 ESW 50x0-14 / ESW 5088-14........
  • Page 4: Guide To The Appliance

    Guide to the appliance ESW 50x0-14 / ESW 5088-14 a Control panel b Anti-slip mat...
  • Page 5: Esw 50X0-29

    Guide to the appliance ESW 50x0-29 a Control panel b Anti-slip mat c Air vents d Rack...
  • Page 6: Control Panel

    Guide to the appliance Control panel Sensor switches Displays Functions: Temperature: ] ^ ^ ^ ^ Duration: On/Off switch for the appliance For selecting the function For setting the temperature For setting the duration For warming cups and glasses For warming plates and dishes For keeping food warm 1 hour 2 hours...
  • Page 7: Accessories Supplied

    Accessories supplied The accessories supplied with your drawer as well as a range of optional ones are available to order (see "Optional accessories"). Rack For increasing the loading area Anti-slip mat For keeping crockery secure Guide to the appliance...
  • Page 8: Warning And Safety Instructions

    Warning and Safety instructions This appliance complies with all relevant local and national safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the first time.
  • Page 9 If the connection cable is damaged, it must be replaced by a suitably qualified electrician with a specialist connection cable of type H 05 V V-F (pvc insulated), available from the Miele Service Department. Faulty components must only be replaced by genuine Miele original parts.
  • Page 10 Warning and Safety instructions During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when: – the mains fuse is disconnected, – the screw-out fuse is removed (in countries where this is applicable), –...
  • Page 11 Do not use the appliance to heat up the room. Due to the high temperatures radiated, objects near the appliance could catch fire. The life of the appliance could also be reduced. Never replace the anti-slip mat supplied with the appliance with paper kitchen towel or similar.
  • Page 12: Caring For The Environment

    Caring for the environment Disposal of the packing material The transport and protective packing has been selected from materials which are environmentally friendly for disposal, and can normally be recycled. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children.
  • Page 13: Before Using For The First Time

    A display test is carried out for 10 seconds after the appliance has been installed and after a power cut. The fan comes on at the same time. The appliance cannot be used during this time. Please stick the extra data plate for the appliance supplied with this documentation in the space provided in the "After sales service"...
  • Page 14 Before using for the first time The appliance switches itself off automatically after 2 hours. Metal components have a protective coating which may give off a slight smell when heated up for the first time. The smell and any vapours will dissipate after a short time, and do not indicate a faulty connection or appliance.
  • Page 15: Operation

    Functions Use the X sensor to select the function you want. The applicable symbol lights up as follows: – / For warming cups and glasses. – H For warming plates and dishes – s For keeping food warm The last function selected is automatically activated the next time the drawer is switched on, and this is shown in the display.
  • Page 16: Temperature Settings

    Operation Temperature settings Each function has its own temperature range. The factory-set recommended temperatures are printed in bold. The temperature can be altered in 5° steps by touching the 6 sensor. The last temperature selected is automatically activated the next time the drawer is switched on, and this is shown in the display.
  • Page 17 Switching on ^ Open the drawer. ^ Switch the appliance on by touching the On/Off s sensor. ^ Touch the X sensor until the function required lights up in ^ If you wish to alter the temperature, touch the 6 sensor until The appliance is set in continuous operation mode.
  • Page 18: Capacity

    Do not overload the drawer. The maximum load bearing capacity of the drawer is 25 kg. ESW 5070 - 14 / ESW 5080 - 14 / ESW 5088-14 The loading examples shown here are suggestions only. – 6 place settings:...
  • Page 19 With two racks you can increase the load area even more by placing one rack on the left and the other on the right. Another rack can be obtained from Miele or from your Miele dealer (see "Optional accessories"). C 26 cm...
  • Page 20: Keeping Food Warm

    Keeping food warm This function is for keeping food warm that has just been cooked, i.e. food that is still hot. It is not for reheating food that has gone cold. – In order to ensure that the temperature does not drop below the minimum required for keeping food warm (65°C), select the s function only.
  • Page 21: Settings

    Settings Food Container To warm bread To warm rolls Steak (rare) Plate New potatoes Plate/dish Mashed potato Dish Roast meat Plate Meat in a sauce Dish Stew Dish Casserole Dish Vegetables in a Dish sauce Plated meal Plate Boiled potatoes Dish Gravy Dish...
  • Page 22: Warming Crockery

    Warming crockery – Distribute the crockery over the whole area of the drawer. – Do not place large serving dishes right up against the – For cups and glasses, only select the / function to ensure – Heated crockery cools down very quickly. Do not remove it Heating up times Various factors will affect the heating up times: –...
  • Page 23: Other Usages

    Type of Container Container food preparation Proving Bowl dough Making Yoghurt yoghurt jars with Defrosting Bowl/dish berries Defrosting Bowl frozen vegetables Dissolving Dish gelatine (max. 7 cm deep) Rice Pan with pudding (to finish off the cooking process) Melting Bowl chocolate * Depending on model Temperature...
  • Page 24 Other usages Low-temperature cooking Meat can be cooked at a constant low temperature over a longer period of time, with very tender results. It is possible to use the food warming drawer to cook meat at a low temperature. This is only suitable where the core temperature does not exceed 65°C.
  • Page 25 Setting Type of meat Roast beef Roast beef Pork fillet Pork fillet Rack of lamb Rack of lamb Duck breasts Duck breasts Degree of Temperature range in s setting doneness ] ^ ^ ^ ^ Rare ^ ^ ^ ^ ] Medium to well done ] ^ ^ ^ ^...
  • Page 26: Cleaning And Care

    If not, it might become impossible to remove and could cause the outer surface to alter or discolour. Clean the front using a Miele microfibre E-cloth or with a clean sponge and a solution of hot water and washing-up liquid. Then dry with a soft cloth.
  • Page 27: Anti-Slip Mat

    To avoid damaging the surface of your appliance, do not use: – cleaning agents containing soda, ammonia, acids or – cleaning agents containing descaling agents, – abrasive cleaning agents, e.g. powder cleaners and cream – solvent-based cleaning agents, – stainless steel cleaning agents, –...
  • Page 28: Problem Solving Guide

    – the appliance is correctly plugged in at the mains socket and switched on. – the mains fuse has blown. If the mains fuse has blown, call an electrician or the Miele Service Department..the food is not hot enough Check whether –...
  • Page 29 Problem solving guide . . . crockery is not warm enough Check whether – the correct temperature setting has been selected. – the vents have been covered up. – the crockery has been allowed to heat up for a sufficiently long time.
  • Page 30: Optional Accessories

    The anti-slip mat keeps crockery securely in place. E-Cloth (microfibre cloth) Removes finger marks and light soiling. A range of Miele branded accessories and cleaning products are available for your appliance from your local retailer, the Miele Spare Parts Department or via the internet on www.miele-shop.com.
  • Page 31: Safety Instructions For Installation

    Safety instructions for installation Before connecting the appliance to the mains supply make sure that the connection data on the data plate (voltage and connected load) correspond with the mains electricity supply, otherwise the appliance could be damaged. Consult a qualified electrician if in any doubt. The socket and on-off switch should be easily accessible after the appliance has been built in.
  • Page 32: Building-In Dimensions

    Building-in dimensions ESW 50x0-14 / ESW 5088-14 Ovens Microwave-combi ovens a Ventilation cut-out required when combined with a pyrolytic oven * Appliances with glass front ** Appliances with metal front...
  • Page 33 Steam ovens * Appliances with glass front ** Appliances with metal front Building-in dimensions Combi steam ovens a Ventilation cut-out required when combined with a combi steam oven...
  • Page 34 Building-in dimensions Steam oven with pressure a Cut-out in base shelf for plumbing services b Filler panel AB 45-7 (optional accessory Coffee machines * Appliances with glass front ** Appliances with metal front...
  • Page 35: Esw 50X0-29

    Building-in dimensions ESW 50x0-29 Ovens Microwave-combi ovens a Ventilation cut-out required when combined with a pyrolytic oven * Appliances with glass front ** Appliances with metal front...
  • Page 36 Building-in dimensions Steam ovens * Appliances with glass front ** Appliances with metal front Combi steam ovens a Ventilation cut-out required when combined with a combi steam oven...
  • Page 37 Steam oven with pressure a Cut-out in base shelf for plumbing services b Filler panel AB 45-7 (optional accessory) * Appliances with glass front ** Appliances with metal front Building-in dimensions Coffee machines...
  • Page 38: Installing The Appliance

    Installing the appliance Check that the base of the drawer is clean and that it is level (use a spirit level). This is important for appliance to function correctly. ^ Push the appliance into the housing unit as far the vapour strip, and align it.
  • Page 39: Aligning The Front Of The Food Warming Drawer

    Aligning the front of the food warming drawer After building in the combination appliance, it may be necessary under certain circumstances to – align the front of the food warming drawer. – align the gap between the food warming drawer and the combination appliance.
  • Page 40: Electrical Connection

    H 05 V V-F (pvc insulated), available from the Miele Service Department. Installation, repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held liable for unauthorised work.
  • Page 41 Connection should be made via a suitable switched socket or a double pole fused spur connection unit which complies with national and local safety regulations and the on/off switch should be easily accessible after the appliance has been built in. If the switch is not accessible after installation (depending on country) an additional means of disconnection must be provided for all poles.
  • Page 42 Electrical connection Important The electrical safety of this appliance can only be guaranteed when continuity is complete between the appliance and an effective earthing system, which complies with local and national regulations. It is most important that this basic safety requirement is present and tested regularly and if there is any doubt the electrical wiring in the home should be inspected by a qualified electrician.
  • Page 43: After Sales Service, Data Plate

    Please note that telephone calls may be monitored and recorded to improve our service. When contacting Miele, please quote the model and serial number of your appliance, which are given on the data plate. N.B. A call-out charge will be applied for unnecessary service visits where the problem could have been rectified as described in these instructions.
  • Page 44 Alteration rights reserved/ 3208 M.-Nr. 07 241 640 / 02...
