o w n e r ' s m a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the archer 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Juniper archer 2

Summary of Contents for Juniper archer 2

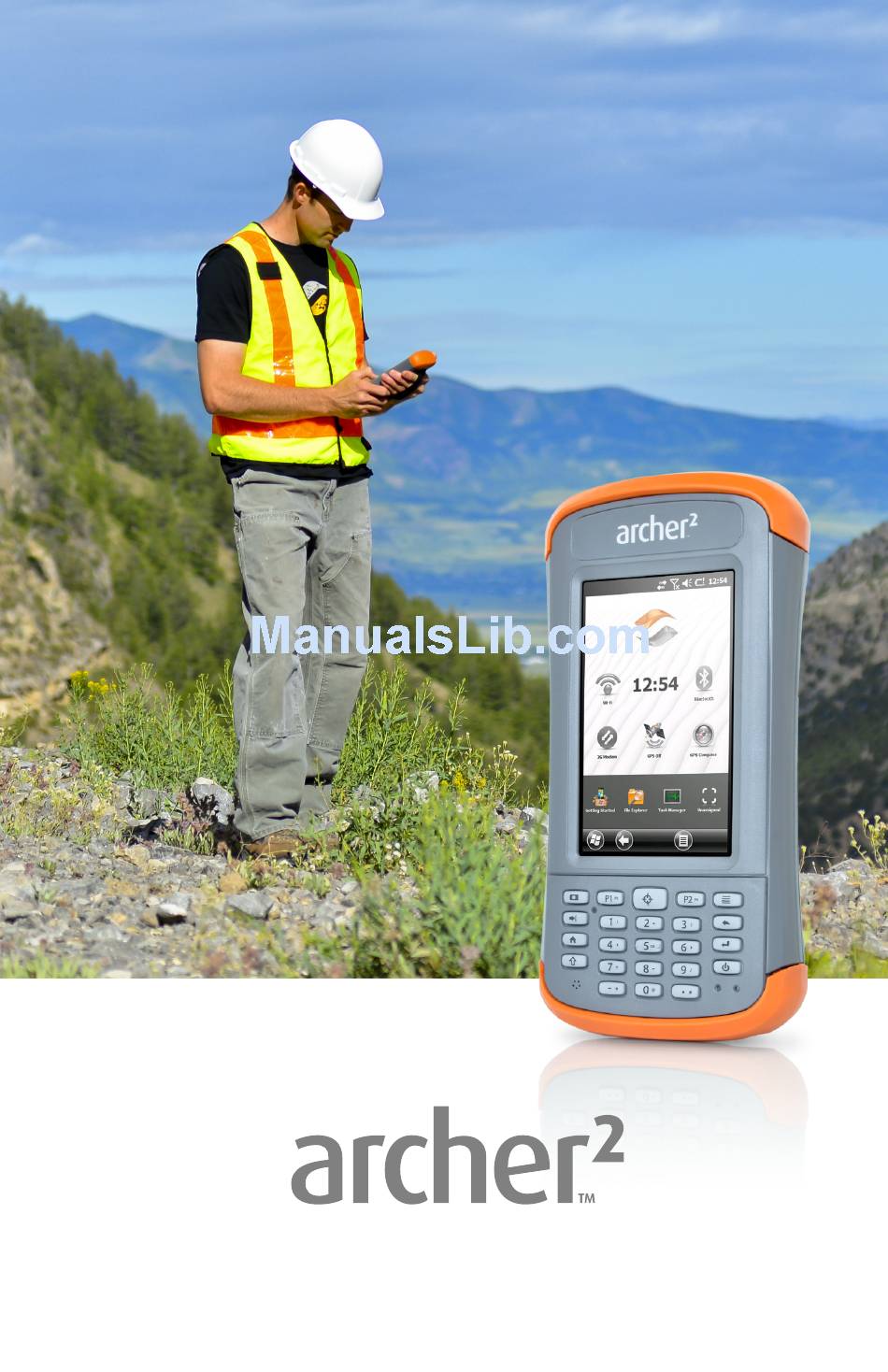

  • Page 1 o w n e r ’ s m a n u a l...
  • Page 2 Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth word mark is owned by the Bluetooth SIG, ® Inc. and any use of such marks by Juniper Systems, Inc. is under license. Adobe Acrobat and Adobe Reader are registered ®...

  • Page 3: Table Of Contents

    Contents Getting Started The Anatomy of the Archer 2 Perform Initial Tasks Home Screen and Windows Start Menu Navigating Around Your Archer 2 Hardware Components Keypad Features Display and Touchscreen Power Management LED Activity Indicators Flashlight SD Cards Connector I/O Module...
  • Page 4 Quick Start – Easily Scan a Barcode Now Barcode Connector Utility Barcode Troubleshooting Storage, Maintenance and Recycling Storing the Archer 2 and Battery Pack Protecting the Touchscreen Cleaning the Archer 2 Recycling the Archer 2 and Batteries Warranty and Repair Information...

  • Page 5: Getting Started

    Getting Started...

  • Page 6: The Anatomy Of The Archer 2

    Getting Started The Archer 2 Rugged Handheld™ from Juniper Systems features Bluetooth, Wi-Fi and a numeric keypad. Standard accessories include a lithium-ion battery pack, AC wall charger, USB micro client sync cable, hand strap, and a capacitive stylus and tether. A camera, GPS/GNSS, cellular data modem, and barcode scanner are options.

  • Page 7: Perform Initial Tasks

    5 9-pin Serial Port 6 12-24V DC Jack 7 Barcode Window (option) Perform Initial Tasks When you receive your Archer 2, perform the tasks outlined in this section before first use. Review Documentation The owner’s manual, quick start guide, and Microsoft ®...
  • Page 8 Apply a Screen Protector (Optional) The touchscreen is extremely scratch resistant, so a screen protector is not included with the Archer 2. If you decide to apply one, refer to the installation instructions included with your screen protector for specific details.
  • Page 9 4. Replace the door and tighten the screws. 5. Plug the AC wall power charger that came with the Archer 2 into a wall socket. Plug the other end into the DC power jack on the Archer 2. The red LED on the keypad blinks when the battery pack is charging.
  • Page 10 2. A Microsoft Windows Embedded Handheld screen is ® shown. 3. The Clock and Alarms control panel appears. Adjust the time zone, date, and time if necessary and tap OK. Archer 2 Rugged Handheld Owner’s Manual...
  • Page 11 The Home screen appears (layout varies by model). Note: If you have a barcode unit, the Barcode Connector screen is shown. Refer to Chapter 9 for details. 4. Press the power button to suspend the handheld. Charge the battery pack at room temperature (68° F or 20°...

  • Page 12: Home Screen And Windows Start Menu

    2. The content varies based on which model you have and can be customized. It is automatically shown when the Archer 2 is turned on. You can get to it from any other screen by pressing and releasing the Home screen button on the keypad.

  • Page 13: Navigating Around Your Archer 2

    Navigating Around Your Archer 2 Using Gestures and Making Selections The Windows Embedded Handheld operating system ® enhances the ability of the handheld to recognize touch gestures, making it easy to use a finger to navigate. Use of the capacitive stylus is an option. The keypad buttons can also be used.
  • Page 14 Updates to the operating system and technical documents are located on our website at www.junipersys.com/ Archer-2/support. Select Downloads, then Archer 2. Full install instructions are also available here. View System Information for Your Archer 2 To view your operating system version number, press the System Info icon on the Home screen or go to Start >...

  • Page 15: Hardware Components

    Hardware Components...

  • Page 16: Keypad Features

    Hardware Components This chapter discusses the Archer 2 Rugged Handheld hardware features and usage. Keypad Features The Archer 2 has a numeric keypad with sealed buttons, backlight illumination, and programmable keys and LEDs. Press and Release Button Shift Function Pictures and Videos Notes application „...
  • Page 17 Press and Release Button Shift Function Home screen Start screen (toggle) Left (varies by screen) Select OK on the screen Right (varies by screen) Return Return „ „ Take picture or start Take picture or start „ „ video video Perform highlighted Perform highlighted „...
  • Page 18 You can also go to the Start screen by selecting the Windows soft key or pressing the buttons, then selecting Settings > Personal > Buttons. Under 1. Select a button, a list of programmable buttons and their current assignments is shown. Archer 2 Rugged Handheld Owner’s Manual...
  • Page 19 2. Select the button you want to reassign. 3. At the bottom of the screen under 2. Assign a program, select the down arrow button to display a list of programs and functions. Select the item you want to reassign to the selected button. Keypad Backlight Make keypad brightness adjustments through the Backlight control panel located at Start >...

  • Page 20: Display And Touchscreen

    Archer 2 is suspended. Display and Touchscreen The Archer 2 has a bright color display and capacitive touchscreen with a diagonal viewing area of 4.3 inches (109 mm). It is easy to view outdoors and is sealed against water and dust.
  • Page 21 Display and Touchscreen Settings Type and Orientation To adjust the display settings, including the text size and orientation, go to the Screen control panel by pressing Start > Settings> System > Screen. The screen is designed to be used in portrait orientation. A landscape orientation could impact the performance of an application.
  • Page 22 You can try different modes to see which one works best for you. Zooming in on the Display Zooming in on the display increases the view by 50 percent and makes selecting content much easier. Archer 2 Rugged Handheld Owner’s Manual...
  • Page 23 Zoom options: Hold-to-Zoom - Press and hold the P1 button on the „ keypad (the default setting), and tap on the screen in the area on which you want to zoom. The screen focuses on that location. Make selections as desired. Release the P1 button to return to the regular screen size.
  • Page 24 Dimming the Display Automatically The display has a minimum brightness setting that it dims to when the Archer 2 is idle for the time interval indicated. The display backlight dims by 50%, so the display is still partially visible. You can adjust the dim time interval (see the previous screen) for battery and/or external power.
  • Page 25 Alternately, go to the Backlight control panel. Press Start > Settings > System > Backlight. Near the bottom of the screen it says “Adjust Power Settings to conserve power.” Select the hyperlink power (see the previous screen shot). The Power control panel appears. Select Advanced from the horizontal scrolling menu near the top of the screen.

  • Page 26: Power Management

    The Li-Ion battery pack is charged most efficiently at room temperature (68°F or 20°C). The battery pack will not charge if it is too hot or too cold. CAUTION: The Archer 2 is not sealed against water and dust when the battery door is not installed properly. Battery Life Battery life on a full charge is generally up to 20 hours.
  • Page 27 Battery packs last approximately 1,000 to 3,000 charging cycles before they need to be replaced. This is impacted by applications and environmental factors. Depending on the current charge on the battery, you may see different displays when turning on the unit. If the battery is completely discharged, you will see the following image.
  • Page 28 This can take up to four hours. The Archer 2 is designed to run in either of two power states, battery power, or external power with battery installed.

  • Page 29: Led Activity Indicators

    LED Activity Indicators LED activity indicators are located on the keypad underneath the power button. Red LED on the right (associated with power adapter): Blinking: AC adapter is plugged in, and the battery is „ charging Solid: AC adapter is plugged in, and the battery is full (not „...

  • Page 30: Flashlight

    Note: This is also the camera flash. SD Cards The Archer 2 has a slot for a micro SD card located in the battery compartment. To insert or remove a card follow these steps: 1.

  • Page 31: Connector I/O Module

    5. Replace the battery pack, and attach the battery door. 6. Power up the handheld. Connector I/O Module The Archer 2 connector I/O module has the following jacks and connectors: 1. USB client, micro B 2. Audio jack: 3.5mm; supports speaker, microphone or stereo output (pin detect) 3.
  • Page 32 From the Output screen you can adjust the speaker options. Select the Input screen from the horizontal menu near the top of the screen. You can adjust the onboard and headset microphones as desired. Archer 2 Rugged Handheld Owner’s Manual...

  • Page 33: Programs And Settings

    Programs and Settings...

  • Page 34: Home Screen

    Home Screen The Home screen is your main control center for the Archer 2. View vital system information and quickly access functions and applications that are frequently used. The default home screen for a basic unit is shown below.
  • Page 35 Title Bar and Pop-Up Icons The title bar is at the top of every screen. It identifies the page and shows status icons indicating functions like connectivity status, audio, power, and time. Tap the title bar to bring up larger, touchable icons in a horizontal-scrolling bar.
  • Page 36 3G Data Modem (Geo model with cell modem): Shows the on/off state of the optional cellular modem. Flashlight: Shows the on/dim/off state of flashlight feature (included with camera). Archer 2 Rugged Handheld Owner’s Manual...
  • Page 37 Gadget Color Indicators Wi-Fi, Bluetooth, GPS/GNSS and 3G data modem gadgets indicate status using these colors: Gray: Off or inactive Yellow: Partial state (getting satellite fix, etc.) Green: Active and available Blue: Notification state (on or connected) Red: Error state, powering up or down, no GPS/GNSS fix, or unavailable (3G data modem is red when power is changing from on/off.
  • Page 38 The third and fifth tile positions are empty. Tap on a tile to perform the actions associated with it. Note: You can also press the P2 button on the keypad to select the tile in the fourth position. Archer 2 Rugged Handheld Owner’s Manual...

  • Page 39: Windows Start Menu

    On-screen keyboard Windows Start Menu The Windows Start menu gives you access to all of the applications on the Archer 2. You can get to the Start menu from any screen by tapping the Windows tile (soft key) on the display or pressing the...

  • Page 40: On-Screen Keyboard

    To navigate to different screens, press the modifier keys in the lower left corner of each screen as shown in the following graphic for the lowercase keyboard. Press the up arrow to go to Archer 2 Rugged Handheld Owner’s Manual...
  • Page 41 the uppercase keyboard, the number key to go to the numeric keyboard, and the symbol key to go to the symbols keyboard. Tap on the shift key for a single uppercase letter. Tap on „ the shift key twice to lock the uppercase key. Tap once more to return to the lowercase keyboard.

  • Page 42: Suspend, Reset, Power Off, And Restore Defaults

    Suspend, Reset, Power Off, and Restore Defaults Use the power button to suspend, reset, power off, or restore the Archer 2 to its factory state. To access the Power Button menu, press and hold the power button. Suspending and Resuming the Archer 2 We recommend suspending your handheld if you plan to turn it off for less than two weeks.
  • Page 43 Powering Off and On the Archer 2 To preserve battery power, we recommend you power off the Archer 2 if it will not be used for two weeks or longer. CAUTION: Be aware that when the Archer 2 is powered off, it closes all programs and powers down all system components except for the real-time clock.

  • Page 44: Subdued Lighting (Tactical) Mode

    CAUTION: Restoring the Archer 2 to its original factory state permanently erases data saved on the handheld, any software you installed, and any changes you made to the handheld, including changes to settings. 1. Back up files and programs you want to keep onto another computer.

  • Page 45: Compass Calibration

    Adjust the sliders as needed for both power sources. Changes affect all operations. Compass Calibration The Archer 2 has a built-in compass and accelerometer. The compass is used for embossing GPS/GNSS information on pictures taken with the camera, or embedding GPS/ GNSS information into jpg files.
  • Page 46 Changes in environment, added attachments to the handheld, and mounting options can affect the sensor readings. If you are mounting the handheld to a pole, mount it first and then calibrate the compass. Archer 2 Rugged Handheld Owner’s Manual...

  • Page 47: Communicating With A Computer

    Communicating with a Computer The Archer 2 can connect to a desktop or laptop computer, allowing you to synchronize information and download software and files. Installing the Software Install free synchronization software from Microsoft on your ® desktop computer. 1. Go to the Microsoft...

  • Page 48: Getting Started Application

    To see a list of topics press Start > Getting Started. Information for Software Developers For Archer 2 SDK information, go to our website: http://www. junipersys.com/Developers/Archer Archer 2 Rugged Handheld Owner’s Manual...

  • Page 49: Bluetooth Wireless Communication

    Bluetooth Wireless Communication...

  • Page 50: Creating A Partnership

    2. Place them within at least 100 feet (30 meters) of one another. 3. Make Bluetooth discoverable on both devices. Bluetooth on the Archer 2 is on and discoverable by default. The gadget on the Home screen turns green. Archer 2 Rugged Handheld Owner’s Manual...

  • Page 51: Bluetooth Control Panel

    Connections. Note: If the Bluetooth radio is turned on and then the handheld is suspended, wireless Bluetooth turns off to save battery power. When the Archer 2 resumes (turns on), the radio turns on automatically. Bluetooth Control Panel To create a partnership with and connect to other Bluetooth...
  • Page 52 The following Bluetooth control panel, Devices screen is shown: 3. Tap Add New Device. The Archer 2 searches for other devices with wireless Bluetooth technology and displays them in a list. Select the device you want to connect to, and tap Next.

  • Page 53: Serial Device (Com) Control Panel

    a. If the device has an assigned passcode, enter the number and press Next. b. If a passcode is required but has not been assigned, enter an alphanumeric passcode between 1 and 16 characters in length. Press Next. c. If a passcode is not required, leave the box blank and press Next.
  • Page 54 3. The Archer 2 automatically tries to discover the PIN. You might be required to enter a PIN. You should now be connected to the COM device. Archer 2 Rugged Handheld Owner’s Manual...

  • Page 55: Wi-Fi Wireless Networking

    Wi-Fi Wireless Networking...

  • Page 56: Connecting To A Wi-Fi Network

    Wi-Fi Wireless Networking The Archer 2 has built-in Wi-Fi wireless networking to connect to the Internet or a office network. Connecting to a Wi-Fi Network To use Wi-Fi, you need to be in range of a Wi-Fi access point to make a connection. To actively look for a network connection complete the following steps: 1.
  • Page 57 Explorer and begin using the Internet. Once a Wi-Fi network is set up, the icon on the Home Page turns blue and the name of the network is shown. The Archer 2 remembers the Wi-Fi network connections created. Chapter 5 Wi-Fi Wireless Networking...
  • Page 58 Whenever Wi-Fi is turned on, a dialog box might appear at the bottom of the screen indicating the Wi-Fi networks the Archer 2 has located. You can select a new network from this dialog box without opening the Wi-Fi control panel.

  • Page 59: Gps/Gnss

    GPS/GNSS...

  • Page 60: Using Gps/Gnss

    GPS/GNSS Archer 2 Geo models have GPS/GNSS with 2 to 5 meter accuracy. Using GPS/GNSS To use GPS/GNSS, tap on the GPS/GNSS status gadget turn it on. The GPS/GNSS starts looking for satellites to use for a fix. The green LED on the keypad blinks periodically, and a satellite icon is placed on the title top bar.
  • Page 61 The lower the number, the more accurate the fix. Note: When you suspend the Archer 2, the receiver is in a low power mode to retain its almanac. When you resume, it takes a few seconds to get a fix.
  • Page 62 GPS/GNSS, preventing camera geotagging and GPS/GNSS from functioning. GPS/GNSS Accuracy The GPS/GNSS antenna is in the top of the Archer 2. Do not put your hand or another object over the cap. This reduces accuracy. The more items between you and the satellites, the lower the accuracy.

  • Page 63: Jsnav Application

    JSNav Application JSNav is a GPS/GNSS application that lets you easily collect waypoint or track data. Note: Calibrate the compass before you use JSNav. Refer to Chapter 3, Programs and Settings, Compass Calibration. From the Home screen tap on the JSNav gadget .
  • Page 64 Waypoint Settings: Set up the waypoint file naming „ scheme, including the waypoint prefix, increment step size, and current value. For example, if the waypoint prefix is Point, increment step size is 10, current value is Archer 2 Rugged Handheld Owner’s Manual...
  • Page 65 100, and default file type is .kml, file names would be Point110.kml, Point120.kml, Point130.kml, etc.) Also select the number of points to average. The default is 1. Track Settings: Set up the track file naming scheme (see „ Waypoint Settings). You can select a minimum time and minimum distance needed before a point is collected.
  • Page 66 GPS Settings. Tap the disc icon to save the waypoint to \My „ Documents\My Waypoints. Collect Track Data From the main JSNav screen tap the track icon to open the Collect Track screen. Archer 2 Rugged Handheld Owner’s Manual...
  • Page 67 To collect points in a track, tap the play button and „ start moving along the desired track. Tap the pause button as needed, and tap play to start again. Current position information, total distance, altitude change, and points in the track are collected. When you are finished, tap the stop button.
  • Page 68 The distance shown decreases as you get closer. When you reach the navigation distance threshold set up in the settings, text saying Arrived is shown and you hear a beep if audio notification has been set up. Archer 2 Rugged Handheld Owner’s Manual...

  • Page 69: Camera

    Camera...

  • Page 70: Camera Settings For Still Images

    Camera Archer 2 Geo models have a 5MP camera and a video option. Juniper Geotagging™ gives you the ability to embed and emboss photos with the date, time, and GPS/ GNSS position. The camera window and flash are located on the back of the Archer 2.
  • Page 71 Flash To use the flash, select Flash from the Menu, then select On. The flash automatically turns on each time you take a photo. To turn it off, select Flash from the menu and select Off. Pictures & Videos Control Panel To view or change additional settings, select Options from the Menu soft key.
  • Page 72 The following Emboss Options screen is shown: Select the information you want to emboss on pictures, the position, and the color. The selected information is embossed on pictures, making it part of the images. Archer 2 Rugged Handheld Owner’s Manual...
  • Page 73 3. You can build GPS/GNSS information into jpg files from the Embed Options screen. (This information does not appear on the images.) You can select Use True North. Embed GPS allows you to put images into programs like Google Earth and sort them by location, etc.

  • Page 74: Take Photos And Select Photo Options

    While the photo is being saved, a disk symbol is shown briefly. The full photo is then shown on the screen. Archer 2 Rugged Handheld Owner’s Manual...
  • Page 75 Photo Options Select the Menu soft key to see a list of options for a particular photo. (The photo must appear on the screen.) To take another photo, press the Camera soft key. To see a library of photos and pictures, press Thumbnails. Chapter 7 Camera...

  • Page 76: Videos

    Press the camera button to turn on the camera. Select the Menu soft key, and select Video. Press Menu again to view and adjust settings as desired. Note: A portrait orientation is the default for videos. Archer 2 Rugged Handheld Owner’s Manual...

  • Page 77: Photo And Video Library

    Press the camera button to start recording a video. Press it again to end the video. Note: To take photos instead of videos, press Menu and select Still (see previous screen). Audio You can record sound with videos. From the Pictures & Videos application screen, tap Menu >...
  • Page 78 Library Menu Options Select a photo or video, then the Menu soft key. You can send, delete, edit, etc., the selected photo or video. Archer 2 Rugged Handheld Owner’s Manual...

  • Page 79: 3G Data Modem

    3G Data Modem...

  • Page 80: Determining Modem Type

    3G Data Modem The 3G data modem is an option for Archer 2 Geo models, adding Wide Area Network data modem capability. The modem is installed at the factory. The Archer 2 Geo has two options for providing cellular data service—either GSM or CDMA.
  • Page 81 This number allows the carrier to verify this modem as one of its approved models. If asked for this by the carrier, it is a Juniper Systems Archer 2. Install the SIM Card To insert or remove a card follow these steps: 1.
  • Page 82 . After about 30 seconds it turns green, indicating that the modem is available. Once the modem is available, configure it to make a connection. Tap and hold the modem gadget to open the Connections control panel. Archer 2 Rugged Handheld Owner’s Manual...

  • Page 83: Verizon Cdma Modem

    Billing Information and business ID, such as your Federal Tax I.D. The wireless services required. Specify that you need data and messaging (SMS) services only. Since the Archer 2 is not designed for voice transmission, you do not need voice service.
  • Page 84 Give the MEID number shown at the bottom of the screen to Verizon to set up your account. SIM Card Use Since the Archer 2 is not an LTE device, it does not use a SIM card. Set up the CDMA Modem...

  • Page 85: Wireless Safety

    screen show the modem is off for a couple seconds as it restarts. You can now access the Internet. Open Internet Explorer to test the connection. The gadget turns blue when the unit is connected to the Internet. Wireless Safety RF Interference Issues It is important to follow any special regulations regarding the use of radio equipment due in particular to the...
  • Page 86 Archer 2 Rugged Handheld Owner’s Manual...

  • Page 87: Barcode Scanner

    Barcode Scanner...

  • Page 88: Quick Start - Easily Scan A Barcode Now

    Archer 2. Quick Start – Easily Scan a Barcode Now When you receive your Archer 2 with the barcode scanner, you can scan a barcode right away using the default settings. Follow these steps: 1.

  • Page 89: Barcode Connector Utility

    ™ program provided with the barcode scanner. Depending on the configuration of your Archer 2 it either loads automatically when the handheld is turned on or you can open it from the Home screen. Note: If the program does not appear in the Home screen...
  • Page 90 8mW of power when it is in this state. To minimize the Barcode Connector utility press the X soft key in the bottom right corner of the display. Archer 2 Rugged Handheld Owner’s Manual...
  • Page 91 Barcode Setup When you select Barcode Setup, The Barcode Connector control panel is displayed. Near the top of the screen is a horizontal scrolling menu. Select screens from the menu to view or edit the configurations for the Barcode Connector utility and the barcode hardware.
  • Page 92 The trigger button on the keypad can also be used. Code Type and Scan Data – After a successful scan, the „ barcode code type and the scan data are displayed. General Screen Archer 2 Rugged Handheld Owner’s Manual...
  • Page 93 The General screen has the following functions: Scan Time – Adjust the scan time, which is the duration of „ time before the scanner times out. Enable or disable Aiming Crosshairs. „ Enable or disable Decoding Illumination (red light). „ Illumination Brightness –...
  • Page 94 Discrete, UPC/EAN 1, UPC/EAN 2, Interleaved GS1 DataBar, MSI Plessey, Codabar/Code 11, and Matrix 2 of 5. Depending on which 1D barcodes you are going to read, you should review the options and configure them for your needs. Archer 2 Rugged Handheld Owner’s Manual...
  • Page 95 For example, below is the screen for Code 39: Set Length: This option allows you to specify the length of the barcodes you want to read. This could be useful if you know that all valid barcodes will be a specific length or a range of lengths.
  • Page 96 Composite/Postal Code Types Screen The Composite/Postal Code Types screen has the following functions: Composite Codes - Enable or disable composite code „ types. Postal Codes - Enable or disable postal code types. „ 2D Code Types Screen Archer 2 Rugged Handheld Owner’s Manual...
  • Page 97 The 2D Code Types screen has the following function: 2D Code Types - Enable or disable 2D code types. „ Profiles Screen The Profiles screen has the following functions: Select a Profile to Save or Load - A profile is a saved set of „...

  • Page 98: Barcode Troubleshooting

    Reason/Solution: Enable all the barcode types on the 1D Code Types, Composite/Postal Code Types, and 2D Code Types tabs (some types are mutually exclusive). Go to the Test screen. Scan the barcode and the Code Type window Archer 2 Rugged Handheld Owner’s Manual...
  • Page 99 shows the type of barcode scanned. When you are finished, go back and deselect barcode types you are not using. 5 – My TLC-39 Composite barcode will not scan. Reason/Solution: On the 1D Code Types screen ensure that Code 39 is checked. Also select Options, then the Code 39 screen and ensure that Convert Code 39 to Code 32 is unchecked.
  • Page 100 Sample 1D Barcodes Code 39 Code 128 UPC-A Archer 2 Rugged Handheld Owner’s Manual...
  • Page 101 Sample 2D Barcodes Aztec Maxicode MicroPDF417 QR Code Chapter 9 Barcode Scanner...
  • Page 102 Archer 2 Rugged Handheld Owner’s Manual...

  • Page 103: A Storage, Maintenance And Recycling

    Storage, Maintenance and Recycling...

  • Page 104: Storing The Archer 2 And Battery Pack

    We recommend charging the handheld each night or weekend when it is in suspend mode. If the Archer 2 is not charged while in suspend mode and the battery reaches a low charge, it automatically powers off to prevent further drain on the battery.

  • Page 105: Protecting The Touchscreen

    CAUTION: Be sure to replace the screen protector as often as the screen protector instructions recommend. Cleaning the Archer 2 Touchscreen 1. Disable the touchscreen by pressing the power button until the Power Button menu appears. Tap on Disable TS.

  • Page 106: Recycling The Archer 2 And Batteries

    Recycling the Archer 2 and Batteries When the Archer 2 reaches the end of its life, it must not be disposed of with municipal waste. It is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 107: Warranty And Repair Information

    Warranty and Repair Information...

  • Page 108: Limited Product Warranty

    Limited Product Warranty Juniper Systems, Inc. (“JS”) warrants that the Archer 2 Rugged Handheld shall be free from defects in materials and workmanship, under normal intended use, for a period of 24 months from the date of shipment. JS warrants that the following items shall be free from...
  • Page 109 or implied, including, without limitation, any warranty as to merchantability, fitness for a particular purpose, non- infringement or any warranties arising from the course of performance, dealing, or usage of trade. JS specifically makes no warranties as to the suitability of its products for any particular application.

  • Page 110: Extended Warranties

    Warranty Repairs To obtain warranty repair or service on the Archer 2, submit a repair order on our website at http://www.junipersys.com/ Juniper-Systems/support/Repairs or contact an authorized repair center within the applicable warranty period. Products returned for repair or service without proper authorization may acquire an additional handling fee and/ or delay in the repair.

  • Page 111: Repairing The Archer 2

    Repairing the Archer 2 CAUTION: Do not attempt to repair the Archer 2 yourself. This action voids the warranty. Information about repairs, upgrades, and evaluations is located on our website at http://www.junipersys.com/...
  • Page 112 System Information for your Archer 2 When you contact a repair center you need some unique system ID information for your Archer 2 (serial number, model number, etc.). Tap Start > Settings > System > System Information to view the following menu. Select System ID.

  • Page 113: C Warnings And Regulatory Information

    Warnings and Regulatory Information...

  • Page 114: Product Warnings

    Product Warnings Follow the warnings listed below to use the Archer 2 and accessories safely. Battery Warnings WARNING! This device comes with a lithium ion rechargeable battery pack. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short external contacts, or expose the battery pack to fire.

  • Page 115: Certifications And Standards

    Do not pull on a cord or cable. When unplugging the wall charger from the electrical outlet, pull on the plug, not the cord. Use only wall chargers intended for the Archer 2. Using any other external power source can damage your product and void your warranty.
  • Page 116 Do not operate the cell modem outside of this temperature range. Industry Canada In compliance with Industry Canada rules, the following statement must appear on the device or in the user documentation: This Class B digital apparatus complies with Canadian ICES-003. Archer 2 Rugged Handheld Owner’s Manual...
  • Page 117 The ferrite core must be placed on the cable near the end that connects to the Archer 2. This device has been evaluated using the following standards to demonstrate compliance with applicable directives: EN 60950-1:2006 „...
  • Page 118 Complies with 21 CFR 1040.10 & 1040.11 except for deviations pursuant to Laser Notice No. 50 dated June 24, 2007. CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Archer 2 Rugged Handheld Owner’s Manual...
  • Page 119 This barcode scanner is not user-serviceable. Units requiring service or repair must be returned to the factory. This barcode scanner is not to be opened or modified by the user. This product does not require scheduled maintenance to remain compliant to the applicable standards.
  • Page 120 Archer 2 Rugged Handheld Owner’s Manual...

  • Page 121: Specifications

    Specifications...

  • Page 122: Archer 2 Rugged Handheld Specifications

    7.25” long x 1.5” thick (91 mm x 184 mm x 38 mm) Weight, standard: 1.3 lbs (590g), „ Archer 2 Geo with battery: 2.34 lbs (1061g), Archer 2 Geo 3G with battery and cell modem: 2.36 lbs (1070 g) Durable hardened plastic in a shear „...
  • Page 123 FEATURE SPECIFICATION Keyboard Numeric keypad „ Shift functions „ Multiple programmable keys and „ LEDs Backlight „ On-screen keyboard „ Batteries Rechargeable Li-Ion battery pack, „ 3.7VDC 10600mAh, 38.16Whr Run time of up to 20 hours „ Charging time 4 to 5 hours „...
  • Page 124 Getting Started „ Help „ Internet Explorer „ Internet Sharing „ JSNav „ Juniper Home screen, customizable „ with selectable dashboard gadgets and program shortcuts Juniper On-Screen Keyboards, Mega „ Keys and Mega Keys Night Archer 2 Rugged Handheld Owner’s Manual...
  • Page 125 US/North America and CE/EU Models Camera (Geo 5MP resolution „ models) Autofocus „ LED illuminator „ Video capture „ JPEG image format „ Juniper Geotagging; embed and/ „ or emboss photo with date, time and GPS/GNSS position Flash and flashlight „ Appendix D Specifications...
  • Page 126 Triple Band CDMA2000 Cell models) Bands: BC0/BC1 & BC10 subclass 2+3 „ (800/1900MHz) 3GPP2: 1 x Advanced, EV-DO Rev. A „ QLIC, Rx-Diversity, Equalizer „ Does not support voice calls „ Communicates on CDMA-based „ networks Archer 2 Rugged Handheld Owner’s Manual...
  • Page 127 FEATURE SPECIFICATION Barcode Motorola/ Imager and Decoder: „ Scanner (Geo Symbol SE4500 imager and PL3307C model option) 400MHz decoder Sensor Resolution: 752 X 480 „ Field of View: Horizontal 40°, vertical „ 25° Reading Angles: Skew & pitch ±60°, „ roll 360°...
  • Page 128 „ Flip cover fitted case „ 8GB micro SDHC memory card „ Premium screen protectors „ See your sales associate for more details on optional accessories. Note: Specifications are subject to change without notice. Archer 2 Rugged Handheld Owner’s Manual...
