Summary of Contents for Peak PKC0BU7
- Page 1 7.0-inch Back-Up Camera Model No.: PKC0BU7 Owner’s Manual and Warranty Information Read these instructions completely before using this product. Retain this Owner’s Manual for future reference. © 2012 7/12...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........................ 2 Back-Up Camera Safety ......................2 INTRODUCTION ..........................3 FEATURES ............................3 INSTALLATION ..........................4 OPERATION ............................ 7 Testing the System ........................7 Monitor Controls ........................7 CARE AND MAINTENANCE ......................8 Storage ........................... 8 Cleaning ..........................8 Fuse Replacement ........................ -
Page 3: Introduction

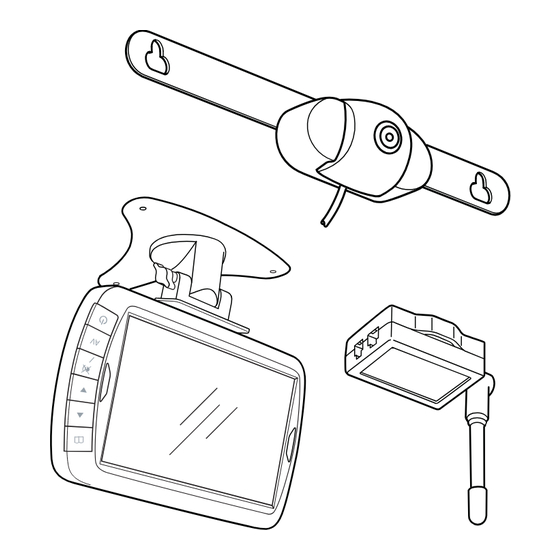

INTRODUCTION The Back-Up Camera displays images behind the vehicle, and is used when backing up a vehicle. When the vehicle is driven in reverse, the camera is activated, which sends a signal to the transmitter. The transmitter sends a video signal to the monitor, which then displays the view captured by the camera. FEATURES x Color monitor displays view from the rear of the vehicle x Wireless monitor can be suction-mounted to windshield or dash for easy visibility... -
Page 4: Installation
INSTALLATION Some states or local governments may have regulations or laws that restrict the use of anything that might impair the clear view of a license plate. Check local laws for compliance. For the Back-Up Camera to be properly installed, it must be wired into the vehicle’s taillight harness. - Page 5 Install the license plate screws to secure the camera to the vehicle. Determine which are the positive (+) and negative (–) wires for the reverse lights on the vehicle. You can use either the right- or left-side reverse light wires. For help locating the vehicle’s reverse light circuit, contact your vehicle’s manufacturer for vehicle-specifi...
- Page 6 Legend Wire from Vehicle Wire from Transmitter 12. Crimp the metal clamp using a pliers to ensure a good connection and then close the lock of the wire connector. Do this for both the positive (+) and negative (-) wires from the reverse light. 13.
-
Page 7: Operation
OPERATION Testing the System Push the ON/OFF button. The blue LED will light. With the park brake applied, turn the vehicle ignition switch to the ON position. Do not start the vehicle. Shift the vehicle to reverse to power the transmitter. The blue power LED will light continuously and the monitor will display the image from the camera. -
Page 8: Care And Maintenance
Press the menu button to bring up the settings screen. Press the menu button to scroll through the different adjustments. Press the UP button to increase or the DOWN button to decrease settings. The monitor can be mounted in any position. To change the view on the screen, scroll to direction. -
Page 9: Fcc Information
State law prohibits drivers in California and Minnesota from using suction mounts on their windshields while operating motor vehicles. Other dashboard or friction mounting options should be used. Peak® does not take any responsibility for any fi nes, penalties, or damages that may be incurred as a result of disregarding this notice. -
Page 10: Limited Warranty
LIMITED WARRANTY Manufacturer warrants to the original consumer, or purchaser, that the PEAK™ PKC0BU7 7.0-inch Back-Up Camera will be free from defects in material and workmanship for 1 year from the date of sale to the original purchaser. Manufacturer hereby excludes and disclaims any and all other warranties, expressed or implied, beyond those warranties speci ed above.
