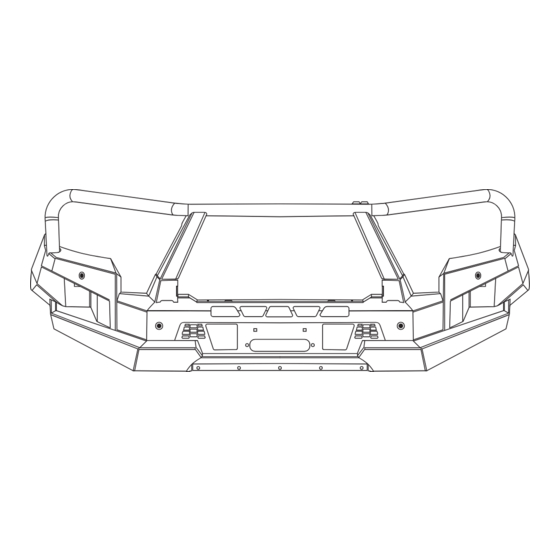

PEAK M1 NIGHTHAWK
Installation Manual
SSANGYONG MUSSO Q200/Q201/Q215/Q250/Q261
No Loop SYPEAK0419S / Single Loop SYPEAK0423S / Triple Loop SYPEAK0427S
IMPORTANT :
Bull Bar installations should only be done by a qualified person and it is the responsibility of this
person to ensure correct fitment
This Product Must Not Be Modified
Approx Install Time : 4Hrs
Advertisement
Related Manuals for Peak M1 NIGHTHAWK
Summary of Contents for Peak M1 NIGHTHAWK
- Page 1 This Product Must Not Be Modified Approx Install Time : 4Hrs PEAK M1 NIGHTHAWK Installation Manual SSANGYONG MUSSO Q200/Q201/Q215/Q250/Q261 No Loop SYPEAK0419S / Single Loop SYPEAK0423S / Triple Loop SYPEAK0427S IMPORTANT : Bull Bar installations should only be done by a qualified person and it is the responsibility of this...
- Page 2 DISCLAIMER Important Notice Regarding Installation and Warranty Thank you for choosing the PEAK M1 NightHawk. This manual contains essential instructions for proper installation and usage. It is of utmost importance that you carefully read and follow these guidelines. Additionally, we want to emphasize the critical role of experience and expertise in installing this bull bar correctly.
- Page 3 Always ensure vehicle is properly supported when working on it. Do not attempt to fit products whilst supension work is being carried out.Do not work under a vehicle supported only by a jack. Vehicle Support Peak M1 Nighthawk Installation Manual...
-
Page 4: Supplied Hardware
ACN: 649 230 55 www.peak4x4.com.au Name: Peak M1 NightHawk Part No: SYPEAK0419S / 0423S / 0427S / PEAK RECOVERY POINT - WLL 5000KG Name: Peak R1 NightHawk Part No: SYPEAK0523S / 0525S / 0527S / 8000KG MAX SNATCH STRAP For Vehicles:... - Page 5 01 M10x40mm (16 Pieces) M8x30mm (9 Pieces) Bash Plate 02 x 02 Bash Plate 03 x 01 M8x30mm (2 Pieces) M8x30mm (2 Pieces) Wing Support x 02 Front Grill Bracket x 02 M10x40MM (2 Pieces) Peak M1 Nighthawk Installation Manual...
- Page 6 STEDI C4 Cube Flood Light x 02 M6 Cage nuts (2 Pieces) M6x35mm (4 Pieces) Fog Light Adapter x 02 Leather Key Case x 01 Sensor Wire Extensions Cable Ties x 10 x 02 SENSOR MOUNTING KIT x 01 Peak M1 Nighthawk Installation Manual...
- Page 7 Fold back on the rubber seal and place up the engine bay out of the way. Make sure to retain all original screws & bolts as some are to be re purposed for the install of this product. Peak M1 Nighthawk Installation Manual...
- Page 8 4. Locate the hole in the splash guard where the quarter panel and the bumper meet. Using a Philips head, remove the vertically positioned retainer screw. Repeat for other side. 5. Remove factory bash plates. Peak M1 Nighthawk Installation Manual...
- Page 9 8. Using a Phillips head screwdriver remove plastic bumper retaining brackets from the quarter panels on both sides. 9. Unbolt power steering cooler lines from center reinforcement. 10. Unbolt and remove center reinforcement. Peak M1 Nighthawk Installation Manual...
- Page 10 11. To prevent any damage during the bar installation, take precautionary measures by taping up the headlights and quarter panels. 12. Trim body panel as per photo and cover exposed areas with epoxy based rust resistant paint. Peak M1 Nighthawk Installation Manual...
- Page 11 13. Remove all 4 sensors from their cradles and set aside. 14. Unclip grill from bumper bar and tape up along cut line. Cut Line Cut Line Peak M1 Nighthawk Installation Manual...
- Page 12 flush with the end of the quarter panel. Consider painting the quarter panel and the lower section of the headlights black in order to conceal the gap between the panel and the bumper. Peak M1 Nighthawk Installation Manual...
- Page 13 2x recovery point warning labels on the outer side of each recovery point. Warranty will be voided immediately if the compliance plate & two warning labels are not correctly applied and installed in their designated positions. Peak M1 Nighthawk Installation Manual...
- Page 14 Be sure to face the rubber isolator plate with the rubber facing down. 3. Run factory parking sensor and camera loom. In case you discover that the sensor wiring is insufficiently long, utilize the provided wire extensions to elongate the inner sensor cable. Peak M1 Nighthawk Installation Manual...
- Page 15 Apply the adhesion promoter generously to the base of the sensor bracket (the side that will face upward against the bar) and also around the sensor hole cutout in the bar. Peak M1 Nighthawk Installation Manual...
- Page 16 Affix the double-sided tape to each sensor bracket's base plate. d. Firmly place the brackets into position. Ensure that the outer sensors have a horizontal orientation, while the inner sensors should have a vertical orientation. Horizonta Vertical Peak M1 Nighthawk Installation Manual...
- Page 17 5. Connect wiring harness to each sensor. 6. Using supplied adaptors, connect STEDI lights to the wiring loom (not applicable for factory LED fog lights). 7. Install wing support brackets to bulbar using 1x M10x40mm Nuts bolts and washer. Peak M1 Nighthawk Installation Manual...
- Page 18 If you plan to install a light bar or spotlights, this is the appropriate moment to do so. In case you're installing both spotlights and a light bar simultaneously, ensure that you trim the spot light bolts, as there is limited clearance available. Peak M1 Nighthawk Installation Manual...
- Page 19 Part 3 Bull Bar Installation 1. Tape up headlights and quarter panels to prevent damage when installing bar. Peak M1 Nighthawk Installation Manual...
- Page 20 2. Tape up recovery points on chassis mounts before mounting to vehicle. 3. Affix top part of grill bracket to the bottom headlight screw. Peak M1 Nighthawk Installation Manual...
- Page 21 8x M10x120mm bolts, small crush tubes for the front bolts and tighten. Additionally fasten the final lower point using a M10x50mm bolt. 7. Retain lower chassis mount point using supplied large crush tubes and M12x120mm bolts. Peak M1 Nighthawk Installation Manual...
- Page 22 8. Install the winch cradle/bar mount to the chassis mount using 12x M10x40mm bolts, nuts and washers. leave these bolts finger tight as cradle might need to be adjusted (Left/Right) once the bar is on. Peak M1 Nighthawk Installation Manual...
- Page 23 Ensure that • A minimum 25mm gap where the bar meets the quarter panel. • Adequate clearance from the bar and body mounted parts is retained. 11. Once correct position is achieved tighten all 6 bolts. Peak M1 Nighthawk Installation Manual...
- Page 24 12. Screw bottom grill bracket to grill mounting point from original inner sensor cradle using 2x Phillips head screws from parts bin. Peak M1 Nighthawk Installation Manual...
- Page 25 13. Mount the other side of wing support bracket to chassis mount using 1x M10x40mm bolts washers & nuts. Peak M1 Nighthawk Installation Manual...
- Page 26 Bash Plate 02, Bash Plate 01), utilizing the M8x30mm bolts and washers. Bash Plate 01 Bash Plate 02 Bash Plate 03 15. Plug in camera to wiring loom. 16. Plug in the main harness to body. 17. Replace front engine cowling. Peak M1 Nighthawk Installation Manual...
- Page 27 19. Affix top part of number plate bracket using M6 bolts, nuts & washers. 20. Test fog lights and sensors. Peak M1 Nighthawk Installation Manual...
