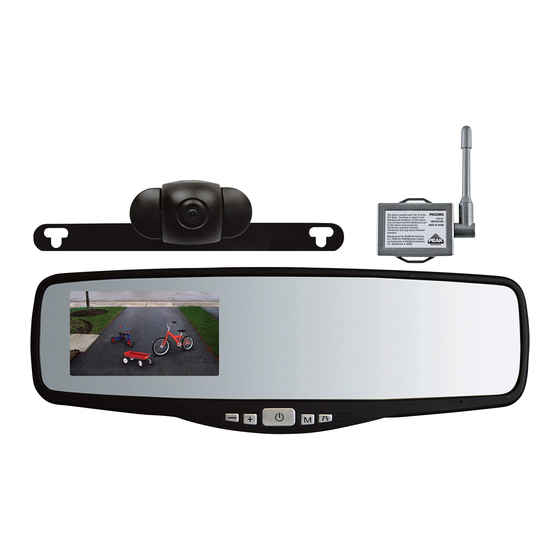

Rearview mirror back-up camera

Advertisement

Quick Links

Rearview Mirror
Back-Up Camera
Model No.: PKC0RG
Owner's Manual
and Warranty Information
Read these instructions completely before using this product.
Retain this Owner's Manual for future reference.
1
P/N XXXXX, 1/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PKC0RG and is the answer not in the manual?

Questions and answers

Summary of Contents for Peak PKC0RG

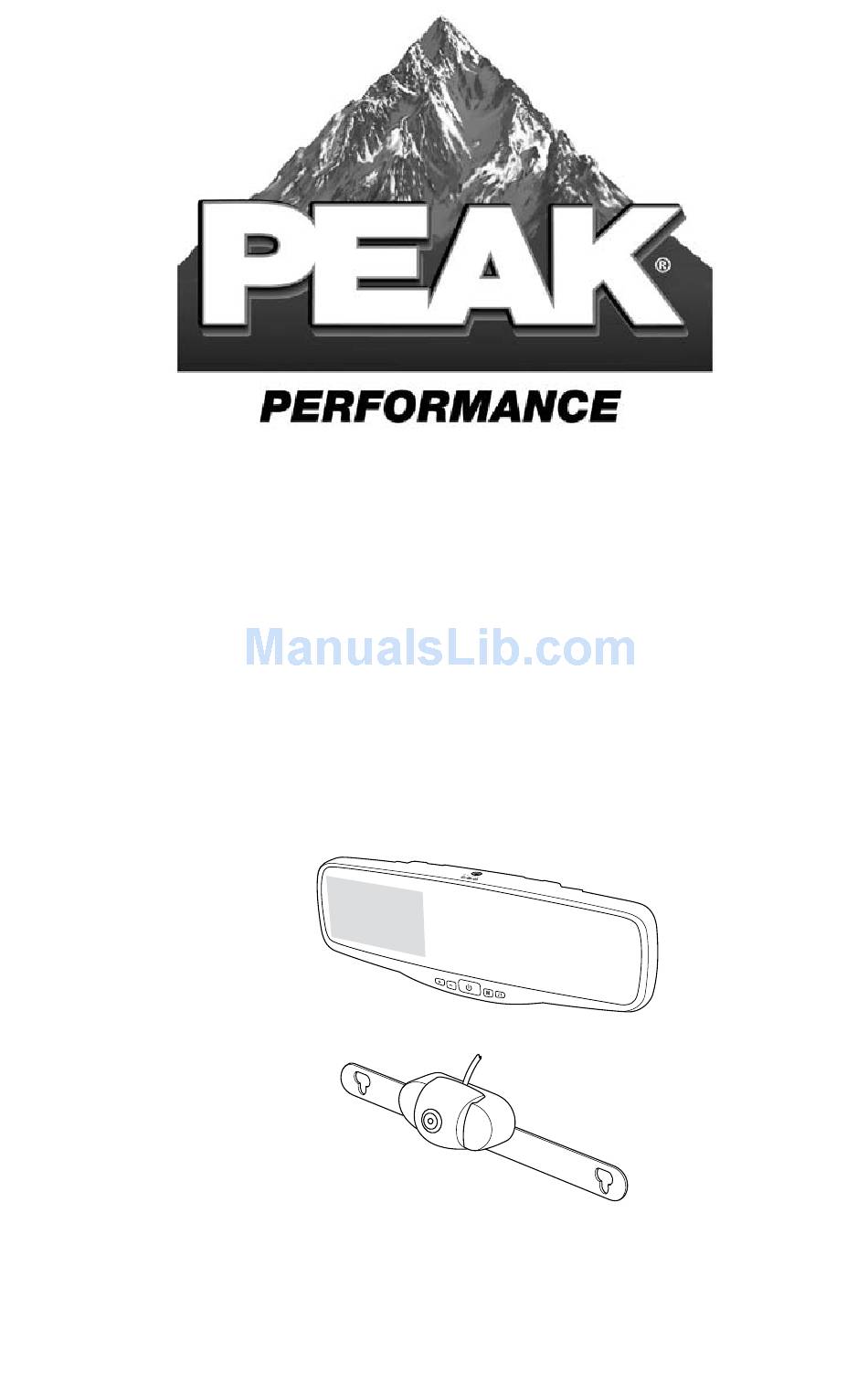

  • Page 1 Rearview Mirror Back-Up Camera Model No.: PKC0RG Owner’s Manual and Warranty Information Read these instructions completely before using this product. Retain this Owner’s Manual for future reference. P/N XXXXX, 1/11...
  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ........................ 2 Back-Up Camera Safety ......................2 INTRODUCTION ..........................2 FEATURES ............................3 INSTALLATION ..........................4-8 OPERATION ............................ 8 Testing the Back-Up Camera System ..................8 Adjust Display Settings......................8 CARE AND MAINTENANCE ......................9 Storage ........................... 9 Cleaning ..........................
  • Page 3: Features

    FEATURES 3.5 in. LCD color monitor displays view from the rear of the vehicle • Adjustable camera angle • Camera activates automatically when the vehicle is shifted into reverse • Weatherproof camera with 120° viewing angle • Reduces the danger of harm or damage due to overseen objects •...
  • Page 4: Installation

    INSTALLATION Some states or local governments may have regulations or laws that restrict the use of anything that might impair the clear view of a license plate. Check local laws for compliance. For the Back-Up Camera to be properly installed, it must be wired into the vehicle’s taillight harness.
  • Page 5 Determine which are the positive (+) and negative (-) wires for the reverse lights on the vehicle. You can use either the right- or left-side reverse light wires. For help locating the vehicle’s reverse light circuit, contact your vehicle’s manufacturer for vehicle-specific wiring diagrams. Remove the vehicle’s negative (-) battery cable.
  • Page 6 Legend Wire from Vehicle Wire from Transmitter Crimp the metal clamp using a pliers to ensure a good connection and then close the lock of the wire connector. Do this for both the positive (+) and negative (-) wires from the reverse light. Mount the transmitter in an area where the wire from the camera can be plugged into it.
  • Page 7 Plug the camera wire plug into the transmitter camera port and secure the wire with wire ties if needed. Legend Spring-Loaded Upper Bracket Lower Bracket Strap Mounting Slot Upper Strap Lower Strap Make sure you have the correct sides of the hook and loop straps facing each other before installing them into the strap mounting slot.
  • Page 8: Operation

    Install the upper and lower straps into the mounting slots on the back of the mirror, making sure you have the correct sides of the straps facing each other. Place the upper spring-loaded bracket on top of the mirror. While supporting the existing rearview mirror, push down and slide the lower bracket under the mirror.
  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE Storage Store this Back-Up Camera system in a cool, dry area and keep it away from direct sunlight, heat, excessive humidity and dampness. Cleaning Do not clean or wipe the camera or display with solvents or chemical materials. If necessary, remove dirt or stains using a soft cloth dampened with a mild detergent solution.
  • Page 10: Troubleshooting

    Before returning this product for any reason, please call toll free (800) 477-5847. Do not return your PEAK® product to the place of purchase for service. Send your unit, postage prepaid and insured, along with a copy of the original sales receipt and a phone number to the address below.
