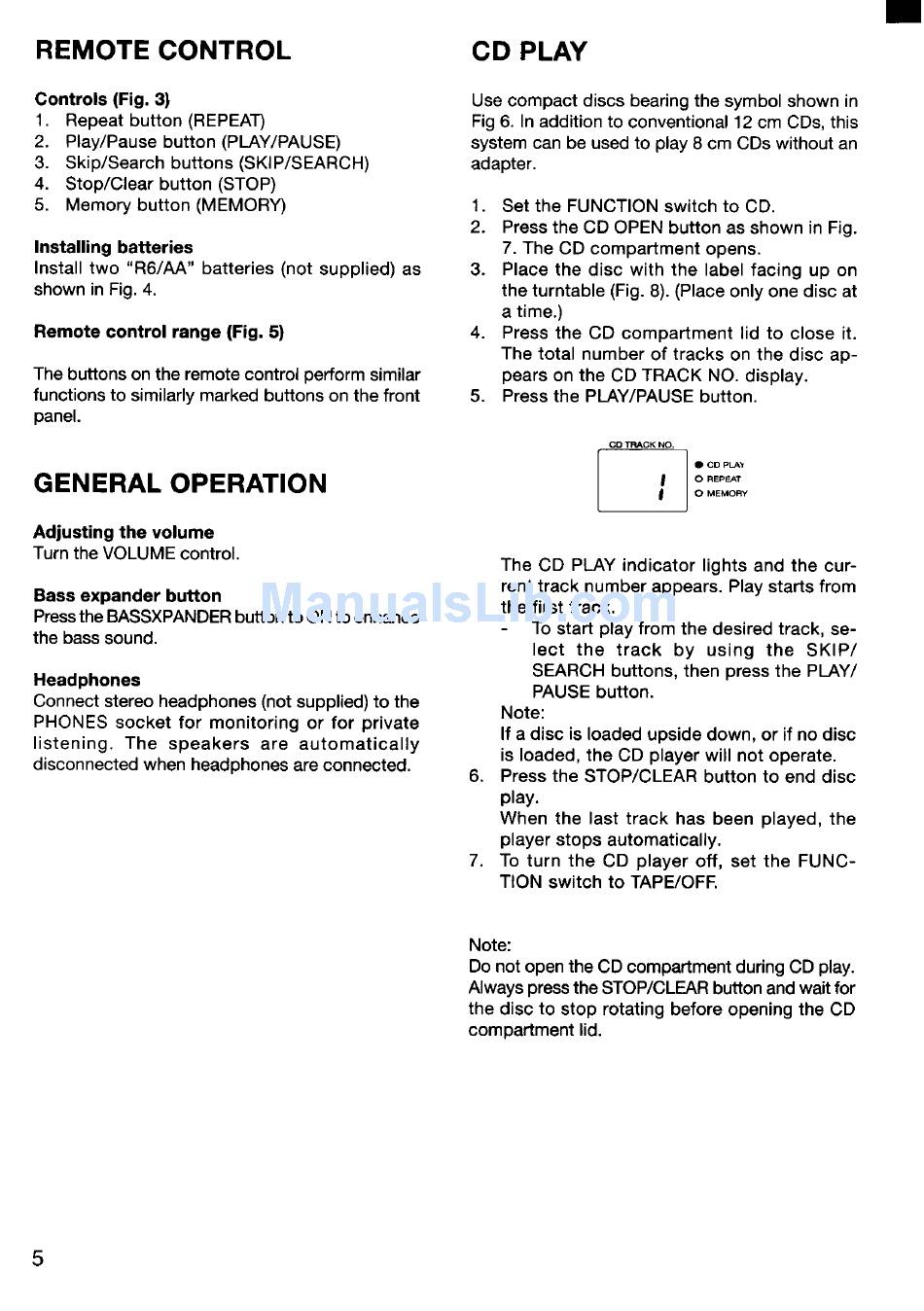

REMOTE CONTROL
Controls (Fig. 3)
1,
Repeat button (REPEAT)
2.
Play/Pause
button (PLAY/PAUSE)
3.
Skip/Search
buttons (SKIP/SEARCH)
4.
Stop/Clear
button (STOP)
5.
Memory button (MEMORY)
Installing batteries
Install two "R6/AA" batteries (not supplied) as
shown in Fig. 4.
Remote control range (Fig. 5)
The buttons on the remote control perform similar
functions to similarly marked buttons on the front
panel.
GENERAL OPERATION
Adjusting the volume
Turn the VOLUME control.
Bass expander
button
Press the BASSXPANDER button to ON to enhance
the bass sound.
Headphones
Connect stereo headphones (not supplied) to the
PHONES
socket for monitoring
or for private
listening.
The
speakers
are automatically
disconnected when headphones are connected.
CD PLAY
Use compact discs bearing the symbol shown in
Fig 6. In addition to conventional 12 cm CDs, this
system can be used to play 8 cm CDs without an
adapter.
1.
2.
3.
4.
5.
6.
7.
Set the FUNCTION
switch to CD.
Press the CD OPEN button as shown in Fig.
7. The CD compartment
opens.
Place the disc with the label facing up on
the turntable (Fig. 8). (Place only one disc at
a time.)
Press the CD compartment
lid to close it.
The total number of tracks on the disc ap-
pears on the CD TRACK NO. display.
Press the PLAY/PAUSE
button.
CD TRACK
NO.
I
CD
PLAY
0
REPE4.
The CD PLAY indicator lights and the cur-
rent track number appears. Play starts from
the first track.
-
To start play from the desired track, se-
lect
the
track
by using
the
SKIP/
SEARCH buttons, then press the PLAY/
PAUSE button.
Note:
If a disc is loaded upside down, or if no disc
is loaded, the CD player will not operate.
Press the STOP/CLEAR
button to end disc
play.
When the last track has been played, the
player stops automatically.
To turn the CD player off, set the FUNC-
TloN switch
tO
TAPE/OFF.
Note:
Do not open the CD compartment during CD play.
Always press the STOP/CLEAR button and wait for
the disc to stop rotating before opening the CD
compartment lid.
5
