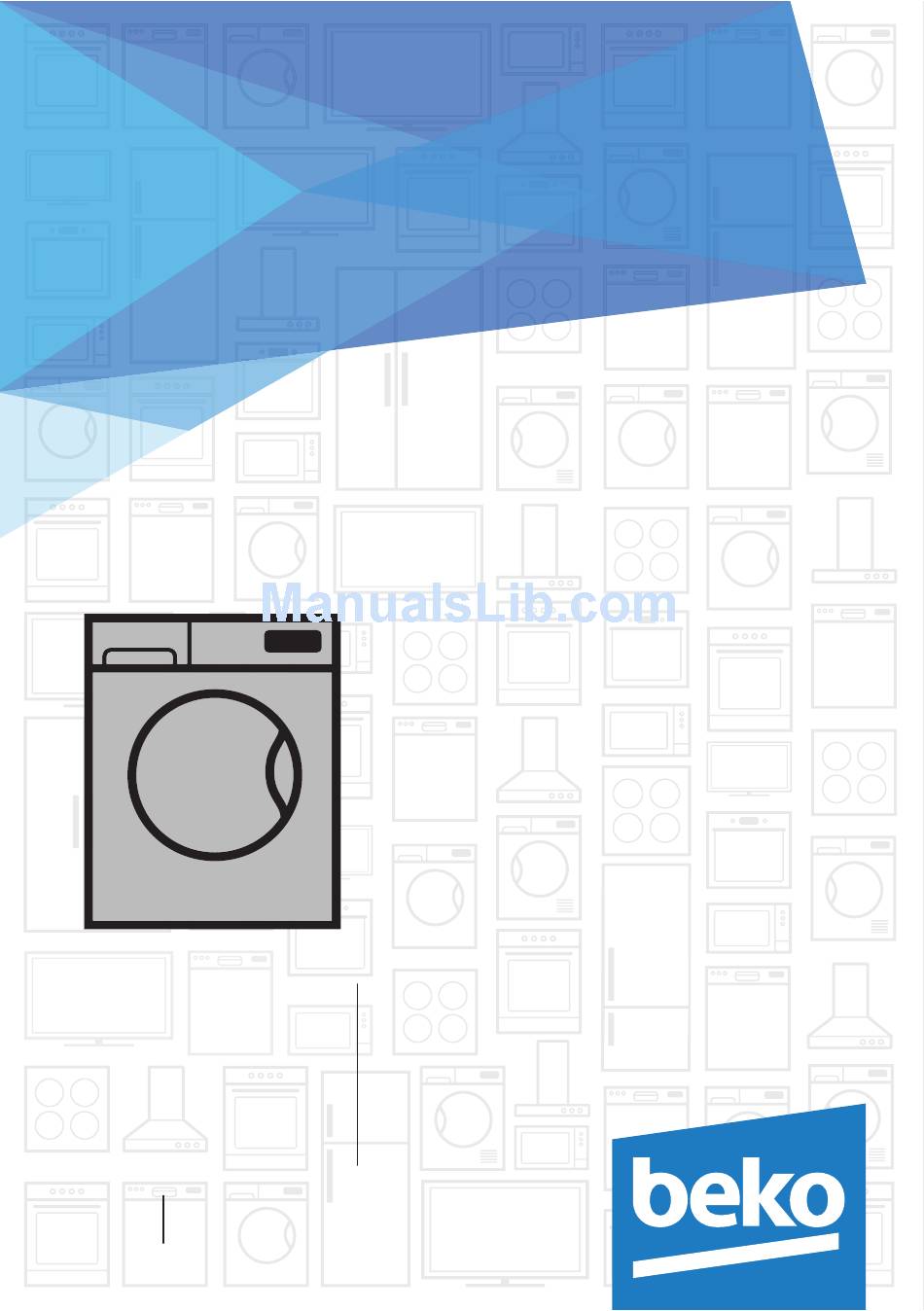

Page 1: Washing Machine
Washing Machine User’s Manual WMA 9148 LB1 Document Number= 2820523728/ 04-12-15.(10:48) - Page 2 This product was manufactured using the latest technology in environmentally friendly conditions.
- Page 3 Please read this user manual first! Dear Customer, Thank you for prefering a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 4: Table Of Contents
CONTENTS 1 General safety instructions 5 Operating the product 1.1 Life and property safety ....5 5.1 Control panel ..... . .21 5.2 Display symbols 1.2 Children’s safety. -
Page 5: General Safety Instructions
General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed. 1.1 Life and property safety • Never place the product on a carpet-covered floor. Electrical parts will get overheated since air cannot circulate from under the device. -
Page 6: Electrical Safety
General safety instructions • Do not forget to close the loading door when leaving the room where the product is located. • store all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package. -
Page 7: Compliance With Weee Directive
General safety instructions 1.5 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. -
Page 8: Your Washing Machine
Your washing machine 2.1 Overview 1- Power cable 5- Loading door 2- Top panel 6- Filter cap 3- Control panel 7- Adjustable feet 4- Drain hose 8- Detergent drawer 8 / EN Washing Machine /User’s Manual... -
Page 9: Package Contents
Your washing machine 2.2 Package Contents 1- Power cable 2- Drain hose 3- Transportation safety bolts * 4- Mains water inlet hose (One of the following filter types is used for the mains hose connection.) a- Electronic water shut-off b- Mechanical water shut-off c- Standard 5- Liquid detergent container** 6- User Manual... -
Page 10: Technical Specifications
Your washing machine 2.3 Technical specifications Models (EN) WMA 9148 LB1 Maximum dry laundry capacity (kg) Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) 220-240 V / 50Hz Electrical input (V/Hz) Total current (A) 2000-2350 Total power (W) 1400 Spin speed (rpm/ min., max.) -
Page 11: Installation
Installation 3.2 Removing packaging Refer to the nearest Authorised Service Agent for installation of the product. To make the product reinforcement ready for use, review the information in the user Tilt the machine backwards to remove the manual and make sure that the electricity, tap packaging reinforcement. -
Page 12: Connecting Water Supply
Installation 3. Attach the plastic covers supplied in the User hose (left) (max. 90 ºC) is for hot water inlet, Manual bag into the holes on the rear panel. (P) blue hose (right) (max. 25 ºC) is for cold water inlet. -
Page 13: Connecting To The Drain
Installation 3.5 Connecting to the drain 3.6 Adjusting the feet • The end of the drain hose must be directly WARNING: In order to ensure that connected to the wastewater drain or to the the product operates more silently washbasin. and vibration-free, it must stand level and balanced on its feet. -
Page 14: Electrical Connection
Installation 3.7 Electrical connection Connect the product to a grounded outlet protected by a 16 A fuse. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations. •... -
Page 15: Preparation
Preparation 4.1 Sorting the laundry • Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. • Always obey the instructions given on the garment tags. LAUNDRY WASH SYMBOLS Machine Wash Symbols WASH Maximum Water Temperatures Symbol(s) -
Page 16: Preparing Laundry For Washing
Preparation 4.2 Preparing laundry for washing 4.3 Things to be done for energy saving • Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons Following information will help you use the will damage the machine. Remove the metal product in an ecological and energy-efficient pieces or wash the clothes by putting them in a manner. -
Page 17: Initial Use
Preparation 4.4 Initial use Laundry type Weight (g) Before starting to use the product, make sure Bathrobe 1200 that all preparations are made in accordance Napkin with the instructions in sections “Important safety Duvet cover instructions” and “Installation”. Bed Sheet To prepare the product for washing laundry, Pillowcase perform first operation in Drum Cleaning... -
Page 18: Using Detergent And Softener
Preparation 4.7 Using detergent and softener • Use different detergents for coloured and white laundry. When using detergent, softener, starch, • Wash your delicate clothes only with special fabric dye, bleach or limescale remover detergents (liquid detergent, wool shampoo, read the manufacturer's instructions etc.) used solely for delicate clothes. - Page 19 Preparation • Do not use softener and starch together in a washing cycle. • Wipe the inside of the machine with a damp and clean cloth after using starch. Using bleaches • Select a programme with prewash and add the bleaching agent at the beginning of the prewash.
-
Page 20: Tips For Efficient Washing
Preparation 4.8 Tips for efficient washing Clothes Light colours and Delicates/Woolens/ Colours Dark colours whites Silks (Recommended (Recommended (Recommended (Recommended temperature range temperature range temperature range temperature range based on soiling level: based on soiling level: based on soiling based on soiling 40-90ºC) cold-40ºC) level: cold-40ºC) -
Page 21: Operating The Product
Operating the product 5.1 Control panel 1. Programme selection knob 2 - Spin Speed Adjustment button 3 - Temperature adjustment button 4 - Display 5 - Programme follow-up indicator 6 - On / Off button 7 - Start / Pause button 8 - End Time Adjustment button 9 - Auxiliary Function buttons 10 - Programme Selection lights... -
Page 22: Display Symbols
Operating the product 5.2 Display symbols 88:88 1888 a - Temperature indicator b - Electrical connection c - Steam indicator d - Audio Warning indicator e - No Water indicator f - Detergent indicator g - Start / Pause indicator h - Program Follow-up indicator i - End Time indicator j - Duration Information Line... -
Page 23: Preparing The Machine
Operating the product 5.3 Preparing the machine 5.5 Programmes 1 Check if the hoses are connected tightly. Depending on the type of fabric, use the following 2 Plug in your machine. main programmes. 3 Turn the tap on completely. • Cottons 4 Place the laundry in the machine. - Page 24 Operating the product • Auto Program Use to wash your frequently washable cotton, synthetic or blended (cotton+synthetic) clothes. Programme detects the type and quantity of the laundry to automatically adjust water consumption and programme time. CAUTION: Do not wash your woolen and delicate clothes in this programme. Select a suitable temperature if the temperature shown on the temperature display is not compatible with the warnings on the garment label.
- Page 25 Operating the product Following table includes cloth types to be washed gently and some washing programmes suitable for some special clothes. Recommended washing Special laundry type Laundry content programme Viscose, modal, rayon, tencel, Blouse, dress, skirt, foulard Hand Wash lyocell, angora Knitted, dress Wool, acrylic Woolens...
- Page 26 Operating the product • Cottons Eco • Steam Therapy Use to wash your normally soiled, durable cotton Reduces creasing in dry garments and shortens and linen laundry. Although it washes longer than ironing duration with its anti-wrinkle effect. all other programmes, it provides high energy Load only half of the capacity stated for and water savings.
-
Page 27: Temperature Selection
Operating the product • Rinse If you scroll to cold wash option and press Use when you want to rinse or starch separately. Temperature Adjustment button again, the recommended maximum temperature for • Spin+Drain the selected programme appears on the Use to drain the water in the machine. - Page 28 Operating the product in the machine. This function holds the laundry in the final rinsing water. 88:88 If you want to spin your laundry after the Rinse Hold function: - Adjust the Spin Speed. - Press Start / Pause / Cancel button. The programme resumes.
-
Page 29: Programme And Consumption Table
Operating the product 5.10 Programme and consumption table Auxiliary functions Selectable Programme temperature range °C 2.60 1400 • • • • 90-Cold Cottons 1.90 1400 • • • • 90-Cold 1.00 1400 • • • • 90-Cold Cottons Eco 40** 0.95 1400 40-Cold... -
Page 30: Auxiliary Function Selection
Operating the product 5.11 Auxiliary function selection • Prewash A Prewash is only worthwhile for heavily soiled Select the desired auxiliary functions before laundry. Not using the Prewash will save energy, starting the programme. Whenever a programme water, detergent and time. is selected, frames of the auxiliary function symbol that can be selected together with it illuminates. -
Page 31: End Time
Operating the product Time display 3 Set the end time of your choice by pressing Remaining time for the completion of the the End Time button. End Time indicator programme while it is running is displayed as illuminates. 4 Press Start / Pause button. Time countdown “01:30”... -
Page 32: Loading Door Lock
Operating the product 5.14 Loading door lock Changing the programme selection after programme has started: There is a locking system on the loading door of The programme change is not allowed when the the machine that prevents opening of the door in current programme is running. -
Page 33: Canceling The Programme
Operating the product 5.18 End of programme To deactivate the childproof lock: Press and hold Auxiliary Function button 2 End symbol appears on the display when the for 3 seconds. After the countdown as “CL 3-2- programme is completed. 1” on the display is over, "Child Lock Enabled" If you do not press any button for 10 minutes, the disappears from the display. -
Page 34: Maintenance And Cleaning
Maintenance and cleaning 6.2 Cleaning the loading Service life of product extends and frequently experienced problems will be reduced if it is door and the drum cleaned at regular intervals. For products with drum cleaning programme, please see Operating the product - Programmes. 6.1 Cleaning the detergent drawer For products without drum cleaning, follow the Clean the detergent drawer at regular intervals... -
Page 35: Cleaning The Body And Control Panel
Maintenance and cleaning clean thoroughly under running water. CAUTION: Never use sponge or scrub 4. Replace the seals and filters carefully and materials. These will damage the painted tighten their nuts by hand. and plastic surfaces. 6.5 Draining remaining water 6.3 Cleaning the body and cleaning the pump filter and control panel... - Page 36 Maintenance and cleaning If the product does not have an emergency 2. Open the filter cover. water drain hose, in order to drain the water: 3. While some of our products are equipped with an emergency water drain hose, some are not. Follow the below procedures in order to drain water.
-
Page 37: Troubleshooting
Troubleshooting Problem Reason Solution Program does not Start / Pause / Cancel button was not Š *Press the Start / Pause / Cancel pressed. button. start after closing the door. Programme cannot Washing machine has switched to self Š Press and hold Start / Pause / protection mode due to a supply problem (line Cancel button for 3 seconds to reset be started or... -
Page 38: During Washing
Troubleshooting Problem Reason Solution No water can be The water level is not visible from outside of Š This is not a failure. the washing machine. seen in the machine during washing. Loading door cannot Door lock is activated because of the water Š... - Page 39 Troubleshooting Problem Reason Solution Machine does not There might be unbalanced load in the Š Automatic unbalanced load detection machine. system might be activated due to the switch to spinning unbalanced distribution of the laundry step. (*) in the drum. The machine will not spin if water is not Š...
-
Page 40: After Washing
Troubleshooting Problem Reason Solution Washing Odours and bacteria layers are formed on Š Leave the detergent drawer as well as the drum as a result of continuous washing the loading door of the machine ajar performance is at lower temperatures and/or in short after each washing. -
Page 41: The Detergent Drawer
Troubleshooting Problem Reason Solution Laundry does Detergent is put in the wrong compartment. Š If detergent is put in the prewash compartment although prewash cycle not smell like the is not selected, machine can take this softener. (**) detergent during rinsing or softener step. - Page 42 Troubleshooting Problem Reason Solution Foam is overflowing Too much detergent is used. Š Mix 1 tablespoonful softener and ½ l water and pour into the main wash from the detergent compartment of the detergent drawer. drawer. Š Put detergent into the machine suitable for the programmes and maximum loads indicated in the “Programme and consumption table”.
- Page 44 www.beko.com...
