4. CAMERA LENS – SETTINGS and ADJUSTMENTS
For optimum picture quality, the lens should be as close
as possible to the inside face of the viewing window, without
touching.
For unique designation wall mount, rotate the camera to
desire location.
Power should be applied when performing the following
adjustments.
4.1 Lens Clearance and Tilt Adjustments
Step 4.1.1 - Loosen the screws which secure the camera's
"slide and tilt" bracket.
Step 4.1.2 - Slide the bracket to its new location, tilt the lens
and re-tighten the screws. See Figures 4-1 .
Fixed Lens& Vari Focal "Auto-Iris" Lens

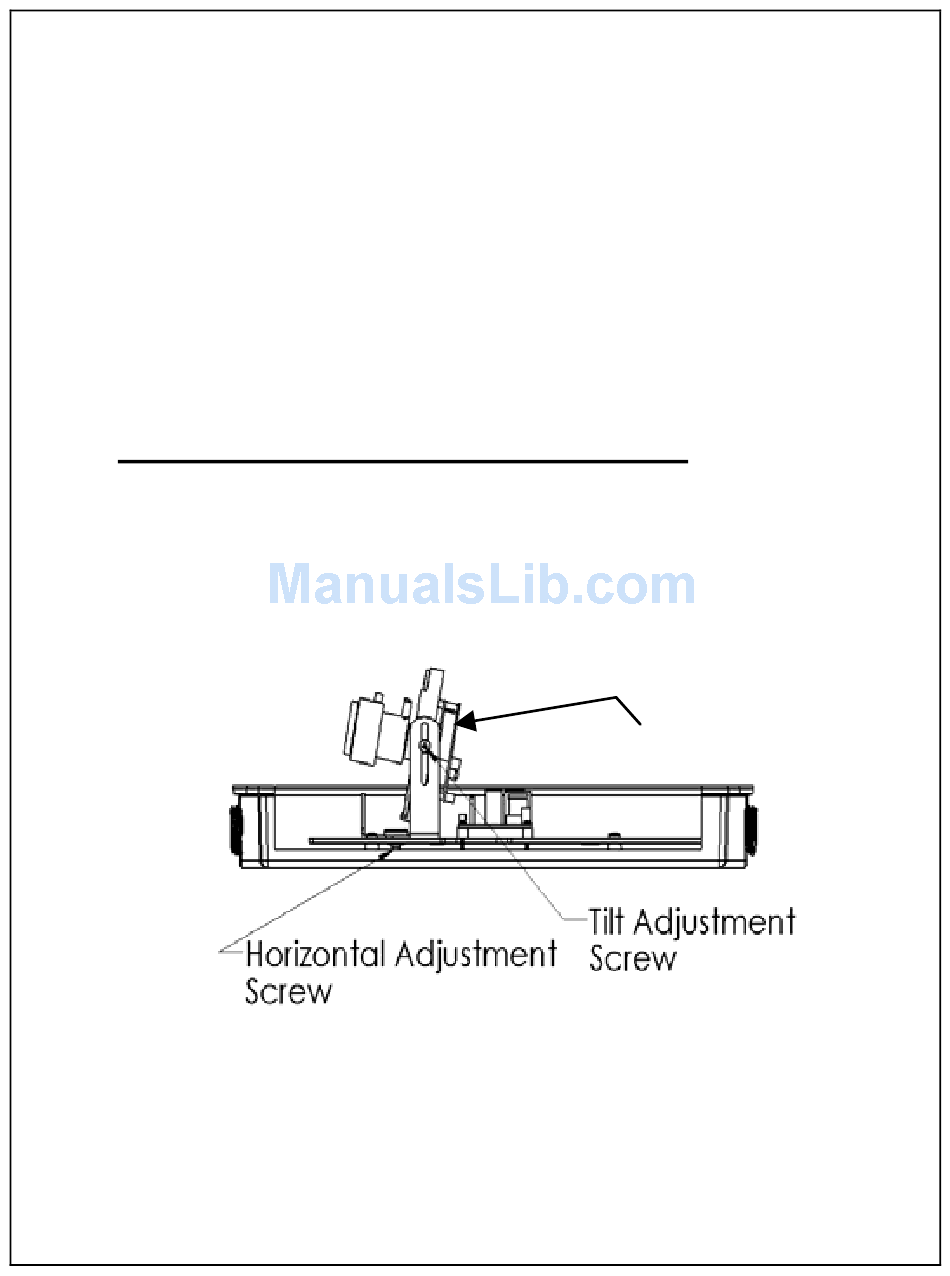

FIGURE 4 – 1
Tilt and Slide Adjustments –
Rotate for unique
designation
- 9 -
