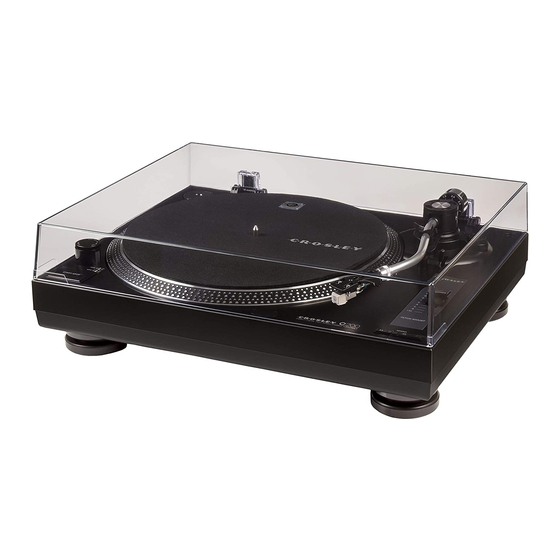

Crosley C100 Instructions For Use Manual
Hide thumbs
Also See for C100:
- Instruction manual (35 pages) ,
- Operating instructions manual (13 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Crosley C100
Summary of Contents for Crosley C100

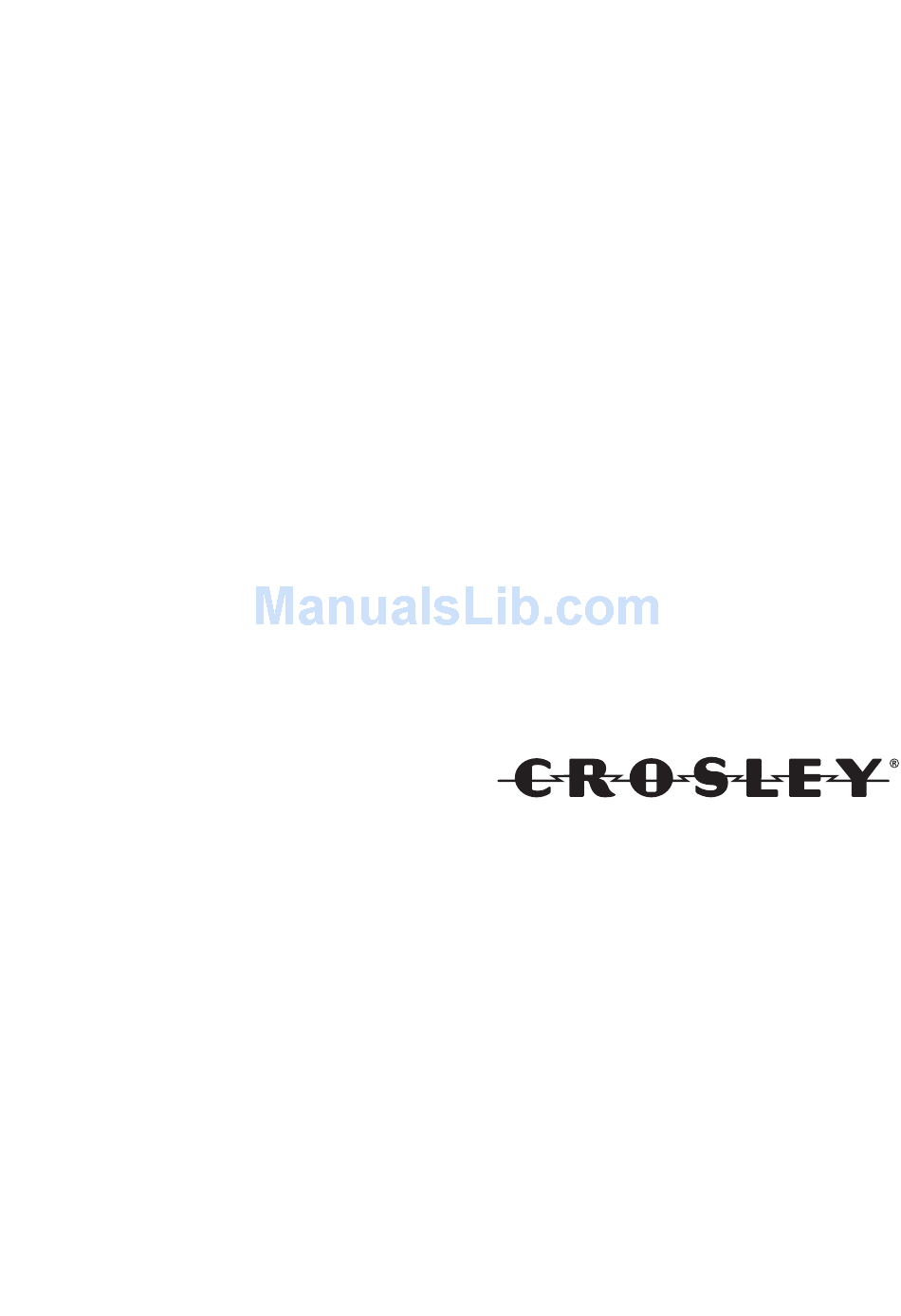

- Page 1 INST RUCT IO NS FO R USE C RO SLE Y C100...
- Page 2 IMPORTANT SAFETY INSTRUCTION // CONSIGNES DE SÉCURITÉ IMPORTANTES The lightning flash with arrowhead The exclamation point within the CAUTION: To reduce the risk of symbol within the equilateral triangle equilateral triangle is intended to electric shock, do not remove any is intended to alert the use to the alert the user to the presence of cover.
-
Page 3: Important Safety Instruction
ENGLISH IMPORTANT SAFETY INSTRUCTION PLEASE READ CAREFULLY ALL THE FOLLOWING IMPORTANT SAFEGUARDS THAT ARE APPLICABLE TO YOUR EQUIPMENT 1. Read Instructions - All the safety and operating instructions should be read before the product is operated. . Retain instructions - The safety and operating instructions should be retained for future reference. 3. - Page 4 CONTROLS 45 RPM Adaptor Tonearm Rest and Hold Down Clip Turntable Platter Cue Lever Spindle Anti-skate Knob Strobe Dots Counterweight On/Off Switch Spare Headshell Holder Start/Stop Button Hinges for Turntable Lid Headshell Downforce Scale Speed Select Buttons Line out/Phono Jack Pitch Control Line out/Phono Switch Tonearm...
-
Page 5: Specifications
SPECIFICATIONS GENERAL Power supply AC 120V~60Hz Power consumption 8 Watts Dimension 450(W) x 350(D) x 145(H) mm Weight 4.55 Kgs TURNTABLE Driving Method Belt driven Speeds 331/3 and 45RPM Supplied stylus AT3600L Stylus Pressure 3.5g Anti-skate range *note: design and specifications are subject to change without notice GETTING STARTED INCLUDED IN THE PACKAGE: 1 Turntable platter... -
Page 6: Getting Prepared
GETTING PREPARED 1 Remove the turntable from the box and remove the packaging. 2 Put the 45-rpm adaptor into its holder. 3 Set the turntable platter onto the center spindle. a. Once the turntable platter is in place rotate the platter so that the large window is that the top right corner, allowing you to access the pulley on the drive motor as shown below. - Page 7 INSTALLATION OF NEW CARTRIDGE Your unit comes pre-installed with cartridge mounted to the headshell. When installing a new or different cartridge, refer to the installation instructions of that cartridge. During installation attach the stylus protector to guard the stylus tip from damage. a.
-
Page 8: Turntable Operation
TURNTABLE OPERATION Turn the On/Off Switch clockwise to turn on the power, the speed indicator light, which is located beneath the On/Off switch, will light up. Place a record on the slip mat. When playing a 45-rpm record with a large center hole, place the 45- rpm adapter on the center spindle. -
Page 9: Troubleshooting
TROUBLESHOOTING Crosley turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by incorrect use or unfortunate circumstances. Therefore the following list of common fault symptoms is included. -
Page 10: Limited Manufacturer's Warranty
LIMITED MANUFACTURERS WARRANTY Crosley Radio, Inc. warrants the product to be free from defects in material and workmanship under normal use for a period of one year from the original date of purchase. This warranty is not transferable. If the product is determined to be defective during the warranty period, the unit will be repaired or replaced at Crosley Radio’s sole discretion.
Need help?
Do you have a question about the C100 and is the answer not in the manual?
Questions and answers
Is there a standard setting for the pitch control when playing 33 what is strobe lights don’t light up
The standard pitch control setting for the Crosley C100 when playing 33 RPM records is when the strobe light appears stationary. If the strobe light moves to the right, the pitch is too low, and if it moves to the left, the pitch is too high. Adjust the pitch control slider until the light stops moving to ensure the correct speed.
