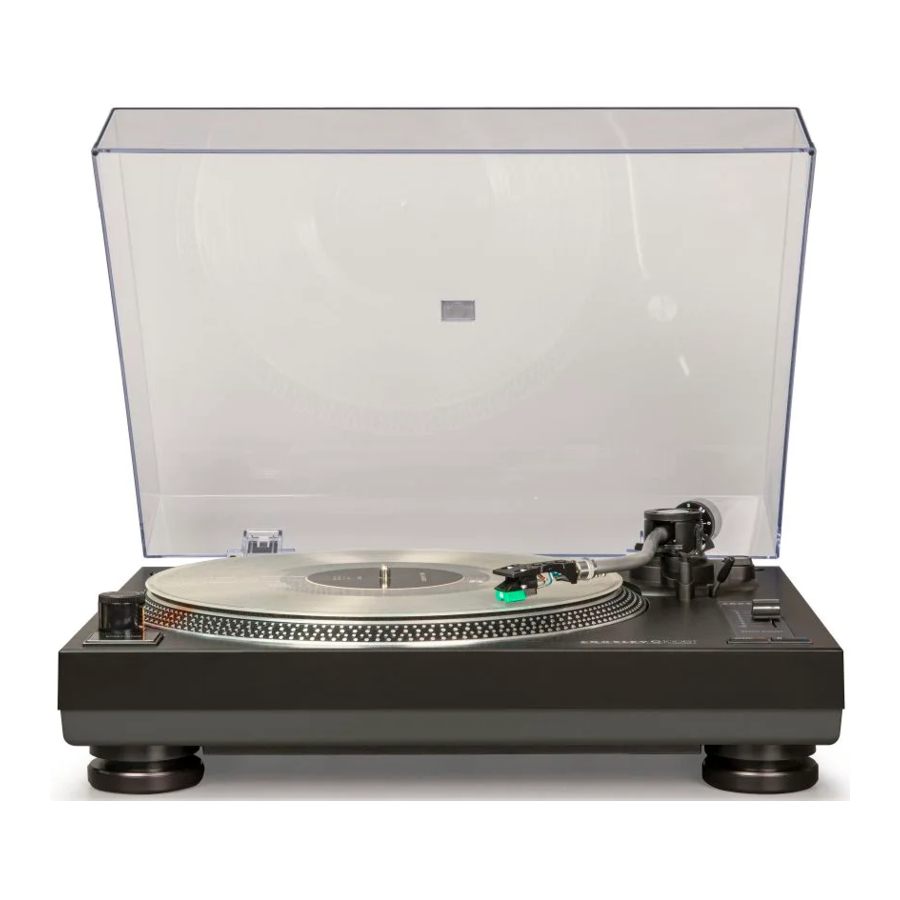

Crosley C100BT - Record Player Manual

Important Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Read these instructions carefully.
2. Keep these instructions for later reference.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use the device near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Always ensure a sufficient ventilation. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce or radiate heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades, one being wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10.
    Protect the power cord from being walked on or pinched or otherwise damaged, particularly at plugs, convenience receptacles, and the point where they exit from the device.
11. Only use attachments/accessories that have been specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold along with the device. When a cart is used, use caution when moving the cart/device combination to avoid injury from tip-over.
13. Unplug this device during lightning storms or when not being used for longer periods of time.
14. Refer all servicing to qualified service personnel only. Servicing is required when the device has been damaged in any way, such as: Power-supply cord or plug has been damaged, liquid has been spilled or entered the device, the device has been exposed to rain or moisture, or objects have fallen into the device, the device does not work normally, or it has been dropped.
15. Where a mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
16. Please keep the unit in a good ventilation environment at any time.


Caution Marking and ratting plate was located at rear enclosure of the apparatus.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

The mains plug is used as disconnect device. The mains plug of apparatus should not be obstructed for should be easily accessed during intended use.
To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.

• Caution Marking and rating plate was located at rear enclosure of the apparatus.
• When the mains plug or appliance coupler is used as disconnect device, it shall remain readily operable.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.; Minimum distances 10cm around the apparatus for sufficient ventilation.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Use the apparatus only in a moderate climate.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Turntable
• Turntable Lid
• Turntable Platter
• Turntable slip mat
• Headshell
• 45 RPM adapter
• Tonearm Counterweight
• RCA Cable

Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

Product Description

1. 45 RPM Adapter
2. Turntable Platter
3. Turntable Spindle
4. Strobe Dots
5. Power Knob
6. Start/Stop Button
7. Hinges
8. Spare Headshell Holder
9. Tonearm Counterweight
10. Downforce Scale Dial
11. Anti-Skate Adjustment Dial
12. Tonearm Lift
13. Cue Lever
14. Tonearm Rest
15. Hold Down Clip
16. Tonearm
17. Pitch Control
18. Headshell Locking Ring
19. Headshell
20. Bluetooth Pairing Button
21. Speed Selector
22. Phono/Line Jacks
23. Ground Connector
24. Phone/Line Switch
25. Power Jack

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Install the turntable lid to the hinges.
3. Remove the tie-wrap that is holding the tonearm.
4. Install the turntable platter and drive belt accordingly
5. Place the slip mat on top of the turntable platter.
6. Insert the Headshell into the socket at the front of the tonearm, and then turn the Headshell Locking Ring counter-clockwise. As the ring turns, it pulls the heashell into its seated position.
7. Slide onTonearm Counterweight to tonearm and twist it lightly onto the rear shaft of the tonearm.
8. Adjust the counterweight to set proper stylus pressure.
9. Connect AC adaptor to the Power Jack of the unit.
   Note: Do not plug the AC power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting.

Tonearm Counterweight Adjustment for Stylus Pressure

1. Remove the stylus protector from the cartridge and avoid touching the stylus tip during the adjustment.
2. Release the tonearm Hold Down Clip, gently hold the tonearm and move it away from the Tonearm Rest. At this point, the tone arm is unbalanced and free to swing.
3. While gently holding the tonearm, carefully rotate the Counterweight towards the front of the turntable until the tonearm is horizontally balanced and hovers freely just above the platter without the stylus touching the platter surface.
4. Return the tonearm to the Tonearm Rest and lock the Hold Down Clip.
5. While holding the counterweight steady without any rotation, rotate carefully only the Downforce Scale Dial until the "0" on the scale lines up with the centerline marked along the top of the tonearm.
6. Rotate the counterweight including the downforce scale dial counter-clockwise (as seen from the front of the turntable) until the scale shows the recommended pressure value for stylus.
   Note: The recommended pressure for the factory-installed cartridge is 2.0 g

Turntable Platter and Belt Setup

1. Install the drive belt over the inner ring under the platter and make sure it won't fall off during the setup.
2. Place the platter through the turntable spindle, then rotate the platter until you see the drive motor pulley through the window at the top right corner.
3. Carefully grab the drive belt and put it around the slot of motor pulley.


Phono/Line Switch

For increased flexibility of use, this unit has a built-in stereo phono pre-amplifier. If you prefer to use the phono input of your stereo system or your standalone phono preamplifier, set the Phono/Line switch to the PHONO position. Otherwise, please set it to LINE position and make connection to the AUX input or other high-level input on your stereo system.

Stereo System Connection

RCA Jacks

• The RCA Jacks of this unit are shared as both the Phono output jacks and the Line output jacks. They are determined by the Phono/Line Switch.
• When used as a line output, the jacks output analog line-level signals and could be connected directly with a pair of active speakers or the appropriate input of your stereo system. When used as a Phono output, they should be connected to the phono pre-amp or the phono input of the stereo system.
• The Red plug connects with the Right channel and the White plug connects with the Left channel.

Note:

• If the Phono/Line switch is set at LINE position but RCA jacks connected to the stereo system's phono input, the sound might be distorted due to input overload and could damage your stereo system.
• If the Phono/Line switch is set at PHONO position but RCA jack connected to the stereo system's line input, the volume will be very low due to lacking signal pre-amplification.
• RCA Jack is not designed to be connected directly to the passive/unpowered speakers and if it does, the volume will be very low.

Turntable Operation

1. Turn the Power Knob clockwise to turn on the power.
2. Set the Speed Switch accordingly
   Note: When 33 RPM is selected the Speed Switch LED will be red. When 45 RPM is selected the Speed Switch LED will be green.
3. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
4. Remove the stylus protector from the stylus assembly.
   Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned.
5. Press the Start/Stop Button to start the turntable platter's rotation.
6. Release the tonearm Hold Down Clip.
   Note: when the turntable is not in use, remember to lock back hold down clip.
7. Use the Cue Lever to lift up the tonearm.
8. Gently move the tonearm over the record where play is desired to begin. Set the Cue Lever back to the down position, the tonearm will descend slowly onto the record and begin to playback.
9. When the record is finished playing, use the Cue Lever again to raise the tonearm and then return it to the Tonearm Rest. Release the lever to let the tonearm sit back at its rest. To suspend the playback, repeat the same steps.
10. Lock the Hold Down Clip to secure the tonearm.
11. Press the Start/Stop Button again to stop the turntable platter's rotation. Turn the Power Knob counter-clockwise to turn off the power.

Anti-skate Adjustment

• A small outward "anti-skating" force can be applied to the tone arm to compensate for the "skating" force that pulls the arm toward the center of the record.
• For best performance during normal turntable usage, it is recommended to set the anti-skate control knob to the same value as indicated by the downforce scale dial.

Bluetooth Operation

This turntable features Bluetooth output which is a device that transmits audio from this turntable to another Bluetooth device such as wireless Bluetooth headphones, Bluetooth speakers, or other Bluetooth receiving devices.

When connecting a new Bluetooth device to receive a signal from the turntable, you need to pair it with the product. Once your device and the turntable are paired, you do not need to pair them again. Place the audio device that supports Bluetooth technology as close to your turntable as possible.

1. Place the audio device that supports Bluetooth technology as close to your turntable as possible.
2. Set the device that you would like to connect to pairing mode.
3. Press and hold the Bluetooth Pairing Button on the turntable for 2 seconds, and then release it.
   Note: The Bluetooth Pairing LED indicator will rapidly flash blue and red.
4. When the pairing is complete, the Bluetooth Pairing LED will be solid blue.

5. To turn off the Bluetooth connect, press the Bluetooth Pairing Button and the LED will be red.

Note:

• You can connect up to 8 different Bluetooth devices.
• You can delete all previous connected devices by pressing and holding the Bluetooth Pairing Button for 10 seconds, and then releasing it.


Pitch Control Adjustment

• When the platter is spinning, observe the bottom set strobe dots on the edge of the platter. As illuminated by the light coming from the strobe illuminator, if the appropriate row of strobe dots appears to be stationary, the platter is spinning at the precise rated speed.

• If the dots appear to be moving to the right, the platter is spinning below rated speed; if they appear to be moving to the left, the platter is spinning above rated speed.

Needle Replacement

Removing Needle

To remove needle, hold the sides of the needle and gently pull down in the direction indicated by the arrow.

Installing Needle

1. To install, position new needle with stylus tip facing down.
2. Align the needle with the cartridge, and gently push onto cartridge until fully seated. Avoid touching the stylus tip during installation.


Cartridge Replacement

1. Before replacement, put the stylus protector back on the stylus to prevent damage to the stylus during the replacement process.
2. Turn the headshell locking ring clockwise to release the headshell and remove it from the tonearm.
3. Carefully remove the wire leads from the original cartridge
4. Loosen the two screws on the headshell that are securing the cartridge and then remove the original cartridge.
5. Mount the new cartridge to the headshell and tighten it lightly. Do not completely tighten the screws at this moment.
6. Connect the wire leads to the new cartridge's terminals. The wire lead color codes are as below:

7. Install the headshell back to the tone arm and lock the headshell ring.
8. Adjust the cartridge's position to make sure it is precisely aligned on the headshell so that the stylus will be tracking parallel to the grooves. Tighten the screws completely once the perfect alignment is achieved.
   Note: For best result, use a cartridge alignment protractor to aid the alignment process.

Turntable Maintenance

1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the turntable mat or a record's edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning brush and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber cloth.

Note: Do not use cleanser other that contains alcohol, benzene or any other harsh chemicals, which might damage the paint and finish of the turntable.

** Crosley offers a product line of different cleaning accessories. Please ask your retailer or check out our website www.crosleyradio.com for more cleaning product information.

Troubleshooting

There is no power

• No power at the power outlet.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, turn off the power and turn it on again.

Power is on, but the platter does not turn

• Turntable mode is not selected.
• Turntable's drive belt is not installed or has slipped off.

Turntable is spinning, but there is no sound, or sound not loud enough

• Stylus protector is still on.
• Tone arm is lift up by the lever.

Record sounds too fast or too slow.

• Wrong speed selected for the record.
• Pitch Control is not adjusted correctly.

Questions, problems, missing parts?
Before returning to the store, call Customer Service
8 a.m. – 6 p.m., EST, Monday – Friday
1-888-CROSLEY
www.crosleyradio.com
