Summary of Contents for Crosley C100

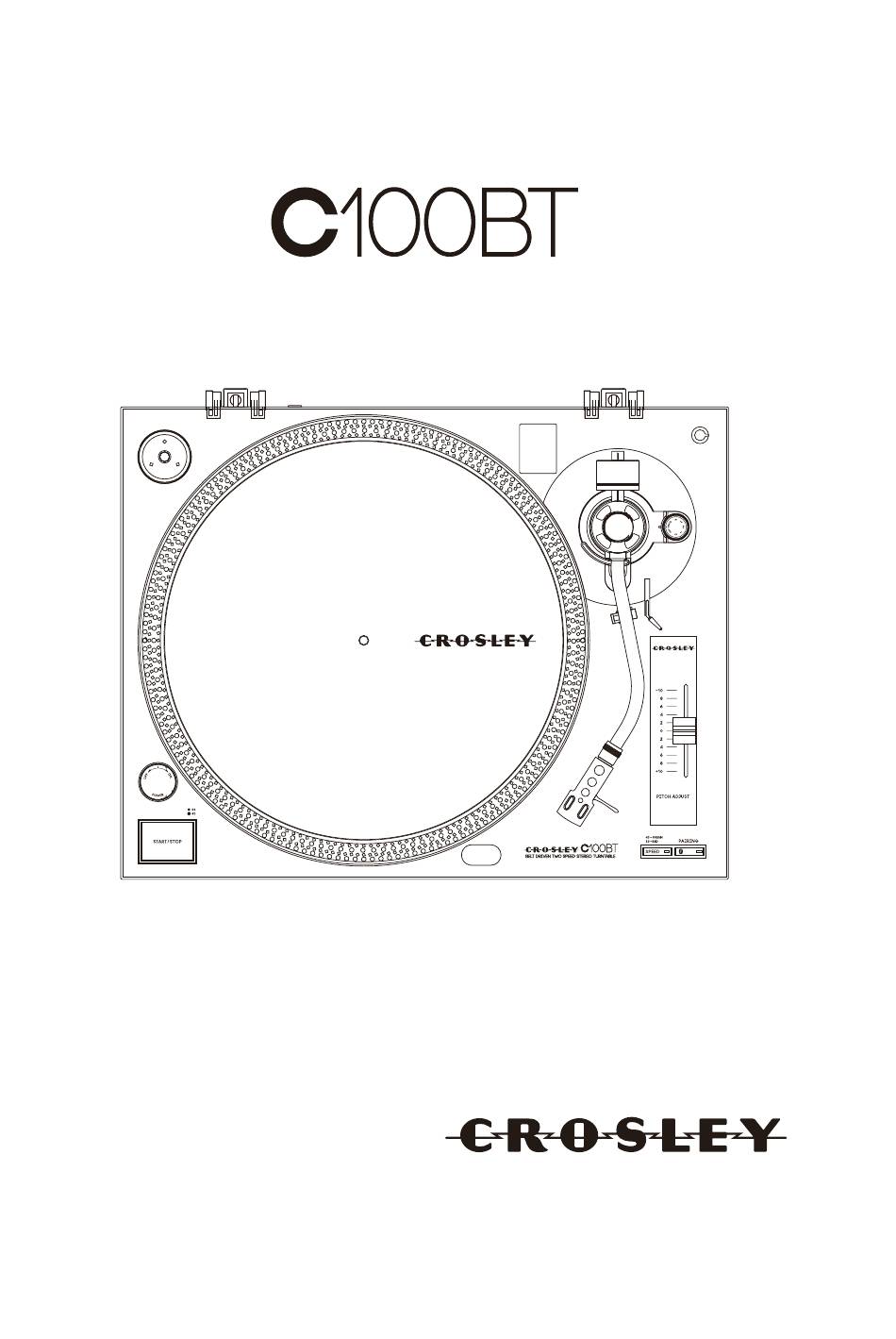

- Page 1 C100 TURNTABLE OPERATING INSTRUCTIONS...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions carefully. 2. Keep these instructions for later reference. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use the device near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Always ensure a sufficient ventilation. Install in accordance with the manufacturer’s instructions. -
Page 3: Before Use
FEATURES STANDBY This device is provided with an automatic standby mode which is automatically activated after 20 minutes of non-use. In standby mode, the power consumption of the turntable is reduced to less than 0.5 W to avoid unnecessary power consumption. The standby mode will be interrupted automatically as soon as the START/STOP button is pressed. -
Page 4: Part Names And Functions
PART NAMES and FUNCTIONS 18 19 1. 45-rpm Adaptor This adapter allows you to play standard 7” EP vinyl records with large center holes. Place the adapter on the CENTER SPINDLE 7" records. 2. Turntable Platter This platter connects directly to the center spindle. The platter and center spindle holds a vinyl record perfectly center. - Page 5 PART NAMES and FUNCTIONS 7. Headshell The included HEADSHELL is used to connect your stylus with the tonearm. 8. Speed Select Button The button is used to switch the platter rotation between 33 or 45 RPM. When the 33 RPM is engaged, the red LED will light up;...
-
Page 6: Maintenance
ASSEMBLY 1. Remove the main unit with the packing from the box and remove the packing. 2. Set the 45-rpm adaptor on the main unit. 3. Set the turntable platter onto the center spindle. 4. Set the slip mat on the platter. 5. -
Page 7: Bluetooth Wireless Connection
CONNECTIONS You can connect to a speaker, etc. via Bluetooth Wireless Connection or RCA audio cable. BLUETOOTH WIRELESS CONNECTION When using Bluetooth, refer to “Bluetooth Function” paragraph. WIRED CONNECTION Before connecting the unit it is advised that you also consult your current equipment instruction manual. 1. -
Page 8: Bluetooth Function
BLUETOOTH FUNCTION BLUETOOTH function Very Important • The shakes from pressing the PAIRING button while playing a vinyl record may cause the stylus to skip. We strongly recommend connecting to BLUETOOTH before playing a vinyl record. • Do not connect to headphones which you cannot adjust the volume. Audio tracks may be played at very loud volumes. -
Page 9: Quick Start
QUICK-START 1. Turn the On/Off Switch clockwise to turn on the power, the speed indicator and the strobe-illuminator, which is located beneath the On/Off switch, will light up. 2. Place a record on the slip mat. When playing a 45-rpm record with a large center hole, place the 45-rpm adapter on the center spindle. -
Page 10: Specifications
SPECIFICATIONS 1. GENERAL SECTION: Power Type Adapter + AC plug Power Input range AC 100V~240V, 50/60Hz Power Output DC 12V/0.5A Power Consumption 2.4W Standby Power Consumption <0.45W Dimensions 450 (W) x 350 (D) x 145 (H) mm Weight 4 Kg (Tentative) 2. -
Page 11: Accessories Supplied
SPECIFICATIONS 7. Output Sensitivity: (Phono Cartridge Input At 1KHz 5cm/sec (CD-4005).) Typical Limited LINE: 10K OHM / -15.1dBV(176mV) ± 1dB ± 1.5dB Phono: 47K OHM / -50.7dBV(2.9mV) ± 1dB ± 1.5dB BT (TX): -20.5dBFS(-24.1dBV) ± 1dB ± 1.5dB 8. Frequency Response: (Reference Input From VP-7727D) Typical Limited Line:... - Page 12 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
