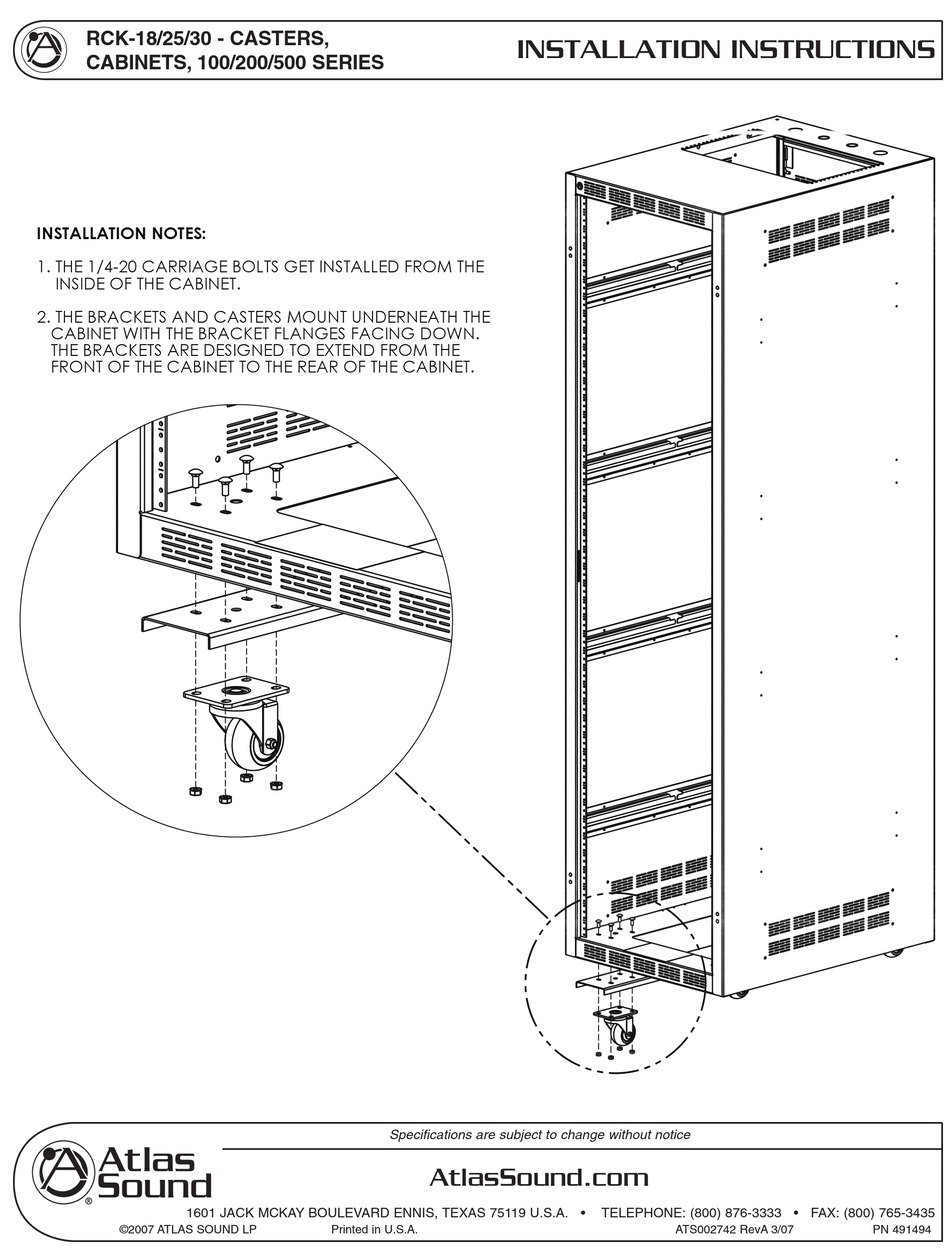

RCK-18/25/30 - CASTERS,
RCK-18/25/30 - CASTERS,
CABINETS, 100/200/500 SERIES
CABINETS, 100/200/500 SERIES
INSTALLATION NOTES:
1. THE 1/4-20 CARRIAGE BOLTS GET INSTALLED FROM THE
INSIDE OF THE CABINET.

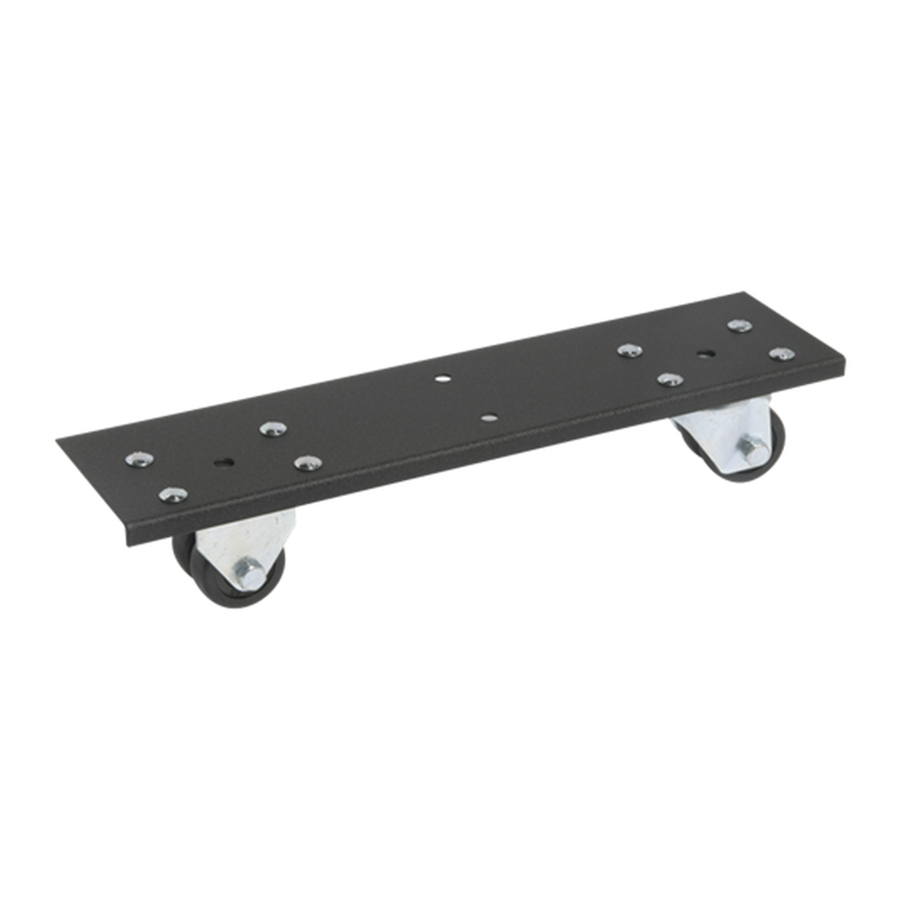

2. THE BRACKETS AND CASTERS MOUNT UNDERNEATH THE
CABINET WITH THE BRACKET FLANGES FACING DOWN.
THE BRACKETS ARE DESIGNED TO EXTEND FROM THE
FRONT OF THE CABINET TO THE REAR OF THE CABINET.
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. •
© 2007 ATLAS SOUND LP
©2007 ATLAS SOUND LP
Specifications are subject to change without notice
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. * TELEPHONE: (800) 876-3333
Printed in U.S.A.
Printed in U.S.A.
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
AtlasSound.com
TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435
000000
* FAX: (800) 765-3435
ATS000000 RevA 03/07
ATS002742 RevA 3/07
PN 491494
PN 491494
