Atlas DPA-102PM Owner's Manual

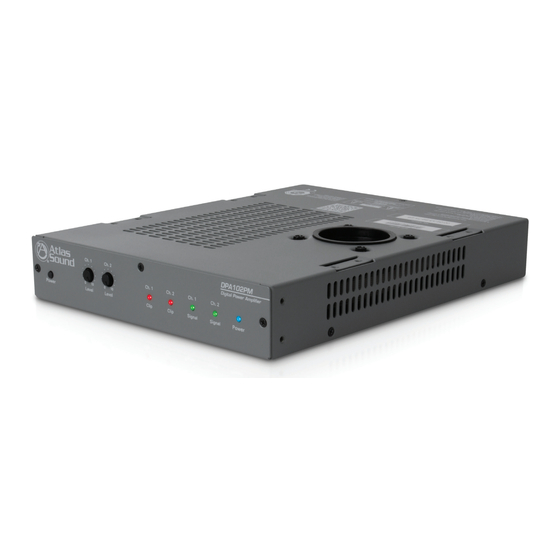

Networkable 2-channel power amplifier with dsp
Hide thumbs
Table of Contents

Advertisement

Quick Links

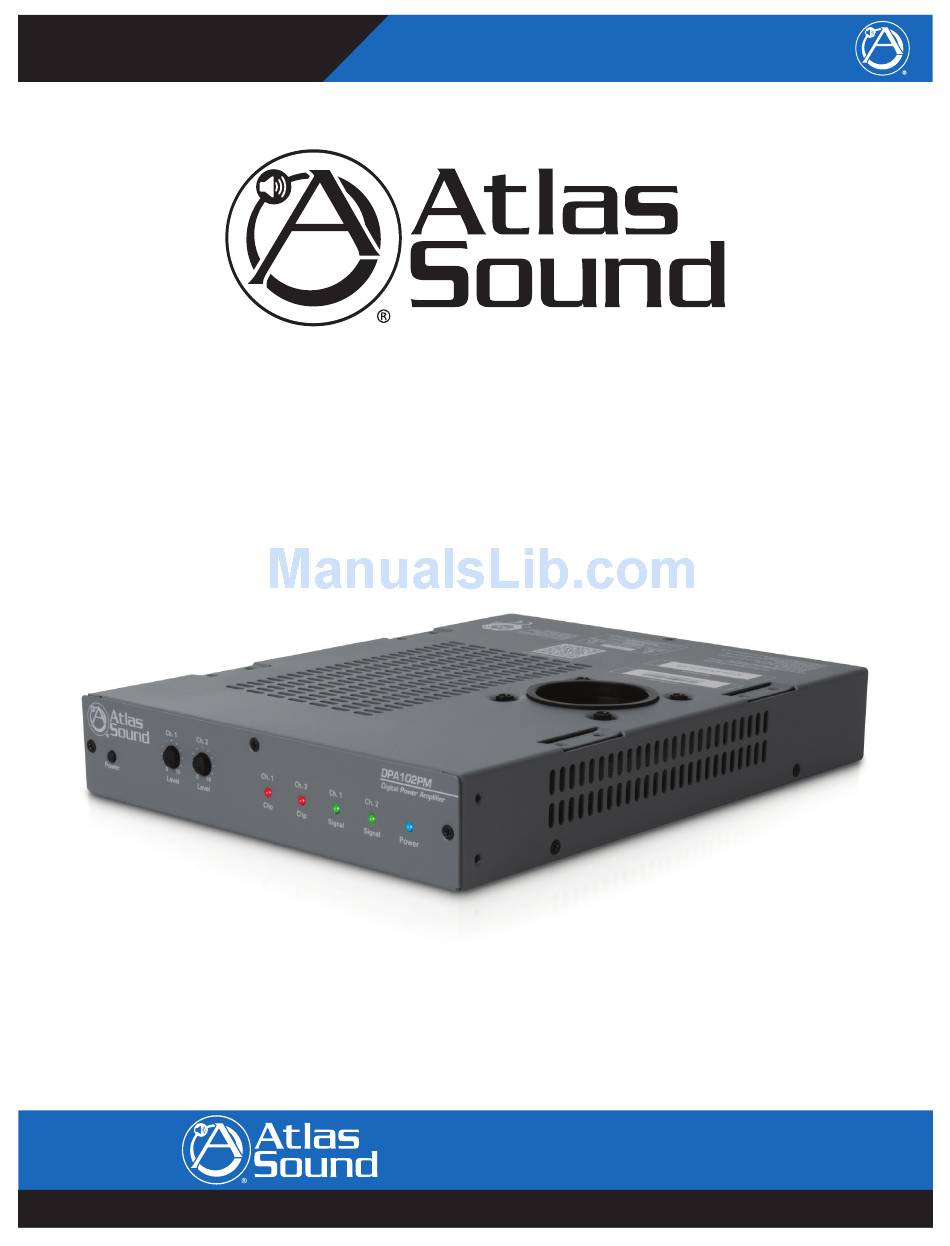

DPA-102PM - Networkable 2-Channel
Owner's Manual
Power Amplifier with DSP
DPA-102PM
Networkable 2-Channel
Power Amplifier with DSP
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasSound.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPA-102PM and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas DPA-102PM

Summary of Contents for Atlas DPA-102PM

  • Page 1 DPA-102PM - Networkable 2-Channel Owner’s Manual Power Amplifier with DSP DPA-102PM Networkable 2-Channel Power Amplifier with DSP 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.

  • Page 2: Table Of Contents

    I. Direct Connection via Ethernet ........................11 II. Internet Web Browser ..........................12 III. Atlas Sound IP Discovery Software ......................12 IV. Smartphone or Tablet (Wi-Fi) ........................12 V. Accessing the DPA via the Internet Outside the Local Network ..............14 Amplifier Configuration &...

  • Page 3: Important Safety Instructions

    DPA-102PM - Networkable 2-Channel Owner’s Manual Power Amplifier with DSP The lightning flash with arrowhead symbol within an CAUTION equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the RISK OF ELECTRIC SHOCK product’s enclosure that may be of sufficient magnitude to...
  • Page 4 Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact Atlas Sound. Do not to attempt to continue operation with the product as this may cause fire or electric shock: •...

  • Page 5: Introduction

    DSP functions and levels as well as output level and status monitoring of any DPA amplifier on the network. The DPA-102PM is “ready to use, out of the box” with no configuration or network connectivity required and is a cost effective solution even in applications that do not require processing or network control..

  • Page 6: Front Panel Description

    Channel 1 & 2 Clip LED The Clip LEDs will illuminate Red if either channel of the DPA-102PM reaches maximum output power or if a fault is detected within the amplifier. The DPA-102PM features an adjustable limiter circuit which helps prevent the amplifier from hard clipping. An occasional flash of the LED is OK but if the LED illuminates continuously reduce the input level of the amp.

  • Page 7: Rear Panel Description

    Note: For unbalanced signals connect the (–) and (GND) pins together. Speaker Connection A removable Phoenix type connector is supplied to connect your speakers to the DPA-102PM. It is recommended to use class 3 rated, 16-gauge wire or higher for speaker wiring.

  • Page 8: Installation And Considerations

    Cabling The DPA-102PM can be used with either balanced or unbalanced sources, provided the proper cabling is used. A balanced line is defined as two-conductor shielded cable with the two center conductors carrying the same signal but of opposite polarity when referenced to ground.

  • Page 9: Placement And Mounting

    Turn off all equipment before making connections. The amplifier can be mounted in a standard width 19" rack using the optional rack mount kit, PA702-RMK, or it can be mounted in an Atlas Sound WMA or AWR half width rack cabinet. It can be mounted above or below anything that does not generate excessive heat.
  • Page 10 6. Secure the “U” clamp by adding the washers and nuts to the U Bolt. Clamp the amp onto the pole by tightening the two nuts until the amp is secure in place. Do not over tighten. 7. DO NOT mount any additional amplifiers to the same bracket. The support bracket is designed to support only one DPA-102PM. Rack Mount – Optional Accessory Kit The DPA-102PM can be rack mounted as shown below using the optional rack mount kit, model PA702-RMK.

  • Page 11: Accessing The Web Browser Gui Control Panel

    3. Open a web browser on the computer, Google Chrome and Mozilla Firefox are the recommended browsers for use with DPA amplifiers. 4. This example uses the DPA amplifier model DPA-102PM. In the Web Browser address bar, type in the following: (http://dpa102pm) and hit enter. See example in Figure 1.

  • Page 12: Internet Web Browser

    4. In the web browser address bar, type in the following: “http://dpa102pm and hit enter. This example uses the DPA amplifier model DPA-102PM. 5. Out of the box all that is needed to connect to the amplifier is the amplifier’s model number which is not case sensitive.
  • Page 13 DPA-102PM - Networkable 2-Channel Owner’s Manual Power Amplifier with DSP 4. The GUI will open to a Mobile page as shown in Figure 4. Mobile access will allow for level adjustment and home page access once the administrator user name and password are accurately entered when prompted.

  • Page 14: Accessing The Dpa Via The Internet Outside The Local Network

    DPA amp is present and try connecting to the external IP address. Verify correct NAT has been established. This link is an example of a DPA-102PM amplifier connected to a Network that allows access from the Internet. Type this link into a web browser to access a live demonstration: http://atlasdpa102pm.atlassound.com.
  • Page 15 DPA-102PM - Networkable 2-Channel Owner’s Manual Power Amplifier with DSP 3. If the GUI looks like Figure 6. The GUI faders are enabled and the front Panel level controls are disabled. Figure 6 4. To access the full command of the DPA GUI, click on the Setup tab and enter the user name and password.
  • Page 16 DPA-102PM - Networkable 2-Channel Owner’s Manual Power Amplifier with DSP 5. Once the GUI is accessed, the Setup page allows for full configuration and control of the DPA amplifier. It is recommended to start initial adjustments by clicking the Amplifier Configuration button as shown in Figure 8.
  • Page 17 DPA-102PM - Networkable 2-Channel Owner’s Manual Power Amplifier with DSP Level Control Assignment Check the appropriate box for desired mode of output level control. The DPA Output level can be controlled by either Front Panel pots or by the GUI, but not both at the same time.

  • Page 18: Identifying The Firmware Version

    DPA-102PM - Networkable 2-Channel Owner’s Manual Power Amplifier with DSP Identifying the Firmware Version 1. About Page – Features enhancements or bugs may be required to update the firmware on the amp. The About page contains information such as the MAC address and firmware versions.

  • Page 19: Specifications

    DPA-102PM - Networkable 2-Channel Owner’s Manual Power Amplifier with DSP Specifications 50 Watts per Channel @ 8Ω Output Power 100 Watts per Channel @ 4Ω Factory Ship Settings Two CH 4Ω, Front Panel Levels Active, DSP Set to Flat & 0dB 0.2% at rated output...

  • Page 20: Warranty Information

    A PARTICULAR PURPOSE. Atlas Sound does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
