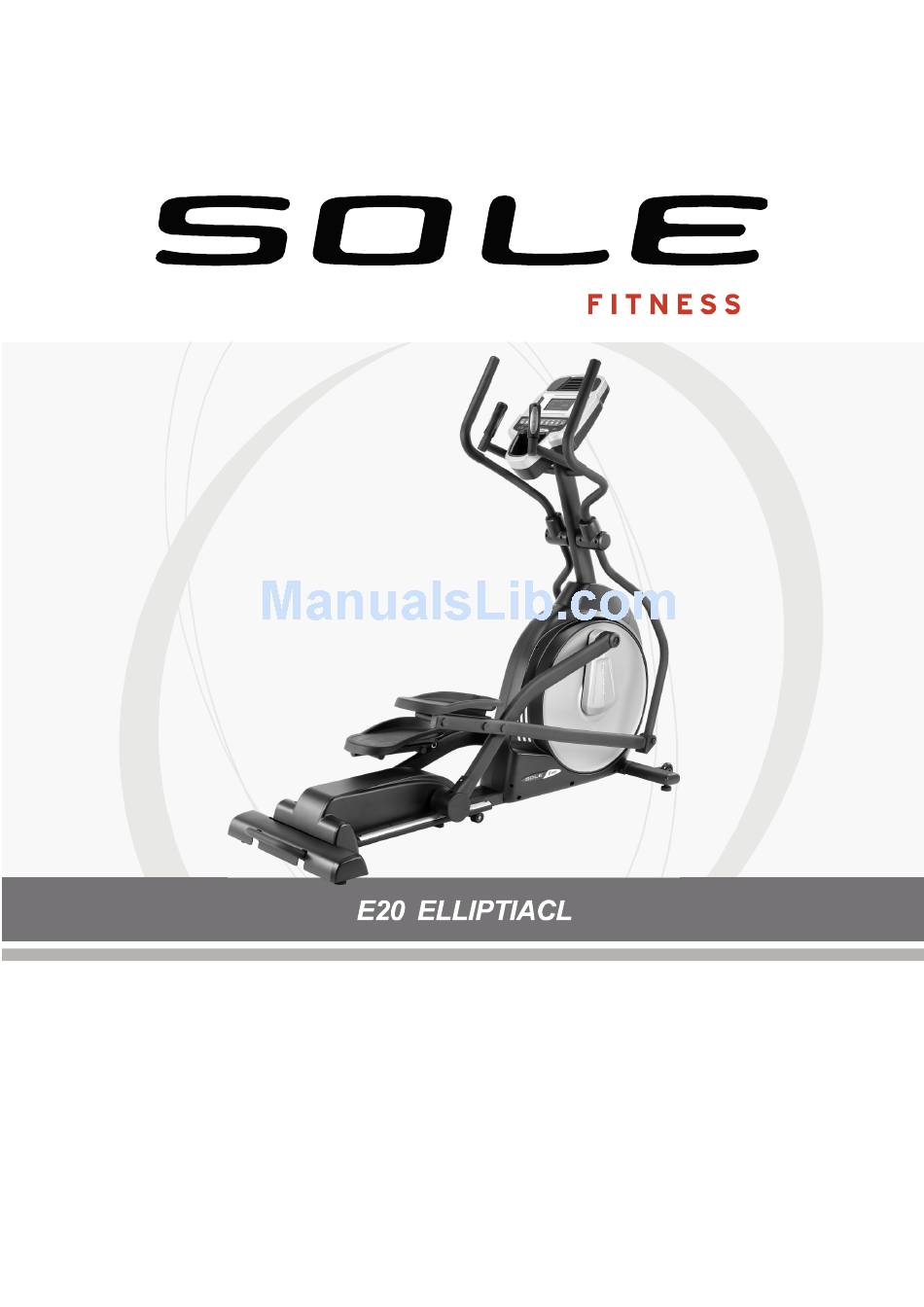

- Page 1 -SOL0017- OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL!
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions Important Electrical Information Important Operation Instructions Transport Instructions Assembly Instructions Elliptical Features Operation of Your New Elliptical Programmable Features Using Heart Rate Monitor General Maintenance Exploded View Diagram Parts List Manufacturer’s Limited Warranty ATTENTION THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE APPLICATION. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your elliptical from the electrical outlet prior to cleaning and/or service work. To reduce the risk of burns, fire, electric shock, or injury to persons, install WARNING the elliptical on a flat level surface with access to a 230-volt, 15-amp grounded outlet with only the elliptical plugged into the circuit. -
Page 4: Important Electrical Information
IMPORTANT ELECTRICAL INSTRUCTIONS WARNING! NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%) or more, the performance of your elliptical may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing. -
Page 5: Important Operation Instructions
IMPORTANT OPERATION INSTRUCTIONS NEVER operate this elliptical without reading and completely understanding the results of any operational change you request from the computer. Understand that changes in resistance and incline do not occur immediately. Set your desired resistance level on the computer console and release the adjustment key. - Page 6 ASSEMBLY PACK CHECKLIST HARDWARE STEP 1 #112. 3/8” x 3-3/4” #113. 3/8” x 3/4” Hex Head Bolt (4 pcs) Socket Head Cap Bolt (4 pcs) #119. M5 x 10mm #139. 3/8” x 19mm x 1.5T Phillips Head Screw (4 pcs) Flat Washer (4 pcs) #142.
-
Page 7: Assembly Instructions
HARDWARE STEP 4 #120. M5 x 15mm #122. Ø3.5 x 12mm Phillips Head Screw (4 pcs) Sheet Metal Screw (6 pcs) ASSEMBLY TOOLS #149. M5 L Allen Wrench #150. Phillips Head Screwdriver #151. 13/14mm #152. 12/14mm #153. M8 L Allen Wrench Wrench (160mm) Wrench (160mm) ASSEMBLY INSTRUCTIONS... - Page 8 ASSEMBLY INSTRUCTIONS STABILIZERS & CONSOLE MAST HARDWARE STEP 1 1. Connect the Front Stabilizer Bar (2) with the Main Frame at the front joining #112. 3/8” x 3-3/4” Hex plate by using the Wrench (151) to tighten two Hex Head Bolts (112) , two Split Head Bolt (4 pcs) Washers (142) and two Curved Washers (144).
- Page 9 LOWER SWING ARMS HARDWARE STEP 2 Attach the Lower Swing Arms (L) and (R), (12) and (13), on each side of #104. 5/16” x 15mm Console Mast shaft and secure with two Hex Head Bolts (104) and two Flat Hex Head Bolt (2 pcs) Washers (138) by using the Wrench (152).
- Page 10 UPPER SWING ARMS HARDWARE STEP 3 Connect the Upper Swing Arm (L) (18) to the left Lower Swing Arm and connect #106. 5/16” x 1-3/4” the Upper Swing Arm (R) (19) to the right Lower Swing Arm , and secure them Hex Head Bolt (6 pcs) with six Hex Head Bolts (106), four Curved Washers (143) and Nyloc Nuts (129) #129.
-
Page 11: Elliptical Features
PLASTIC PARTS HARDWARE STEP 4 Attach front (89) and rear (90) Handle Bar Covers together on left Swing Arm #120. M5 x 15mm shaft, and secure using two Sheet Metal Screws (122) and the Phillips Head Phillips Head Screw Screw Driver (150). Repeat this process on the right side with Handle Bar Covers (4 pcs) (91) and (92). -
Page 12: Operation Of Your New Elliptical
OPERATION OF YOUR ELLIPTICAL GETTING FAMILIAR WITH THE CONTROL PANEL CONSOLE COOLING FAN SPEAKER DATA DISPLAY DOT MATRIX (Program Profiles) MESSAGE WINDOW (Speed, Laps, Level, Watts, Incline, Segment Time, Program Name, DISPLAY Data Scan) FAN POWER SWITCH CONTROL KEYS AUDIO IN JACK HEADPHONE JACK (MP3, CD, OR SMARTPHONE) -
Page 13: Console Operation
CONSOLE OPERATION QUICK START This is the quickest way to start a workout. After the console powers up you just press the Start key to begin, this will initiate the Quick Start mode. In Quick Start, the time will count up from zero. The resistance level and incline can be adjusted manually by pressing the Incline or Level ▲/▼... - Page 14 PROGRAMMING THE CONSOLE Each of the programs can be customized with your personal information and changed to suit your needs. Some of the information asked for is necessary to ensure the readouts are correct. You will be asked for your Age and Weight. Entering your Age is necessary during the Heart Rate control program to ensure the correct settings are entered in the program;...
-
Page 15: Programmable Features
PROGRAMMABLE FEATURES MANUAL PROGRAM The Manual program works as the name implies, manually. This means that you control the workload yourself and not the computer. 1. Press Level ▲/▼ then press the Enter key. 2. The Message Window will ask you to enter your Age. You may adjust the age setting using the Level ▲... -
Page 16: Preset Programs
PRESET PROGRAMS These ellipticals have five different programs that have been designed for a variety of workouts. These five programs have factory preset work level profiles for achieving different goals. Hill The Hill program simulates going up and down a hill. The resistance in the pedals will steadily increase and then decrease during the program. - Page 17 PROGRAMMING PRESET WORKOUTS 1. Chowse the desired program button by pressing Level ▲ ▼ then press the Enter key. 2. The Message Window will ask you to enter your Age. You may adjust the age setting, using the Level keys, then ▲...
-
Page 18: Heart Rate Programs
Heart Rate programs Before we get started, a word about Heart Rate: The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their usual choice of exercise intensity was either too high or too low and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range. - Page 19 RATE OF PERCEIVED EXERTION Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the intensity at which you should workout.
-
Page 20: Using Heart Rate Monitor
USING HEART RATE TRANSMITTER(Optional) How to wear your wireless chest strap transmitter: Attach the transmitter to the elastic strap using the locking parts. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable. Position the transmitter with the logo centered in the middle of your body facing away from your chest (some people must position the transmitter slightly left of center). - Page 21 HEART RATE PROGRAM OPERATION Both programs operate the same, the only difference is that the default for HR1 is set to 60% and HR2 is set to 80% of the maximum heart rate. They both are programmed the same way. To start an HR program follow the instructions below or just select the HR1 or HR2 program, then press the Enter button and follow the directions in the Message Window.
-
Page 22: General Maintenance
GENERAL MAINTENANCE 1. Wipe down all areas in the sweat path with a damp cloth after each workout. 2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons: I. The hardware was not sufficiently tightened during assembly. All bolts that were installed during assembly need to be tightened as much as possible. -
Page 23: Exploded View Diagram
EXPLODED VIEW DIAGRAM... -
Page 24: Parts List
PARTS LIST Part Number Part Description Qty per unit Main Frame Front Stabilizer Bar Inclinable Rail Assembly Crank Arm Assembly Crank Axle Rear Rail Assembly Pedal Arm (L) Pedal Arm (R) Incline Device Connecting Arm (L) Connecting Arm (R) Lower Handle Bar (L) Lower Handle Bar (R) Idler Wheel Assembly Console Mast... - Page 25 Part Number Part Description Qty per unit 400m/m_Connecting Wire, Controller 650m/m_Computer Cable 1350m/m_Computer Cable AC Electronic Module 80m/m_Connecting Wire (White) 200m/m_Ground Wire Gear Motor 500m/m_Sensor W/Cable 850m/m_Handpulse W/Cable Assembly (White) 850m/m_Handpulse W/Cable Assembly (Red) Power Cord Incline Controller Incline Adaptor 400m/m_Audio Cable Incline Motor Transportation Wheel...
- Page 26 Part Number Part Description Qty per unit Crank Arm End Cap Incline Cover Rear Bar Cover End Cap Stopper 1/4" × 3/4"_Hex Head Bolt 5/16" × 15m/m_Hex Head Bolt 5/16" × 25m/m_Hex Head Bolt 5/16" × 1-3/4"_Hex Head Bolt 5/16" × 2-1/2"_Hex Head Bolt 3/8"...
- Page 27 Part Number Part Description Qty per unit Combination M5 Allen Wrench & Phillips Head Screw Driver Phillips Head Screw Driver 13/14m/m_Wrench (160m/m) 12/14m/m_Wrench (160m/m) Combination M8 Allen Wrench & Phillips Head Screw Driver Drink Bottle 5/16" × 1/2"_Button Head Socket Bolt 5/16"...
-
Page 28: Manufacturer's Limited Warranty
WARRANTY, SAFETY AND ASSEMBLY INFORMATION SOL0017 – E20 IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. --------------------------------------------------------------------------------------------------------------------------------------- BOYLES FITNESS warrants their Elliptical to be free from defects in material and workmanship under normal use and service conditions. -
Page 29: Warranty Information
WARRANTY INFORMATION SOL0017 Congratulations on your purchase! As of January 1 2012, new legislation under the Australian Consumer Law requires certain information to be included in any product warranty issued in Australia. This warranty compliments the warranty found in the manual and has been developed in line with the Australian Consumer Law. - Page 30 The service centre representative will assess the claim. If: 1) there is a minor fault, they can offer either a replacement spare part, replacement unit, repair or other suitable remedy; 2) there is a major fault, they can offer a replacement, repair or suggest you return to the store you purchased it from for a full refund.
