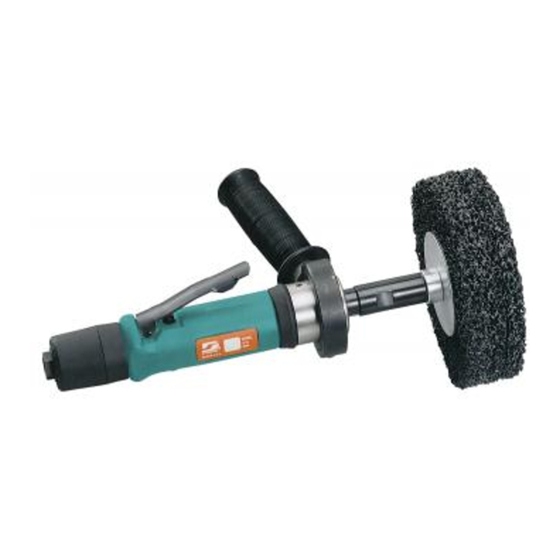

Models:
13201 — 3,400 RPM, with 13016 Arbor
13202 — 3,400 RPM, with 13017 Arbor
13203 — 3,400 RPM, with 13014 Arbor
13204 — 3,400 RPM, with 13015 Arbor
13205 — 3,400 RPM, with 13071 Arbor
13206 — 4,500 RPM, with 13016 Arbor
13207 — 4,500 RPM, with 13071 Arbor
13220 — 3,400 RPM, Versatility Kit

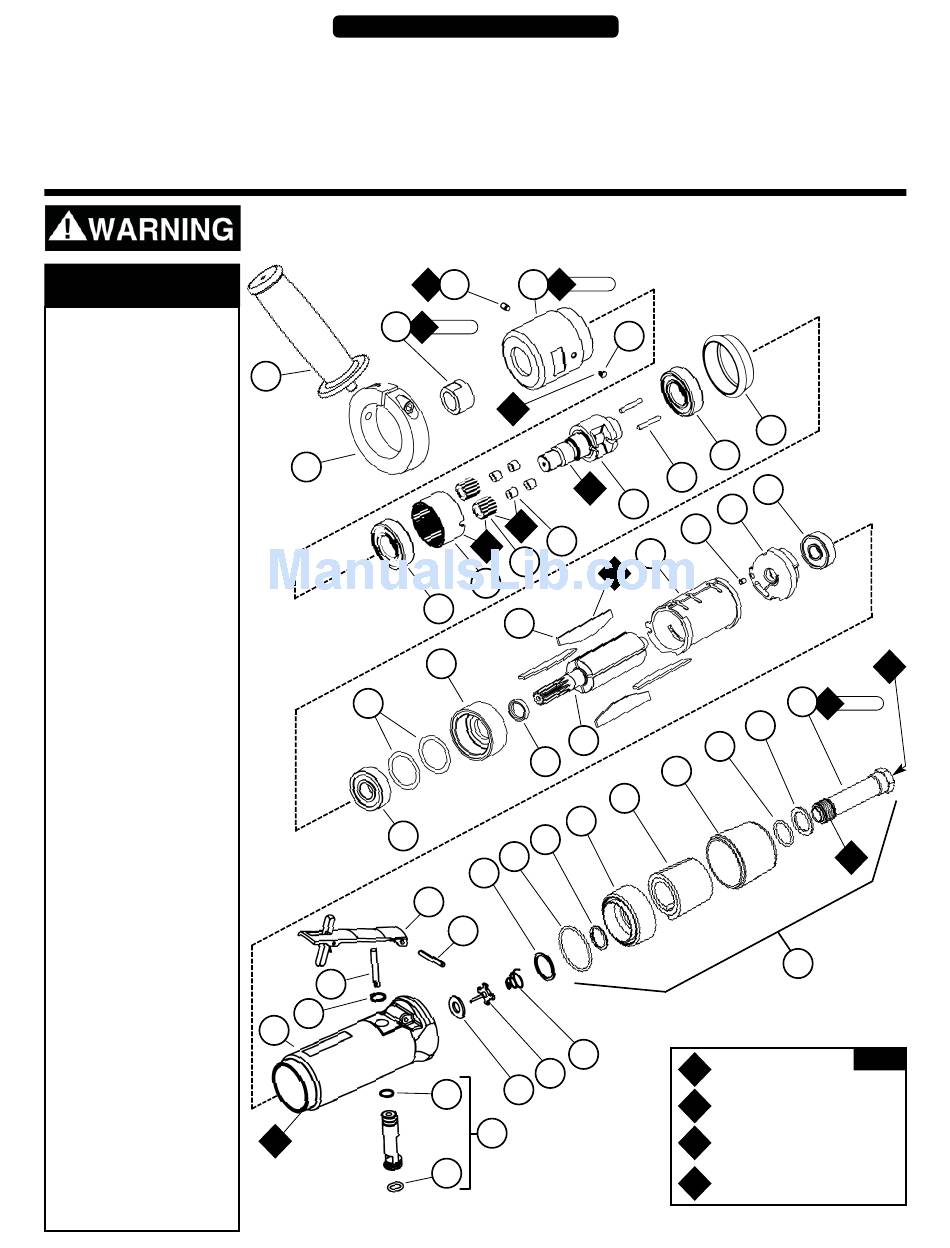

Index Key
No. Part # Description
Arbor options are found on page 4.
1 13005 Mount Collar
2 53163 Handle
3 04032 Spindle Nut
4 04014 Set Screw
5 53186 Planetary Housing
6 01041 Grease Fitting
7 02552 Bearing (2)
8 53191 Ring Gear
9 53193 Gear (2) – 3,400 RPM
53195 Gear (2) – 4,500 RPM
10 04026 Bearing (4)
11 53165 Planetary Carrier
12 53182 Gear Shaft (2)
13 53175 Insulator Collar
14 01007 Bearing
15 01121 Shim (3/pkg.)
16 53183 Front Bearing Plate
17 01010 Spacer
18 Rotor
04017 3,400 RPM
04009 4,500 RPM
19 01185 Blades (4/pkg.)
20 01028 Cylinder
21 50767 Pin
22 01721 Rear End Plate
23 02649 Bearing
24 13252 Housing – 13201
13253 Housing – 13202
13254 Housing – 13203
13255 Housing – 13204, 20
13256 Housing – 13205
13257 Housing – 13206
13258 Housing – 13207
25 95558 Retaining Ring
26 01477 Valve Stem
27 01089 Safety Throttle Lever
28 01017 Pin
29 95730 O-Ring
30 01024 O-Ring
31 01247 Speed Reg. Assy.
32 01464 Seal
33 01472 Tip Valve
34 01468 Spring
35 01564 Air Control Ring
36 95438 O-Ring
37 95711 Retaining Ring
38 94521 Muffler Base
39 94528 Felt Muffler
40 94522 Muffler Cap
41 95375 O-Ring
42 94526 Spacer
43 94523 Inlet Adapter
44 94519 Muffler Assembly
For Serial No.8F1000 and Higher
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to
Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
A
3
T
2
1
15
14
27
26
25
24
A
8
See inside for Important Operating, Maintenance and Safety Instructions.
Dynastraight
4
5
T
28 N•m
8
17 N•m
G
1
A
2
G
1
10
G
1
9
O
8
7
19
16
18
17
38
37
36
35
28
34
33
32
29
31
30
Parts Page Reorder No. PD00•46
Effective June, 2000
Supersedes PD97•26
Air Motor and Machine Parts
6
13
7
12
23
11
22
21
20
1
42
41
40
39
44
O
Oil: O
= Air Lube
1
G
Grease: G
= Lubriplate 630 AA
1
A
Adhesive: A
= Loctite #271
2
A
= Loctite #567
8
T
Torque: N•m x 8.85 = In. - lbs.
®
O
1
43
T
23 N•m
A
8
KEY
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dynabrade Dynastraight 13201
Summary of Contents for Dynabrade Dynastraight 13201
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade’s Warning/Safety Operating Instructions for more complete safety information. Index Key 28 N•m...
-
Page 2: Operating Instructions
2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade Rotary Vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 20 SCFM (example: if the tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute). - Page 3 4. Check the clearance between rotor and bearing plate by using .001 feeler gage, clearance should be at .001 to.0015. Adjust clearance by repeating steps 2-4 with a different shim if necessary. 5. Once proper rotor/plate clearance is achieved, install well-lubricated 01185 Blades into 04017 or 04009 Rotor. Dynabrade Air Lube P/N 95842 is recommended for lubrication.
-
Page 4: Optional Accessories
Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed.
