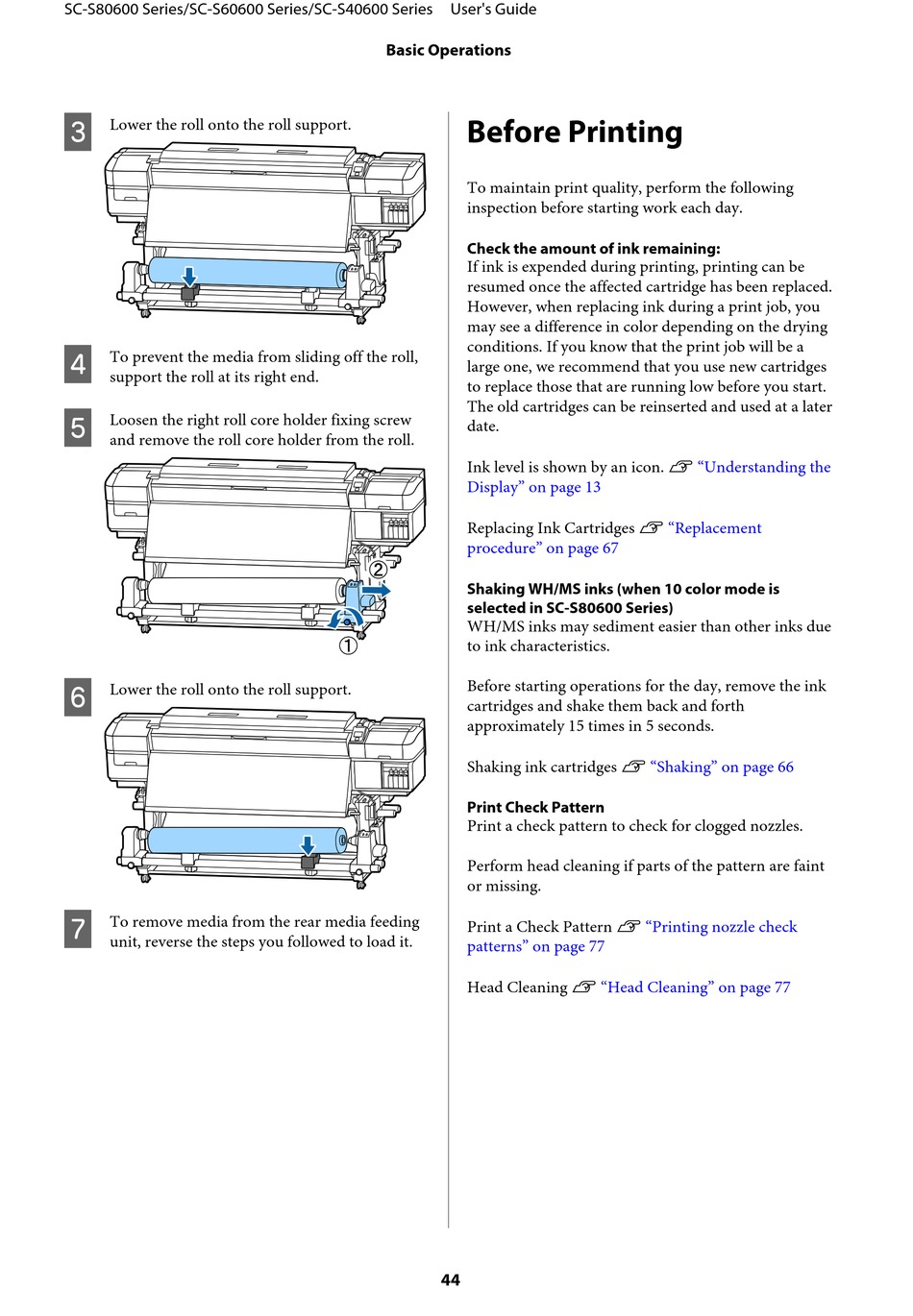

Before Printing - Epson SC-S60600 Series User Manual

SC-S80600 Series/SC-S60600 Series/SC-S40600 Series User's Guide
C
Lower the roll onto the roll support.
D
To prevent the media from sliding off the roll,
support the roll at its right end.
E
Loosen the right roll core holder fixing screw
and remove the roll core holder from the roll.
F
Lower the roll onto the roll support.
G
To remove media from the rear media feeding
unit, reverse the steps you followed to load it.
Basic Operations

Before Printing

To maintain print quality, perform the following
inspection before starting work each day.
Check the amount of ink remaining:
If ink is expended during printing, printing can be
resumed once the affected cartridge has been replaced.
However, when replacing ink during a print job, you
may see a difference in color depending on the drying
conditions. If you know that the print job will be a
large one, we recommend that you use new cartridges
to replace those that are running low before you start.
The old cartridges can be reinserted and used at a later
date.
Ink level is shown by an icon. U
Display" on page 13
Replacing Ink Cartridges U
procedure" on page 67
Shaking WH/MS inks (when 10 color mode is
selected in SC-S80600 Series)
WH/MS inks may sediment easier than other inks due
to ink characteristics.
Before starting operations for the day, remove the ink
cartridges and shake them back and forth
approximately 15 times in 5 seconds.
Shaking ink cartridges U
Print Check Pattern
Print a check pattern to check for clogged nozzles.
Perform head cleaning if parts of the pattern are faint
or missing.
Print a Check Pattern U
patterns" on page 77
Head Cleaning U
44
"Understanding the
"Replacement
"Shaking" on page 66
"Printing nozzle check
"Head Cleaning" on page 77
