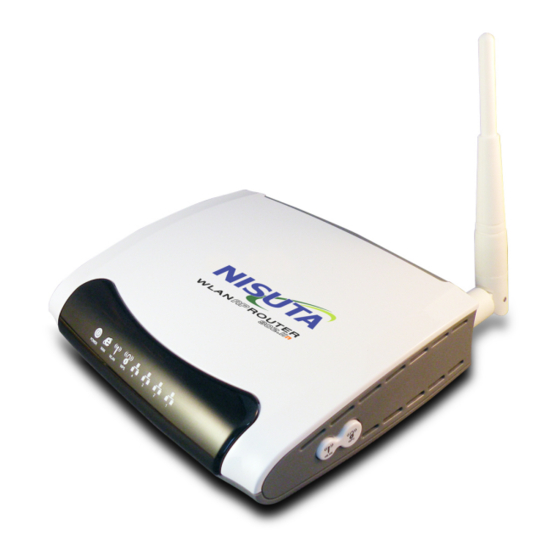

Page 1 WLAN AP ROUTER 802.11N...
Page 2: Table Of Contents
WLAN AP ROUTER 802.11N Table of Contents Features ................6 Device Requirements ............6 Using this Document.............7 Notational conventions ..........7 Typographical conventions..........7 Special messages............7 Getting Support..............7 Requerimientos del sistema ..........8 Luces del Router............9 Rear and Right Panel and bottom Side ......10 Para Windows 98SE/ME/2000/XP........12 Para Windows Vista-32/64 ..........16 Para Windows 7-32/64 ............21 Connecting the Hardware...........26...
Page 3 WLAN AP ROUTER 802.11N AP (Access Point) + WDS (Wireless Distribution System) ..........61 Configuring WEP 64bit ASCII (5 characters) security ..........64 Configuring WEP 64bit Hex (10 characters) security..............65 Configuring WEP 128bit ASCII (13 characters) security ..........66 Configuring WEP 128bit Hex (26 characters) security ..........67 Configuring WPA (AES) Passphrase security..............68...
Page 4 WLAN AP ROUTER 802.11N Supported WPS features...........101 AP mode..............102 AP as Enrollee ............102 AP as Registrar............102 AP as Proxy ...............102 Infrastructure-Client mode .........103 Instructions of AP’s and Client’s operations....103 Wireless Basic Settings page........104 Operations of AP - AP being an enrollee......105 Operations of AP - AP being a registrar......119 AP mode..............119 Push Button method ..........123...
Page 5 WLAN AP ROUTER 802.11N Manually updating firmware..........191 Save Settings to File ............193 Load Settings from File.............195 Resetting to Defaults............197 Setting your username and password ......199 Logout................201 Configuring Ethernet PCs..........202 Before you begin............202 Windows® XP PCs............202 Windows 2000 PCs ...........202 Windows Me PCs ............204 Windows 95, 98 PCs ..........204 Windows NT 4.0 workstations........205 Assigning static Internet information to...
Page 6: Features
WLAN AP ROUTER 802.11N Introduction Congratulations on becoming the owner of the Wireless Gateway. You will now be able to access the Internet using your high-speed xDSL/Cable modem connection. This User Guide will show you how to connect your Wireless Gateway, and how to customize its configuration to get the most out of your new product.
Page 7: Using This Document
WLAN AP ROUTER 802.11N • One or more computers each containing an Ethernet card (10Base-T/100Base-T network interface card (NIC)) • TCP/IP protocol for each PC • For system configuration using the supplied a. web-based program: a web browser such as Internet Explorer v4 or later, or Netscape v4 or later.
Page 8: Requerimientos Del Sistema
WLAN AP ROUTER 802.11N Getting to know the device Requerimientos del sistema • Procesador Pentium 200MHZ o superior • Windows 98SE, Windows Me, Windows 2000, Windows XP, Windows Vista y Windows 7 • 64MB de RAM o superior. • 25MB de espacio libre en disco Contenido del Paquete •...
Page 9: Luces Del Router
WLAN AP ROUTER 802.11N Luces del Router Su Router tiene luces indicadoras en la parte frontal. Por favor observe debajo la explicación de la función de cada una de esas luces. Indicador de energía Indicador de WPS activo Indicador de WAN activa Indicador de Ethernet activo Indicador de Wireless activo Tabla1.
Page 10: Rear And Right Panel And Bottom Side
WLAN AP ROUTER 802.11N Rear and Right Panel and bottom Side The rear and right panel and bottom side contains a Restore Defaults button, the ports for the unit's data and power connections. Figure 1: Rear Panel Connections Figure 2: Right Panel Connections Figure 3: Bottom Side for Reset button...
Page 11 WLAN AP ROUTER 802.11N Label Function ANTENNA ANTENNA ON/OFF Power on/off the device SWITCH POWER Connects to the supplied power cable Connects the device via Ethernet to up to four PCs on LAN 4/3/2/1 your LAN Connects the device via Ethernet to xDSL / Cable Modem WLAN Press this button for at least two full second to turn...
Page 12: Para Windows 98Se/Me/2000/Xp
WLAN AP ROUTER 802.11N Procedimiento de Configuración Antes de iniciar la configuración del Router, por favor configure su computadora según los pasos que se explican debajo, para tener un servidor DNS/Dirección IP automática. Para Windows 98SE/ME/2000/XP 1. Clickee en "Inicio" -> "Panel de Control" (en Vista Clásica).
Page 13 WLAN AP ROUTER 802.11N 2. Clickee en “Conexión de Area Local” con el click derecho y elija “Propiedades”.
Page 14 WLAN AP ROUTER 802.11N 3. Doble click en " Protocolo Internet (TCP/IP)".
Page 15 WLAN AP ROUTER 802.11N 4. Elija "Obtener una dirección IP automáticamente" y "Obtener la dirección del servidor DNS automáticamente" luego clickee "OK" para continuar. 5. Clickee "Mostrar icono en el área de notificación al conectarse" (ver la pantalla de la imagen 3 arriba) luego clickee "OK"...
Page 16: Para Windows Vista-32/64
WLAN AP ROUTER 802.11N Para Windows Vista-32/64 1. Clickee en "Start" -> "Control Panel" -> "View network status and tasks".
Page 17 WLAN AP ROUTER 802.11N 2. En donde dice Manage network connections, clickee en "Manage network connections" para continuar.
Page 18 WLAN AP ROUTER 802.11N 3. Clickee botón derecho del mouse en "Local Area connection", luego clickee "Properties"...
Page 19 WLAN AP ROUTER 802.11N 4. La pantalla mostrará la información "User Account Control" y clickee "Continue" para continuar. 5. Doble click en "Internet Protocol Version 4 (TCP/IPv4)".
Page 20 WLAN AP ROUTER 802.11N 6. Elija "Obtain an IP address automatically" y "Obtain DNS server address automatically" luego clickee "OK" para continuar.
Page 21: Para Windows 7-32/64
WLAN AP ROUTER 802.11N Para Windows 7-32/64 1. Clickee en "Inicio" -> "Panel de Control" (en la Vista de Categorías) -> "Ver el estado y las áreas de red".
Page 22 WLAN AP ROUTER 802.11N 2. En la Ventana Principal del Panel de Control, clickee en "Cambiar Configuración del Adaptador" para continuar.
Page 23 WLAN AP ROUTER 802.11N 3. Haga click derecho en "Conexión de Area Local", luego clickee "Propiedades".
Page 24 WLAN AP ROUTER 802.11N 4. Doble click en " Protocol de Internet Version 4 (TCP/IPv4)".
Page 25 WLAN AP ROUTER 802.11N 5. Elija "Obtener una dirección IP automaticamente" y " Obtener la dirección del servidor DNS automáticamente" luego clickee "OK" para continuar.
Page 26: Connecting The Hardware
WLAN AP ROUTER 802.11N Conexión del Router WLAN 802.11n This chapter provides basic instructions for connecting the Wireless Gateway to a computer or LAN and to the Internet. In addition to configuring the device, you need to configure the Internet properties of your computer(s). For more details, see the following sections: •...
Page 27 WLAN AP ROUTER 802.11N Figure 4: Overview of Hardware Connections 1. Conecte el cable Ethernet RJ45 que viene incluido, en la placa de red de su PC a cualquiera de los 4 puertos LAN del Router WLAN 802.11n. 2. Conecte el cable Ethernet RJ45 desde el Puerto de su Modem que le da su proveedor de internet al puerto WAN del Router.
Page 28: Easy Setup Configurations
WLAN AP ROUTER 802.11N Utility CD execution Easy setup configurations Configuración Router WLAN 802.11n 1. Por favor inserte el CD en la lectora de su PC. 2. El CD debería arrancar automáticamente mostrando la pantalla del punto 3. Si su CD no arranca automáticamente, búsquelo manualmente y haga doble click en el archivo "autorun.exe".
Page 29 WLAN AP ROUTER 802.11N 4. Clickee “Configuración Inalámbrica“.
Page 30 5. Por favor ingrese el “ESSID” (nombre de la red wireless) si usted quiere puede cambiarlo (por defecto viene la red wireless habilitada y el nombre es NISUTA-11n-AP- Router ). 6. Elija el tipo de encripción si es necesario, tal como Off –...
Page 31 WLAN AP ROUTER 802.11N 8. Seleccione el modo Fixed IP (ej: Iplan), DHCP client (ej: Fibertel, Telecentro) o PPPoE (Ej: Speedy, Arnet) e ingrese los parámetros relativos a su ISP (Proveedor de Servicios de Internet) o Administrador de Red y luegue clickee “Instalación “.
Page 32 WLAN AP ROUTER 802.11N 9. Ahora, el equipo chequea la conexión hardware del Router, Seteos de Internet, Seteos WLAN, y estado de la conexión. 10. La Configuración Fácil ha sido completada y la conexión debería ser exitosa. Clickee "Cerrar " en la ventana emergente.
Page 33: Conectarse Inalámbricamente
WLAN AP ROUTER 802.11N 11. Ahora, el Router ha sido configurado completamente, y debería estar funcionando. Conectarse Inalámbricamente Para una fácil instalación este es grabado para mantener los seteos. Usted puede luego cambiar la configuración wireless mediante el menú de configuración wireless. (ver el manual en el CD –...
Page 34 WLAN AP ROUTER 802.11N 3. Si la red wireless no está encriptada clickee " Conectar de cualquier forma " para conectarse. 4. Si la red inalámbrica está encriptada, ingrese la contraseña que seteó en el paso 3 - 8. Usted luego puede cambiar la contraseña en el menú...
Page 35 WLAN AP ROUTER 802.11N What the Internet/WAN access of your own Network now is Now you could check what the Internet/WAN access of your network is to know how to configure the WAN port of Wireless Gateway. Please follow steps below to check what the Internet/WAN access if your own Network is DHCP Client, Static IP or PPPoE Client.
Page 36 WLAN AP ROUTER 802.11N 2. Double click Network Connections...
Page 37: Internet/Wan Access Is The Dhcp Client
WLAN AP ROUTER 802.11N Internet/WAN access is the DHCP client If you cannot see any Broadband Adapter in the Network Connections, your Internet/WAN access is DHCP Client or Static IP. 1. Click Local Area Connection in LAN or High-Speed Internet and you could see string Assigned by DHCP Details.
Page 38: Internet/Wan Access Is The Static Ip
WLAN AP ROUTER 802.11N Internet/WAN access is the Static IP If you cannot see any Broadband Adapter in the Network Connections, your Internet/WAN access is DHCP Client or Static IP. 2. Click Local Area Connection in LAN or High-Speed Internet and you could see string Manually Configured Details.
Page 39 WLAN AP ROUTER 802.11N 3. Right click Local Area Connection and click Properties and then you could get the IP settings in detail and write down the IP settings as follow: IP Address: 192.168.10.110 Subnet mask: 255.255.255.0 Default gateway: 192.168.10.100 Preferred DNS server: 192.168.10.100 Alternate DNS Server: If you have it, please also write it down.
Page 40: Internet/Wan Access Is The Pppoe Client
WLAN AP ROUTER 802.11N Internet/WAN access is the PPPoE client If you can see any Broadband Adapter in the Network Connections, your Internet/WAN access is PPPoE Client. 1. Click Broadband Adapter in Broadband and you could see string Assigned by Service Provider in Details.
Page 41: Accessing The Web Pages
WLAN AP ROUTER 802.11N Getting Started with the Web pages The Wireless Gateway includes a series of Web pages that provide an interface to the software installed on the device. It enables you to configure the device settings to meet the needs of your network.
Page 42 WLAN AP ROUTER 802.11N The first time that you click on an entry from the left- hand menu, a login box is displayed. You must enter your username and password to access the pages. A login screen is displayed: 1. Enter your user name and password. The first time you log into the program, use these defaults: admin User Name:...
Page 43: Testing Your Setup
WLAN AP ROUTER 802.11N Testing your Setup Once you have connected your hardware and configured your PCs, any computer on your LAN should be able to use the DSL /Cable connection to access the Internet. To test the connection, turn on the device, wait for 30 seconds and then verify that the LEDs are illuminated as follows: Table 1.
Page 44 WLAN AP ROUTER 802.11N Option Default Setting Explanation/Instructions WAN Port IP DHCP Client This is the temporary public IP address of the WAN Address port on the device. It is an unnumbered interface that is replaced as soon as your ISP assigns a ‘real’ IP address.
Page 45: Quick Setup
WLAN AP ROUTER 802.11N Quick Setup The Quick Setup page displays useful information about the setup of your device, including: • details of the device’s Internet access settings • details of the device’s Wireless settings To display this page: From the left-hand menu, click on Quick Setup. The following page is displayed:...
Page 46: Operation Mode Setup
WLAN AP ROUTER 802.11N Operation Mode Setup You can setup different modes to LAN and WLAN interface for NAT function. Gateway In this mode, the device is supposed to connect to internet via ADSL/Cable Modem. The NAT is enabled and PCs in four LAN ports share the same IP to ISP through WAN port.
Page 47: Wireless Isp
WLAN AP ROUTER 802.11N Wireless ISP In this mode, all ethernet ports are bridged together and the wireless client will connect to ISP access point. The NAT is enabled and PCs in ethernet ports share the same IP to ISP through wireless LAN.
Page 48: Wan Interface Setup
WLAN AP ROUTER 802.11N WAN Interface Setup This page is used to configure the parameters for Internet network which connects to the WAN port of your Access Point. Here you may change the access method to static IP, DHCP, or PPPoE by click the item value of WAN Access type.
Page 49: Static Ip
WLAN AP ROUTER 802.11N Static IP In this mode, the device is supposed to connect to internet via ADSL/Cable Modem. The NAT is enabled and PCs in four LAN ports share the same IP to ISP through WAN port. The connection type can be setup in WAN page by using static IP.
Page 50: Dhcp Client
WLAN AP ROUTER 802.11N DHCP Client In this mode, the device is supposed to connect to internet via ADSL/Cable Modem. The NAT is enabled and PCs in four LAN ports share the same IP to ISP through WAN port. The connection type can be setup in WAN page by using static IP.
Page 51: Pppoe
WLAN AP ROUTER 802.11N PPPoE In this mode, the device is supposed to connect to internet via ADSL/Cable Modem. The NAT is enabled and PCs in four LAN ports share the same IP to ISP through WAN port. The connection type can be setup in WAN page by using static IP. 1.
Page 52: Pptp
WLAN AP ROUTER 802.11N PPTP In this mode, the device is supposed to connect to internet via ADSL/Cable Modem. The NAT is enabled and PCs in four LAN ports share the same IP to ISP through WAN port. The connection type can be setup in WAN page by using static IP. 1.
Page 53: L2Tp
WLAN AP ROUTER 802.11N L2TP In this mode, the device is supposed to connect to internet via ADSL/Cable Modem. The NAT is enabled and PCs in four LAN ports share the same IP to ISP through WAN port. The connection type can be setup in WAN page by using static IP. 1.
Page 54: Wireless Basic Setup
WLAN AP ROUTER 802.11N Wireless Basic Setup This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point.
Page 55: Ap (Access Point)
WLAN AP ROUTER 802.11N AP (Access Point) Access Point is used to configure the parameters for wireless LAN clients who may connect to your Access Point. 1. From the Band drop-down list, select a Band. 2. From the Mode drop-down list, select AP setting. 3.
Page 56: Client
WLAN AP ROUTER 802.11N Client This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point. 1. From the Band drop-down list, select a Band. 2. From the Mode drop-down list, select Client setting. 3.
Page 57: Wds (Wireless Distribution System)
WLAN AP ROUTER 802.11N WDS (Wireless Distribution System) WDS stands for Wireless Distribution System. It enables the access points (APs) to be connected wirelessly. Integrated Access Device can also provide you services of WDS. Integrated Access Device that supports WDS does not support security systems like WEP, WPA or WPA-Enterprise on a WDS Note network.
Page 58 WLAN AP ROUTER 802.11N Main WDS station: One of your WDS stations is the main base station for the WDS network. This AP is connected directly to your Internet connection, or connected to your router via a wired connection. The main station is the bridge to your Internet connection that all wireless traffic eventually flows through.
Page 59 WLAN AP ROUTER 802.11N • You set the ESSID of the remote location(s) using either a unique name or by using the same ESSID as you use for your main base station. (Whoa, our heads just exploded!) Using the same ESSID (a “roaming” network) is pretty cool. You associate with one AP one time and then your PC or Mac can associate with any AP on your WDS network without you having to do anything —...
Page 60: Wds (Wireless Distribution System) Only
WLAN AP ROUTER 802.11N WDS (Wireless Distribution System) only 1. From the Band drop-down list, select a Band. 2. From the Mode drop-down list, select WDS setting. 3. From the Channel Width drop-down list, select a Channel Width. 4. From the ControlSideband drop-down list, select a ControlSideband.
Page 61: Ap (Access Point) + Wds (Wireless Distribution System)
WLAN AP ROUTER 802.11N AP (Access Point) + WDS (Wireless Distribution System) Access Point is used to configure the parameters for wireless LAN clients which may connect to your Access Point. 1. From the Band drop-down list, select a Band. 2.
Page 62 WLAN AP ROUTER 802.11N Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. You can protect your wireless data from potential eavesdroppers by encrypting wireless data transmissions.
Page 63 WLAN AP ROUTER 802.11N • If you want to use WEP 64bit ASCII (5 characters) data encryption, follow the instructions in Configuring 64bit ASCII (5 characters) encryption. • If you want to use WEP 64bit Hex (10 characters) data encryption, follow the instructions in Configuring WEP 64bit Hex (10 characters) security.
Page 64: Configuring Wep 64Bit Ascii (5 Characters) Security
WLAN AP ROUTER 802.11N Configuring WEP 64bit ASCII (5 characters) security The example set in this section is for 64bit encryption. 1. From the Encryption drop-down list, select WEP setting. 2. From the Key Length drop-down list, select 64-bit setting. 3.
Page 65: Configuring Wep 64Bit Hex (10 Characters) Security
WLAN AP ROUTER 802.11N Configuring WEP 64bit Hex (10 characters) security The example set in this section is for 64bit encryption. 1. From the Encryption drop-down list, select WEP setting. 2. From the Key Length drop-down list, select 64-bit setting. 3.
Page 66: Configuring Wep 128Bit Ascii (13 Characters) Security
WLAN AP ROUTER 802.11N Configuring WEP 128bit ASCII (13 characters) security The example set in this section is for 128bit encryption. 1. From the Encryption drop-down list, select WEP setting. 2. From the Key Length drop-down list, select 128-bit setting. 3.
Page 67: Configuring Wep 128Bit Hex (26 Characters) Security
WLAN AP ROUTER 802.11N Configuring WEP 128bit Hex (26 characters) security The example set in this section is for 128bit encryption. 1. From the Encryption drop-down list, select WEP setting. 2. From the Key Length drop-down list, select 128-bit setting. 3.
Page 68: Configuring Wpa (Aes) Passphrase Security
WLAN AP ROUTER 802.11N Configuring WPA (AES) Passphrase security The example set in this section is for WPA (AES) Passphrase encryption. 1. From the Encryption drop-down list, select WPA (AES) setting. 2. From the Pre-Shared Key Format drop-down list, select Passphrase setting.
Page 69: Configuring Wpa (Aes) Hex (64 Characters) Security
WLAN AP ROUTER 802.11N Configuring WPA (AES) HEX (64 characters) security The example set in this section is for WPA (AES) HEX (64 characters) encryption. 1. From the Encryption drop-down list, select WPA (AES) setting. 2. From the Pre-Shared Key Format drop-down list, select HEX (64 characters) setting.
Page 70: Configuring Wpa2 (Aes) Passphrase Security
WLAN AP ROUTER 802.11N Configuring WPA2 (AES) Passphrase security The example set in this section is for WPA2 (AES) Passphrase encryption. 1. From the Encryption drop-down list, select WPA2 (AES) setting. 2. From the Pre-Shared Key Format drop-down list, select Passphrase setting.
Page 71: Configuring Wpa2 (Aes) Hex (64 Characters) Security
WLAN AP ROUTER 802.11N Configuring WPA2 (AES) HEX (64 characters) security The example set in this section is for WPA2 (AES) HEX (64 characters) encryption. 1. From the Encryption drop-down list, select WPA2 (AES) setting. 2. From the Pre-Shared Key Format drop-down list, select HEX (64 characters) setting.
Page 72: Configuring Wpa2 (Mixed) Passphrase Security
WLAN AP ROUTER 802.11N Configuring WPA2 (Mixed) Passphrase security The example set in this section is for WPA2 (Mixed) Passphrase encryption. The WPA2 (Mixed) Passphrase encryption supports both WPA (AES) and WPA2 (AES). 1. From the Encryption drop-down list, select WPA2 (Mixed) setting.
Page 73: Configuring Wpa2 (Mixed) Hex (64 Characters) Security
WLAN AP ROUTER 802.11N Configuring WPA2 (Mixed) HEX (64 characters) security The example set in this section is for WPA2 (Mixed) HEX (64 characters) encryption. The WPA2 (Mixed) HEX (64 characters) encryption supports both WPA (AES) and WPA2 (AES). 1. From the Encryption drop-down list, select WPA2 (Mixed) setting.
Page 74: Setting Operation Mode
WLAN AP ROUTER 802.11N Operation Mode This chapter describes how to configure the way that your device connects to the Internet. There are Three options of Operation Mode: Gateway, Bridge and Wireless ISP. Setting Operation Mode To change the Operation Mode: 1.
Page 75: Basic Settings
WLAN AP ROUTER 802.11N Wireless Network This chapter assumes that you have already set up your Wireless PCs and installed a compatible Wireless card on your device. See Configuring Wireless PCs. Basic Settings The Wireless Network page allows you to configure the Wireless features of your device.
Page 76 WLAN AP ROUTER 802.11N Field Description Disable Enable/Disable the Wireless LAN Interface. Wireless LAN Default: Disable Interface Band Specify the WLAN Mode to 802.11b/g Mixed mode, 802.11b mode or 802.11g mode Mode Configure the Wireless LAN Interface to AP, Client, WDS, AP + WDS, MESH or AP + MESH mode Network Type Configure the Network Type to Infrastructure or Ad hoc.
Page 77: Advanced Settings
WLAN AP ROUTER 802.11N Advanced Settings These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your Access Point. To access the Wireless Network Advanced Settings page: From the left-hand Wireless menu, click on Advanced Settings.
Page 78: Security
WLAN AP ROUTER 802.11N Security This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. To access the Wireless Network Security page: From the left-hand Wireless menu, click on Security. The following page is displayed: Field Description...
Page 79 WLAN AP ROUTER 802.11N Field Description WPA2 Cipher Configure the WPA2 Cipher Suite to TKIP and/or AES Suite Pre-Shared Key Configure the Pre-Shared Key Format to Passphrase or HEX (64 Format characters) Pre-Shared Key Type the Pre-Shared Key Enable Pre- According to some of the preferred embodiments, a method for Authentication proactively establishing a security association between a mobile node...
Page 80: Wep + Encryption Key
WLAN AP ROUTER 802.11N WEP + Encryption Key WEP aims to provide security by encrypting data over radio waves so that it is protected as it is transmitted from one end point to another. However, it has been found that WEP is not as secure as once believed.
Page 81: Wep + Use 802.1X Authentication
WLAN AP ROUTER 802.11N WEP + Use 802.1x Authentication WEP aims to provide security by encrypting data over radio waves so that it is protected as it is transmitted from one end point to another. However, it has been found that WEP is not as secure as once believed.
Page 82: Wpa/Wpa2/Wpa2 Mixed + Personal (Pre-Shared Key)
WLAN AP ROUTER 802.11N WPA/WPA2/WPA2 Mixed + Personal (Pre-Shared Key) Wi-Fi Protected Access (WPA and WPA2) is a class of systems to secure wireless (Wi-Fi) computer networks. WPA is designed to work with all wireless network interface cards, but not necessarily with first generation wireless access points.
Page 83: Wpa/Wpa2/Wpa2 Mixed + Enterprise (Radius)
WLAN AP ROUTER 802.11N 8. Click on Apply Changes button to confirm and return. 9. Change setting successfully! Click on Reboot Now button to confirm. WPA/WPA2/WPA2 Mixed + Enterprise (RADIUS) Wi-Fi Protected Access (WPA and WPA2) is a class of systems to secure wireless (Wi-Fi) computer networks.
Page 84 WLAN AP ROUTER 802.11N 4. Check the option of TKIP and/or AES in WPA2 Cipher Suite if your Encryption is WPA2: 5. Check the option of TKIP and/or AES in WPA/WPA2 Cipher Suite if your Encryption is WPA2 Mixed: 6. Enter the Port, IP Address and Password of RADIUS Server: 7.
Page 85: Access Control
WLAN AP ROUTER 802.11N Access Control For security reason, using MAC ACL's (MAC Address Access List) creates another level of difficulty to hacking a network. A MAC ACL is created and distributed to AP so that only authorized NIC's can connect to the network. While MAC address spoofing is a proven means to hacking a network this can be used in conjunction with additional security measures to increase the level of complexity of the network security...
Page 86: Allow Listed
WLAN AP ROUTER 802.11N Allow Listed If you choose 'Allowed Listed', only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point. 1. From the Wireless Access Control Mode drop-down list, select Allowed Listed setting.
Page 87: Deny Listed
WLAN AP ROUTER 802.11N Deny Listed When 'Deny Listed' is selected, these wireless clients on the list will not be able to connect the Access Point. 1. From the Wireless Access Control Mode drop-down list, select Deny Listed setting. 2. Enter the MAC Address. 3.
Page 88: Wds Settings
WLAN AP ROUTER 802.11N WDS settings Wireless Distribution System uses wireless media to communicate with other APs, like the Ethernet does. To do this, you must set these APs in the same channel and set MAC address of other APs which you want to communicate with in the table and then enable the WDS.
Page 89: Configure Wds (Wireless Distribution System) Only
WLAN AP ROUTER 802.11N Configure WDS (Wireless Distribution System) only 1. From the left-hand Wireless menu, click on Basic Settings. 2. From the Mode drop-down list, select WDS. 3. From the Channel Number drop-down list, select a Channel. 4. Click Apply Changes button. 5.
Page 90 WLAN AP ROUTER 802.11N 7. Check on the option Enable WDS. 8. Enter the MAC Address. 9. Enter the Comment. 10. Click the Apply Changes 11. Change setting successfully! Click on Reboot Now button to confirm. 12. The MAC Address that you created has been added in the Current Access Control List.
Page 91 WLAN AP ROUTER 802.11N 14. Click the Set Security. 15. This page allows you setup the wireless security for WDS. When enabled, you must make sure each WDS device has adopted the same encryption algorithm and Key. 16. Configure each field with the Encryption that you selected. 17.
Page 92: Configure Ap (Access Point) + Wds (Wireless Distribution System)
System) 1. From the left-hand Wireless menu, click on Basic Settings. 2. From the Mode drop-down list, select AP+WDS. 3. Enter SSID for example NISUTA-11n-AP-Router. 4. From the Channel Number drop-down list, select a Channel. 5. Click Apply Changes button.
Page 93 WLAN AP ROUTER 802.11N 6. Change setting successfully! Click on Reboot Now button to confirm take effect. 7. From the left-hand Wireless menu, click on WDS settings. 8. Check on the option Enable WDS. 9. Enter the MAC Address. 10. Enter the Comment. 11.
Page 94 WLAN AP ROUTER 802.11N 13. The MAC Address that you created has been added in the Current Access Control List. 14. From the left-hand Wireless menu, click on WDS settings. 15. Click the Set Security. 16. This page allows you setup the wireless security for WDS. When enabled, you must make sure each WDS device has adopted the same encryption algorithm and Key.
Page 95: Site Survey
WLAN AP ROUTER 802.11N Site Survey This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled. To access the Wireless Network WDS settings page: From the left-hand Wireless menu, click on Site Survey.
Page 96: Configure Wireless Isp + Wireless Client + Site Survey
WLAN AP ROUTER 802.11N Configure Wireless ISP + Wireless client + Site Survey 1. From the left-hand Operation Mode menu, click on Wireless ISP Settings. 2. Click Apply Changes button. 3. Change setting successfully!
Page 97 5. From the Mode drop-down list, select Client. 6. Enter SSID of the AP that you want to connect to for example NISUTA-11n-AP-Router. If you don’t know what the SSID of the AP that you want to connect to, please skip this step.
Page 98 WLAN AP ROUTER 802.11N 8. Change setting successfully! Click on Reboot Now button to confirm take effect. 9. From the left-hand Wireless menu, click on Site Survey. 10. Click Refresh button.
Page 99 WLAN AP ROUTER 802.11N 11. Now you could see the APs that scanned by the Wireless Gateway were listed below. 12. Click on the ratio of AP’s SSID under the item Select that you want the Wireless Gateway to connect to. 13.
Page 100: Wps
WLAN AP ROUTER 802.11N This page allows you to change the setting for WPS (Wi-Fi Protected Setup). Using this feature could let your wireless client automatically syncronize its setting and connect to the Access Point in a minute without any hassle. To access the Wireless Network WPS page: From the left-hand Wireless menu, click on WPS.
Page 101: Introduction Of Wps
WLAN AP ROUTER 802.11N Field Description Push Button Clicking this button will invoke the PBC method of WPS. It is only Configuration used when AP acts as a registrar. Apply Changes Whenever users want to enable/disable WPS or change AP’s PIN, they need to apply this button to commit changes.
Page 102: Ap Mode
WLAN AP ROUTER 802.11N Other modes such as WDS mode, Infrastructure-Adhoc mode, and the wireless virtual interface of Universal Repeater mode are not implemented with WPS features. If those unsupported modes are enforced by users, WPS will be disabled. Under the configuration of every WPS- supported mode, Wireless Gateway has Push Button method and PIN method.
Page 103: Infrastructure-Client Mode
WLAN AP ROUTER 802.11N Infrastructure-Client mode In Infrastructure-Client mode, Wireless Gateway only supports enrollee’s role. If users click “Start PIN”, click “Start PBC”, or press the physical button on Wireless Gateway, it will start to seek WPS AP. Once users apply the same method on registrar side, Wireless Gateway will receive the wireless profile upon successfully doing the registration protocol.
Page 104: Wireless Basic Settings Page
WLAN AP ROUTER 802.11N Wireless Basic Settings page Users need to make sure the “Broadcast SSID” file is set to “Enabled”. Otherwise, it might prevent WPS from working properly.
Page 105: Operations Of Ap - Ap Being An Enrollee
WLAN AP ROUTER 802.11N Operations of AP - AP being an enrollee In this case, AP will be configured by any registrar either through in-band EAP or UPnP. Here, users do not need to do any action on AP side. They just need AP’s device PIN and enter it into registrar.
Page 106 WLAN AP ROUTER 802.11N 3. Plug the Ethernet cable into AP’s LAN port and make sure the IP connection is valid with Vista. 4. Make sure WCN is enabled. Users may need to enable it at the first time. They could open the “Control Panel”, click “Classic View“, open “Administrative Tools”, double click “Services”, ”, a User Account Control pop up and click “Continue“, edit properties of “Windows Connect Now”,...
Page 107 WLAN AP ROUTER 802.11N 5. If the previous steps are done, open Windows Explorer. Go to the Network section. 6. Click on “Network discovery and file sharing are turned off. Network computers and devices are not visible. Click to Change…“...
Page 108 WLAN AP ROUTER 802.11N 7. Click on “Turn on network discovery and file sharing“...
Page 109 WLAN AP ROUTER 802.11N 8. Click on “No, make the network that I am connected to a private network“...
Page 110 WLAN AP ROUTER 802.11N 9. AP’s icon will show up. Double click on it.
Page 111 WLAN AP ROUTER 802.11N 10. Users could also Click “Add a wireless device” if the icon is not there. Click “next”.
Page 112 WLAN AP ROUTER 802.11N 11. Enter AP’s Self-PIN Number and click “next”.
Page 113 WLAN AP ROUTER 802.11N 12. Choose a name that people who connect to your network will recognize.
Page 114 WLAN AP ROUTER 802.11N 13. Enter the Passphrase and then click Next.
Page 115 WLAN AP ROUTER 802.11N 14. A User Account Control screen pops up, click Continue. 15. AP is successfully configured by WCN.
Page 116 WLAN AP ROUTER 802.11N 16. Finally, AP will become configured (see WPS Status). The authentication algorithm, encryption algorithm, and key assigned by WCN will be displayed below “Current Key Info”.
Page 117 WLAN AP ROUTER 802.11N 17. The SSID field of Wireless Basic Settings page will also be modified with the value assigned by WCN.
Page 118 WLAN AP ROUTER 802.11N 18. The security settings on the Wireless Security Page will be modified by WCN, too. The warning message will show up if users try to modify the security settings. The reason is the same as we explained in the previous section.
Page 119: Operations Of Ap - Ap Being A Registrar
WLAN AP ROUTER 802.11N Operations of AP - AP being a registrar AP mode Whenever users enter station’s PIN into AP’s Wi-Fi Protected Setup page and click “Start PIN”, AP will become a registrar. Users must start the PIN method on the station side within two minutes.
Page 120 WLAN AP ROUTER 802.11N 5. Users must start the PIN method on the station side within two minutes. 6. Users must start the PIN method on the station side within two minutes.
Page 121 WLAN AP ROUTER 802.11N 7. If the device PIN is correct and the WPS handshake is successfully done on the station side, User’s Wi-Fi Protected status will be shown as below.
Page 122 WLAN AP ROUTER 802.11N 8. If the device PIN is correct and the WPS handshake is successfully done, AP’s Wi-Fi Protected Setup page will be shown as below. Other pages such as Wireless Basic Settings page and Wireless Security Setup page will also be updated appropriately as described in previous sections.
Page 123: Push Button Method
WLAN AP ROUTER 802.11N Push Button method Wireless Gateway supports a virtual button “Start PBC” on the Wi-Fi Protected Setup page for Push Button method. If users push a virtual button “Start PBC”, AP will initiate a WPS session and wait for any station to join. At this moment, AP will detect whether there is more than one station that starts the PBC method.
Page 124 WLAN AP ROUTER 802.11N 4. Users must start the PBC method on the station side within two minutes. 5. Users must start the PBC method on the station side within two minutes.
Page 125 WLAN AP ROUTER 802.11N 6. If the device PCB and the WPS handshake is successfully done on the station side, User’s Wi-Fi Protected status will be shown as below.
Page 126 WLAN AP ROUTER 802.11N 7. If the device PIN is correct and the WPS handshake is successfully done, AP’s Wi-Fi Protected Setup page will be shown as below. Other pages such as Wireless Basic Settings page and Wireless Security Setup page will also be updated appropriately as described in previous sections.
Page 127: Wireless Schedule
WLAN AP ROUTER 802.11N Wireless Schedule This page allows you setup the wireless schedule rule. Please do not forget to configure system time before enable this feature. To access the Wireless Schedule page: From the left-hand Wireless menu, click on Wireless Schedule. The following page is displayed:...
Page 128: Lan Interface Setup
WLAN AP ROUTER 802.11N LAN Interface This chapter is to configure the parameters for local area network which connects to the LAN port of your Access Point. Here you may change the setting for IP address, subnet mask, DHCP, etc... You should only change the addressing details if your ISP asks you to, or if you are familiar with network configuration.
Page 129 WLAN AP ROUTER 802.11N Field Description IP Address The LAN IP address Default: 192.168.1.1 Subnet Mask The LAN netmask Default: 255.255.255.0 Default Gateway The LAN Gateway Default: 0.0.0.0 DHCP DHCP Type: Disable, DHCP Client or Server Default: DHCP Server DHCP Client Range Specify the starting/ending IP address of the IP address pool.
Page 130: Changing The Lan Ip Address And Subnet Mask
WLAN AP ROUTER 802.11N Changing the LAN IP address and subnet mask To check the configuration of LAN Interface: 2. From the left-hand Network Settings -> LAN Interface menu. The following page is displayed:...
Page 131 WLAN AP ROUTER 802.11N 3. Type IP Address and Change default LAN port IP address. 4. Click in the IP Address and Subnet Mask box and type a new IP Address and Subnet Mask. 5. Change the default DHCP Client Range. 6.
Page 132 WLAN AP ROUTER 802.11N You may also need to renew your DHCP lease: Windows 95/98 a. Select Run... from the Start menu. b. Enter winipcfg and click OK. c. Select your ethernet adaptor from the pull-down menu d. Click Release All and then Renew All. e.
Page 133: Show Client
WLAN AP ROUTER 802.11N Show Client To the IP Address, MAC Address, and Expired Time of the DHCP lease for each client computer/device: 1. From the left-hand Network Settings -> LAN Interface menu. The following page is displayed: 2. Click on Show Client button. The following page is displayed:...
Page 134: Wan Interface
WLAN AP ROUTER 802.11N WAN Interface This chapter describes how to configure the way that your device connects to the Internet. Your ISP determines what type of Internet access you should use and provides you with any information that you need in order to configure the Internet access to your device.
Page 135 WLAN AP ROUTER 802.11N 1. From the left-hand Network Settings -> WAN Interface menu. The following page is displayed:...
Page 136 WLAN AP ROUTER 802.11N Option Description Static IP Choose this option if you are a leased line user with a fixed IP address. Access DHCP Client Choose this option if you are connected to the Internet Type through a Cable modem line. PPPoE Choose this option if you are connected to the Internet through a DSL line...
Page 137 WLAN AP ROUTER 802.11N Option Description Clone MAC Address Clone MAC lets the device identify itself as another computer or device Enable uPNP Enable or Disable uPNP Enable IGMP Proxy Enable or Disable IGMP Proxy Enable Ping Access on WAN Enable or Disable Ping Access on WAN Enable Web Server Access on Enable or Disable Web Server Access on WAN...
Page 138: Configuring Static Ip Connection
WLAN AP ROUTER 802.11N Configuring Static IP connection If you are a leased line user with a fixed IP address, enter in the IP address, subnet mask, gateway address, and DNS (domain name server) address(es) provided to you by your ISP. If your ISP wants you to connect to the Internet using Static IP, follow the instructions below.
Page 139 WLAN AP ROUTER 802.11N 5. Change setting successfully! Click on Reboot Now button to confirm take effect. 6. From the left-hand Management -> Status menu. The following page is displayed: 7. If you could see the Attain IP Protocol is shown Fixed IP, you can have the Internet Access right now.
Page 140: Configuring Dhcp Client Connection
WLAN AP ROUTER 802.11N Configuring DHCP Client connection Dynamic Host Configuration Protocol (DHCP), Dynamic IP (Get WAN IP Address automatically). If you are connected to the Internet through a Cable modem line, then a dynamic IP will be assigned. If your ISP wants you to connect to the Internet using DHCP Client, follow the instructions below.
Page 141 WLAN AP ROUTER 802.11N 4. Change setting successfully! Click on Reboot Now button to confirm take effect. 5. From the left-hand Management -> Status menu. The following page is displayed: 6. If you could see the Attain IP Protocol is shown DHCP, you can have the Internet Access right now.
Page 142: Configuring Pppoe Connection
WLAN AP ROUTER 802.11N Configuring PPPoE connection If your ISP’s Internet service uses PPPoE you need to set up a PPP login account. The first time that you login to the Internet, your ISP will ask you to enter a username and password so they can check that you are a legitimate, registered Internet service user.
Page 143 WLAN AP ROUTER 802.11N 5. Change setting successfully! Click on Reboot Now button to confirm take effect.
Page 144 WLAN AP ROUTER 802.11N 6. From the left-hand Management -> Status menu. The following page is displayed: 7. If you could see the Attain IP Protocol is shown PPPoE Connected, you can have the Internet Access right now.
Page 145: Configuring Pptp Connection
WLAN AP ROUTER 802.11N Configuring PPTP connection If your ISP/Network Administrator wants you to connect to the Internet using PPTP, follow the instructions below. 1. From the left-hand Network Settings -> WAN Interface menu. The following page is displayed: 2. From the WAN Access Type drop-down list, select PPTP setting.
Page 146 WLAN AP ROUTER 802.11N 5. Change setting successfully! Click on Reboot Now button to confirm take effect.
Page 147: Configuring L2Tp Connection
WLAN AP ROUTER 802.11N Configuring L2TP connection If your ISP/Network Administrator wants you to connect to the Internet using L2TP, follow the instructions below. 1. From the left-hand Network Settings -> WAN Interface menu. The following page is displayed: 2. From the WAN Access Type drop-down list, select L2TP setting.
Page 148 WLAN AP ROUTER 802.11N 5. Change setting successfully! Click on Reboot Now button to confirm take effect.
Page 149: Clone Mac Address
WLAN AP ROUTER 802.11N Clone MAC Address Some particularly ISPs do not want you to have a home network and have a DSL/Cable modem that allows only 1 MAC to talk on the internet. If you change network cards, you have to call them up to change the MAC.
Page 150 WLAN AP ROUTER 802.11N 5. Change setting successfully! Click on Reboot Now button to confirm take effect. 6. From the left-hand Management -> Status menu. The following page is displayed: 7. If you could see the WAN Configuration -> MAC Address is changed to the one that you configured.
Page 151: Port Filtering
WLAN AP ROUTER 802.11N Port Filtering Entries in Current Filter Table are used to restrict certain ports and types of data packets from your local network to Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network. 1.
Page 152: Port Filtering For Tcp Port 80
WLAN AP ROUTER 802.11N Port filtering for TCP port 80 Please follow example below to deny the TCP port 80 for both Outbound and Inbound packet. 2. From the left-hand Firewall -> Port Filtering menu. The following page is displayed: 3.
Page 153: Port Filtering For Udp Port 53
WLAN AP ROUTER 802.11N 8. Now the port filter that you created has been added and listed in the Current Filter Table. 9. Now the TCP port for both Outbound and Inbound packet has been denied. Now you cannot visit any web site due to the TCP port 80 has been blocked by the Port Filtering rule that created.
Page 154 WLAN AP ROUTER 802.11N 2. Check the option Enable Port Filtering to enable the port filtering. 3. Enter 53 and 53 in Port Range field. 4. From the Protocol drop-down list, select UDP setting. 5. Enter DNS Resolve in Comment field. 6.
Page 155 WLAN AP ROUTER 802.11N IP Filtering Entries in this table are used to restrict certain types of data packets from your local network to Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network.
Page 156: Ip Filtering For Tcp With Specified Ip
WLAN AP ROUTER 802.11N 1. From the left-hand Firewall -> IP Filtering menu. The following page is displayed: IP filtering for TCP with specified IP Please follow example below to deny the TCP protocol for specified IP. 1. From the left-hand Firewall -> IP Filtering menu. The following page is displayed:...
Page 157 WLAN AP ROUTER 802.11N 2. Check the option Enable IP Filtering to enable the IP Filtering. 3. Enter the IP Address that you want to be denied in Loal IP Address field. 4. From the Protocol drop-down list, select TCP setting. 5.
Page 158: Ip Filtering For Udp With Specified Ip
WLAN AP ROUTER 802.11N IP filtering for UDP with specified IP Please follow example below to deny the UDP protocol for specified IP. 1. From the left-hand Firewall -> IP Filtering menu. The following page is displayed: 2. Check the option Enable IP Filtering to enable the IP Filtering.
Page 159: Ip Filtering For Both Tcp And Udp With Specified Ip
WLAN AP ROUTER 802.11N 7. Now the IP Filter that you created has been added and listed in the Current Filter Table. 8. Now the UDP protocol for both Outbound and Inbound packet has been denied. Now The Local IP Address for example 10.0.0.102 that listed in the Current Filter Table cannot visit any application that use UDP protocol for example TFTP Service due to the Protocol UDP has been blocked by the IP Filtering rule that created.
Page 160 WLAN AP ROUTER 802.11N 7. Now the IP Filter that you created has been added and listed in the Current Filter Table. 8. Now the TCP and UDP protocol for both Outbound and Inbound packet has been denied.
Page 161: Mac Filtering
WLAN AP ROUTER 802.11N MAC Filtering Entries in this table are used to restrict certain types of data packets from your local network to Internet through the Wireless Gateway. Use of such filters can be helpful in securing or restricting your local network. 1.
Page 162: Mac Filtering For Specified Mac Address
WLAN AP ROUTER 802.11N MAC filtering for specified MAC Address Please follow example below to deny the specified MAC Address has the Internet Access. 1. From the left-hand Firewall -> MAC Filtering menu. The following page is displayed: 2. Check the option Enable MAC Filtering to enable the MAC Filtering.
Page 163 WLAN AP ROUTER 802.11N 6. Now the MAC Filter that you created has been added and listed in the Current Filter Table. 7. Now the MAC Address in the Current Filter Table cannot have the Internet Access.
Page 164: Port Forwarding
WLAN AP ROUTER 802.11N Port Forwarding Entries in this table allow you to automatically redirect common network services to a specific machine behind the NAT firewall. These settings are only necessary if you wish to host some sort of server like a web server or mail server on the private local network behind your Gateway's NAT firewall.
Page 165: Port Forwarding For Tcp With Specified Ip
WLAN AP ROUTER 802.11N Port Forwarding for TCP with specified IP Please follow example below to configure the Port Forwarding to Specified IP with TCP. 1. From the left-hand Firewall -> Port Forwarding menu. The following page is displayed:...
Page 166 WLAN AP ROUTER 802.11N 2. Check the option Enable Port Forwarding to enable the Enable Port Forwarding. 3. Enter the IP Address that the port you want to be forwarded in IP Address field. 4. From the Protocol drop-down list, select TCP setting. 5.
Page 167: Port Forwarding For Udp With Specified Ip
WLAN AP ROUTER 802.11N Port Forwarding for UDP with specified IP Please follow example below to configure the Port Forwarding to Specified IP with UDP. 1. From the left-hand Firewall -> Port Forwarding menu. The following page is displayed:...
Page 168 WLAN AP ROUTER 802.11N 2. Check the option Enable Port Forwarding to enable the Enable Port Forwarding. 3. Enter the IP Address that the port you want to be forwarded in IP Address field. 4. From the Protocol drop-down list, select UDP setting. 5.
Page 169: Url Filtering
WLAN AP ROUTER 802.11N URL Filtering URL filter is used to deny LAN users from accessing the internet. Block those URLs which contain keywords listed below. 1. From the left-hand Firewall -> URL Filtering menu. The following page is displayed:...
Page 170: Url Filtering For Specified Url Address
WLAN AP ROUTER 802.11N URL filtering for specified URL Address Please follow example below to deny LAN users from accessing the Internet. 1. From the left-hand Firewall -> URL Filtering menu. The following page is displayed: 2. Check the option Enable URL Filtering to enable the URL Filtering.
Page 171 WLAN AP ROUTER 802.11N 5. Now the URL Filter that you created has been added and listed in the Current Filter Table. 6. Now the URL Address in the Current Filter Table cannot be visited.
Page 172: Dmz Host Ip Address
WLAN AP ROUTER 802.11N A Demilitarized Zone is used to provide Internet services without sacrificing unauthorized access to its local private network. Typically, the DMZ host contains devices accessible to Internet traffic, such as Web (HTTP ) servers, FTP servers, SMTP (e- mail) servers and DNS servers.
Page 173 WLAN AP ROUTER 802.11N 2. Check the option Enable DMZ to enable the Enable DMZ. 3. Enter the IP Address that to be the DMZ Host in DMZ Host IP Address field. 4. Click Apply Changes. 5. Change setting successfully! Click on Reboot Now button to confirm take effect.
Page 174 WLAN AP ROUTER 802.11N VLAN Entries in below table are used to config vlan settings. VLANs are created to provide the segmentation services traditionally provided by routers. VLANs address issues such as scalability, security, and network management. 6. From the left-hand Firewall -> VLAN menu. The following page is displayed:...
Page 175 WLAN AP ROUTER 802.11N Entries in this table improve your online gaming experience by ensuring that your game traffic is prioritized over other network traffic, such as FTP or Web. 1. From the left-hand Firewall -> QoS menu. The following page is displayed:...
Page 176 WLAN AP ROUTER 802.11N Status This page displays the current information for the device. It will display the LAN, WAN, and system firmware information. This page will display different information, according to WAN setting (Static IP, DHCP, or PPPoE). 1. From the left-hand Management -> Status menu. The following page is displayed:...
Page 177 WLAN AP ROUTER 802.11N Statistics This page shows the packet counters for transmission and reception regarding to wireless and Ethernet networks. 1. From the left-hand Management -> Statistics menu. The following page is displayed:...
Page 178: Dynamic Dns
WLAN AP ROUTER 802.11N Dynamic DNS When you want your internal server to be accessed by using DNS name rather than using the dynamic IP address, you can use the DDNS service. The DDNS server allows to alias a dynamic IP address to a static hostname. This chapter provides you an overview of the Dynamic DNS feature of the modem and configuration details related to it.
Page 179 WLAN AP ROUTER 802.11N If the dynamic DNS service provider is notified of the same IP address again and again, then it considers it an abuse and might block the host name. To avoid this scenario, the IP address that was successfully updated to the ISP is stored on the unit.
Page 180: Configure Dyndns
WLAN AP ROUTER 802.11N 1. From the left-hand Management -> DDNS menu. The following page is displayed: Configure DynDNS 2. From the left-hand Management -> DDNS menu. The following page is displayed:...
Page 181 WLAN AP ROUTER 802.11N 3. Click on Enable DDNS 4. Select the DynDNS from the Service Provider drop-down list. 5. Type your own unique User Name, Password and Domain Name which you applied from www.dyndns.com in the relevant boxes. They can be any combination of letters or numbers with a maximum of 20 characters.
Page 182: Configure Tzo
WLAN AP ROUTER 802.11N Configure TZO 1. From the left-hand Management -> DDNS menu. The following page is displayed: 2. Click on Enable DDNS 3. Select the TZO from the Service Provider drop-down list. 4. Type your own unique Email, Key and Domain Name which you applied from http://www.tzo.com/MainPageWebClient/clientsignup.html in the relevant boxes.
Page 183 WLAN AP ROUTER 802.11N 6. Change setting successfully! Click on Reboot Now button to confirm take effect.
Page 184: Sntp Server And Sntp Client Configuration Settings
WLAN AP ROUTER 802.11N Time Zone Setting Certain systems may not have a date or time mechanism or may be using inaccurate time/day information. the Simple Network Time Protocol feature provides a way to synchronize the device’s own time of day setting with a remote time server as described in RFC 2030 (SNTP) and RFC 1305 (NTP).
Page 185 WLAN AP ROUTER 802.11N 2. From the Time Zone Select drop-down list, select Your Own Time Zone. 3. Check the option Enable NTP client update. 4. From the NTP server drop-down list, select a NTP Server. Or you can add server to the SNTP association list using IP address.
Page 186: Denial-Of-Service
WLAN AP ROUTER 802.11N Denial-of-Service A "denial-of-service" (DoS) attack is characterized by an explicit attempt by hackers to prevent legitimate users of a service from using that service. Denial-of-Service 1. From the left-hand Management menu, click on Denial-of- Service. The following page is displayed:...
Page 187 WLAN AP ROUTER 802.11N 2. Check the option Enable NTP client update. 3. Check the option of each Service. 4. Check the option Enable Source IP Blocking. 5. Click Apply Changes. 6. Change setting successfully! Click on Reboot Now button to confirm take effect.
Page 188: System Log
WLAN AP ROUTER 802.11N This page can be used to set remote log server and show the system log. System Log 1. From the left-hand Management menu, click on Log. The following page is displayed:...
Page 189 WLAN AP ROUTER 802.11N Option Description Enable Log Enable/Disable the feature. Default: Disable system all All system logs will be recorded in the system log wireless The wireless logs will be recorded in the system log The DoS logs will be recorded in the system log Enable Enable: Send the system log to remote log server.
Page 190 WLAN AP ROUTER 802.11N 7. Change setting successfully! Click on Reboot Now button to confirm take effect.
Page 191: About Firmware Versions
WLAN AP ROUTER 802.11N Firmware Update About firmware versions Firmware is a software program. It is stored as read-only memory on your device. 錯誤! 所指定的樣式的文字不存在文件中。 is continually improving this firmware by adding new features to it, and these features are saved in later versions of the firmware.
Page 192 WLAN AP ROUTER 802.11N 11. Click Upgrade >. The device checks that the selected file contains an updated version of firmware. A status screen pops up, please wait for a while……. 12. Firmware update has been update complete. The following page is displayed: 13.
Page 193: Save Settings To File
WLAN AP ROUTER 802.11N Save/Reload Settings This page allows you save current settings to a file or reload the settings from the file which was saved previously. Besides, you could reset the current configuration to factory default. If you do make changes to the default configuration but then wish to revert back to the original factory configuration, you can do so by resetting the device to factory defaults.
Page 194 WLAN AP ROUTER 802.11N 2. Click on Save…. 3. If you are happy with this, click OK and then browse to where the file to be saved. Or click Cancel to cancel it.
Page 195: Load Settings From File
WLAN AP ROUTER 802.11N Load Settings from File It allows you to reload the settings from the file which was saved previously. 1. From the left-hand Management menu, click on Reset factory default. The following page is displayed: Figure 8: Reset to Defaults page 2.
Page 196 WLAN AP ROUTER 802.11N 3. If you are happy with this, click Upload to start to load settings from file. 4. Change setting successfully!
Page 197: Resetting To Defaults
WLAN AP ROUTER 802.11N Resetting to Defaults If you do make changes to the default configuration but then wish to revert back to the original factory configuration, you can do so by resetting the device to factory defaults. If you reset your device to factory defaults, all previous configuration changes that you have made are overwritten by the Note factory default configuration.
Page 198 WLAN AP ROUTER 802.11N 2. Click on Reset Settings to Default. 3. This page reminds you that resetting to factory defaults cannot be undone – any changes that you have made to the basic settings will be replaced. If you are happy with this, click OK.
Page 199: Setting Your Username And Password
WLAN AP ROUTER 802.11N Password You can restrict access to your device’s web pages using password protection. With password protection enabled, users must enter a username and password before gaining access to the web pages. By default, password protection is enabled on your device, and the username and password set are as follows: Username: admin Password: admin...
Page 200 WLAN AP ROUTER 802.11N 2. This page displays the current username and password settings. Change your own unique password in the relevant boxes. They can be any combination of letters or numbers with a maximum of 30 characters. The default setting uses admin for the username and admin for password.
Page 201: Logout
WLAN AP ROUTER 802.11N Logout This page is used to logout. Logout To logout: 1. From the left-hand menu, click on Logout. The following page is displayed: 2. Click Apply Change. Figure 13: Logout page...
Page 202: Configuring Ethernet Pcs
WLAN AP ROUTER 802.11N Configuring your Computers This appendix provides instructions for configuring the Internet settings on your computers to work with the Wireless Gateway. Configuring Ethernet PCs Before you begin By default, the Wireless Gateway automatically assigns the required Internet settings to your PCs. You need to configure the PCs to accept this information when it is assigned.
Page 203 WLAN AP ROUTER 802.11N 3. In the Network and Dial-up Connections window, right-click the Local Area Connection icon, and then select Properties. The Local Area Connection Properties dialog box is displayed with a list of currently installed network components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled.
Page 204: Windows Me Pcs
WLAN AP ROUTER 802.11N Windows Me PCs 1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel. 2. Double-click the Network and Dial-up Connections icon. 3. In the Network and Dial-up Connections window, right-click the Network icon, and then select Properties.
Page 205: Windows Nt 4.0 Workstations
WLAN AP ROUTER 802.11N 5. Click on Microsoft in the Manufacturers list box, and then click TCP/IP in the Network Protocols list box. 6. Click OK to return to the Network dialog box, and then click OK again. You may be prompted to install files from your Windows 95/98 installation CD.
Page 206: Assigning Static Internet Information To Your Pcs
WLAN AP ROUTER 802.11N 7. Open the Control Panel window, and then double-click the Network icon. 8. In the Network dialog box, click the Protocols tab. 9. In the Protocols tab, select TCP/IP, and then click Properties. 10. In the Microsoft TCP/IP Properties dialog box, click the radio button labeled Obtain an IP address from a DHCP server.
Page 207: Ip Addresses
WLAN AP ROUTER 802.11N IP Addresses, Network Masks, and Subnets IP Addresses This section refers only to IP addresses for IPv4 (version 4 of the Internet Protocol). IPv6 addresses are not covered. This section assumes basic knowledge of binary numbers, bits, Note and bytes.
Page 208: Subnet Masks
WLAN AP ROUTER 802.11N scope of this discussion.) These classes have different uses and characteristics. Class A networks are the Internet's largest networks, each with room for over 16 million hosts. Up to 126 of these huge networks can exist, for a total of over 2 billion hosts. Because of their huge size, these networks are used for WANs and by organizations at the infrastructure level of the Internet, such as your ISP.
Page 209 WLAN AP ROUTER 802.11N 255.255.255.192 or 11111111. 11111111. 11111111.11000000 The two extra bits in field4 can have four values (00, 01, 10, 11), so there are four subnets. Each subnet uses the remaining six bits in field4 for its host IDs, ranging from 1 to 62. Sometimes a subnet mask does not specify any additional network ID bits, and thus no subnets.
Page 210: Upnp Control Point Software On Windows Me
WLAN AP ROUTER 802.11N UPnP Control Point Software on Windows ME/XP This appendix provides instructions for configuring the UPnP on your computers to work with the Wireless Gateway. UPnP is an architecture for pervasive peer-to-peer network connectivity of intelligent appliances, Wireless devices, and PCs of all form factors.
Page 211: Upnp Control Point Software On Windows Xp With Firewall
WLAN AP ROUTER 802.11N UPnP Control Point Software on Windows XP with Firewall On Windows XP versions earlier than SP2, Firewall support is provided by the Windows XP Internet Connection Firewall. You cannot use the Windows XP Internet Connection Firewall support on a system that you intend to use as a UPnP control point.
Page 212 WLAN AP ROUTER 802.11N 4. The “Networking Services” window is displayed. The subcomponents shown in the Networking Services window will be different depending on if you are using Windows XP, Windows XP (SP1), or Windows XP (SP2). If you are using Windows XP SP2, the Networking Services window will display the following list of sub-components: 5.
Page 213 WLAN AP ROUTER 802.11N For example, from the Network Connections window you should see the Internet Gateway Device:...
Page 214: Troubleshooting Suggestions
錯誤尚未定義樣式。 User’s Guide Troubleshooting Troubleshooting This appendix suggests solutions for problems you may encounter in installing or using the Wireless Gateway, and provides instructions for using several IP utilities to diagnose problems. Contact Customer Support if these suggestions do not resolve the problem.
Page 215 WLAN AP ROUTER 802.11N Problem Troubleshooting Suggestion I forgot/lost my user If you have not changed the password from ID or password. the default, try using “admin” the user ID and “admin“ as password. Otherwise, you can reset the device to the default configuration by pressing the Reset Default button on the Rare panel of the device (see Rare Panel).
Page 216: Diagnosing Problem Using Ip Utilities
WLAN AP ROUTER 802.11N Diagnosing Problem using IP Utilities ping Ping is a command you can use to check whether your PC can recognize other computers on your network and the Internet. A ping command sends a message to the computer you specify. If the computer receives the message, it sends messages in reply.
Page 217: Nslookup
WLAN AP ROUTER 802.11N nslookup You can use the nslookup command to determine the IP address associated with an Internet site name. You specify the common name, and the nslookup command looks up the name in on your DNS server (usually located with your ISP). If that name is not an entry in your ISP’s DNS table, the request is then referred to another higher-level server, and so on, until the entry is found.
Page 218 WLAN AP ROUTER 802.11N Glossary 10BASE-T A designation for the type of wiring used by Ethernet networks with a data rate of 10 Mbps. Also known as Category 3 (CAT 3) wiring. See data rate, Ethernet. 100BASE-T A designation for the type of wiring used by Ethernet networks with a data rate of 100 Mbps.
Page 219 WLAN AP ROUTER 802.11N When a computer connects to the LAN, DHCP assigns it an IP address from a shared pool of IP addresses; after a specified time limit, DHCP returns the address to the pool. DHCP relay Dynamic Host Configuration Protocol relay A DHCP relay is a computer that forwards DHCP data between computers that request IP addresses and the DHCP server that assigns the addresses.
Page 220 WLAN AP ROUTER 802.11N sites so that it can be displayed by web browsers. See web browser, web site. A hub is a place of convergence where data arrives from one or more directions and is forwarded out in one or more directions.
Page 221 WLAN AP ROUTER 802.11N network A group of computers that are connected together, allowing them to communicate with each other and share resources, such as software, files, etc. A network can be small, such as a LAN, or very large, such as the Internet. network mask A network mask is a sequence of bits applied to an IP address to select the network ID while ignoring the host ID.
Page 222 WLAN AP ROUTER 802.11N RJ-45 Registered Jack Standard-45 The 8-pin plug used in transmitting data over phone lines. Ethernet cabling usually uses this type of connector. routing Forwarding data between your network and the Internet on the most efficient route, based on the data’s destination IP address and current network conditions.
Page 223 WLAN AP ROUTER 802.11N together to reduce inductance and noise. Each telephone line uses one pair. In homes, it is most often installed with two pairs. For Ethernet LANs, a higher grade called Category 3 (CAT 3) is used for 10BASE-T networks, and an even higher grade called Category 5 (CAT 5) is used for 100BASE-T networks.
Page 224 WLAN AP ROUTER 802.11N Also called (the) Web. Collective term for all web sites anywhere in the world that can be accessed via the Internet.
