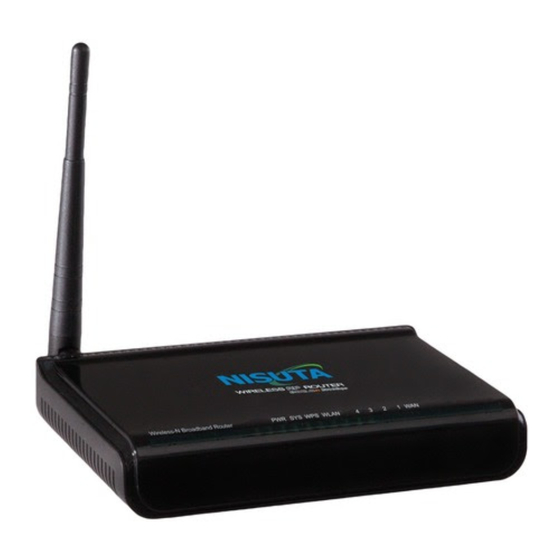

Nisuta ns-wir150ne User Manual

Ieee802.11n wireless lan broadband router

Advertisement

NS-WIR150NE_OEM_user_manual_v1.1
User's Manual
Version: 1.1
Model: NS-WIR150NE
IEEE802.11n Wireless LAN

Broadband Router

1

Advertisement

Table of Contents
loading

Summary of Contents for Nisuta ns-wir150ne

  • Page 1: Broadband Router

    NS-WIR150NE_OEM_user_manual_v1.1 User’s Manual Version: 1.1 Model: NS-WIR150NE IEEE802.11n Wireless LAN Broadband Router...
  • Page 2 NS-WIR150NE_OEM_user_manual_v1.1 Trademarks Copyright @2010 Contents are subject to change without notice. All trademarks belong to their respective proprietors. Copyright Statement THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS COMPANY.
  • Page 3 NS-WIR150NE_OEM_user_manual_v1.1 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 4: Table Of Contents

    NS-WIR150NE_OEM_user_manual_v1.1 Table of Contents REVISION HISTORY ................. 1 .............. 2 HAPTER NTRODUCTION 1.1 Product Features..............3 1.2 Package Contents ..............5 1.3 LED Indicator and Port Description........5 ..........8 HAPTER RODUCT NSTALLATION 2.1 Hardware Installation............8 2.2 Network Application Plan ........... 10 ........
  • Page 5 NS-WIR150NE_OEM_user_manual_v1.1 ............47 HAPTER RAFFIC ONTROL 9.1 Traffic Control ..............47 10 S ..........49 HAPTER ECURITY ETTINGS 10.1 Client Filter Settings ............49 10.2 URL Filter Settings ............51 10.3 MAC Address Filter ............53 10.4 Prevent Network Attack ............ 54 10.5 Remote Web Management ..........
  • Page 6: Revision History

    NS-WIR150NE_OEM_user_manual_v1.1 Revision History DATE REVISION USER’S FIRMWARE ANUAL 2006/4/7 First release (Version 1.1)
  • Page 7: Chapter 1 Introduction

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 1 Introduction Thank you for purchasing NS-WIR150NE 11N Wireless Broadband Router! NS-WIR150NE utilizes the latest IEEE802.11n standard with its wireless transmitting distance up to 6 times and transmitting rate 3 times than wireless G-products. It complies perfectly backwards with 802.11b/g standards and includes Router, Wireless AP, 4-port switch, and firewall in one.
  • Page 8: Product Features

    NS-WIR150NE_OEM_user_manual_v1.1 1.1 Product Features Includes router, wireless access point, four-port switch and firewall in one “Setup Wizard” enables you to connect Internet without entering administration interface Complies with the latest IEEE802.11n standard and IEEE802.11 b/g standards Increases 6 times coverage distance than 802.11g standard and reduces the dead spots in the coverage area Supports transmitting rate 3 times than...
  • Page 9 Supports auto negotiation/manual mode for 802.11b/802.11g Supports UPnP and DDNS Supports Firefox1.0, IE5.5 or above Supports LAN access control to the Internet Supports SNTP Supports virtual server, DMZ host Supports WDS wireless network extension Supports broadband control function Detachable antenna(only for NS-WIR150NE...
  • Page 10: Package Contents

    NS-WIR150NE_OEM_user_manual_v1.1 1.2 Package Contents Please unpack the box and check the following items: NS-WIR150NE Wireless Broadband Router One Quick Installation Guide One Power Adapter One CD-ROM One External Antenna If any of listed items are missing or damaged, please contact the reseller from whom you purchased for replacement immediately.
  • Page 11 NS-WIR150NE_OEM_user_manual_v1.1 connects well. When turns green, blinking indicates the system runs well. When blinking, it indicates the device is negotiating with client in WPS mode. WLAN Wireless signal LED indicator. When turns green, blinking indicates the wireless function is enabled. LAN (4,3,2,1) Wired local network LED indicator.
  • Page 12 NS-WIR150NE_OEM_user_manual_v1.1 Back Panel Show: Rear Panel :( From L to R) POWER The jack is for power adapter connection. Please use the included 9V DC power adapter. A 100Mbps Ethernet port can be connected with MODEM, Switch, Router and other Ethernet device for Internet connecting to DSL MODEM, Cable MODEM and ISP.
  • Page 13: Chapter 2 Product Installation

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 2 Product Installation 2.1 Hardware Installation After you unpack the box, please follow the steps below to connect. For better wireless performance, please put the device in the middle of wireless coverage area. 1. Please use the included power adapter to power on the Router.
  • Page 14 NS-WIR150NE_OEM_user_manual_v1.1 3. Please connect your broadband line provided by your ISP to the WAN port. 4. Insert the included CD-ROM into the CD-ROM drive, double click the “Setup” icon and follow the instructions to complete the installation. Or you can enter the Router’s Web page to configure it.
  • Page 15: Network Application Plan

    NS-WIR150NE_OEM_user_manual_v1.1 2.2 Network Application Plan Usually wireless LAN Network is deployed in a planned environment where each access point is located in a steady place with certain wireless coverage area for communication service. Generally speaking, it is in the center of the area to reduce “dead spot”.
  • Page 16: Chapter 3 How To Login To The Router

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 3 How to Login to the Router The chapter mainly presents how to enter the Router’s Web page. After you have finished the hardware installation, the following steps will assist you to set the network configurations for your computer. 3.1 How to Set the Network Configurations 1.
  • Page 17 NS-WIR150NE_OEM_user_manual_v1.1 2. Right click “Local Area Network Connection” and select “Properties”. Select “Internet Protocol (TCP/IP)” and click “Properties”.
  • Page 18 NS-WIR150NE_OEM_user_manual_v1.1 4. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click “OK” to save the configurations. Or select “Use the following IP address” and enter the IP address, Subnet mask, Default gateway as follows: IP Address: 192.168.1.XXX: (XXX is a number from 2~254) Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1...
  • Page 19: Login To The Router

    NS-WIR150NE_OEM_user_manual_v1.1 3.2 Login to the Router 1. To access the Router’s Web-based interface, launch a web browser such as Internet Explorer or Firefox and enter Router’s default address, http://192.168.1.1. Press “Enter”.
  • Page 20 NS-WIR150NE_OEM_user_manual_v1.1 2. Input the “admin” in both User Name and Password. Click “OK”. 3. If you enter the correct user name and password, the screen will be the next one.
  • Page 21: Chapter 4 Quick Setup Guide

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 4 Quick Setup Guide This chapter deals with how to access the Internet quickly. Please follow this guide to connect your Router to the Internet. 4.1 Setup Wizard Here is the “Welcome to Setup Wizard” for configuring your Router quickly. Click “Next”. In this screen, select one mode of your Internet connection you use.
  • Page 22 NS-WIR150NE_OEM_user_manual_v1.1 ADSL Virtual Dial-up (Via PPPoE) Enter the Account and Password provided by your ISP, and click “Next”. For example: Dynamic IP (Via DHCP) If your connection mode is Dynamic IP, it means your IP address keeps changing every time you connect. You do not need to enter the information like other modes.
  • Page 23 NS-WIR150NE_OEM_user_manual_v1.1 Static IP In this screen, fill the network address information from your ISP in the IP Address, Subnet Mask, Gateway and Primary DNS server fields and click “Next”. For example: ISP provides the following TCP/IP parameters as follows: IP Address: 172.16.102.160 Subnet Mask: 255.255.0.0 Gateway: 172.16.100.100 Primary DNS Server: 172.16.100.205...
  • Page 24 NS-WIR150NE_OEM_user_manual_v1.1 will record the settings you made. To activate the settings, it is recommended to select “Reboot the Router” from “System Tool” of the left menu. It is rebooting now, please wait for a few minutes and DO NOT power off it. Click the “System Status”...
  • Page 25: Chapter 5 Advanced Settings

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 5 Advanced Settings 5.1 LAN Settings LAN Settings are for the basic TCP/IP parameters of LAN ports. MAC Address: The Router’s physical MAC address seen your local network, which unchangeable. IP Address: The Router’s LAN IP addresses (not your PC’s IP address).
  • Page 26: Wan Settings

    NS-WIR150NE_OEM_user_manual_v1.1 5.2 WAN Settings After you have selected the ISP connection type in “Setup Wizard” and you want to modify the related settings, here you can modify and configure the settings in details. Virtual Dial-up (PPPoE) Connection Mode: Show your current connection mode.
  • Page 27 NS-WIR150NE_OEM_user_manual_v1.1 The default value is 1492. Do NOT modify it unless necessary. But if when some specific website or web application software can not be open or enabled, have a try to change the MTU value as 1450, 1400, etc. Service Name: It is defined as a set of characteristics that...
  • Page 28 NS-WIR150NE_OEM_user_manual_v1.1 Static IP If your connection mode, static IP is chosen, you can modify the following addressing information. IP Address: Here enter the WAN IP address provided by your ISP. Subnet Mask: Enter the WAN Subnet Mask here. Gateway: Enter the WAN Gateway here. Primary DNS Server: Enter the Primary DNS server provided by your ISP.
  • Page 29: Mac Address Clone

    NS-WIR150NE_OEM_user_manual_v1.1 5.3 MAC Address Clone This page is for the Router’s MAC address to WAN. Some ISPs require end-user's MAC address to access their network. This feature copies the MAC address of your network device to the Router. MAC Address: The MAC address to be registered with your Internet service provider.
  • Page 30: Dns Settings

    NS-WIR150NE_OEM_user_manual_v1.1 5.4 DNS Settings DNS is short for Domain Name System (or Service), an Internet service that translate domain names into IP addresses which are provided by your Internet Service Provider. Please consult your Internet Service Provider for details if you do not have them. DNS: Click the checkbox to enable the DNS server.
  • Page 31: Chapter 6 Wireless Settings

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 6 Wireless Settings 6.1 Basic Settings Enable Wireless: Check to enable the Router’s wireless features; uncheck to disable it. You can also press the WLAN/WPS button to turn on/off the wireless function. Network Mode: Select one mode from the following.
  • Page 32 NS-WIR150NE_OEM_user_manual_v1.1 with the device in 11b mode at the maximum speed of 11Mbps. 11g mode: Allow the 11g/11n-compliant client device to connect with the AP at the maximum speed of 54Mbps. 11b/g mode: Allow the 11b/g-compliant client device to connect with the AP with auto-negotiation speed, and 11n wireless client to connect the device with 11g speed.
  • Page 33: Wireless Security Settings

    NS-WIR150NE_OEM_user_manual_v1.1 Channel Bandwidth:Select channel bandwidth to improve the wireless performance. When the network has 11b/g and 11n clients, you can select the 40M; when it is an 11n network, select 20/40M to improve its throughput. 6.2 Wireless Security Settings It is used to configure the AP network’s security setting. Here presents the common six (ten in all) encryption methods, including...
  • Page 34 NS-WIR150NE_OEM_user_manual_v1.1 Select SSID:Select the SSID (main SSID or minor SSID) to configure security setting from the drop-down menu. Security Mode:From the drop-down menu select the corresponding security encryption modes. WEP Key1~4:Set the WEP key with the format of ASCII and Hex. You can enter ASCII code (5 or 13 ASCII characters.
  • Page 35 NS-WIR150NE_OEM_user_manual_v1.1 6.2.2 WPA-Personal WPA (Wi-Fi Protected Access), a Wi-Fi standard, is a more recent wireless encryption scheme, designed to improve the security features of WEP. It applies more powerful encryption types (such as TKIP [Temporal Key Integrity Protocol] or AES [Advanced Encryption Standard]) and can change the keys dynamically on every authorized wireless device.
  • Page 36 NS-WIR150NE_OEM_user_manual_v1.1 6.2.3 WPA2- Personal WPA2 (Wi-Fi Protected Access version 2) provides higher security than WEP (Wireless Equivalent Privacy) and WPA (Wi-Fi Protected Access). WPA Algorithms:Provides TKIP [Temporal Key Integrity Protocol] or AES [Advanced Encryption Standard]. The default is TKIP mode. Pass Phrase:Enter the encrypted characters with 8-63 ASCII characters.
  • Page 37: Advanced Settings

    NS-WIR150NE_OEM_user_manual_v1.1 6.3 Advanced Settings This section is to configure the advanced wireless setting of the Router, including the Radio Preamble, 802.11g/n Rate, Fragmentation Threshold, RTS Threshold, etc. BG protection Mode: Auto by default. It is for 11b/g wireless client to connect 11n wireless network smoothly in a complicated wireless area.
  • Page 38 NS-WIR150NE_OEM_user_manual_v1.1 threshold defines the maximum transmission packet size in bytes. The packet will be fragmented if the arrival is bigger than the threshold setting. The default size is 2346 bytes. It is recommended not to modify this value. RTS Threshold: RTS stands for “Request to Send”. This parameter controls what size data packet the frequency protocol issues to RTS packet.
  • Page 39: Wps Settings

    NS-WIR150NE_OEM_user_manual_v1.1 6.4 WPS Settings WPS (Wi-Fi Protected Setting) can be easy and quick to establish the connection between the wireless network clients and the device through encrypted contents. The users only enter PIN code or press WLAN/WPA button on the panel to configure it without selecting encryption method and secret keys by manual.
  • Page 40 NS-WIR150NE_OEM_user_manual_v1.1 one second (Press the button for about one second and WPS indicator will be blinking for 2 minutes, which means the WPS is enabled. During the blinking time, you can enable another device to implement the WPS/PBC negotiation between them.
  • Page 41: Wds Settings

    NS-WIR150NE_OEM_user_manual_v1.1 WPS Encrypt Type: The encryption type used by WPS, generally AES/TKIP. WPS key: The effective key generated by AP automatically. AP PIN(KEY): The PIN code used by default. Reset OOB: When this button is pressed, the WPS client will be idle state, and WPS indicator will be turned off.
  • Page 42 NS-WIR150NE_OEM_user_manual_v1.1 to establish the connection. Bridge: You can wirelessly connect two or more wired networks via this mode. In this mode, you need to add the Wireless MAC address of the connecting device into the Router's AP MAC address table or select one from the scanning table.
  • Page 43: Wireless Access Control

    NS-WIR150NE_OEM_user_manual_v1.1 6.6 Wireless Access Control To secure your wireless LAN, the wireless access control is actually based on the MAC address management to allow or block the specific clients to access the wireless network. Select “Wireless Setting->Access Control” to display the following screen: MAC Address Filter: Enable/disable MAC address filter.
  • Page 44: Connection Status

    NS-WIR150NE_OEM_user_manual_v1.1 6.7 Connection Status This page shows wireless client’s connection status, including MAC address, Channel bandwidth, etc. Select “Wireless Setting->connection status” to enter the following screen: MAC Address: Shows current MAC addresses of the hosts connecting to the Router. Bandwidth: Shows current bandwidth of the hosts (wireless client).
  • Page 45: Dhcp Server

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 7 DHCP Server 7.1 DHCP Settings DHCP (Dynamic Host Control Protocol) is to assign an IP address to the computers on the LAN/private network. When you enable the DHCP Server, the DHCP Server will allocate automatically an unused IP address from the IP address pool to the requesting computer in premise of activating “Obtain an IP Address Automatically”.
  • Page 46: Dhcp List And Binding

    NS-WIR150NE_OEM_user_manual_v1.1 reclaim the IP address each hour. 7.2 DHCP List and Binding The Static IP assignment is to add a specifically static IP address to the assigned MAC address. You can view the related information in the DHCP server list. IP Address: Enter the IP address which needs to be bound.
  • Page 47 NS-WIR150NE_OEM_user_manual_v1.1 corresponding IP address lease.
  • Page 48: Chapter 8 Virtual Server

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 8 Virtual Server 8.1 Port Range Forwarding This section deals with the port range forwarding mainly. The Port Range Forwarding allows you to set up a range of public services such as web servers, ftp, e-mail and other specialized Internet applications to an assigned IP address on your LAN.
  • Page 49 NS-WIR150NE_OEM_user_manual_v1.1 IP Address: Enter the IP address of the PC where you want to set the applications. Protocol: Select the protocol (TCP/UDP/Both) for the application. Delete/Enable: Click to check it for corresponding operation. Well-Known Service Port: Select the well-known services as DNS, FTP from the drop-down menu to add to the configured one above.
  • Page 50: Dmz Settings

    NS-WIR150NE_OEM_user_manual_v1.1 8.2 DMZ Settings The DMZ function is to allow one computer in LAN to be exposed to the Internet for a special-purpose service as Internet gaming or videoconferencing. DMZ Host IP Address: The IP address of the computer you want to expose. Enable: Click the checkbox to enable the DMZ host.
  • Page 51 NS-WIR150NE_OEM_user_manual_v1.1 function would go into effect if you have installed software that supports UPnP. With the UPnP function, host in LAN can request the router to process some special port switching so as to enable host outside to visit the resources in the internal host. Enable UPnP: Click the checkbox to enable the UPnP.
  • Page 52: Chapter 9 Traffic Control

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 9 Traffic Control 9.1 Traffic Control Traffic control is used to limit communication speed in the LAN and WAN. Up to 20 entries can be supported with the capability for at most 254 PCs' speed control, including for IP address range configuration. Enable Traffic Control: To enable or disable the internal IP bandwidth control.
  • Page 53 NS-WIR150NE_OEM_user_manual_v1.1 Service: To select the controlled service type, such as HTTP service. IP Starting Address: The first IP address for traffic control. IP Ending Address: The last IP address for traffic control. Uploading/Downloading: To specify the traffic heading way for the selected IP addresses: uploading or downloading.
  • Page 54: Chapter 10 Security Settings

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 10 Security Settings 10.1 Client Filter Settings To benefit your further management to the computers in the LAN, you can control some ports access to Internet by data packet filter function. Client Filter: Check to enable client filter. Access Policy: Select one number from the drop-down menu.
  • Page 55 NS-WIR150NE_OEM_user_manual_v1.1 Filter Mode: Click one radio button to enable or disable to access the Internet. Policy Name: Enter a name for the access policy selected. IP Start/End: Enter the starting/ending IP address. Port No: Enter the port range based over the protocol for access policy.
  • Page 56: Url Filter Settings

    NS-WIR150NE_OEM_user_manual_v1.1 10.2 URL Filter Settings In order to control the computer to have access to websites, you can use URL filtering to allow the computer to have access to certain websites at fixed time and forbids it having access to certain websites at fixed time.
  • Page 57 NS-WIR150NE_OEM_user_manual_v1.1 disable to access the Internet. Policy Name: Enter a name for the access policy selected. Start/End IP: Enter the starting/ending IP address. URL Strings: Specify the text strings or keywords needed to be filtered. If any part contains these strings or words, the web page will not be accessible and displayed.
  • Page 58: Mac Address Filter

    NS-WIR150NE_OEM_user_manual_v1.1 10.3 MAC Address Filter In order to manage the computers in LAN better, you could control the computer’s access to Internet by MAC Address Filter. MAC Address Filter: Check to enable MAC address filter. Access Policy: Select one number from the drop-down menu.
  • Page 59: Prevent Network Attack

    NS-WIR150NE_OEM_user_manual_v1.1 selected. MAC Address: Enter the MAC address you want to run the access policy. Times: Select the time range of client filter. Date: Select the day(s) to run the access policy. Apply: Click to make the settings go into effect. For example: If you want to configure the host with MAC address 00:C0:9F:AD:FF:C5 not to access the Internet at...
  • Page 60: Remote Web Management

    NS-WIR150NE_OEM_user_manual_v1.1 Prevent Network Attack: Check to enable it for attack prevention. 10.5 Remote Web Management This section is to allow the network administrator to manage the Router remotely. If you want to access the Router from outside the local network, please select the “Enable”.
  • Page 61: Wan Ping

    NS-WIR150NE_OEM_user_manual_v1.1 2. If your WAN IP address starts and ends with 0.0.0.0, it means all hosts in WAN can implement remote Web management. If you change the WAN IP address as 233.88.93.33-233.88.93.35, then only the IP addresses as 233.88.93.33, 233.88.93.34 and 233.88.93.35 can access the Router.
  • Page 62: Chapter 11 Routing Settings

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 11 Routing Settings 11.1 Routing Table The main duty for a router is to look for a best path for every data frame, and transfer this data frame to a destination. So, it’s essential for the router to choose the best path, i.e.
  • Page 63: Chapter 12 System Tools

    NS-WIR150NE_OEM_user_manual_v1.1 Chapter 12 System Tools 12.1 Time Settings This section is to select the time zone for your location. If you turn off the Router, the settings for time disappear. However, the Router will automatically obtain the GMT time again once it has access to the Internet. Time Zone: Select your time zone from the drop-down menu.
  • Page 64: Ddns

    NS-WIR150NE_OEM_user_manual_v1.1 12.2 DDNS DDNS (Dynamic Domain Name System) supported in this Router. It is to assign a fixed host and domain name to a dynamic Internet IP address, which is used to monitor hosting website, FTP server and so on behind the Router.
  • Page 65 NS-WIR150NE_OEM_user_manual_v1.1 Service Provider: Select one from the drop-down menu and press “Sign up” for registration. User Name: Enter the user name the same as the registration name. Password: Enter the password you set. Domain Name: Enter the domain name which is optional.
  • Page 66: Backup/Restore Settings

    NS-WIR150NE_OEM_user_manual_v1.1 12.3 Backup/Restore Settings The device provides backup/restore settings, so you need set a directory to keep these parameters. Backup Setting: Click “Backup” button to back up the Router’s settings and select the path for save. Click “Save” to save the configuration files.
  • Page 67 NS-WIR150NE_OEM_user_manual_v1.1 Restore Setting: Click “Browse” button to select the backup files. Click “Restore” button to restore previous settings.
  • Page 68: Restore To Factory Default Setting

    NS-WIR150NE_OEM_user_manual_v1.1 12.4 Restore to Factory Default Setting This button is to reset all settings to the default values. It means the Router will lose all the settings you have set. So please Note down the related settings if necessary. Restore: Click this button to restore to default settings.
  • Page 69: Upgrade Firmware

    NS-WIR150NE_OEM_user_manual_v1.1 12.5 Upgrade Firmware The Router provides the firmware upgrade by clicking the “Upgrade” after browsing the firmware upgrade packet which you can download from www.xxx.com. Browse: click this button to select the upgrade file. Upgrade: click this button to start the upgrading process.
  • Page 70: Password Change

    NS-WIR150NE_OEM_user_manual_v1.1 Reboot the router: Click this button to reboot the device. 12.7 Password Change This section is to set a new user name and password to better secure your router and network. User Name: Enter a new user name for the device. Old Password: Enter the old password.
  • Page 71: Syslog

    NS-WIR150NE_OEM_user_manual_v1.1 12.8 Syslog The section is to view the system log. Click the “Refresh” to update the log. Click “Clear” to clear all shown information. If the log is over 150 records, it will clear them automatically. Refresh: Click this button to update the log. Clear: Click this button to clear the current shown log.
  • Page 72: Logout

    NS-WIR150NE_OEM_user_manual_v1.1 12.9 Logout After you have finished the settings completely, in logout page click “Yes” to logout the web management page.
  • Page 73: Appendix 1 Glossary

    NS-WIR150NE_OEM_user_manual_v1.1 Appendix 1 Glossary Channel: An instance of medium use for the purpose of passing protocol data units (PDUs) that used simultaneously, in the same volume of space, with other instances of medium use(on other channels) by other instances of the same physical layer (PHY),with an acceptably low frame error ratio(FER) due to mutual interference.
  • Page 74 NS-WIR150NE_OEM_user_manual_v1.1 the same because of out 64 bits, 40 bits are private. Conversely, same. WEP uses a common KEY to encode the data. Therefore, all devices on a wireless network must use the same key and same type of encryption. There are 2 methods for entering the KEY;...
  • Page 75: Appendix 2 Questions And Answers

    NS-WIR150NE_OEM_user_manual_v1.1 Appendix 2 Questions and Answers In this part some questions and problems shown during the Router’s usage and installation will be given suggesting answers. If your problems are not in the list, please log into our website www.asiarf.com or send an E-mail to support@asiarf.com, and we will reply you in the first time.
  • Page 76 NS-WIR150NE_OEM_user_manual_v1.1 button for 7 seconds to restore to default settings. And then repeat the ping operation. If it still does not work, please contact us. 2. Forget the login password and cannot enter the setting page. What can I do? Press the “RESET”...
  • Page 77 NS-WIR150NE_OEM_user_manual_v1.1 the recommended value as 1450 or 1400. 5. How can I configure and access the Internet via Dynamic IP? In Setup Wizard of the Web utility interface, select “Dynamic IP” connection type and click “Save” to activate it. As some ISPs bind the user computer’s MAC address, you need to clone the Router’s WAN MAC address to the bind21ing PC’s MAC address.
  • Page 78 NS-WIR150NE_OEM_user_manual_v1.1 Step 4: input the internal Web service port, for example, Step 5: Input the internal server’s IP address. If your Web server’s IP address is 192.168.1.10, please input Step 6: select the communication protocol used by your internal host: TCP, UDP, ICMP. Step 7: click “Apply”...
