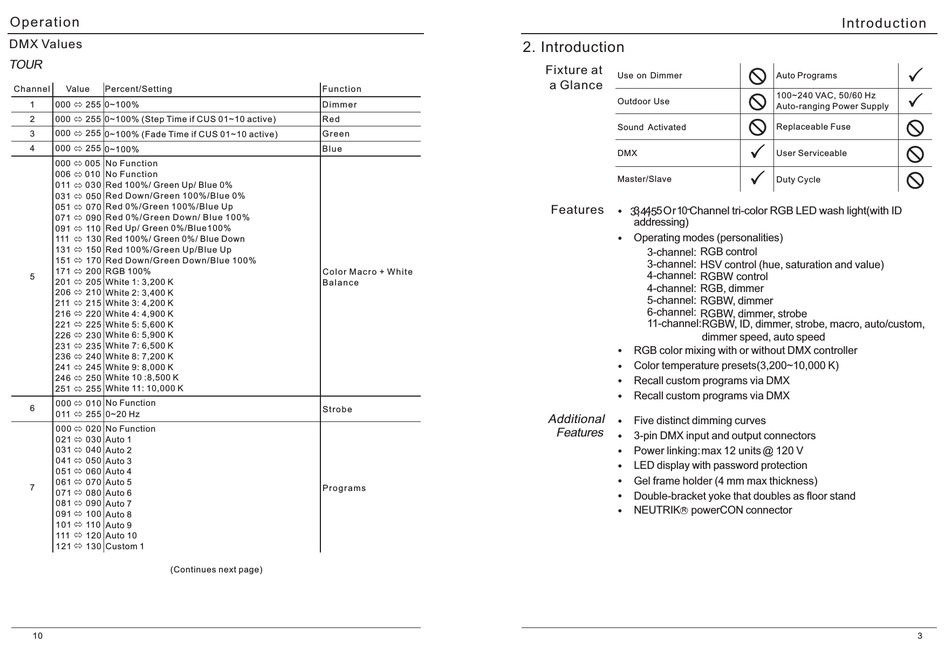

Introduction; Fixture At A Glance; Features - Microh RIO TRI PAR User Manual

Operation
DMX Values
TOUR
Channel Value Percent/Setting
1 000 255 0~100%
2 000 255 0~100% (Step Time if CUS 01~10 active)
000 255
3 0~100% (Fade Time if CUS 01~10 active)
4
000 255 0~100%
No Function
000 005
No Function
006 010
0 11 0 3 0 Red 100%/ Green Up/ Blue 0%
Red Down/Green 100%/Blue 0%
031 050
051 070 Red 0%/Green 100%/Blue Up
071 090 Red 0%/Green Down/ Blue 100%
Red Up/ Green 0%/Blue100%
091 110
Red 100%/ Green 0%/ Blue Down
111 130
131 150 Red 100%/Green Up/Blue Up
151 170 Red Down/Green Down/Blue 100%
171 200 RGB 100%
5
201 205 White 1: 3,200 K
206 210 White 2: 3,400 K
211 215 White 3: 4,200 K
216 220 White 4: 4,900 K
221 225 White 5: 5,600 K
226 230 White 6: 5,900 K
231 235 White 7: 6,500 K
236 240 White 8: 7,200 K
White 9: 8,000 K
241 245
246 250 White 10 :8,500 K
251 255 White 11: 10,000 K
000 010 No Function
6
011 255 0~20 Hz
000 020 No Function
021 030 Auto 1
031 040 Auto 2
041 050
Auto 3
051 060 Auto 4
061 070 Auto 5
7
071 080 Auto 6
081 090
Auto 7
091 100 Auto 8
101 110 Auto 9
111 120 Auto 10
121 130
Custom 1
(Continues next page)
10
F u n c t i o n
D i m m e r
R e d
G r e e n
B l u e
C o l o r M a c r o + W h i t e
B a l a n c e
S t r o b e
P r o g r a m s

2. Introduction

Fixture at
Use on Dimmer
a Glance
Outdoor Use
Sound Activated
DMX
Master/Slave
3 4 5Or10 - Channel tri-color RGB LED wash light(with ID

Features

3,4,5
addressing)
Operating modes (personalities)
3-channel: RGB control
3-channel:
HSV control (hue, saturation and value)
4-channel:
RGBW control
4-channel: RGB, dimmer
5-channel:
RGBW, dimmer
6-channel:
RGBW, dimmer, strobe
11-channel:
RGB color mixing with or without DMX controller
Color temperature presets(3,200~10,000 K)
Recall custom programs via DMX
Recall custom programs via DMX
Additional
Five distinct dimming curves
Features
3-pin DMX input and output connectors
Power linking:max 12 units @ 120 V
LED display with password protection
Gel frame holder (4 mm max thickness)
Double-bracket yoke that doubles as floor stand
NEUTRIK powerCON connector
R
Introduction
Auto Programs
100~240 VAC, 50/60 Hz
Auto-ranging Power Supply
Replaceable Fuse
User Serviceable
Duty Cycle
RGBW, ID, dimmer, strobe, macro, auto/custom,
dimmer speed, auto speed
3
