  • Page 2: Introduction And Unpacking

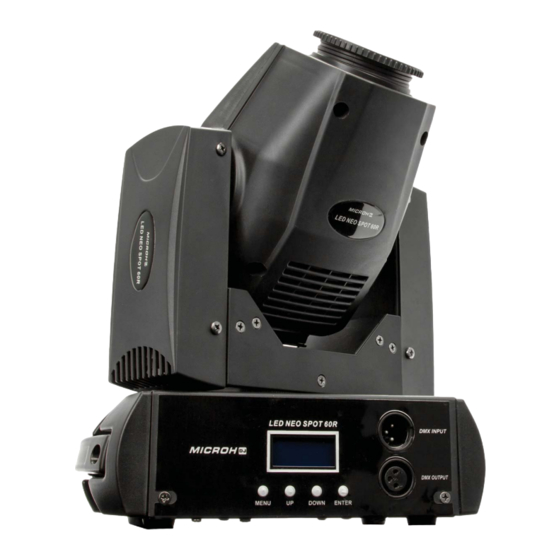

    Meanwhile, please keep this manual for future reference. The MICROH LED NEO SPOT 60R model is a moving head light with the latest advancements in smart, efficient product design. Combined with the advanced technology of today's stage lighting products, advanced control technology and is very user-friendly;...

  • Page 3: Mounting And Installation

    If your power cord is damaged in any way, please purchase a new cable from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it. Never pull out the plug by tugging the power cord.
  • Page 4 DMX connector. Plug in the provided 3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the MICROH LED NEO SPOT 60R. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below.

  • Page 5: Manual On Off

    120Ω PIN 3 PIN 2 5. SETUP MENU ADDRESS INVERT +X +Y +X -Y -X +Y -X -Y SLND MASTER SLAVE DISPLAY SOUND CODE RESET MANUAL EL01 001-255 EL02 001-255 EL03 001-255 EL04 001-255 EL05 001-255 EL06 001-255 CHANN EL07 001-255 EL08 001-255...

  • Page 6: Dmx Channels

    6. 12 DMX CHANNELS Channel Function Function control Value Dimmer DIMMING 1-255 NO EFFECT Strobe SLOW TO FAST 10-255 Semi-colour, full colour 0-125 Color Palette WATER COLOUR 126-255 NO EFFECT 0-127 Prism PRISM 128-255 PAN ADHUST (540 1-255 °) PAN (fine) FINE ADJUST 1-255 TILT...

  • Page 7: Maintenance And Cleaning

    There are no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine MICROH parts from your local dealer. IF YOU SHOULD EXPERIENCE ANY PROBLEMS OR ISSUES PLEASE CONTACT MICROH PROFESSIONAL PRODUCTS BY EMAIL AT info@microhdj.com...
