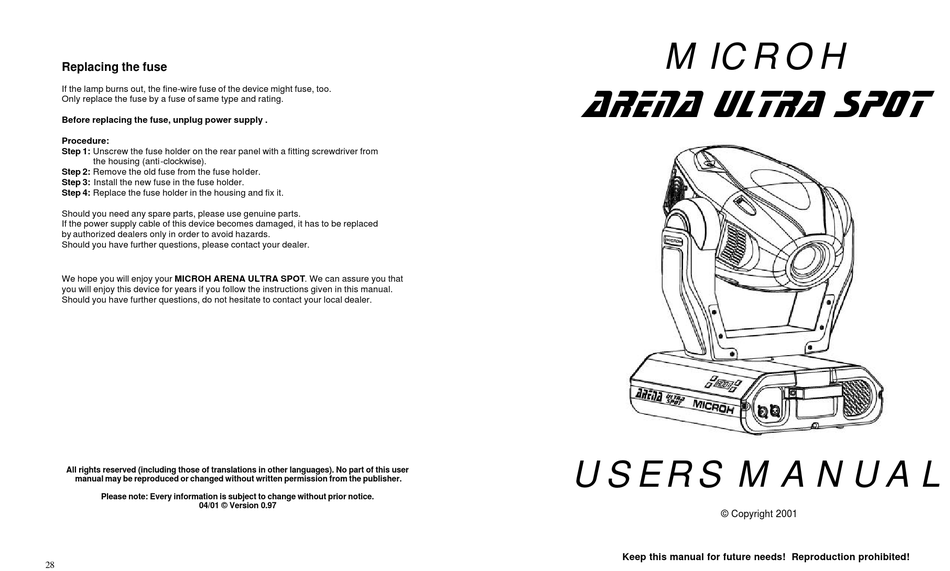

Replacing the fuse
ARENA ultra spot
If the lamp burns out, the fine-wire fuse of the device might fuse, too.
Only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug power supply .
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from
the housing (anti-clockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.
Should you need any spare parts, please use genuine parts.
If the power supply cable of this device becomes damaged, it has to be replaced
by authorized dealers only in order to avoid hazards.
Should you have further questions, please contact your dealer.
We hope you will enjoy your MICROH ARENA ULTRA SPOT. We can assure you that
you will enjoy this device for years if you follow the instructions given in this manual.
Should you have further questions, do not hesitate to contact your local dealer.
USERS MANUAL
All rights reserved (including those of translations in other languages). No part of this user
manual may be reproduced or changed without written permission from the publisher.
Please note: Every information is subject to change without prior notice.
04/01 © Version 0.97
© Copyright 2001
Keep this manual for future needs! Reproduction prohibited!
