Summary of Contents for Microh Titan RGB 1.5
-
Page 2: Table Of Contents

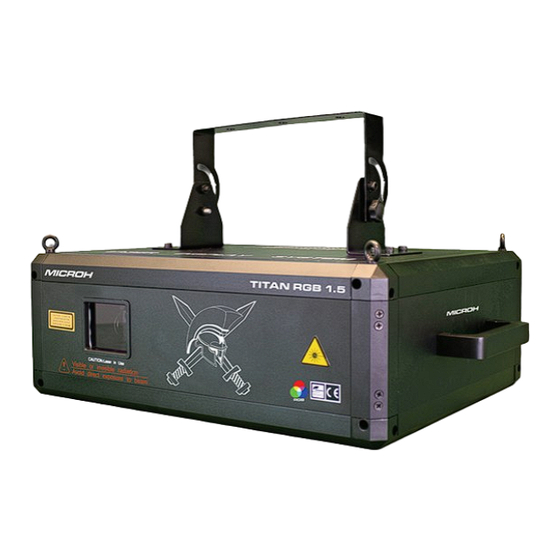

Meanwhile, please keep this manual for future reference. The MICROH LED TITAN RGB 1.5 laser is made of a new type of high temperature cast aluminum casing. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. This fixture is applicable but not limited to large-scale live performances, theater, studio, nightclubs and discos. -
Page 3: Operation Instructions
Make sure the power cord is never crimped or damaged in any way, as this could cause shock and damage. If your power chord is damaged in any way, please purchase a new cable from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it. -
Page 4: Mounting And Installation
To run the TITAN RGB 1.5 in AUTO mode, you must set the unit to “AUTO-PLAY” using the on board menu. Once selected, press ENTER to confirm. SOUND ACTIVE MODE To run the TITAN RGB 1.5 in sound active mode, you must set the unit to “AUDI” using the on board menu. Once selected, press ENTER to confirm. DMX MODE To control the TITAN RGB 1.5 via DMX, select “dxxx”... -
Page 5: Dmx-512 Control Connections
3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the MICROH TITAN RGB 1.5. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below. -
Page 6: Menu Navigation
For installations where the DMX cable has to run a long distance, or is in an electrically noisy environment, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω... -
Page 7: Photometric Data
7. PHOTOMETRIC / WAVE LENGTH DATA Red650nm / Green 532nm / Blue450nm 8. DMX CHANNELS DMX512 fig. Content Channel No 0-49 Sound Control Control Mode 50-99 Auto Beam Channel 1 100-149 Auto Animation 150-255 Manual Laser Off Channel 2 Colour Select 1-255 Change Colour Channel 3... -
Page 8: Key Features
Vertical Channel 6 0-255 From Slow to Fast Rotation Horizontal Channel 7 0-255 From Fast to Slow Rotation 0-127 Manual Rotate Channel 8 128-191 Anticlockwise Rotation 192-255 Clockwise Rotation Static Zoom 1-85 From Small to Big Channel 9 86-170 From Big to Small 171-255 Auto Zoom Pattern Size... -
Page 9: Technical Specifications
10. TECHNICAL SPECIFICATIONS MODEL: TITAN RGB 1.5 LASER DIODE: DPSS, Red650nm, Green 532nm, Blue450nm 20-25 Kpps SCANNER: SCANNING ANGLE: ± 30° COOLING SYSTEM: Fan MAX RUN TIME: Approximately 4 Hours WARM-UP TIME: < 15 Minutes WORKING TEMPERATURE: 10° ~ 35° C... -
Page 10: Maintenance And Cleaning
In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service repair. DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this ...
