Page 1: Quick Installation Guide

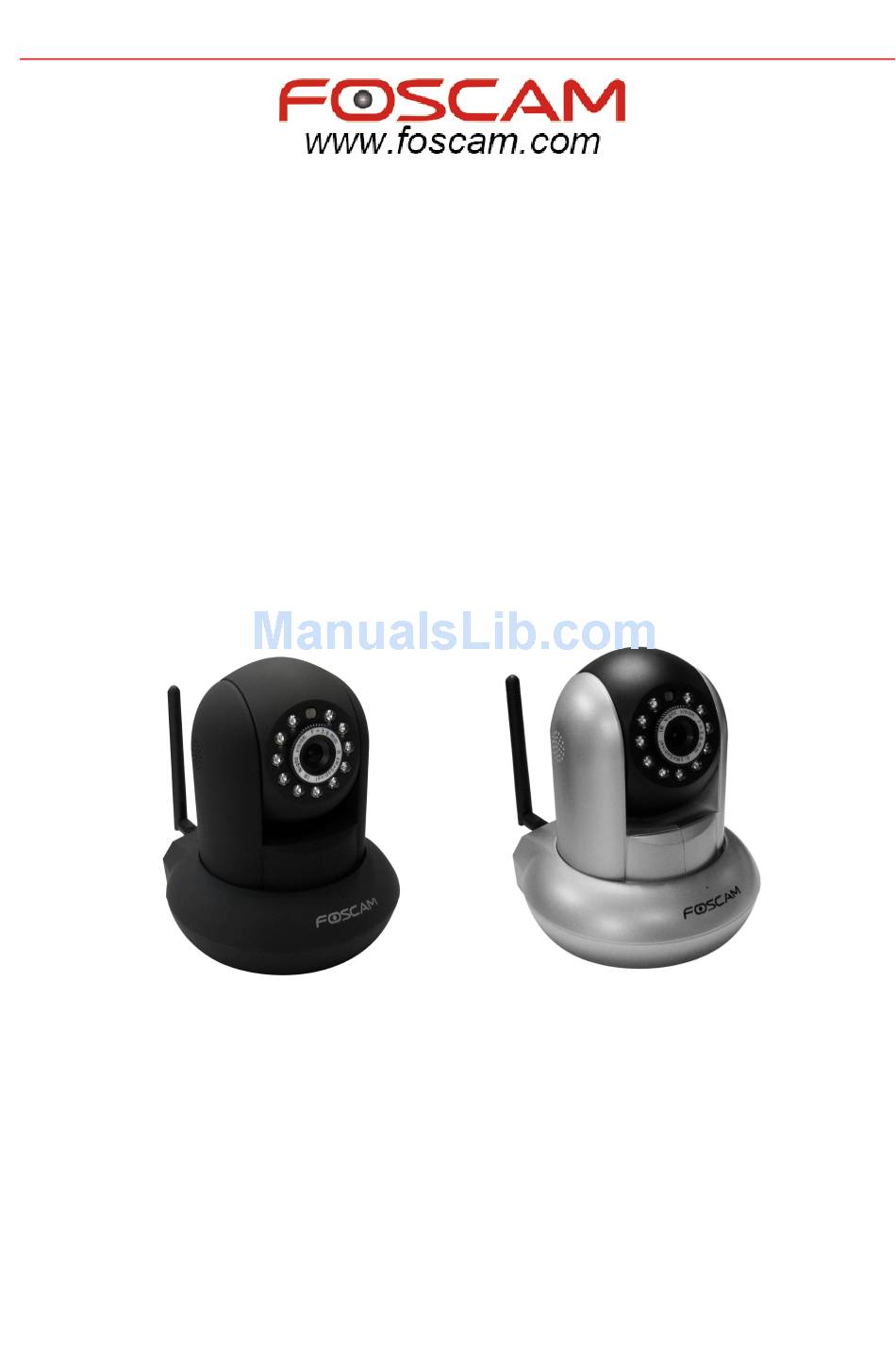

V38.01 IP Wireless / Wired Camera Quick Installation Guide (For Windows OS) Model:FI8910W Model:FI8910W Color:Black Color:Silver ShenZhen Foscam Intelligent Technology Co., Ltd... -
Page 2: Packing List
FI8910W Quick Installation Guide Quick Installation Guide Packing List 1) IP CAMERA X 1 2) Wi-Fi Antenna (only available for wireless model) 3) DC Power Supply X 1 4) Network Cable X 1 5) Mounting bracket ×1 6) CD X 1 (Includes user manual、IP camera tool) -
Page 3: Software Installation
FI8910W Quick Installation Guide （2） Connect the antenna. Screw the antenna to the back of the camera, make sure it is attached securely. Figure 1.1 （3） Plug the network cable and power. Connect the network cable to your camera and to your router. Plug in the power. - Page 4 FI8910W Quick Installation Guide Figure 1.3 Click Next to complete the software installation. Figure 1.4 www.foscam.com - 3 -...
- Page 5 FI8910W Quick Installation Guide Figure 1.5 An icon will appear on your desktop after the IP Camera Tool software installation has successfully completed. 3 Login the camera Double click the IP Camera Tool icon and the following screen should appear.
- Page 6 FI8910W Quick Installation Guide Figure 1.7 Note: If you use IE browser, please choose the first login mode (ActiveX Mode) to login. If you use other browsers, such as Firefox, Safari or Google Chrome, please choose the second login mode (Server Push Mode) to login.
-
Page 7: Wireless Lan Settings
FI8910W Quick Installation Guide Figure 1.8 If you are unable to see a live video, please make sure to allow the activeX running when prompted. (for more details: see user manual) If you only see a black screen with a red cross in the center, please try another port number instead of the default “port 80”... - Page 8 FI8910W Quick Installation Guide Figure 1.9 (2) Click the SSID of your router in the list, the corresponding information (SSID & Encryption) will be filled in the following boxes automatically. You will only need to fill in the share key. Make sure that SSID, Encryption and share key you filled in for the camera are exactly the same for your router.
- Page 9 FI8910W Quick Installation Guide Figure 2.1 Figure 2.2 Please click on the Submit button after all settings have been entered. The camera will reboot. After the camera has completed the reboot process, wait 10 seconds and disconnect the network cable.
-
Page 10: Ddns Service Settings
FI8910W Quick Installation Guide Note: If your camera could not connect through WIFI, please see FAQ in user manual. 5 DDNS Service Settings 5.1 Static IP user Static IP users do not need to set DDNS service settings for remote access. - Page 11 FI8910W Quick Installation Guide Access the IP Camera from the Internet You can access the IP Camera from the Internet. (remote access) Enter the WAN IP address and port number in IE browser or other browsers you use. For example, Http:// 183.37.28.254:85...
- Page 12 FI8910W Quick Installation Guide Fill in a name and choose dyndns.org Your current internet IP Figure 2.5 Then choose Add To Cart. Click here after you finish the settings above Figure 2.6 Set the following information as the picture below.
- Page 13 FI8910W Quick Installation Guide Fill in user name,password and email address Click here to create account Figure 2.7 The website will send you an email to your mailbox to activate your account. Figure 2.8 Click the link in your email to activate your account.
- Page 14 FI8910W Quick Installation Guide Figure 2.9 You will see the following screen. Click Activate Services>> Click here to activate services Figure 3.0 All settings are saved and the following screen appears: (Figure 3.1) Your host name will be displayed in the list.
- Page 15 FI8910W Quick Installation Guide 3.2). Figure 3.2 Make sure that your camera is in the same subnet as your router. In other words, keep the first three sections the same as your router or your computer. Gateway is your router’s LAN IP. You can find DNS server in your router, if you don’t know the DNS server;...
- Page 16 FI8910W Quick Installation Guide Make sure DDNS succeed Figure 3.4 How to configure port forwarding. Login your router and locate the port forwarding settings. For example the Linksys router has the following configuration settings: Set the port forwarding fields as follows: Figure 3.5...
- Page 17 FI8910W Quick Installation Guide Figure 3.6 Do not forget to save these settings when you are finished. You can now use the DDNS domain name and port number to login your camera from anywhere. For example, use strings http://cyjun321.dyndns.org:8090 to login the camera.
- Page 18 FI8910W Quick Installation Guide Conclusion Other detail settings, please consult the user manual. ShenZhen Foscam Intelligent Technology Co., Ltd www.foscam.com - 17 -...
