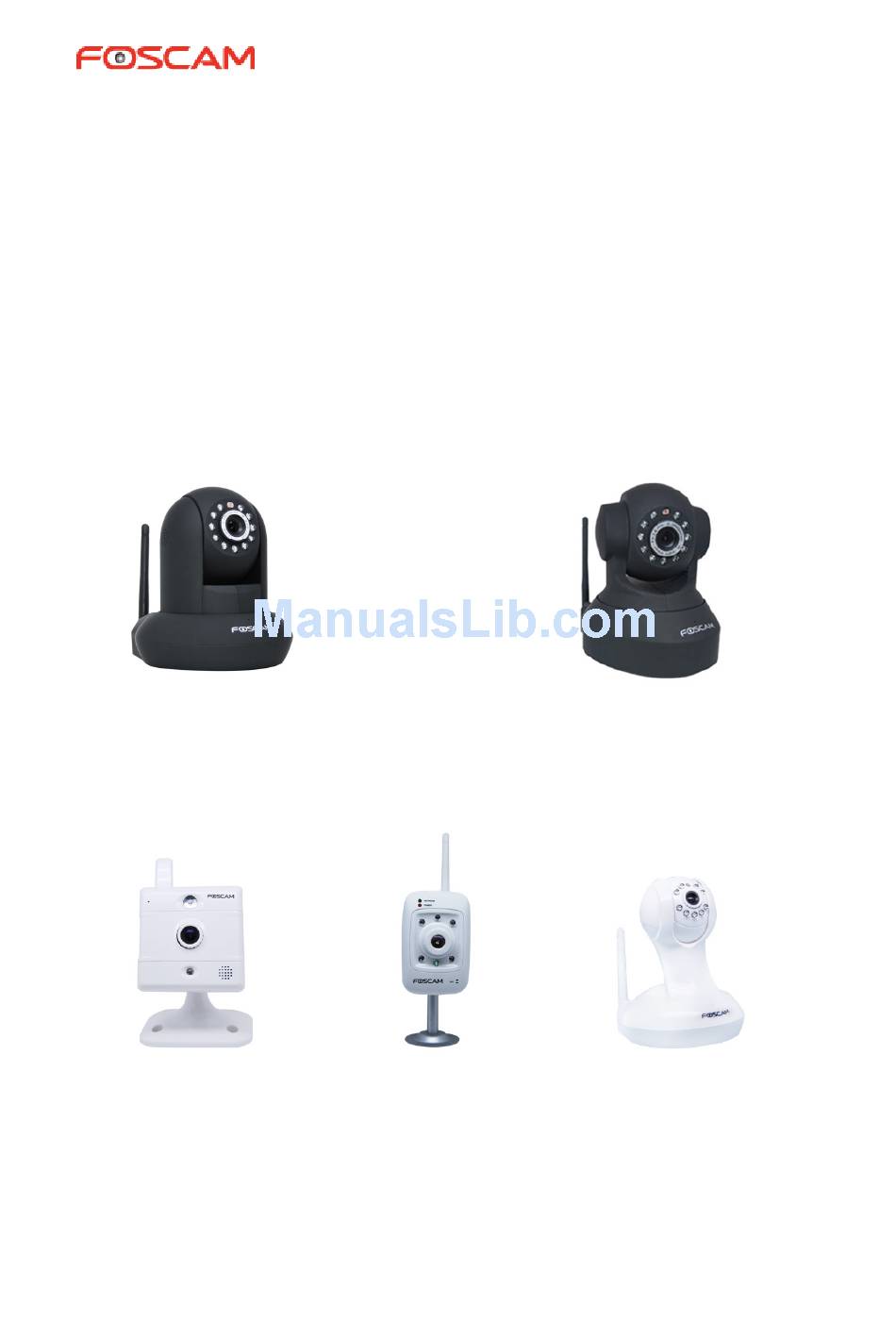

Page 1: Quick Installation Guide
Quick Installation Guide （ （ （ （ For Windows & Mac OS） ） ） ） Indoor Wireless IP Camera Model:FI8910W Model:FI8918W Colour B lack/White Colour B lack/White ： ： Model:FI8907W Model:FI8909W Model:FI8916W Colour B lack/White Colour B lack/White Colour B lack/White ：... -
Page 2: Package Contents
Package Contents IP Camera Power Adapter Resource CD Ethernet Cable Mounting Bracket Wi-Fi Antenna Quick Installation Guide Warranty Card... -
Page 3: Hardware Introduction
1 Hardware Introduction Physical Description Speaker LENS Infrared LED Microphone Antenna Input Power Output Network light Power light... -
Page 4: Hardware Connection
Mounting Port Reset Button Differences Model Pan/Tilt Antenna √ √ × FI8910W √ √ × FI8918W √ √ × FI8916W √ × × FI8907W √ × × FI8909W √ √ × FI8910E √ √ × FI8918E Hardware Connection 1. Mount the antenna and make it stand vertically(Only for the device with external antenna). -
Page 5: Software Installation
2 Software Installation 1. Insert the CD into the CD drive of your computer. 2. Go to the folder “IP Camera Search Tool” and find the folder “For Windows OS”or “For Mac OS”. Copy and paste the IP camera tool file to your computer, or drag it onto your Desktop. - Page 6 Default user name is admin with no password. Note: There are three login methods. According to the figure prompted, choose a different login mode. If you use IE browser, select this login mode. If you use Firefox, Google Chrome, Safari, select this login mode.
- Page 7 3. Take Microsoft Internet Explorer as an example.For the first time login the camera,please make sure to install ActiveX when prompted. Click this button install the ActiveX Click Run 4. Click Run button, and re-login the camera, you can see the live video on the interface.
- Page 8 4 Security We strongly recommend that you modify your password when you login for the first time. To do this, choose “Device Management” on the bottom of the camera interface, then go to the “Users Settings” section on the left side of the screen.
- Page 9 Note: 1. If you forget your username or password, you can press and hold the reset button on the bottom of the camera using a pin for 5 seconds. This resets the camera to factory defaults. 2. If you want to access your camera over wireless or the Internet, please continue with the setup by following the Wireless Connection and Remote Access steps below.
-
Page 10: Remote Access
5. You will only need to fill in the Share Key. Make sure that SSID, Encryption and Share Key you filled in for the camera are exactly the same for your router Click the SSID of router and SSID, Encryption will be filled in the following box automatically Enter the same share key with your router. - Page 11 OK. 3. Enable UPnP and DDNS in the camera’s settings page. We recommend you to use the Foscam DDNS by factory default, but if you want to use the third party DDNS, please check the user manual for further instructions.
- Page 12 4. Configure port (HTTP port) forwarding on your router. For these steps, we will be using the TP-LINK brand wireless router as an example. First, we need go to the “Forwarding -Virtual Servers” panel for setup. For other brands, you can check the user guide or user manual of the router, or consult the manufacturer.
-
Page 13: Technical Support
For details, please refer to the Android or iOS User Manual in the CD. 8 Technical Support If you have problems with your Foscam IP camera, please contact the Foscam reseller you purchased from, or you can e-mail the Foscam headquarter technical support team: tech@foscam.com. - Page 14 ShenZhen Foscam Intelligent Technology Co., Ltd www.foscam.com...
