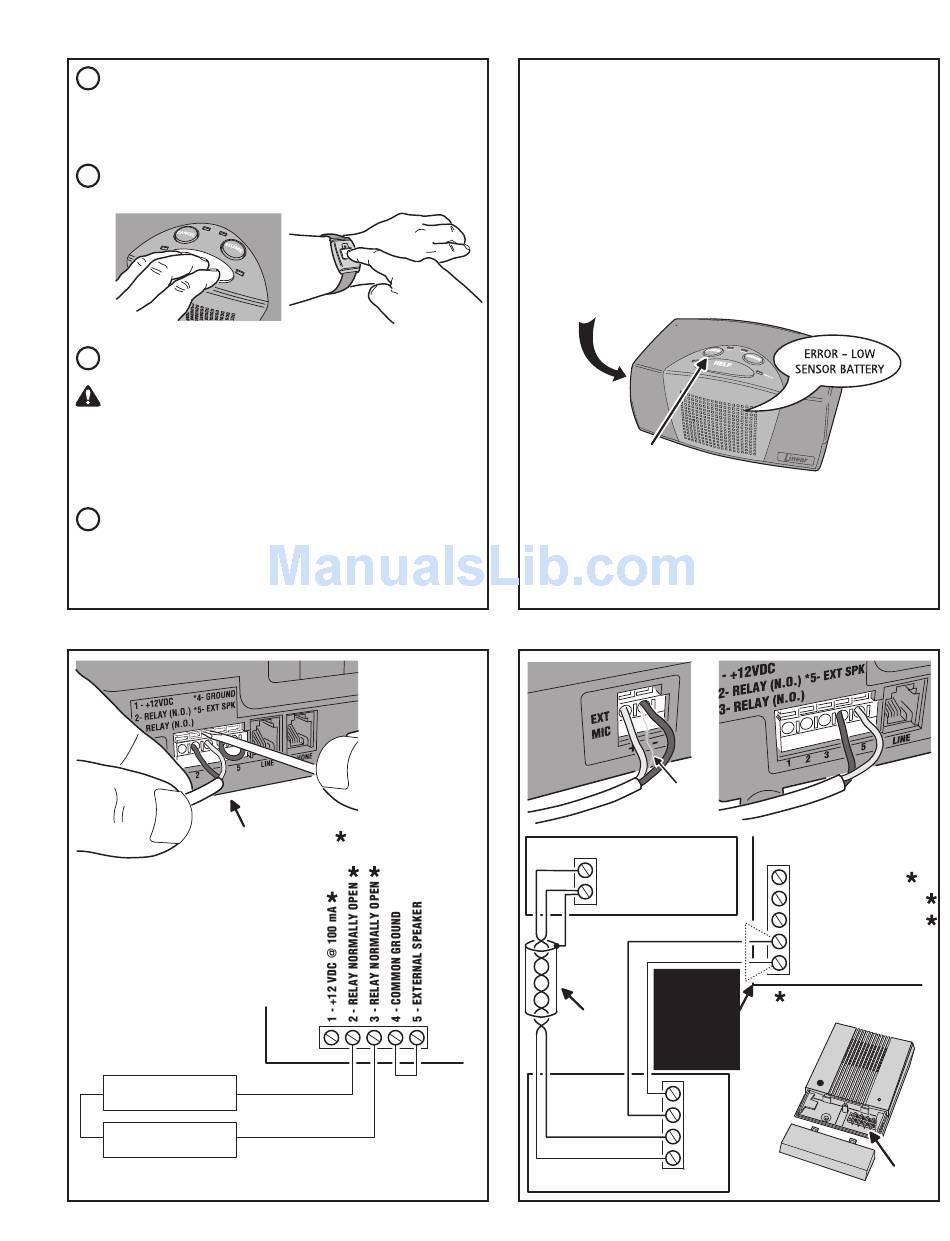

17. SPEAKERPHONE OPERATION

1 PROGRAM THE CONSOLE TO ENABLE SPEAKERPHONE MODE
NOTE: SPEAKERPHONE MODE CAN ONLY BE USED ON INCOMING CALLS
AND WILL NOT FUNCTION WHEN THE CONSOLE IS OPERATING FROM
BACKUP BATTERY POWER. ATTEMPTING TO ANSWER WHILE THE CONSOLE
IS ON BACKUP POWER WILL CAUSE AN EMERGENCY ALARM.
WHILE THE TELEPHONE IS RINGING, ACTIVATING AN EMERGENCY
2
TRANSMITTER OR PRESSING THE HELP BUTTON WILL SEIZE THE
TELEPHONE LINE
THE SYSTEM WILL BEGIN 2-WAY VOICE ACTIVATED MODE FOR AUDIO
3
COMMUNICATIONS
WARNING: THE CONSOLE WILL NOT BE ABLE
TO REPORT AN EMERGENCY WHILE THE
SPEAKERPHONE MODE IS ACTIVE
NOTE: TO REPORT AN EMERGENCY WHEN THE SPEAKERPHONE IS IN USE,
PRESS EITHER THE HELP BUTTON OR THE BUTTON ON AN EMERGENCY
TRANSMITTER TO END THE PHONE CALL AND THEN PRESS ONE OF THESE
BUTTONS AGAIN TO REPORT THE EMERGENCY.
4 THE CONSOLE WILL END AUDIO COMMUNICATIONS WHEN EITHER:
• THE HELP BUTTON IS PRESSED
• ANY EMERGENCY TRANSMITTER IS ACTIVATED
• THE AUTO-DISCONNECT TIMER RUNS OUT (PROGRAMMABLE
FOR 15, 30, OR 60 MINUTES)

19. OPTIONAL OUTPUT CONNECTIONS

CONNECT WIRES TO
RELAY TERMINALS
NOTE: THE CONSOLE IS SHIPPED WITH
REMOVABLE LABELS COVERING SOME
OF THE REAR CONNECTIONS
CONSOLE
TERMINAL BLOCK
TERMINALS 2 & 3
ARE A FORM "A" DRY
CONTACT RELAY
RATED 24 VOLTS AT
1 AMP MAXIMUM
NOISEMAKER OR
VISUAL INDICATOR
EXTERNAL
POWER SUPPLY

18. SUPERVISORY CONDITIONS

TRANSMITTER LOW BATTERY
WHEN A TRANSMITTER SENDS A LOW BATTERY SIGNAL THE
CONSOLE'S STATUS INDICATOR WILL BLINK SLOWLY
TRANSMITTER SUPERVISORY
IF A TRANSMITTER PROGRAMMED AS SUPERVISED FAILS
TO REPORT STATUS IN A 24 HOUR PERIOD, THE CONSOLE'S
STATUS INDICATOR WILL LIGHT
LOW CONSOLE BACKUP BATTERY
THE CONSOLE WILL TEST ITS BACKUP
BATTERY EVERY 8 HOURS. IF THE BATTERY
TESTS LOW, THE POWER INDICATOR WILL
BLINK SLOWLY WHILE THE CONSOLE
CHARGES THE BATTERY.
CLEARING STATUS INDICATIONS
PRESS THE CANCEL BUTTON TO
CLEAR THE STATUS INDICATOR
AND STOP THE ANNUNCIATION

20. OPTIONAL REMOTE SPEAKER/MIC CONNECTIONS

USE A SMALL
SCREWDRIVER
TO PUSH ON THE
TERMINAL LOCKS
TO ALLOW THE
WIRE TO SLIDE
INTO THE TERMINAL
HOLE
NOTE: NOT TO BE USED IN
UL INSTALLATIONS
TERMINALS 4 & 5
HAVE A FACTORY
INSTALLED JUMPER
DO NOT REMOVE
UNLESS USING
A UL LISTED MODEL
RSM-1 OR OTHER
UL LISTED SPEAKER
THE CONSOLE WILL REPORT THESE SUPERVISORY CONDITIONS
TO THE CENTRAL STATION IF ENABLED IN THE COMMUNICATOR
PROGRAMMING (AUTOMATIC FULL-SYSTEM CONSOLE SUPERVISORY
REPORTS CAN ALSO BE SENT AT 1, 7, OR 30 DAY INTERVALS)
SHIELD
WIRE
CONSOLE MIC TERMINALS
EXTERNAL MICROPHONE (+)
MICROPHONE COMMON (-)
NOTE: REMOVE
JUMPER WHEN
USE
USING A UL
SHIELDED LISTED MODEL
RSM-1 OR OTHER
TWISTED PAIR
UL LISTED
WIRE FOR
SPEAKER
MICROPHONE
SPKR
SPKR
MIC (-)
MIC (+)
RSM-1 TERMINAL BLOCK
WHEN TROUBLE EXISTS,
THE CONSOLE WILL ANNOUNCE
THE CONDITION EVERY
HOUR UNTIL CLEARED
NOTE: A TROUBLE
CONDITION WILL LIKELY OCCUR AGAIN
UNTIL THE PROBLEM IS FIXED
REMOVE
JUMPER
WIRE
CONSOLE MAIN
TERMINAL BLOCK
1 - +12 VDC @ 100 Ma
2 - RELAY NORMALLY OPEN
3 - RELAY NORMALLY OPEN
4 -
GROUND
5 - EXTERNAL SPEAKER
NOTE: NOT TO BE USED IN
UL INSTALLATIONS
LINEAR
RSM-1
MODEL RSM-1 TERMINALS
5
