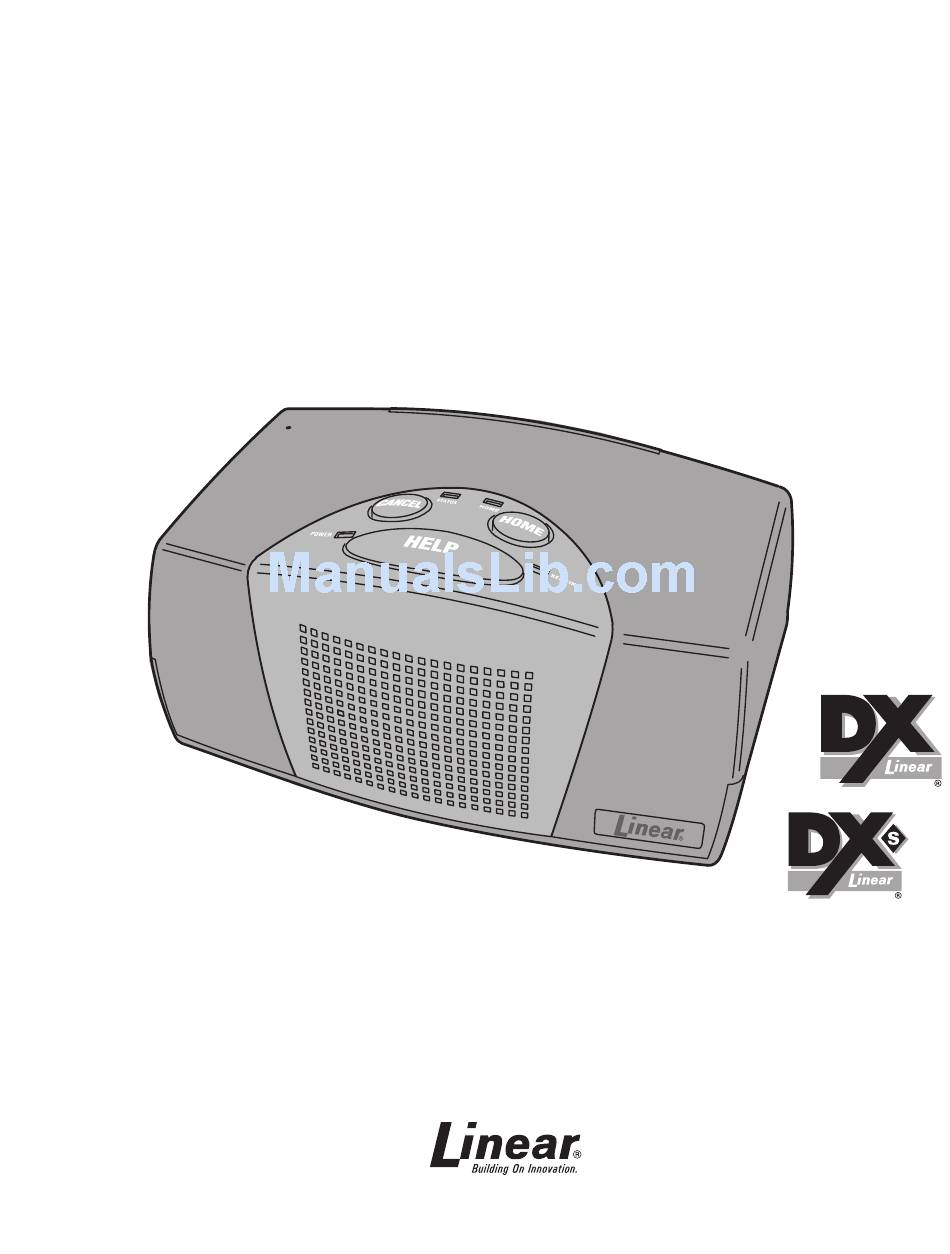

- Page 1 PERS-3600B ERSONAL MERGENCY EPORTING YSTEM NSTALLATION & PERATION NSTRUCTIONS USA & Canada (800) 421-1587 & (800) 392-0123 (760) 438-7000 - Toll Free FAX (800) 468-1340 www.linearcorp.com...
-
Page 2: Table Of Contents
CONTENTS CONTROL AREA FEATURES ..........1 REAR SIDE AND BOTTOM FEATURES . -
Page 3: Control Area Features
1. CONTROL AREA FEATURES • LIGHTS WHEN ACTIVITY TIMER IS ON • LIGHT IS OFF WHEN ACTIVITY TIMER IS OFF STATUS INDICATOR • BLINKS SLOWLY WHEN LESS THAN 15 MINUTES • NORMALLY OFF • LIGHTS WHEN ANY TRANSMITTERS ARE • BLINKS QUICKLY WHEN THE ACTIVITY MISSING (SUPERVISORY) •... -
Page 4: Transformer Installation
5. TRANSFORMER INSTALLATION PLUG TRANSFORMER INTO AN UN-SWITCHED AC OUTLET SECURE TRANSFORMER WITH SCREW 7. TRANSMITTER INSTALLATION OPTIONS FOR ALL TWO-BUTTON TRANSMITTERS WHEN IT IS INSTALLED WITH THE LEFT BUTTON WHEN IT IS INSTALLED WITH THE RIGHT BUTTON FOR DXS-31 STATIONARY TRANSMITTERS WHEN IT IS INSTALLED WHEN IT IS INSTALLED WITH THE JUMPER SET... -
Page 5: Installing Multiple Transmitters
9. INSTALLING MULTIPLE TRANSMITTERS ADDS MULTIPLE TRANSMITTERS PRESS TEST BUTTON • CONSOLE ANNOUNCES TEST MODE PRESS TEST BUTTON AGAIN • CONSOLE ANNOUNCES ITS READY TO LEARN TRANSMITTERS NOTE: EACH TIME THE TEST BUTTON IS PRESSED IN THE ADD TRANSMITTER MODE, THE CONSOLE WILL BE READY TO INSTALL A TRANSMITTER IN THE NEXT AVAILABLE SENSOR ZONE LOCATION. -
Page 6: Local Programming With Ra-2400
13. LOCAL PROGRAMMING WITH RA-2400 PERFORM THE STEPS DETAILED IN THE RA-2400/PERS REFERENCE GUIDE (P/N 224756) TO SET UP THE RA-2400 PROGRAM TO LOCALLY PROGRAM THE CONSOLE, CONNECT THE MODEM'S LINE JACK TO THE CONSOLE'S LINE JACK PRESS THE TEST BUTTON MOMENTARILY •... -
Page 7: Speakerphone Operation
17. SPEAKERPHONE OPERATION PROGRAM THE CONSOLE TO ENABLE SPEAKERPHONE MODE NOTE: SPEAKERPHONE MODE CAN ONLY BE USED ON INCOMING CALLS AND WILL NOT FUNCTION WHEN THE CONSOLE IS OPERATING FROM BACKUP BATTERY POWER. ATTEMPTING TO ANSWER WHILE THE CONSOLE IS ON BACKUP POWER WILL CAUSE AN EMERGENCY ALARM. WHILE THE TELEPHONE IS RINGING, ACTIVATING AN EMERGENCY TRANSMITTER OR PRESSING THE HELP BUTTON WILL SEIZE THE TELEPHONE LINE... -
Page 8: Non-Voice Prompt Beep Legend
Infrequently used radio links should be tested regularly to protect against undetected COMMUNICATOR RECEIVER interference or fault. • A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or dealer, and these facts should be communicated to the ultimate users. WOOD STUDS...
