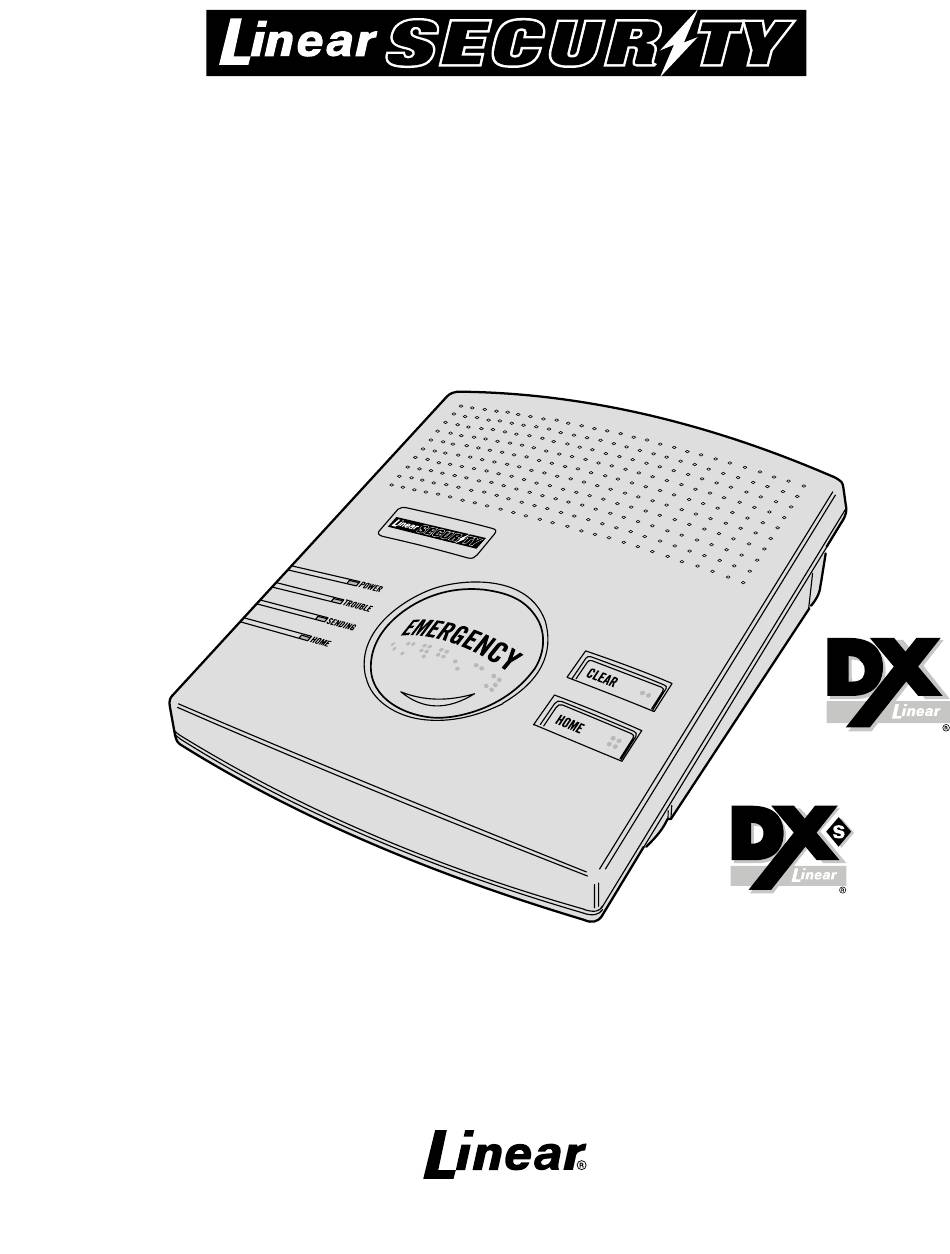

- Page 1 PERS-2400A PERSONAL EMERGENCY REPORTING SYSTEM Installation, and Operation Instructions (760) 438-7000 • FAX (760) 438-7043 USA & Canada (800) 421-1587 & (800) 392-0123 Toll Free FAX (800) 468-1340 www.linearcorp.com...
-
Page 2: Table Of Contents
LINEAR LIMITED WARRANTY........ -
Page 3: Front Panel Features
1. FRONT PANEL FEATURES 2. REMOVING BOTTOM COVER TROUBLE INDICATOR EMERGENCY BUTTON • NORMALLY OFF • PRESS AND HOLD TO TRIGGER • LIGHTS WHEN ANY TRANSMITTERS ARE MISSING THE EMEREGNCY ZONE (SUPERVISORY) • PRESS DURING RING FOR TO ACCESS THE INSIDE OF THE CONSOLE •... -
Page 4: Optional Relay Output Connections
VISUAL INDICATOR 4 - RELAY NORMALLY OPEN 3 - RELAY COMMON EXTERNAL POWER SUPPLY REMOVE JUMPER WIRE PERS-2400A CONSOLE PERS-2400A CONSOLE TERMINAL BLOCK VB-4 TERMINAL BLOCK TERMINAL BLOCK EXTERNAL MICROPHONE (+) 5 - DIALER POWER MICROPHONE COMMON (-) 4 - RELAY NORMALLY OPEN... -
Page 5: Apply Power - Select Dialing Method
9. APPLY POWER - SELECT DIALING METHOD 10. TRANSMITTER INSTALLATION OPTIONS TURN POWER FOR ALL TWO-BUTTON TX'S EXCEPT DXS-63 SWITCH ON IT WILL WHEN IT IS ACTIVATE INSTALLED USING WITH THE EITHER LEFT BUTTON BUTTON WHEN IT IS IT WILL ONLY INSTALLED ACTIVATE WITH THE... -
Page 6: 13. Testing Transmitters
13. TESTING TRANSMITTERS 14. ERASING TRANSMITTERS PRESS TEST BUTTON CAUTION: ALL TRANSMITTERS • 4 BEEPS SOUND (TEST MODE) WILL BE ERASED! ACTIVATE EACH OF THE PRESS AND HOLD TEST BUTTON FOR 5 SECONDS CONSOLE'S TRANSMITTERS, • 6 BEEPS SOUND (ALL TRANSMITTERS WERE ERASED) ONE AT A TIME COUNT THE NUMBER OF BEEPS THAT THE CONSOLE SOUNDS... -
Page 7: 17. System Operation
17. SYSTEM OPERATION 18. ACTIVITY TIMER CONSOLE ENABLING THE ACTIVITY TIMER PRESS THE HOME BUTTON FOR STANDING BY 5 SECONDS TO TURN THE ACTIVITY TIMER ON POWER LIGHT IS ON NOTE: THE ACTIVITY TIMER CAN BE ENABLED FOR 8, 12, OR OTHER LIGHTS ARE OFF 24 HOURS, OR DISABLED BY PROGRAMMING... -
Page 8: 21. Supervisory Conditions
fi tness, are valid only until Warranty Expiration BACKUP SUPPLY OPERATING CURRENT 32 mA Date as labeled on the product. This Linear Corporation Warranty is in lieu of all other RF CHARACTERISTICS warranties express or implied.
