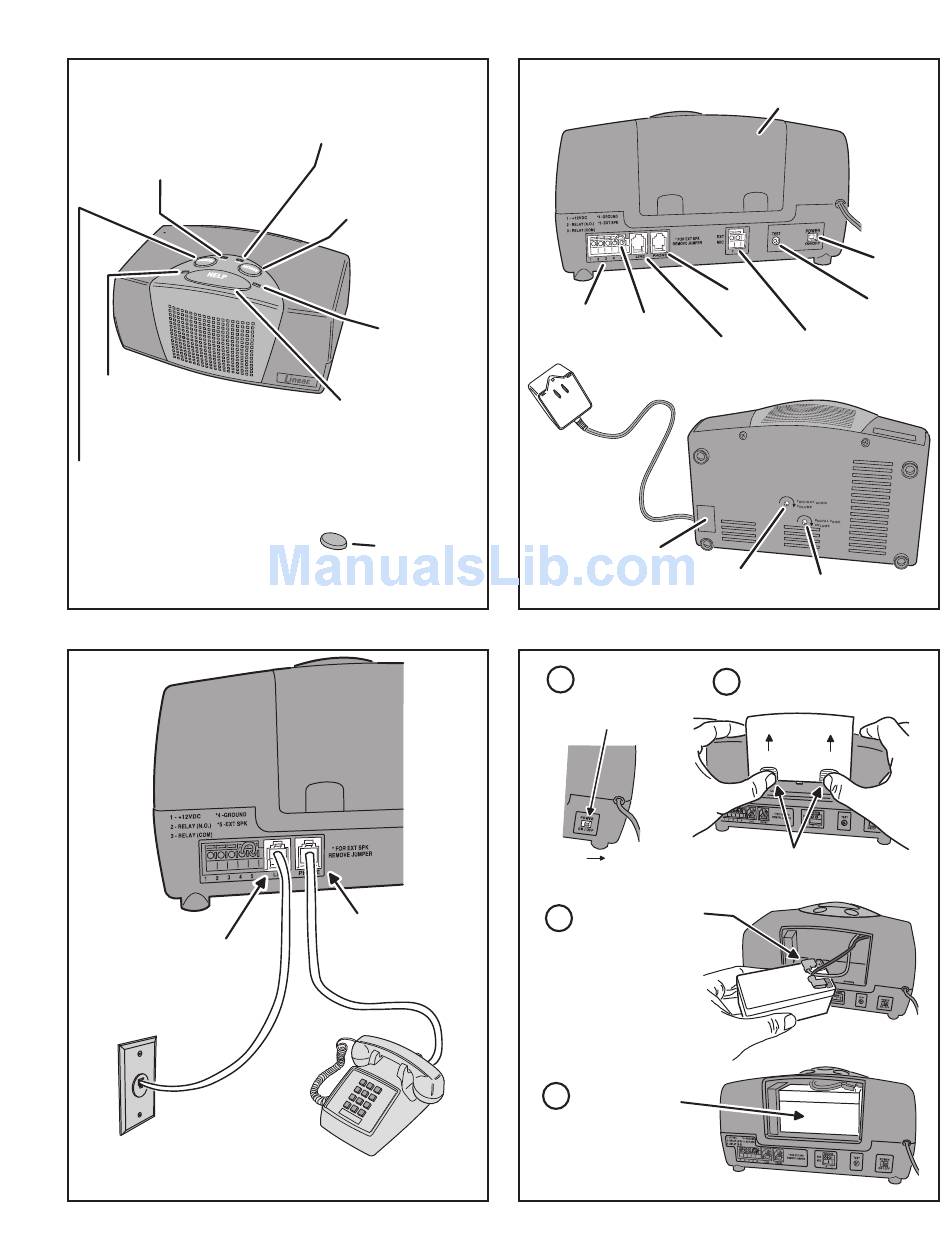

1. CONTROL AREA FEATURES

STATUS INDICATOR
• NORMALLY OFF
• LIGHTS WHEN ANY TRANSMITTERS ARE
MISSING (SUPERVISORY)
• BLINKS SLOWLY WHEN ANY TRANSMITTERS
HAVE A LOW BATTERY
POWER INDICATOR
• LIGHTS WHEN AC IS PRESENT
• BLINKS SLOWLY WHEN BATTERY IS CHARGING
• BLINKS QUICKLY WHEN AC IS ABSENT
(CONSOLE ON BATTERY POWER)
• OFF IN TEST AND SETUP MODES
CANCEL BUTTON
• STOPS ALARM
• ADDS CANCEL TO AN ALARM
REPORT IN PROGRESS
• PRESS IMMEDIATELY AFTER
EMERGENCY TO PREVENT REPORT
• CLEARS INDICATORS
• STOPS TROUBLE BEEPER
• PRESS FOR 5 SECONDS TO ADD
A TRANSMITTER
• CLEARS REMINDER MESSAGE

3. TELEPHONE CONNECTIONS

CONNECT THIS JACK
TO THE TELEPHONE LINE
RESIDENT'S
TELEPHONE
JACK
HOME INDICATOR
• LIGHTS WHEN ACTIVITY TIMER IS ON
• LIGHT IS OFF WHEN ACTIVITY TIMER IS OFF
• BLINKS SLOWLY WHEN LESS THAN 15 MINUTES
REMAIN ON THE ACTIVITY TIMER
• BLINKS QUICKLY WHEN THE ACTIVITY
TIMER HAS EXPIRED
HOME BUTTON
• PRESS TO RESET ACTIVITY TIMER
• PRESS FOR 5 SECONDS TO TURN
ACTIVITY TIMER AND REMINDER RPT. OFF
• IF ACTIVITY TIMER IS OFF,
PRESS FOR 5 SECONDS
TO TURN ACTIVITY TIMER AND
REMINDER REPORT ON
• USED IN TEST MODE TO
RECORD AND PLAYBACK
REMINDER MESSAGES
SENDING INDICATOR
• NORMALLY OFF
• FLASHES WHEN CONSOLE
IS PLACING A CALL
HELP BUTTON
• PRESS AND HOLD TO TRIGGER
THE EMERGENCY ALARM
• PRESS DURING RING FOR
SPEAKERPHONE MODE
• PRESS DURING SPEAKERPHONE
MODE TO DISCONNECT
• PRESS WHILE IN TEST MODE TO
CONNECT THE CONSOLE TO A PC
FOR LOCAL PROGRAMMING WITH
THE RA-2400 SOFTWARE
HOME BUTTON COVER
• HIDES THE HOME BUTTON IF THE
ACTIVITY TIMER IS NOT USED
(REMOVE IF INSTALLED TO RECORD
AND PLAYBACK REMINDER MESSAGES
REAR OF
CONSOLE
CONNECT THIS JACK
TO THE LOCAL
TELEPHONE
RESIDENT'S
LOCAL TELEPHONE
(OPTIONAL)

2. REAR SIDE AND BOTTOM FEATURES

CONSOLE REAR
EXTERNAL SPEAKER
EXTERNAL
AND RELAY OUTPUT
SPEAKER
TERMINALS
BYPASS JUMPER
(FACTORY INSTALLED)
16VAC 1.25 AMP
PLUG-IN
TRANSFORMER
BATTERY FUSE COVER
FUSE TYPE: 2AG
FUSE RATING: 1AMP
AUDIO VOLUME

4. BACKUP BATTERY INSTALLATION

1
BE SURE THAT
THE POWER
SWITCH IS OFF
ON OFF
CONNECT THE RED LEAD
3
TO POSITIVE AND THE
BLACK LEAD TO THE
NEGATIVE BATTERY
TERMINAL
CAUTION: CONNECTING
THE BATTERY LEADS BACKWARDS
WILL BLOW THE BATTERY FUSE
FUSE TYPE: 1 AMP 2AG
4 SLIDE THE BATTERY
INTO THE CASE AND
REPLACE THE
BATTERY DOOR
IMPORTANT: WHEN REPLACING THE
BATTERY, THE OLD BATTERY MUST
BE RECYCLED. DELIVER THE BATTERY
TO AN APPROPRIATE RECYCLING FACILITY
NOTE: THE CONSOLE IS
BACKUP
SHIPPED WITH REMOVABLE
BATTERY
LABELS COVERING
ACCESS DOOR
SOME OF THE REAR
CONNECTIONS
-
POWER
SWITCH
LOCAL
TEST
PHONE
BUTTON
JACK
EXTERNAL
TELEPHONE
MICROPHONE
LINE JACK
TERMINALS
CONSOLE BOTTOM
TWO-WAY
DIGITAL VOICE
VOLUME
REMOVE THE
2
BATTERY DOOR
PUSH THE RELEASE TABS IN
AND SLIDE THE DOOR UPWARD
BATTERY TYPE:
12-VOLT, 1.2 AMP HOUR
