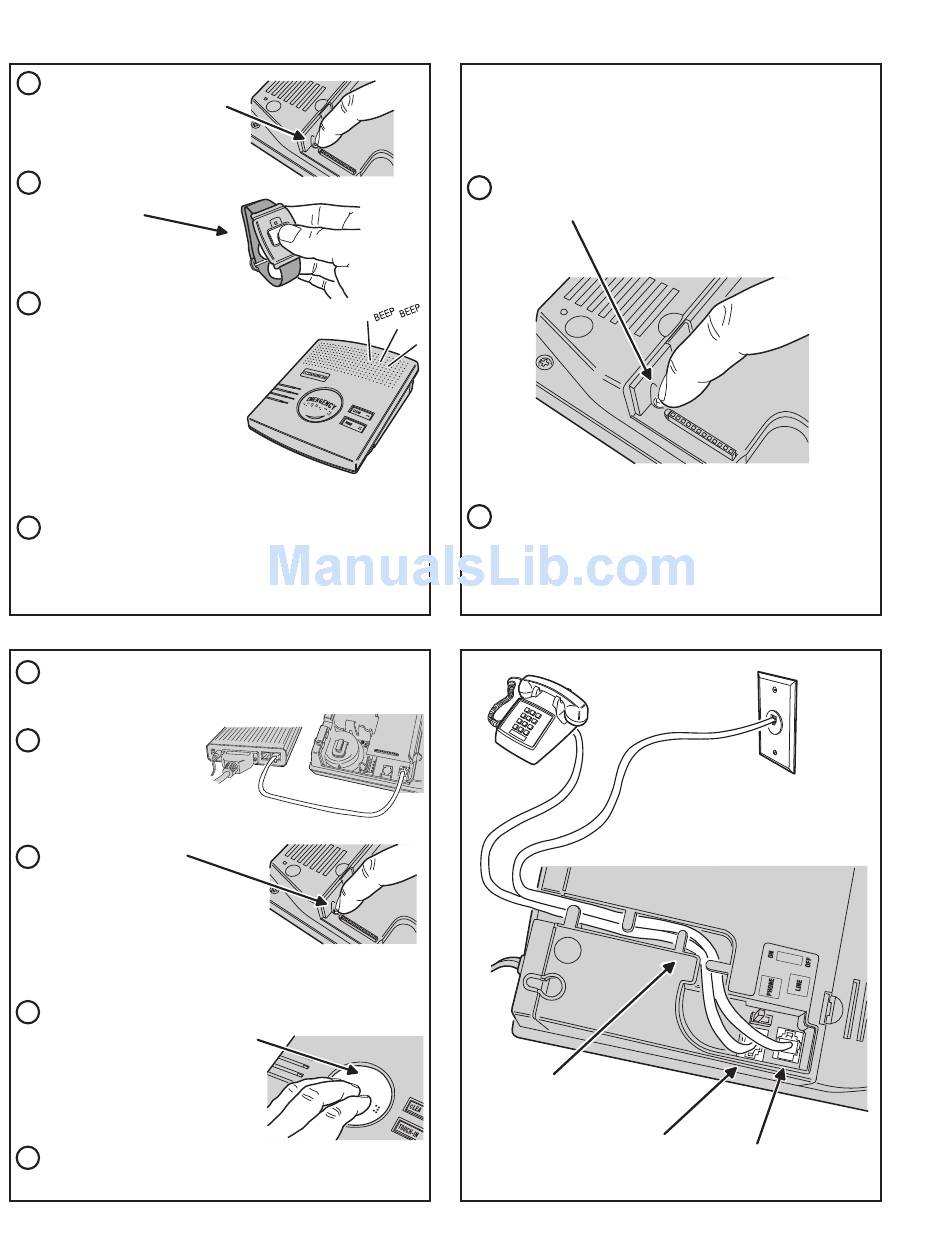

13. TESTING TRANSMITTERS

1 PRESS TEST BUTTON
• 4 BEEPS SOUND (TEST MODE)
2
ACTIVATE EACH OF THE
CONSOLE'S TRANSMITTERS,
ONE AT A TIME
COUNT THE NUMBER OF BEEPS
3
THAT THE CONSOLE SOUNDS
WHEN THE TRANSMITTER
IS ACTIVATED
1-BEEP = TX OK
2-BEEPS = TX HAD ALARM
3-BEEPS = TX MISSED STATUS
4-BEEPS = TX HAS LOW BATTERY
NOTE: WITH THE MODEL VB-4B VOICE BOARD
INSTALLED, THE CONSOLE WILL ANNOUNCE
THE TRANSMITTER STATUS
4
PRESS CLEAR TO RETURN TO OPERATE MODE
• 2 BEEPS SOUND WITH ACTIVITY TIMER ENABLED
• 3 BEEPS SOUND WITH ACTIVITY TIMER DISABLED
THE CONSOLE WILL RETURN TO OPERATE MODE
AUTOMATICALLY AFTER 3 MINUTES

15. LOCAL PROGRAMMING WITH RA-2400

PERFORM THE STEPS DETAILED IN THE
1
RA-2400/PERS-2400 REFERENCE GUIDE (P/N 217163)
TO SET UP THE RA-2400 PROGRAM
2 TO LOCALLY PROGRAM
THE CONSOLE, CONNECT
THE MODEM'S LINE JACK
TO THE CONSOLE'S LINE
JACK
PRESS TEST BUTTON
3
MOMENTARILY
• 4 BEEPS SOUND
(TEST MODE)
NOTE: CONSOLE WILL EXIT TEST MODE
AUTOMATICALLY AFTER 3 MINUTES
OR BY PRESSING THE CLEAR BUTTON
WHEN RA-2400 CONNECTION
4
TIMER STARTS COUNTING DOWN,
PRESS THE EMERGENCY BUTTON
• 4 BEEPS SOUND
(RA-2400 ANSWER)
PERFORM PROGRAMMING IN
5
THE RA-2400 SOFTWARE, THEN
DISCONNECT FROM THE CONSOLE
4

14. ERASING TRANSMITTERS

16. TELEPHONE CONNECTIONS

LINE-TO-LINE
CAUTION: ALL TRANSMITTERS
WILL BE ERASED!
1 PRESS AND HOLD TEST BUTTON FOR 5 SECONDS
• 6 BEEPS SOUND (ALL TRANSMITTERS WERE ERASED)
2
PRESS CLEAR TO RETURN TO OPERATE MODE
• 2 BEEPS SOUND WITH ACTIVITY TIMER ENABLED
• 3 BEEPS SOUND WITH ACTIVITY TIMER DISABLED
THE CONSOLE WILL RETURN TO OPERATE MODE
AUTOMATICALLY AFTER 3 MINUTES
LOCAL
TELEPHONE
ROUTE CABLES UNDER
STRAIN-RELIEF TABS
CONNECT LOCAL
TELEPHONE TO
THIS JACK
TELEPHONE
JACK
CONSOLE WITH
REAR COVER
INSTALLED
CONNECT TELEPHONE
LINE TO THIS JACK
