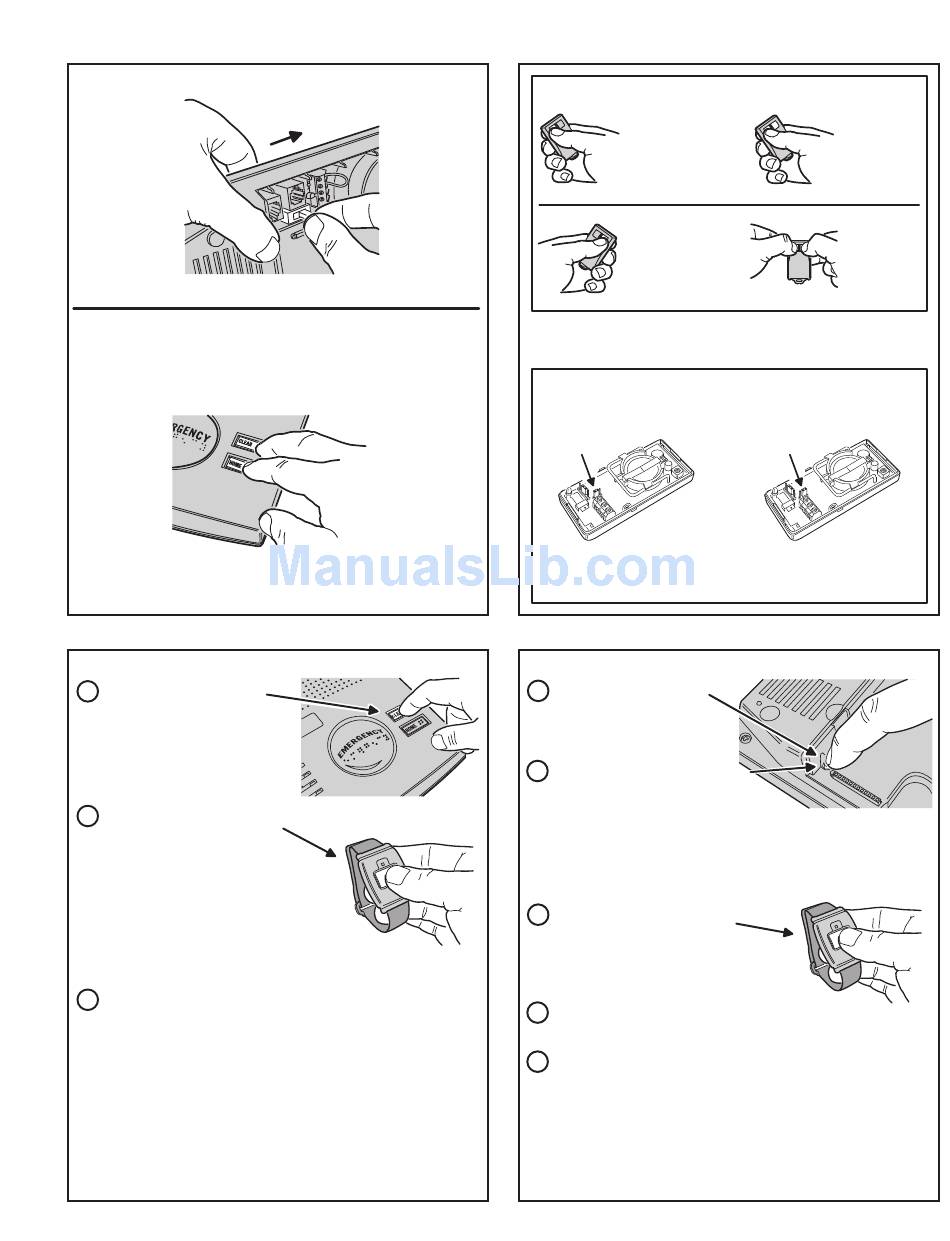

9. APPLY POWER - SELECT DIALING METHOD

TURN POWER
SWITCH ON
NOTE: THE DEFAULT DIALING METHOD IS TONE DIALING
IF REQUIRED, CHANGE THE DIALING METHOD
BY PRESSING AND HOLDING THE HOME & CLEAR
BUTTONS WHILE SWITCHING THE POWER ON
• 7 BEEPS SOUND FOR PULSE DIALING
• 8 BEEPS SOUND FOR TONE DIALING

11. INSTALLING SINGLE TRANSMITTERS

ADDS ONE TRANSMITTER AT A TIME
PRESS CLEAR BUTTON
1
FOR 5 SECONDS
• 5 BEEPS SOUND
(TX ADD MODE)
2
ACTIVATE TRANSMITTER
• 1 BEEP SOUNDS
(TX ADDED)
CONSOLE REVERTS
TO OPERATE MODE
NOTE: IF THE CONSOLE'S MEMORY
IS FULL, ONE LONG BEEP SOUNDS WHEN
TRYING TO ADD A TRANSMITTER
3 REPEAT STEPS 1 & 2 FOR ADDITIONAL
TRANSMITTERS (UP TO 16 TOTAL)
NOTE: PRESS CLEAR BEFORE TRANSMITTING TO RETURN
TO OPERATE MODE WITHOUT ENTERING A TRANSMITTER
• 2 BEEPS SOUND WITH ACTIVITY TIMER ENABLED
• 3 BEEPS SOUND WITH ACTIVITY TIMER DISABLED
THE CONSOLE WILL RETURN TO OPERATE MODE
AUTOMATICALLY AFTER 30 SECONDS
NOTE: WRITE DOWN EACH TRANSMITTER'S TYPE AND ZONE NUMBER
WHEN THE TRANSMITTER IS ADDED. THE CENTRAL STATION WILL NEED
TO KNOW THE TYPE AND REPORTING ZONE FOR EACH TRANSMITTER.
ON

DXS-62A

10. TRANSMITTER INSTALLATION OPTIONS

FOR ALL TWO-BUTTON TRANSMITTERS
WHEN IT IS
INSTALLED
WITH THE
LEFT BUTTON
WHEN IT IS
INSTALLED
WITH THE
RIGHT BUTTON
FOR DXS-31 STATIONARY TRANSMITTERS
WHEN IT IS INSTALLED
WITH THE JUMPER SET
FOR DELAY
IT WILL
FUNCTION
AS EMERGENCY
FOR MODEL DXS-32: CUT JUMPER (INSTANT TX) FOR USE
AS AN ACTIVITY TX. SEE DXS-32 INSTALLATION INSTRUCTIONS

12. INSTALLING MULTIPLE TRANSMITTERS

ADDS MULTIPLE TRANSMITTERS
1 PRESS TEST BUTTON
• 4 BEEPS SOUND
(TEST MODE)
2
PRESS TEST BUTTON AGAIN
• 5 BEEPS SOUND
(ADD TX MODE)
NOTE: EACH TIME THE TEST BUTTON IS PRESSED IN THE ADD TX MODE,
THE CONSOLE WILL BE READY TO INSTALL A TRANSMITTER IN THE NEXT
AVAILABLE SENSOR ZONE LOCATION. IF THE VB-4B VOICE BOARD IS
INSTALLED, THE CONSOLE WILL ANNOUNCE THE SENSOR ZONE LOCATION
NUMBER.
ACTIVATE TRANSMITTER
3
• 1 BEEP SOUNDS
(TX ADDED)
NOTE: IF THE CONSOLE'S MEMORY
IS FULL, ONE LONG BEEP SOUNDS
WHEN TRYING TO ADD A TRANSMITTER
REPEAT STEPS 2 & 3 FOR
4
ADDITIONAL TRANSMITTERS
(UP TO 16 TOTAL)
PRESS CLEAR TO RETURN TO OPERATE MODE
5
• 2 BEEPS SOUND WITH ACTIVITY TIMER ENABLED
• 3 BEEPS SOUND WITH ACTIVITY TIMER DISABLED
THE CONSOLE WILL RETURN TO OPERATE
MODE AUTOMATICALLY AFTER 3 MINUTES
NOTE: WRITE DOWN EACH TRANSMITTER'S TYPE AND ZONE NUMBER
WHEN THE TRANSMITTER IS ADDED. THE CENTRAL STATION WILL NEED
TO KNOW THE TYPE AND REPORTING ZONE FOR EACH TRANSMITTER
IT WILL
ACTIVATE
USING
EITHER
BUTTON
IT WILL ONLY
ACTIVATE
USING BOTH
BUTTONS
WHEN IT IS INSTALLED
WITH THE JUMPER SET
FOR INSTANT
IT WILL
FUNCTION
AS ACTIVITY
DXS-62A
