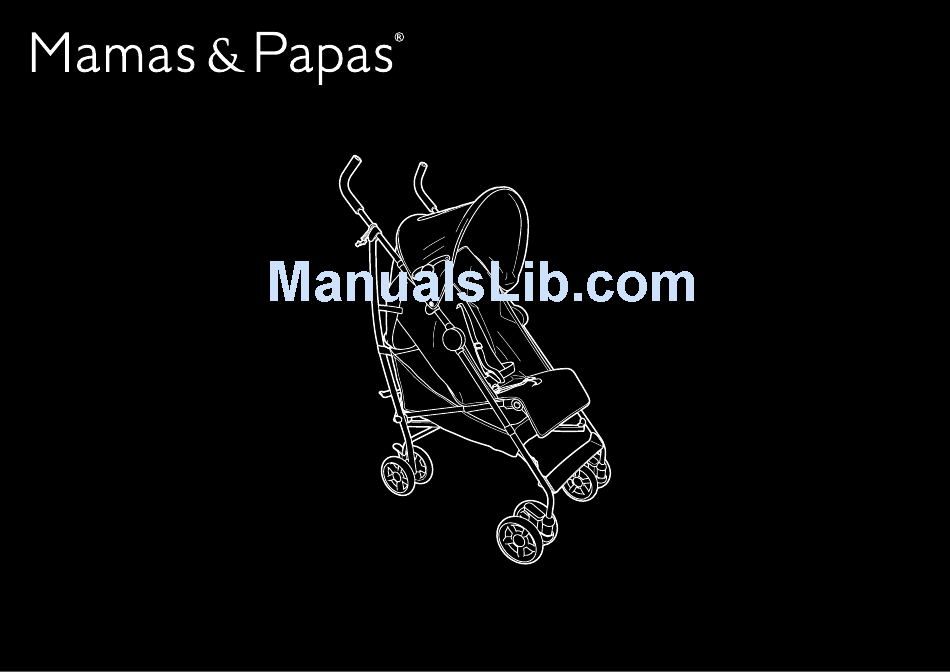

- Page 1 TEFR_0113_0911_V1 © Mamas & Papas (Holdings) Ltd. 2011...
-
Page 2: Care And Maintenance
READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. YOUR CHILD’S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS. INSTRUCTIONS FOR SAFE USE WARNING: • Ensure that the harness is correctly adjusted, providing a snug fit around your child. The pushchair is supplied with ‘D’ ring harness attachment points located on either • It may be dangerous to leave your child unattended. side at the base of the backrest for fitting a separate harness conforming to • Any load attached to the handle affects the stability of the pushchair. BS 6684/BSEN 13210 if required. • This product is not suitable for running or skating. • Always ensure the brakes are engaged when the pushchair is left unattended. - Page 3 Fitting the front wheels Attach the front wheels by slotting the frame into the wheel housing as shown. The wheel will click once it has correctly located. Opening the buggy 1: Unfasten the catch on the side of the pushchair. Lift up the handles. 2: Push the stud down to lock the pushchair. Warning: Ensure that all the locking devices are engaged before use.
- Page 4 Adjusting the backrest Lowering: locate the backrest adjuster and slide the button down and pull it towards you. Raising: pull the backrest forward and push the back rest adjuster upwards to the desired position. Adjusting the leg rest Push the buttons on either side of the leg rest and adjust the leg rest to the desired angle.
- Page 5 Using the swivel wheels Locking the wheels: Position the wheels into the front facing position and pull the levers up to lock them wheels. Unlocking the wheels: Push the levers down to allow the wheels to swivel. Using the brakes Locking: press the brake pedals downwards to engage the brakes. Unlocking: lift the brake pedals into the upright position to unlock the brakes.
- Page 6 Using the harness Locking: push the two tongues (1) on the ends of the straps through the buckle on the shoulder straps and into the buckle on the end of the crotch strap. Unlocking: Squeeze the tongues together (1) and slide them from the buckle (2). Squeeze the tongues together (3) and slide them from the shoulder strap buckle (4). Fitting the hood Clip the hood around the frame until it clicks into place. Fasten the velcro straps around the frame.
- Page 7 Folding the pushchair Push the primary locking pin (1) upwards, then press down on the secondary locking arm (2). Push downwards on the handles until the pushchair folds. Secure the locking arm. Fitting the raincover Fit the hood, see page 6. Fit the raincover over the hood with the press studs at the top. Attach the two press studs on the raincover to the studs on the fabric cover. Attach the two straps towards the bottom of the raincover around the frame using the velcro pads.
