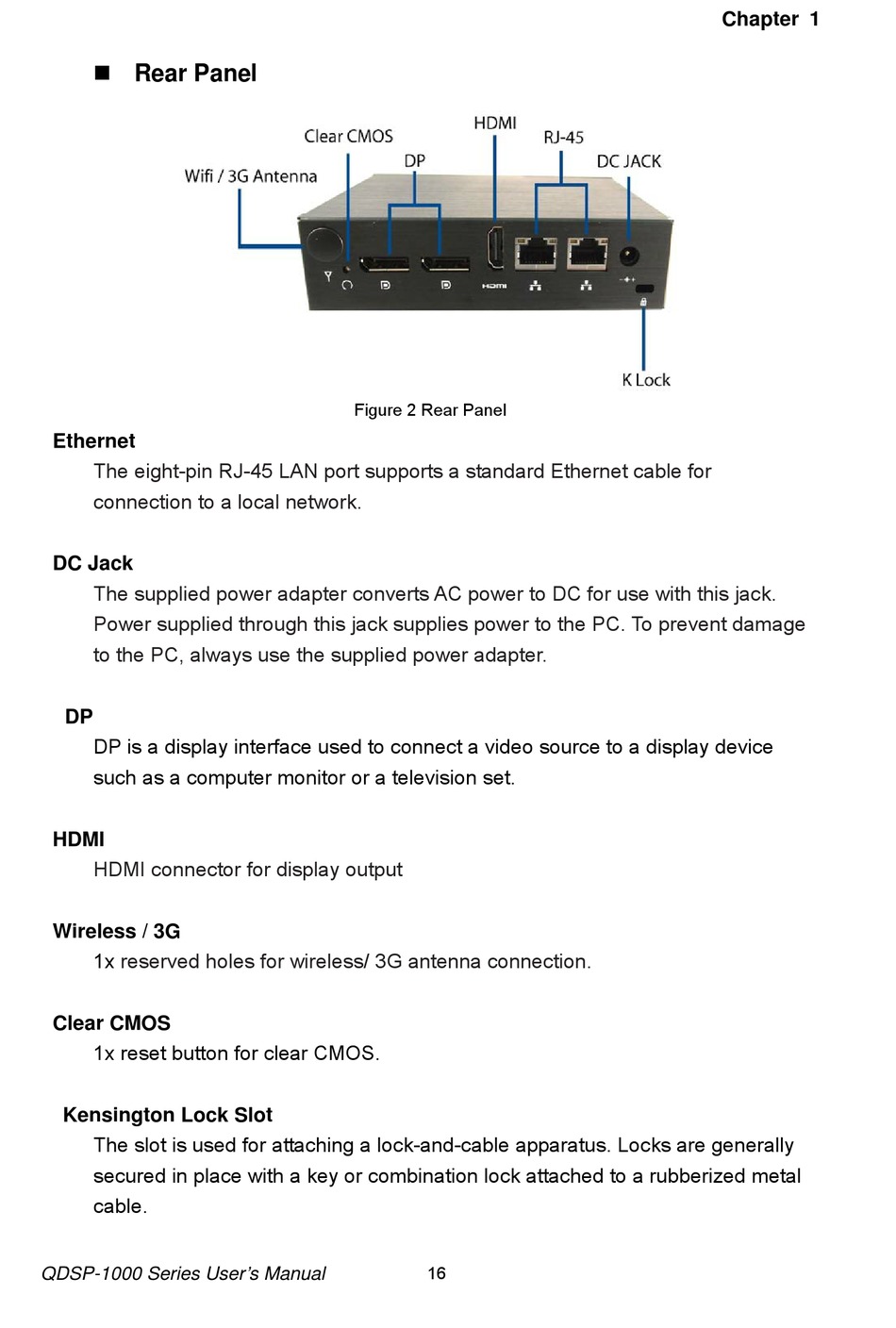

Figure 2 Rear Panel - Quanmax QDSP-1000 Series User Manual

 Rear Panel
Ethernet
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
DC Jack
The supplied power adapter converts AC power to DC for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage
to the PC, always use the supplied power adapter.
DP
DP is a display interface used to connect a video source to a display device
such as a computer monitor or a television set .
HDMI
HDMI connector for display output
Wireless / 3G
1x reserved holes for wireless/ 3G antenna connection.
Clear CMOS
1x reset button for clear CMOS.
Kensington Lock Slot
The slot is used for attaching a lock-and-cable apparatus. Locks are generally
secured in place with a key or combination lock attached to a rubberized metal
cable.
