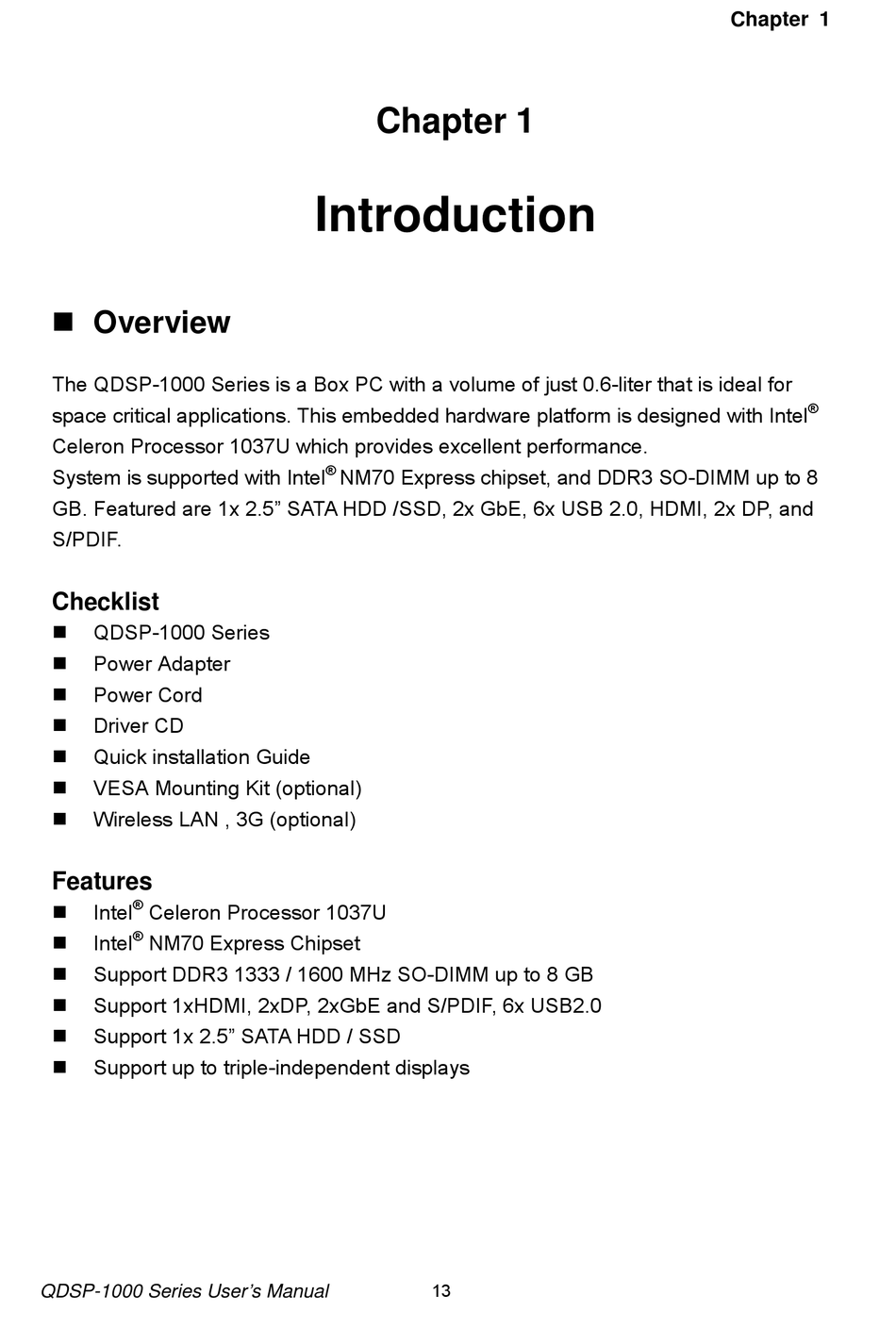

Chapter 1 Introduction; Overview - Quanmax QDSP-1000 Series User Manual

 Overview
The QDSP-1000 Series is a Box PC with a volume of just 0.6-liter that is ideal for
space critical applications. This embedded hardware platform is designed with Intel
Celeron Processor 1037U which provides excellent performance.
System is supported with Intel
GB. Featured are 1x 2.5" SATA HDD /SSD, 2x GbE, 6x USB 2.0, HDMI, 2x DP, and
S/PDIF.
Checklist
QDSP-1000 Series

Power Adapter

Power Cord

Driver CD

Quick installation Guide

VESA Mounting Kit (optional)

Wireless LAN , 3G (optional)

Features
®
Intel Celeron Processor 1037U

®
Intel NM70 Express Chipset

Support DDR3 1333 / 1600 MHz SO-DIMM up to 8 GB

Support 1xHDMI, 2xDP, 2xGbE and S/PDIF, 6x USB2.0

Support 1x 2.5" SATA HDD / SSD

Support up to triple-independent displays

QDSP-1000 Series User's Manual
Chapter 1
Introduction
®
NM70 Express chipset, and DDR3 SO-DIMM up to 8
13
Chapter 1
®
