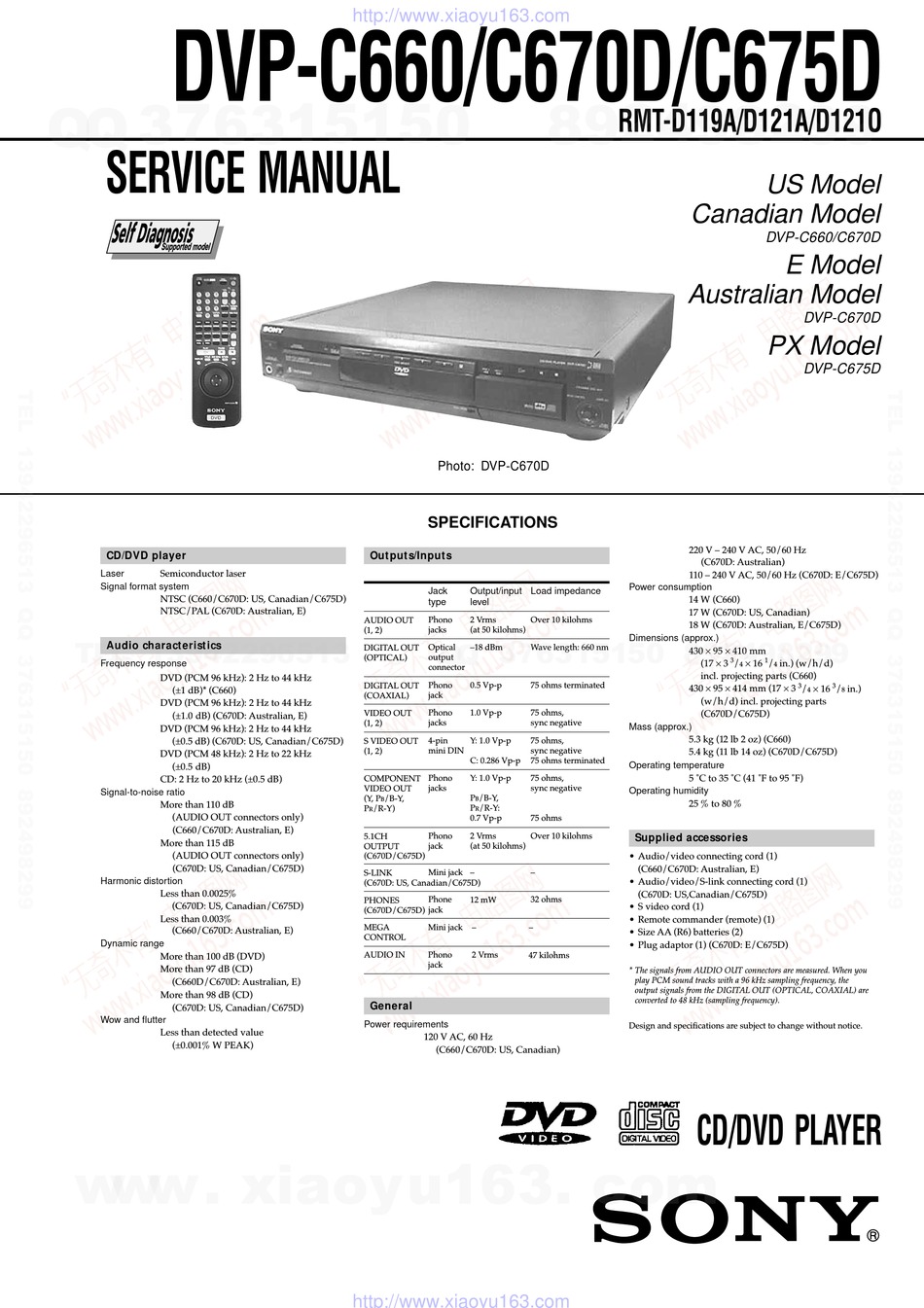

DVP-C660 / C670D / C675D
QQ
3 7 63 1515 0
SERVICE MANUAL
CD/DVD player
Laser
Semiconductor laser
Signal format system
NTSC (C660/C670D: US, Canadian/C675D)
NTSC/PAL (C670D: Australian, E)
TE
L 13942296513
Audio characteristics
Frequency response
DVD (PCM 96 kHz): 2 Hz to 44 kHz
(±1 dB)* (C660)
DVD (PCM 96 kHz): 2 Hz to 44 kHz
(±1.0 dB) (C670D: Australian, E)
DVD (PCM 96 kHz): 2 Hz to 44 kHz
(±0.5 dB) (C670D: US, Canadian/C675D)
DVD (PCM 48 kHz): 2 Hz to 22 kHz
(±0.5 dB)
CD: 2 Hz to 20 kHz (±0.5 dB)
Signal-to-noise ratio
More than 110 dB
(AUDIO OUT connectors only)
(C660/C670D: Australian, E)
More than 115 dB
(AUDIO OUT connectors only)
(C670D: US, Canadian/C675D)
Harmonic distortion
Less than 0.0025%
(C670D: US, Canadian/C675D)
Less than 0.003%
(C660/C670D: Australian, E)
Dynamic range
More than 100 dB (DVD)
More than 97 dB (CD)
(C660D/C670D: Australian, E)
More than 98 dB (CD)
(C670D: US, Canadian/C675D)
Wow and flutter
Less than detected value
(±0.001% W PEAK)
www
.
http://www.xiaoyu163.com
Outputs/Inputs
AUDIO OUT
(1, 2)
DIGITAL OUT
(OPTICAL)
DIGITAL OUT
(COAXIAL)
VIDEO OUT
(1, 2)
S VIDEO OUT
(1, 2)
COMPONENT
VIDEO OUT
(Y, P
/B-Y,
B
P
/R-Y)
R
5.1CH
OUTPUT
(C670D/C675D)
S-LINK
(C670D: US, Canadian/C675D)
PHONES
(C670D/C675D)
MEGA
CONTROL
AUDIO IN
General
Power requirements
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8
Photo: DVP-C670D

SPECIFICATIONS

Jack
Output/input
Load impedance
type
level
Phono
2 Vrms
Over 10 kilohms
Q Q
jacks
(at 50 kilohms)
3
6 7
1 3
1 5
Optical
–18 dBm
Wave length: 660 nm
output
connector
Phono
0.5 Vp-p
75 ohms terminated
jack
Phono
1.0 Vp-p
75 ohms,
jacks
sync negative
4-pin
Y: 1.0 Vp-p
75 ohms,
mini DIN
sync negative
C: 0.286 Vp-p
75 ohms terminated
Phono
Y: 1.0 Vp-p
75 ohms,
jacks
sync negative
P
/B-Y,
B
P
/R-Y:
R
0.7 Vp-p
75 ohms
Phono
2 Vrms
Over 10 kilohms
jack
(at 50 kilohms)
Mini jack
Phone
12 mW
32 ohms
jack
Mini jack
Phono
2 Vrms
47 kilohms
jack
120 V AC, 60 Hz
(C660/C670D: US, Canadian)
co
.
9 4
2 8
RMT-D119A/D121A/D121O
US Model
Canadian Model
DVP-C660/C670D
E Model
Australian Model
PX Model
220 V – 240 V AC, 50/60 Hz
(C670D: Australian)
110 – 240 V AC, 50/60 Hz (C670D: E/C675D)
Power consumption
14 W (C660)
17 W (C670D: US, Canadian)
18 W (C670D: Australian, E/C675D)
0 5
8
2 9
9 4
2 8
Dimensions (approx.)
430 × 95 × 410 mm
(17 × 3
× 16
3
1
/
/
in.) (w/h/d)
4
4
incl. projecting parts (C660)
430 × 95 × 414 mm (17 × 3
(w/h/d) incl. projecting parts
(C670D/C675D)
Mass (approx.)
5.3 kg (12 lb 2 oz) (C660)
5.4 kg (11 lb 14 oz) (C670D/C675D)
Operating temperature
5 ˚C to 35 ˚C (41 ˚F to 95 ˚F)
Operating humidity
25 % to 80 %
Supplied accessories
• Audio/video connecting cord (1)
(C660/C670D: Australian, E)
• Audio/video/S-link connecting cord (1)
(C670D: US,Canadian/C675D)
• S video cord (1)
• Remote commander (remote) (1)
• Size AA (R6) batteries (2)
• Plug adaptor (1) (C670D: E/C675D)
* The signals from AUDIO OUT connectors are measured. When you
play PCM sound tracks with a 96 kHz sampling frequency, the
output signals from the DIGITAL OUT (OPTICAL, COAXIAL) are
converted to 48 kHz (sampling frequency).
Design and specifications are subject to change without notice.
m
CD/DVD PLAYER
9 9
DVP-C670D
DVP-C675D
9 9
× 16
3
3
/
/
in.)
4
8
