GE Monogram
®
INSTALLATION WITH CUSTOM PANEL KIT - ZXD27B
10 1/2"
(26.7)
5/16"
through custom
panel for lamp jewel

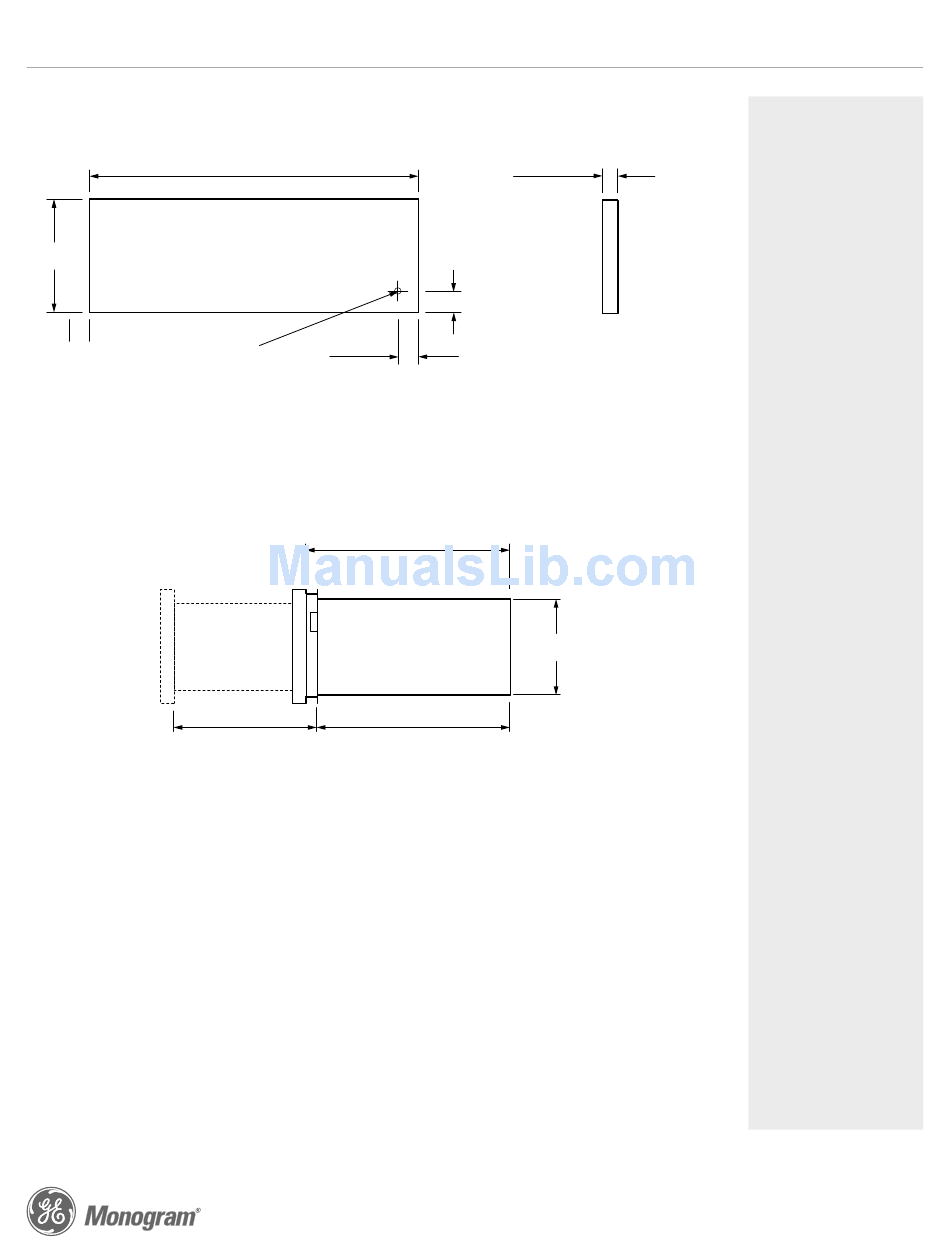

CUSTOM PANEL PREPARATION
30" Warming Drawer
30"
(76.2)
Drill
1 3/4"
(0.8) (4.5)
FRONT VIEW
23 5/16"
including handle
Excluding
custom panel
Drawer
open
24" 23 1/4"
(61.0)
Excluding
custom panel

SIDE VIEW

3/4" max.
(1.9)
1 13/16"
(4.6)
CUSTOM PANEL
PREPARATION
SIDE VIEW
(59.2)
9"
(22.9)
(59.0)
ZTD910SFSS
NOTES
This kit contains a
mounting panel to support
a trim-less custom drawer
front up to 3/4" thick. The
original tubular handle
can be reinstalled onto the
custom panel with longer
screws (not provided) or
can be replaced with a
custom handle of your
choice (also not provided).
For more details refer
to the installation
instructions for this
product.
Product Specification Created 8/14
