GE Monogram ZTD910SFSS Dimension Manual

GE Monogram
®
SPECIFICATIONS
Overall Width 30" (76.2 cm)
Overall Height 10 1/2" (26.7 cm)
Overall Depth 23 1/4" (59.0 cm)
Drawer Capacity 1.90 cu. ft. (53.8 l)
Cut-out Width 28 1/2" (72.4 cm)
Cut-out Height 9 1/4" (23.5 cm)
Cut-out Depth 23 1/2" (59.7 cm)
Power Cord Length 56" (142.2 cm)
Electrical Rating 450W @ 120V/60Hz
Total Amps 15 Amps
Net Weight 59 lbs. (26.8 kg)
Approx. Shipping Weight 65 lbs. (29.6 kg)
OPTIONAL ACCESSORIES
Custom Panel Kit ZXD30B
Professional Panel Kit ZXD30P
ATTENTION ELECTRICIAN:
This appliance is supplied with a 56" (142.2 cm)
long electrical cord equipped with a 3-prong
(grounding) plug that mates to a standard
3-prong grounding wall outlet.
The electrical power cord is located on the right
side of the warming drawer. Locate the wall
outlet within easy reach of the electrical cord in
an adjacent cabinet, within 42" (106.7 cm) of the
right side or 16" (40.6 cm) from the left side of the
cut-out. A recessed outlet can be installed on the
right side of the cut-out, 7" (17.8 cm) max. from
the rear of the cabinet.
DO NOT USE AN EXTENSION CORD
WITH THIS PRODUCT.
For more details refer to the installation instructions
for this product.

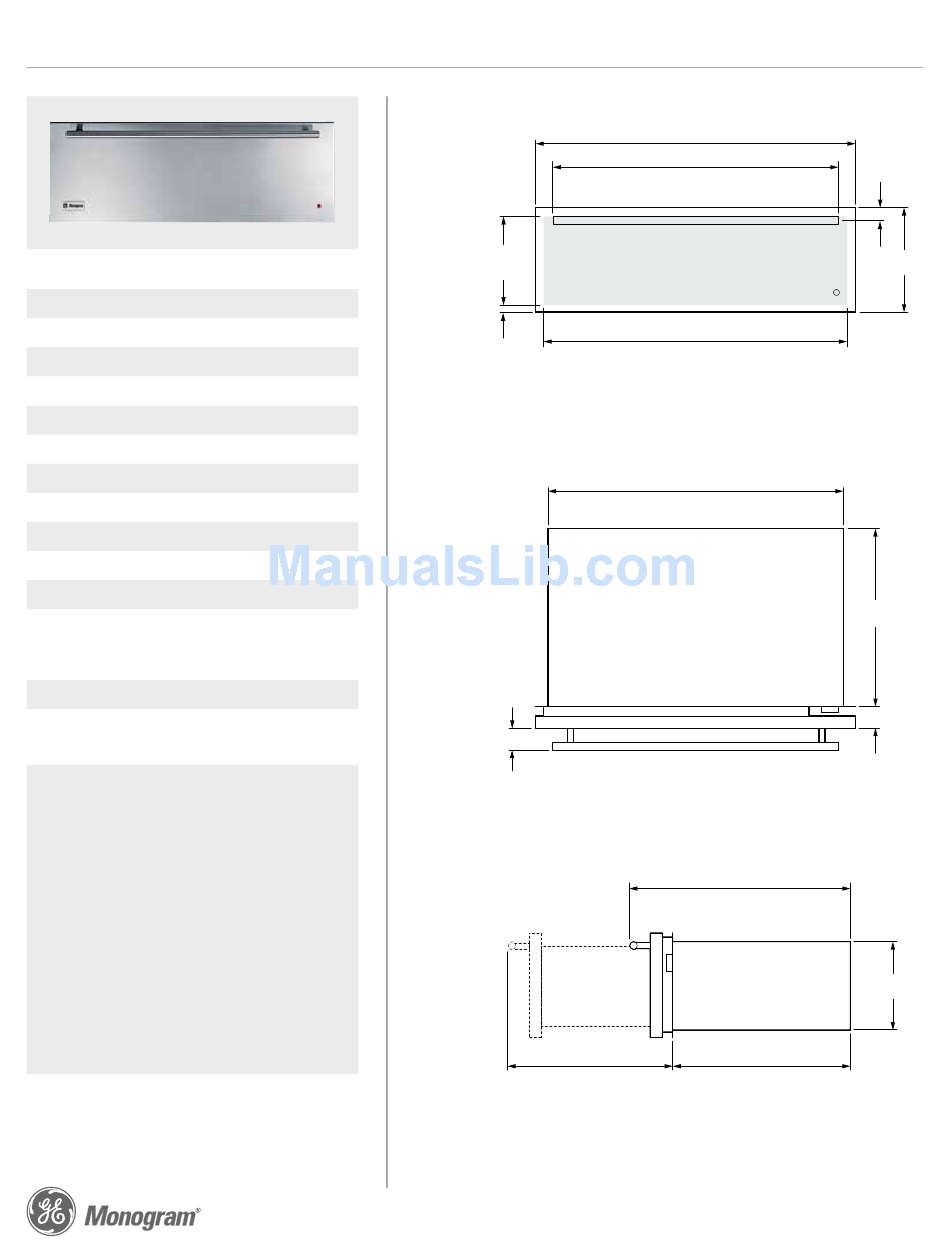

30" Warming Drawer
OVERALL DIMENSIONS
9 1/4"
(23.5)
cutout height
5/8"
(1.6)
FRONT VIEW (SHOWING CUTOUT OVERLAP)
2"
(5.1)
22"
Dimensions in parentheses
are in centimeters unless
otherwise noted. Actual
product dimensions may
vary due to manufacturing
tolerances.
ZTD910SFSS
30"
(76.2)
25 19/32"
(65)
handle width
28 1/2"
(72.4)
cutout width
27 15/16"
(71.0)
TOP VIEW
26"
(66.0)
including handle
23 1/4"
(55.9) (59.0)
SIDE VIEW
Product Specification Created 8/14
1 3/32"
(2.8)
10 1/2"
(26.7)
23 1/4"
(59.0)
29/32"
(2.4)
9"
(22.9)
