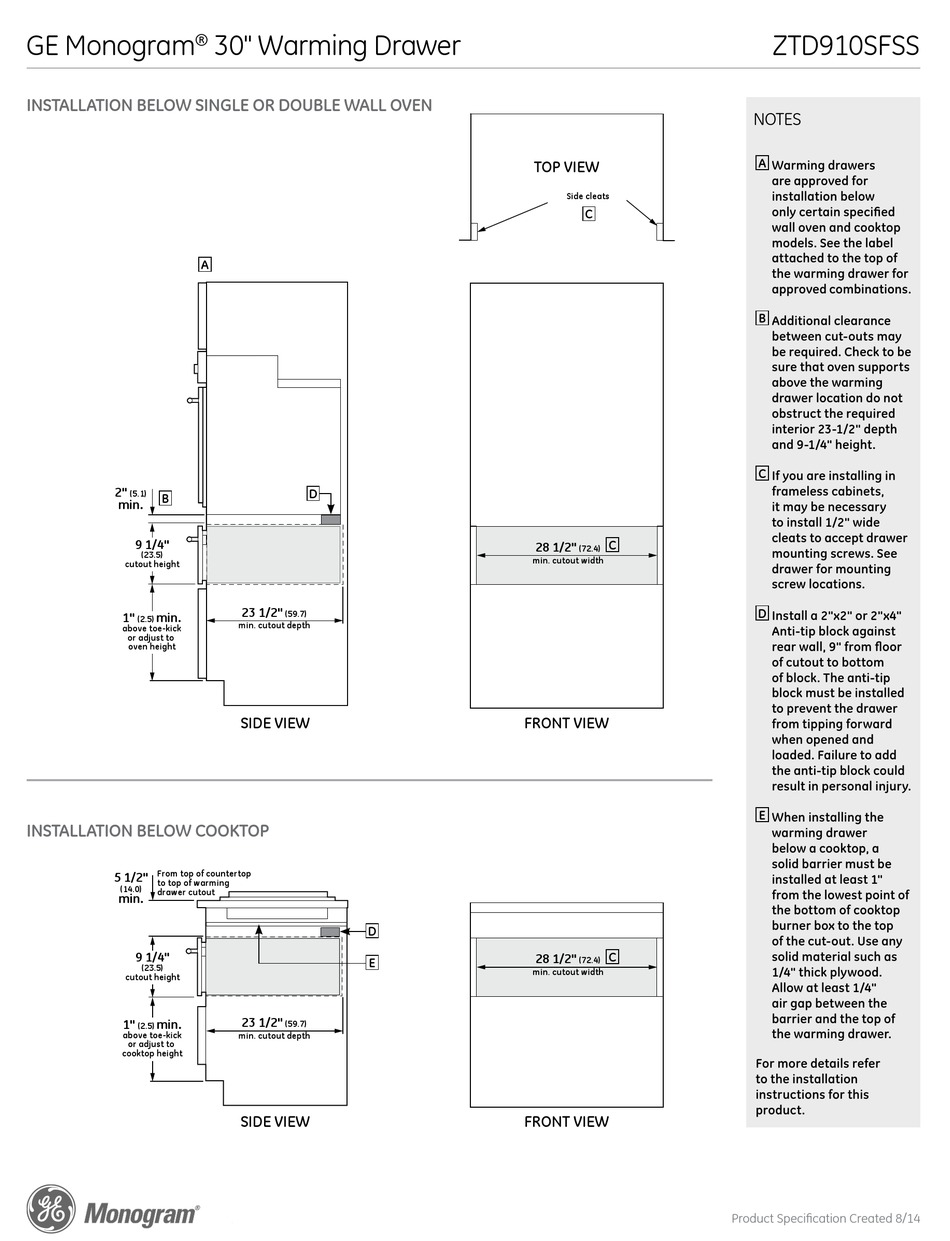

GE Monogram ZTD910SFSS Dimension Manual page 2

GE Monogram
®
INSTALLATION BELOW SINGLE OR DOUBLE WALL OVEN
A
2"
(5.1)
B
min.
9 1/4"
2"
(5.1)
(23.5)
min.
cutout height
9 1/4"
1" (23.5) min.
(2.5)
cutout height
above toe-kick
or adjust to
oven height
1" min.
(2.5)
above toe-kick
or adjust to
oven height
From top of countertop
5 1/2"
to top of warming
INSTALLATION BELOW COOKTOP
(14.0)
drawer cutout
min.
From top of countertop
5 1/2"
to top of warming
(14.0)
drawer cutout
9 1/4"
min.
(23.5)
cutout height
9 1/4"
1" min.
(2.5)
(23.5)
above toe-kick
cutout height
or adjust to
cooktop height
1" min.
(2.5)
above toe-kick
or adjust to
cooktop height
30" Warming Drawer
ZDT910SFSS
ZDT910SFSS
D
23 1/2"
(59.7)
min. cutout depth
23 1/2"
(59.7)
min. cutout depth
SIDE VIEW
SIDE VIEW
D
23 1/2"
E
(59.7)
min. cutout depth
23 1/2"
(59.7)
min. cutout depth
SIDE VIEW
SIDE VIEW
TOP VIEW
Side cleats
C
TOP VIEW
Side cleats
C
28 1/2"
(72.4)
min. cutout width
28 1/2"
(72.4)
min. cutout width
FRONT VIEW
FRONT VIEW
28 1/2"
(72.4)
min. cutout width
C
28 1/2"
(72.4)
min. cutout width
FRONT VIEW
FRONT VIEW
ZTD910SFSS
NOTES
A Warming drawers
are approved for
installation below
only certain specified
wall oven and cooktop
models. See the label
attached to the top of
the warming drawer for
approved combinations.
B Additional clearance
between cut-outs may
be required. Check to be
sure that oven supports
above the warming
drawer location do not
obstruct the required
interior 23-1/2" depth
and 9-1/4" height.
C If you are installing in
frameless cabinets,
it may be necessary
to install 1/2" wide
cleats to accept drawer
mounting screws. See
drawer for mounting
screw locations.
D Install a 2"x2" or 2"x4"
Anti-tip block against
rear wall, 9" from floor
of cutout to bottom
of block. The anti-tip
block must be installed
to prevent the drawer
from tipping forward
when opened and
loaded. Failure to add
the anti-tip block could
result in personal injury.
E When installing the
warming drawer
below a cooktop, a
solid barrier must be
installed at least 1"
from the lowest point of
the bottom of cooktop
burner box to the top
of the cut-out. Use any
solid material such as
1/4" thick plywood.
Allow at least 1/4"
air gap between the
barrier and the top of
the warming drawer.
For more details refer
to the installation
instructions for this
product.
Product Specification Created 8/14
