The R S-­‐485 s erial p ort i s u sed t o c ontrol t he P TZ o f t he c amera. T he c onfiguring o f t he P TZ p arameters
should b e d one b efore y ou c ontrol t he P TZ u nit.
Steps:
1) Enter R S-­‐485 P ort S etting i nterface:
Configuration> A dvanced C onfiguration> S ystem > R S485
2) Set t he R S-­‐485 p arameters a nd c lick
By d efault, t he B aud R ate i s s et a s 9 600 b ps, t he D ata B it i s 8 , t he s top b it i s 1 a nd t he P arity a nd
Flow C ontrol i s N one.
NOTE: T he B aud R ate, P TZ P rotocol a nd P TZ A ddress p arameters o f t he s peed d ome s hould b e
exactly t he s ame a s t hose o f t he r emote c ontrol d evice.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC
User Manual

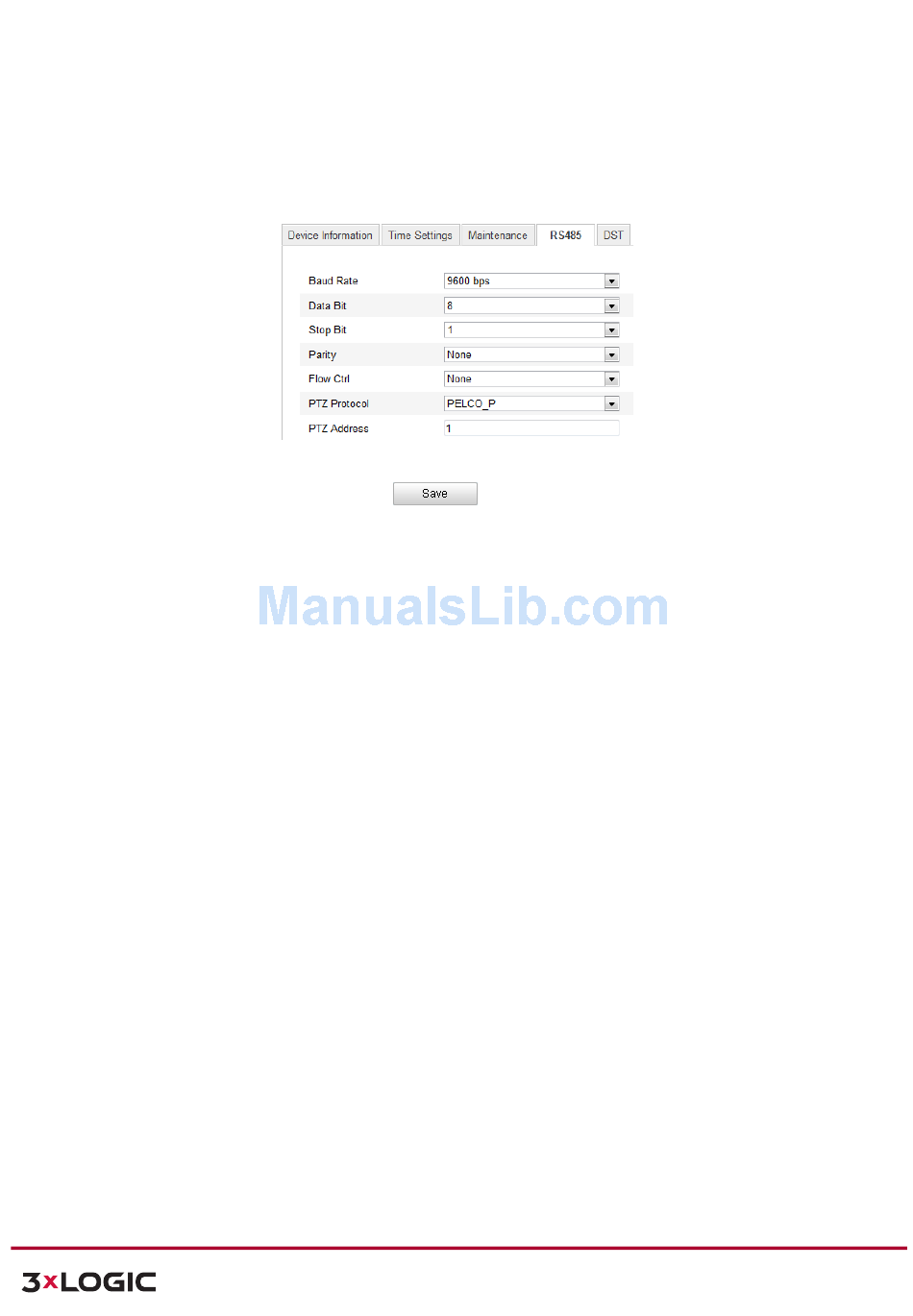

RS-­‐485 S ettings
Figure 10-­‐15
to s ave t he s ettings.
