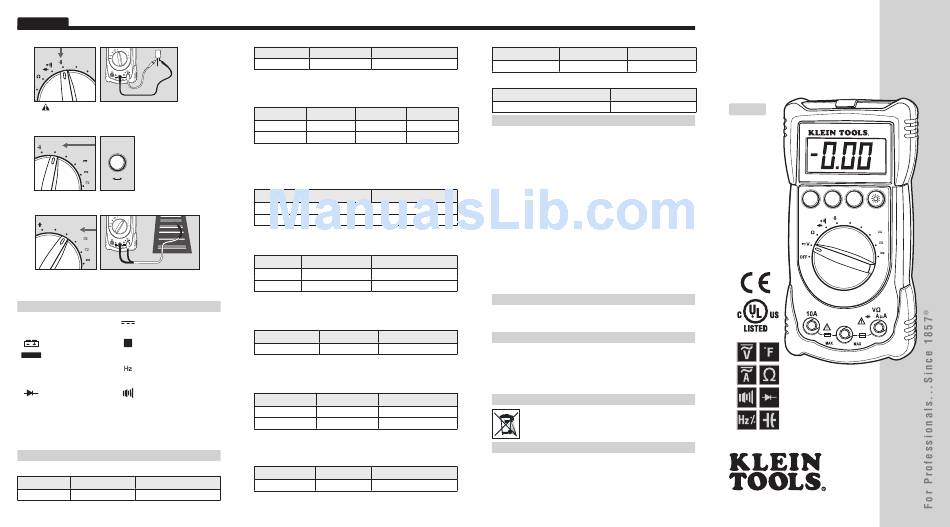

Klein Tools MM200 Instruction Manual

ENGLISH
6. Capacitance < 200μF
z% H
Temp
µA
mA
H A
z%
Temp
Temp
m
COM
600V MAX
10A/250V ~ 400mA/250V ~
• Safely discharge capacitor before measurement.
• Reading may take up to 60 seconds for large capacitors.
7. Frequency (Hz)/duty Cycle < 1MHz
PRESS
H
z%
Temp
µA
H
z%
mA
Hz %
A
• Follow AC Voltage test setup.
8. Temperature: -4° ≤ °F ≤ 1832°
H
z%
Temp
µA
H
z%
mA
A
Temp
µA
Temp
m
COM
600V MAX
~ ~
10A/250V 400mA/250V
mA
A
• Use included thermocouple and adapter.
• Do not apply voltage to thermocouple.
SyMBOLS USEd ON LCd
~
aC Measurement dC Measurement
-
OL
Negative dC Value Overload: Range Exceeded
H
Low Battery Hold active
V
auto Range active Voltage Measurement
AUTO
%
duty Cycle Mode Frequency Mode
A Ω
Current in amps Resistance in Ohms
diode Test Continuity Test
n F
Nano 10 -9 ° Temperature in Fahrenheit
m F
Milli 10 Capacitance in Farads
-3
µ M
Micro 10 -6 Mega 10 6
k
Kilo 10
3
ELECTRICaL SPECIFICaTIONS
dC Voltage Measurement
Range Resolution accuracy
400mV ~ 600V 0.1mV ~ 1V ± (0.5% + 3 digits)
600V RMS > 10MΩ.
Overload Protection: Input Impedance:
aC Voltage Measurement
Range Resolution accuracy
4V ~ 600V 1mV ~ 1V ± (1.2% + 5 digits)
Overload Protection: 600V RMS Frequency: 50 ~ 60Hz
Input Impedance: > 10MΩ Response: Averaging
aC/dC Current Measurement
Range Resolution dC accuracy aC accuracy
400μA ~ 400mA 0.1μA ~ 0.1mA ± (1.0% + 3 d) ± (1.2% + 3 d)
10A 0.01A ± (3.0% + 5 d) ± (3.0% + 5 d)
Overload Protection: Max Input Current:
ma Input: F400mA / 250V fuse ma Input: 400mA DC / AC RMS
• •
F10A / 500V fuse 10A DC / AC RMS
10a Input: 10a Input:
• •
Resistance Measurement
Range Resolution accuracy
400Ω ~ 4MΩ 0.1Ω ~ 0.001MΩ ± (0.8% + 4 digits)
40MΩ 0.01MΩ ± (1.5% + 4 digits)
Overload Protection: 600V RMS
Capacitance Measurement
Range Resolution accuracy
4nF ~ 40μF 0.001nF ~ 0.01μF ± (3.0% + 6 digits)
200μF 0.1μF ± (4.0% + 6 digits)
Overload Protection: 600V RMS
4nF Range: Stated accuracy with film capacitor or better.
Frequency Measurement
Range Resolution accuracy
9.999Hz ~ 999.9kHz 0.001Hz ~ 0.1kHz ± (0.5% + 2 digits)
Overload Protection: 600V RMS
Sensitivity: 0.7V RMS at 1MHz
Temperature Measurement
Range Resolution accuracy
-4°F ~ 32°F 1°F ± (5.0% + 2 digits)
32°F ~ 1832°F 1°F ± (3.0% + 2 digits)
Overload Protection: 600V RMS
K-type thermocouple, accuracy not listed
Sensor:
duty Cycle Measurement
Range Resolution accuracy
0.1% ~ 99.9% 0.1% ± (2% + 5 digits)
Overload Protection: 600V RMS
Frequency: 0.5Hz ~ 100kHz (pulsewidth > 2μsec)
diode Test
Overload Protection Test Current Open Circuit Voltage
600V RMS Appx. 0.6mA Appx. < 1.5V DC
Continuity Test
Overload Protection Open Circuit Voltage
600V RMS Appx. 0.44V
WaRRaNTy
This product is warranted to be free from defects in materials and workmanship
for a period of two years from the date of purchase. During this warranty period,
Klein Tools has the option to repair or replace or refund the purchase price of
any unit which fails to conform to this warranty under normal use and service.
This warranty does not cover damage which occurs in shipment or failure which
results from alteration, tampering, accident, misuse, abuse, neglect, or improper
maintenance. Batteries and damage resulting from failed batteries are not
covered by warranty. A purchase receipt or other proof of original purchase date
will be required before warranty repairs will be rendered.
Any implied warranties, including but not limited to implied warranties of
merchantability and fitness for a particular purpose, are limited to the express
warranty. Klein Tools shall not be liable for loss of use of the instrument or other
incidental or consequential damages, expenses, or economic loss, or for any
claim or claims for such damage, expenses or economic loss.
Some states or countries laws vary, so the above limitations or exclusions may
not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. If your Klein product requires
repair or for information on how to exercise your rights under the terms of this
warranty, please contact Klein Tools at 1-877-775-5346.
CLEaNING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORaGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
dISPOSaL / RECyCLE
Caution: This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
www.kleintools.com
Rev. 06/10
Instruction Instruction
Manual Manual

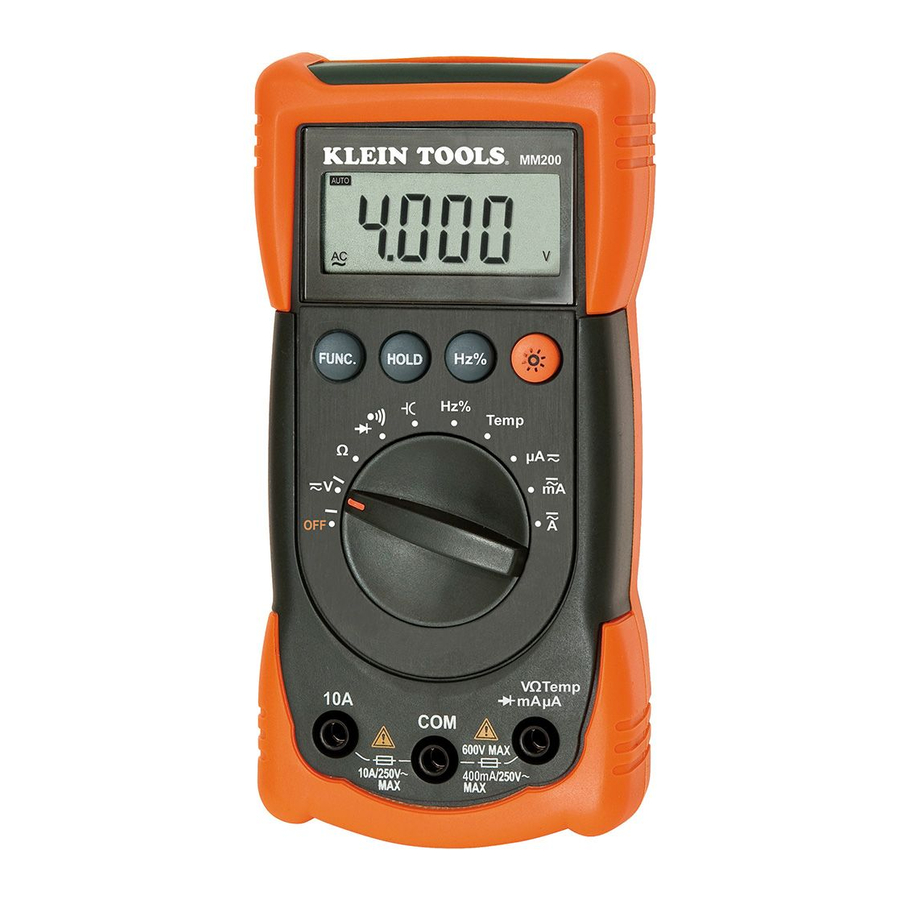

MM200
ENGLISH
• BaCKLIGHT
• KICK STaNd
• LEad
HOLdER
• aUTO
FUNC. HOLD H
z%
RaNGING
H
z%
• daTa HOLd
• 3-3/4 dIGIT
3999 COUNT
LCd
COM
600V MAX
~
10A/500V 400mA/250V
www.kleintools.com
139572T
MM200
Temp
µA
mA
A
Temp
m
CATIII
~
