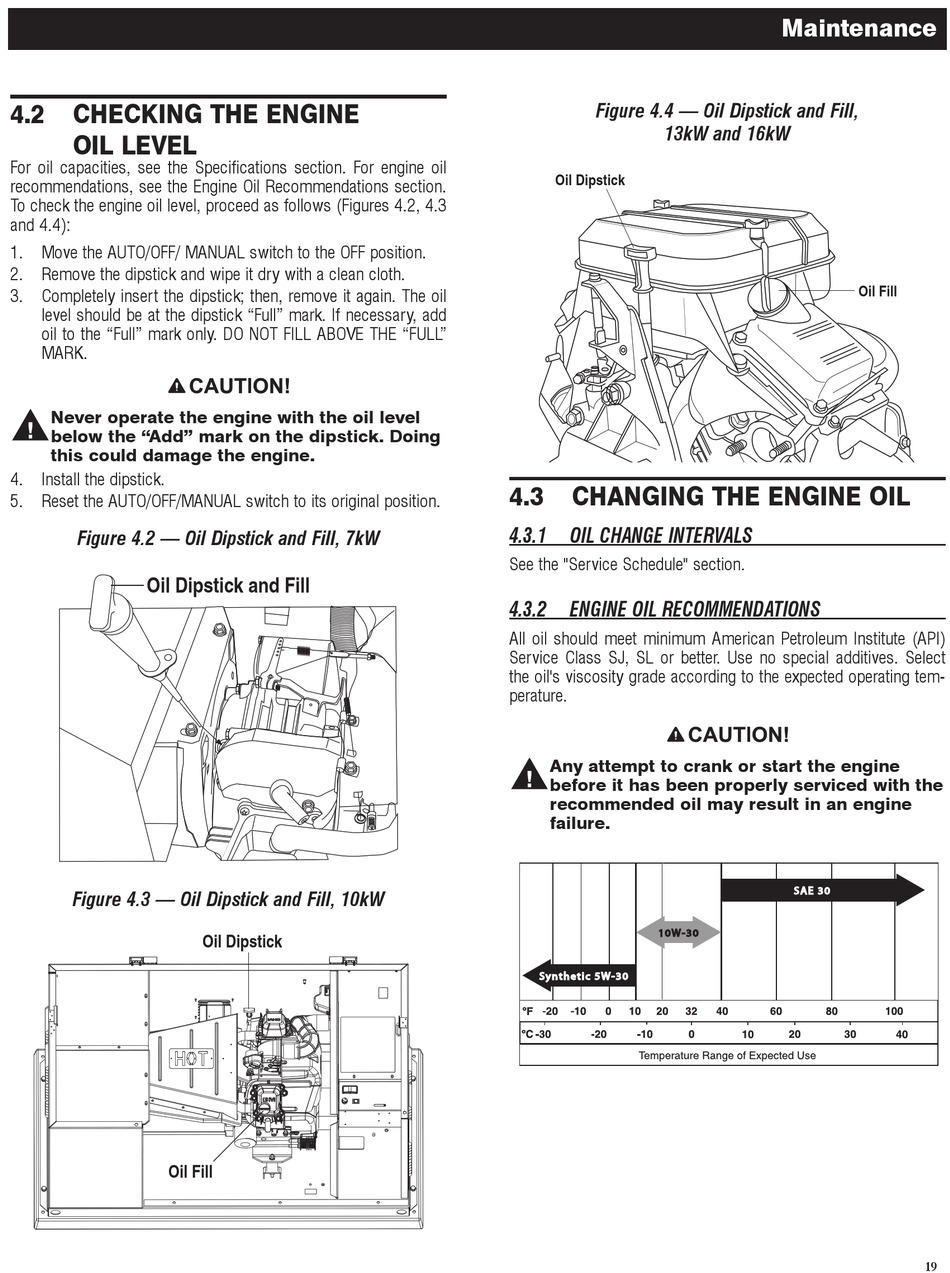

4.2 CHECKING THE ENGINE
OIL LEVEL
For oil capacities, see the Specifications section. For engine oil
recommendations, see the Engine Oil Recommendations section.
To check the engine oil level, proceed as follows (Figures 4.2, 4.3
and 4.4):
1. Move the AUTO/OFF/ MANUAL switch to the OFF position.
2. Remove the dipstick and wipe it dry with a clean cloth.
3. Completely insert the dipstick; then, remove it again. The oil
level should be at the dipstick "Full" mark. If necessary, add
oil to the "Full" mark only. DO NOT FILL ABOVE THE "FULL"
MARK.
Never operate the engine with the oil level
below the "Add" mark on the dipstick. Doing
this could damage the engine.
4. Install the dipstick.
5. Reset the AUTO/OFF/MANUAL switch to its original position.
Figure 4.2 — Oil Dipstick and Fill, 7kW
Oil Dipstick and Fill
Figure 4.3 — Oil Dipstick and Fill, 10kW
Oil Fill
Oil Dipstick
Figure 4.4 — Oil Dipstick and Fill,
13kW and 16kW
Oil Dipstick
4.3

CHANGING THE ENGINE OIL

4.3.1 OIL CHANGE INTERVALS
See the "Service Schedule" section.
4.3.2 ENGINE OIL RECOMMENDATIONS
All oil should meet minimum American Petroleum Institute (API)
Service Class SJ, SL or better. Use no special additives. Select
the oil's viscosity grade according to the expected operating tem-
perature.
Any attempt to crank or start the engine
before it has been properly serviced with the
recommended oil may result in an engine
failure.
10 W - 30 10 W - 3 0
Synthetic 5W-30 Sy nthe ti c 5 W -3 0
Maintenance
Oil Fill
S A E 3 0 S A E 30
19
