Vicon VC-630 Instruction Manual

INSTRUCTION MANUAL XX168-00
VC-630 AND VC-630C
COLOR BOX CAMERAS
About this manual
Before installing and using the camera, please read this manual
carefully. Be sure to keep it handy for later reference.

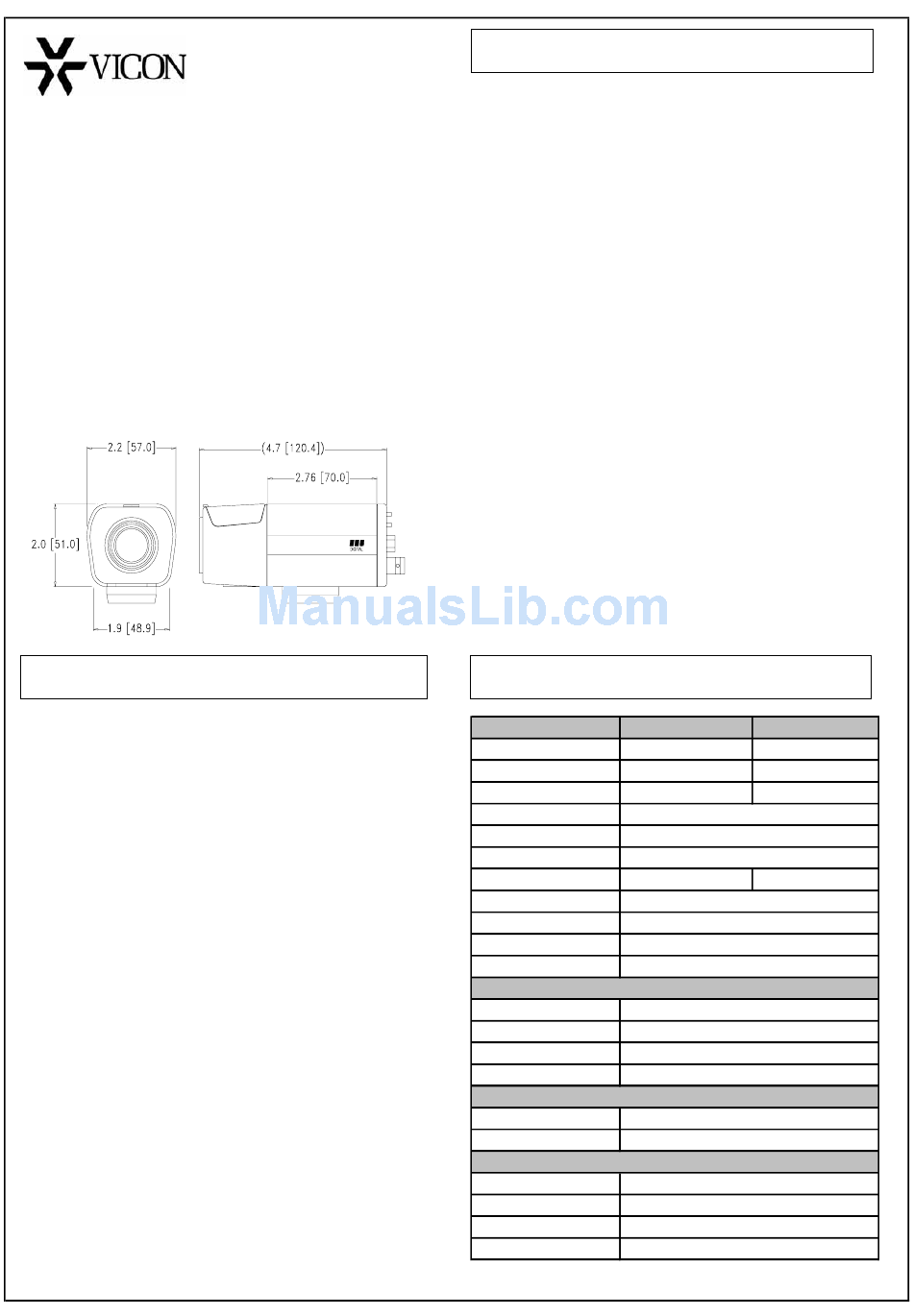

Dimensions : inches (mm)

TROUBLESHOOTING

Before sending the camera out for repair, check the items
below. If the problem persists after checking these items,
contact your service center.
■ If no image appears
Is the coaxial cable attached securely?
Are the power and voltage normal?
Has the iris of the lens inside the camera been
adjusted correctly (with the level volume) ?
Is there adequate illumination?
■ If the image is unclear
Is the lens in focus?
Is the lens dirty?
Dirt or fingerprints on the lens can adversely affect the
images. Gently wipe any dirt or fingerprints off the lens
with a soft cloth or lens cleaning paper and cleaning
fluid (commercially available).
Is the monitor adjusted correctly?
WARNING:
TO PREVENT THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

PRECAUTIONS

■ Do not open or modify
Do not open the case except during maintenance and
installation, as it may be dangerous and cause damages.
■ Do not put objects inside the unit
Make sure that no metal objects or flammable substances
get inside the camera. It could cause fire, short-circuits or
damages.
■ Be careful when handling the unit
To prevent damage, do not drop the camera or subject
it to strong shock or vibration.
■ Install away from electric or magnetic fields
■ Protect from humidity and dust
■ Protect from high temperature
Be careful when installing close to the ceiling , in a kitchen
or boiler room, as the temperature may rise to high levels.
■ Cleaning
Dirt can be removed from the case only by wiping it
with a soft cloth moistened with a soft detergent solution.
■ Mounting Surface
The mounting surface material must be strong enough to
secure the camera.

SPECIFICATION

General
CCD TYPE 1/3" 410K Pixels Color 1/3" 470K Pixels Color
Total Number of Pixels
Scanning System
Horizontal Resolution
Sensitivity to Light [30IRE]
Gamma Correction
Shutter Speed 1/60 - 1/100,000[NTSC] 1/50 - 1/100,000[PAL]
S/N Ratio
Synchronization
Video Output
White Balance
Control DIP Switch
ME/AE
FLC
MIRROR
BLC
Electrical Spec
Operating Voltage DC12V(DC11.0V~20.0), AC24V(20.0V~27.0V)
Consumption
Mechanical Spec
Operating Temperature
Air Humidity
Connection via
Dimensions (W x H x D)
NTSC PAL
811[H] x 508[V] 795[H] x 596[V]
525 Lines 625 Lines
480TV Line
0.02fc, 0.2Lux(Scene) With F1.2 Lens
0.45
> 45dB
Internal / External
1.0Vp-p/75 ohm Composite
Auto
DIP Switch Select ME/AE (ON/OFF)
DIP Switch Select ON/OFF
DIP Switch Select ON/OFF
DIP Switch Select ON/OFF
DC12V 1.65[W], AC24V 1.7[W]
14˚F - 131˚F (-10˚C - +55˚C)
Up to max. 85%
BNC / Terminal block
2.2 x 2.0 x 4.7inch (57x51x120mm)
