DATE:
TO:
CERTIFIED
LOW-NOISE DIESEL-POWERED
AC GENERATOR
DG450UMI-QD
SPECIFICATIONS
CHAPTER 1: GENERAL
CHAPTER 2: EQUIPMENT SPECIFICATIONS
ATTACHED DRAWINGS
APPEARANCE
•
GENERATOR WIRING
•
ENGINE WIRING
•
6-2-11, Ozuka-Nishi, Asaminami-Ku, Hiroshima, 731-3167, Japan
MODEL: DG250MI-Q1
(200/400)
SHINDAIWA Corporation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shindaiwa DG450UMI-QD
Summary of Contents for Shindaiwa DG450UMI-QD

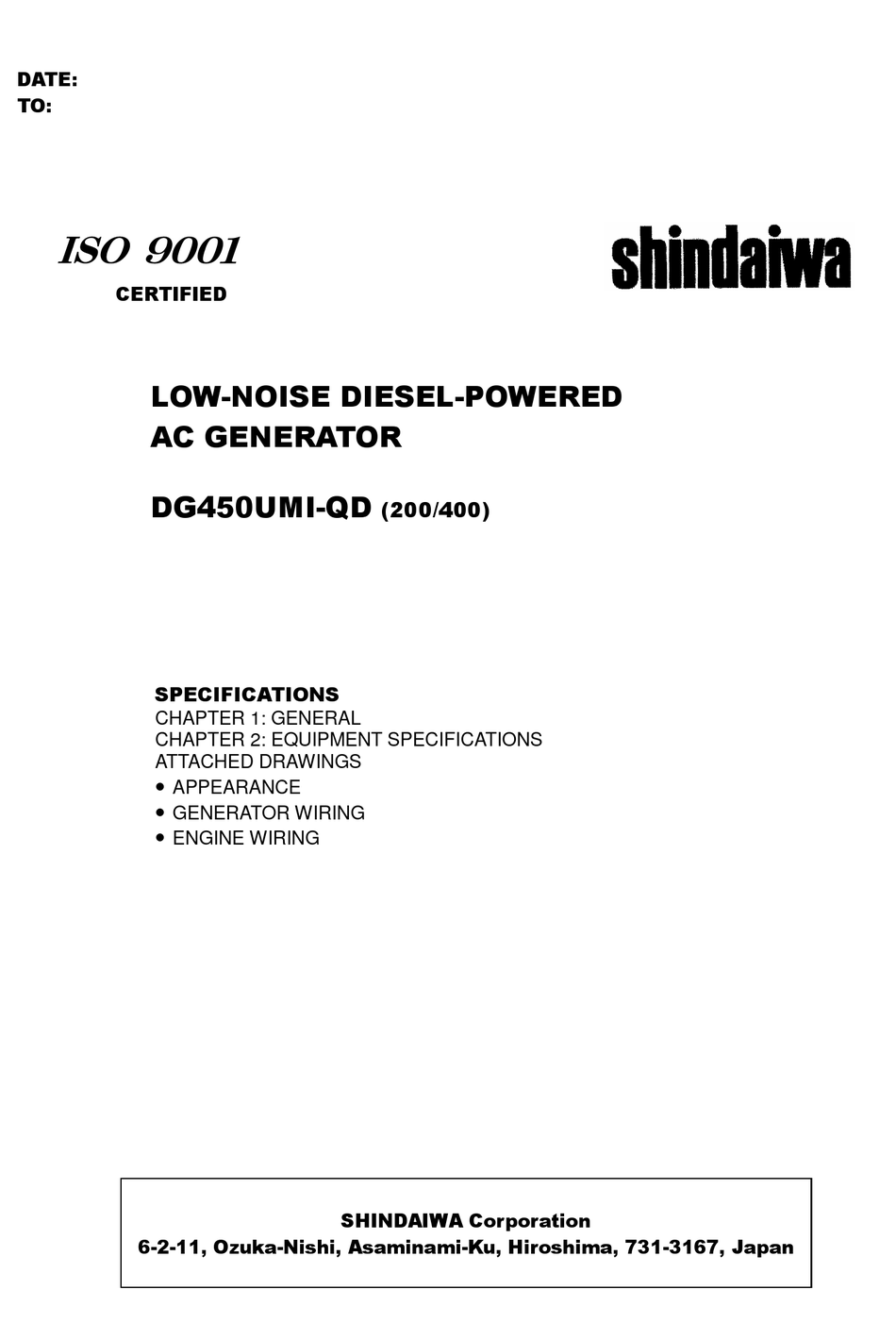

- Page 1 DATE: CERTIFIED LOW-NOISE DIESEL-POWERED AC GENERATOR MODEL: DG250MI-Q1 DG450UMI-QD (200/400) SPECIFICATIONS CHAPTER 1: GENERAL CHAPTER 2: EQUIPMENT SPECIFICATIONS ATTACHED DRAWINGS APPEARANCE • GENERATOR WIRING • ENGINE WIRING • SHINDAIWA Corporation 6-2-11, Ozuka-Nishi, Asaminami-Ku, Hiroshima, 731-3167, Japan...
-
Page 2: Chapter 1 General
Chapter 1 General 1. Standards The designs and the productions are in conformity with: (1) Japan Industrial Standards (2) Electricity Academy Corporation - Electricity Standard Research Association Standard (JEC) (3) Japan Electric Industries Corporation Standard (JEM) (4) Japan Combustion Generating Equipment Corporation (5) Ministry of Construction (Low Noise Type Construction Machinery Standard) (6) Ministry of Construction (Construction Machinery Gas Emission Regulation Standard) 2. -
Page 3: Specification
SPECIFICATION Model DG450UMI-QD Item Brushless, 3-Phase synchronous AC generator AC generator Frequency (Hz) 50/60 (k VA) 37/45 Rated output (kW) 29.6/36.0 Rated voltage 200/220, 400/440 Rated amperage 107/108, 53.5/59 Number of polarity ― Rated power factor ― 0.8 (lagging) 100/110... -
Page 4: Chapter 2 Equipment Specifications
Chapter 2 Equipment Specifications 1. Diesel Engine Model: ISUZU BB-4JG1T Displacement: 3.050 L Rated Output/Rated Speed: 35.4kW {48.10PS}/42.6kW{57.9PS} : 1500/1800min {rpm} Fuel: Diesel Fuel ASTM No. 2 or Equivalent Fuel Filter: Paper Filter Automatic Air Extraction: Standard Accessory External Fuel Changeover: Standard Accessory Battery: 95D31R (12V-64AH) 2. - Page 5 4. Control Devices, Gauges and Protection Devices 1) Control Device Breaker: Circuit Breaker (Rate 600V 125A) : Circuit Breaker (Rate 600V 75A) Exciter Circuit: Automatic Voltage Regulator (F/V Characteristic) Current Leakage Shut Off Device: 30mA 0.1 second 2) Gauges (Displays) AC Volt Meter: 0-600V AC Ampere Meter: 0-75/150A Frequency Meter: 45-65Hz...
-
Page 6: Front View
APPEARANCE • FRONT VIEW RIGHT SIDE VIEW... -
Page 7: Left Side View
LEFT SIDE VIEW TOP VIEW... -
Page 8: Control Panel
CONTROL PANEL Name Description of function 3-phase circuit breaker Turns the power supply to load equipment ON (closed) and OFF (open). 1-Phase circuit breaker Turns the power supply to load equipment ON (closed) and OFF (open). Voltage meter Indicates voltage. AC ampere meter Indicates phase current. - Page 9 Description of function Name Pre-heat indicator The indicator lights when the key switch is set to the [ON] position, and starts pre-heating. Starter switch OFF: stops engine operation. ON: supplies electricity for control operation, and starts pre-heating. START: starts an engine operation Throttle lever Low idling or rated speed selecting lever.
- Page 10 GENERATOR WIREING •...
- Page 11 ENGINE WIRING •...
- Page 12 MENO Product code: 71091-00000 2005.12...
